Product Overview
The SC HYDRAULIC 10-5000W020L is a pneumatically driven liquid pump engineered to convert standard compressed air pressure into high-pressure hydraulic output for testing, clamping, and pressure-holding circuits. Manufactured by SC Hydraulic Engineering Corporation, this air-driven liquid pump utilizes a differential-area piston principle in which a large-diameter air drive piston acts on a smaller hydraulic plunger, producing a pressure intensification ratio that allows the unit to reach high output pressures from a modest shop air supply. Because the pump is driven by compressed air rather than an electric motor, it is inherently safe for use in hazardous, wet, or explosive atmospheres, generates no heat buildup during stall conditions, and holds pressure indefinitely without energy consumption. The 10-5000W020L is a self-priming, reciprocating positive-displacement pump suited to intermittent and continuous duty in industrial pressure generation, hydrostatic testing, and hydraulic work-holding systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Pump (Air-Driven / Pneumatic Liquid Pump) |
| Model Designation | 10-5000W020L |
| Manufacturer | SC Hydraulic Engineering Corporation |
| Drive Principle | Reciprocating air piston driving a differential-area hydraulic plunger |
| Operating Pressure | Standard Industrial Grade (high-pressure output generated from compressed air drive; up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (air inlet and hydraulic outlet ports) |
| Duty Cycle | Continuous or intermittent; holds pressure at stall without heat generation |
| Priming | Self-priming positive displacement |
Engineering Features & Advantages
- Precision Performance: The differential-area piston design delivers stable, repeatable high-pressure output proportional to the applied air drive pressure, enabling accurate pressure control in testing and clamping circuits.
- Intrinsically Safe Operation: Air-driven actuation eliminates electrical motors, sparks, and heat, making the pump suitable for hazardous, flammable, or washdown environments.
- No-Heat Stall Capability: The pump holds output pressure indefinitely when the air drive stalls, consuming no energy and generating no thermal buildup in the hydraulic circuit.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust sealing and wear-resistant plunger components.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards for drop-in service and retrofit.
Typical Industrial Applications
The SC HYDRAULIC 10-5000W020L is widely deployed in hydrostatic pressure testing of valves, hoses, and pressure vessels; hydraulic work-holding and clamping fixtures on CNC machine tools; plastic injection molding and die-casting machine pressure circuits; and bolt-tensioning, pressurization, and calibration
PRODUCT IMAGES

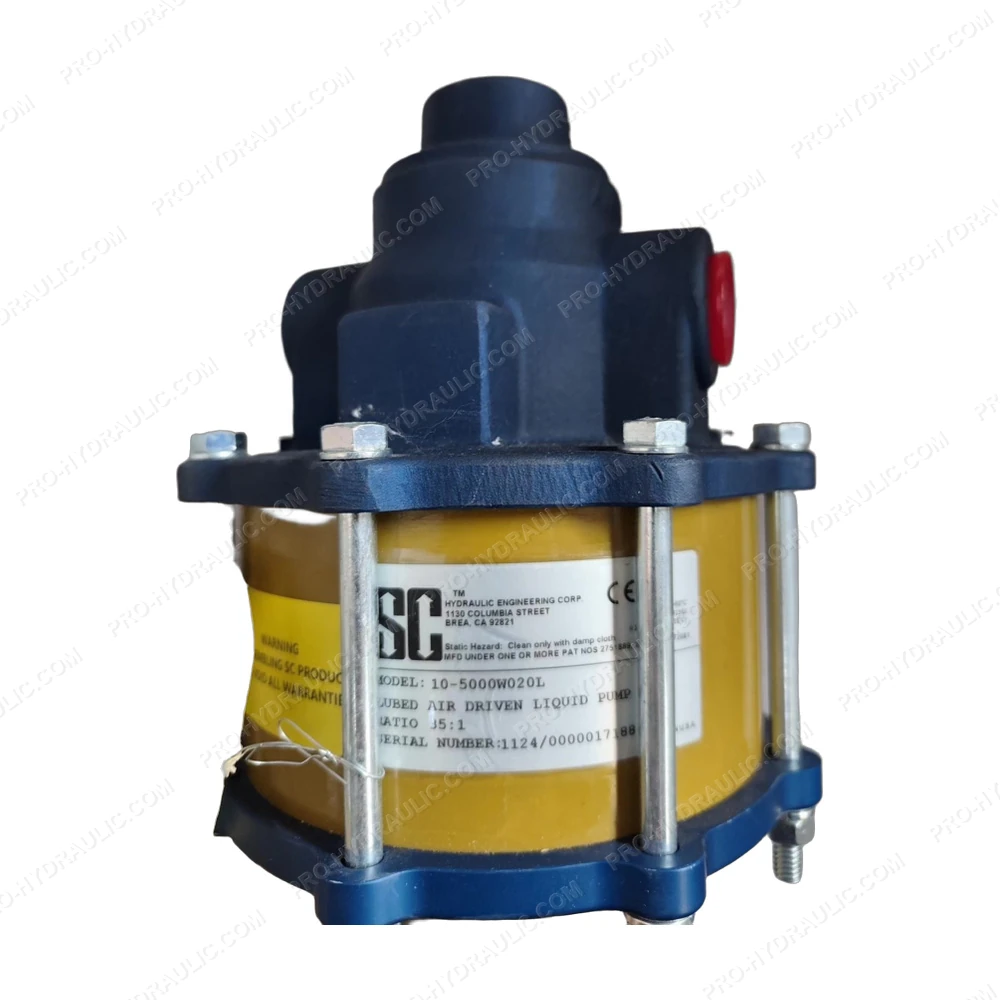

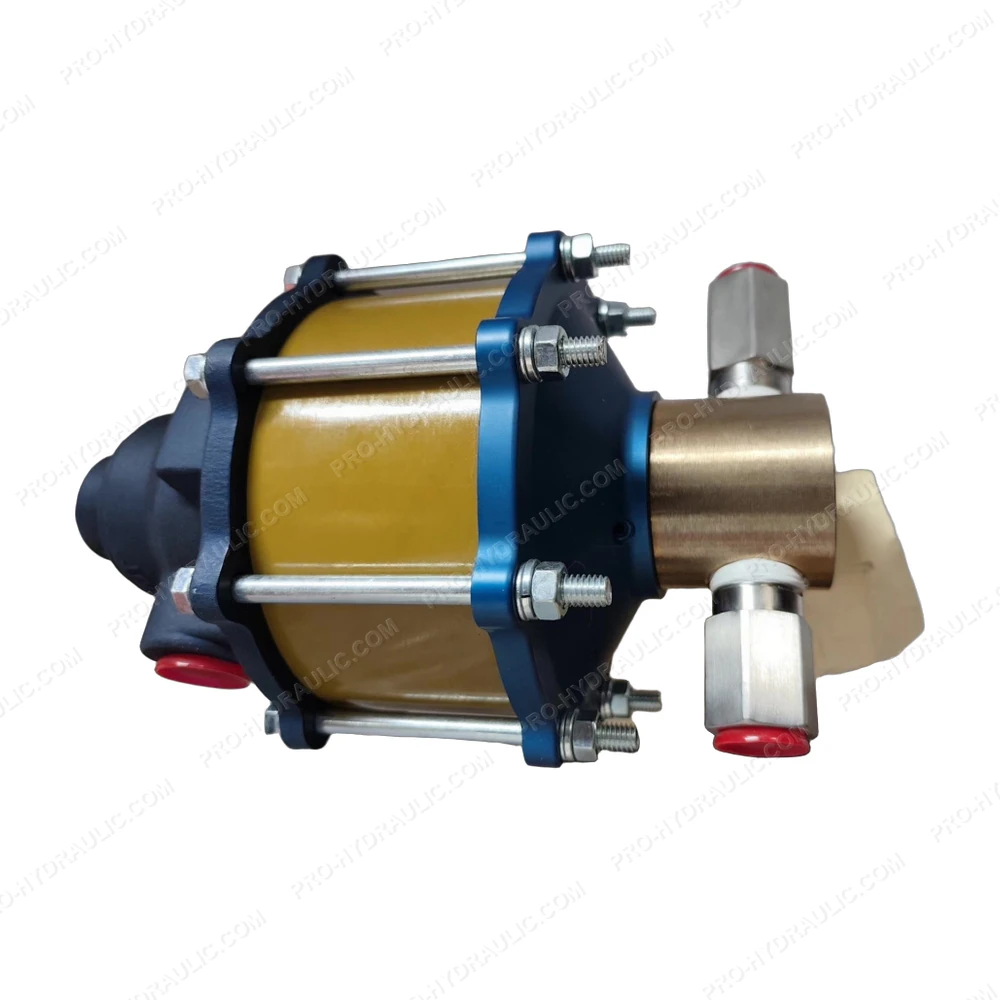

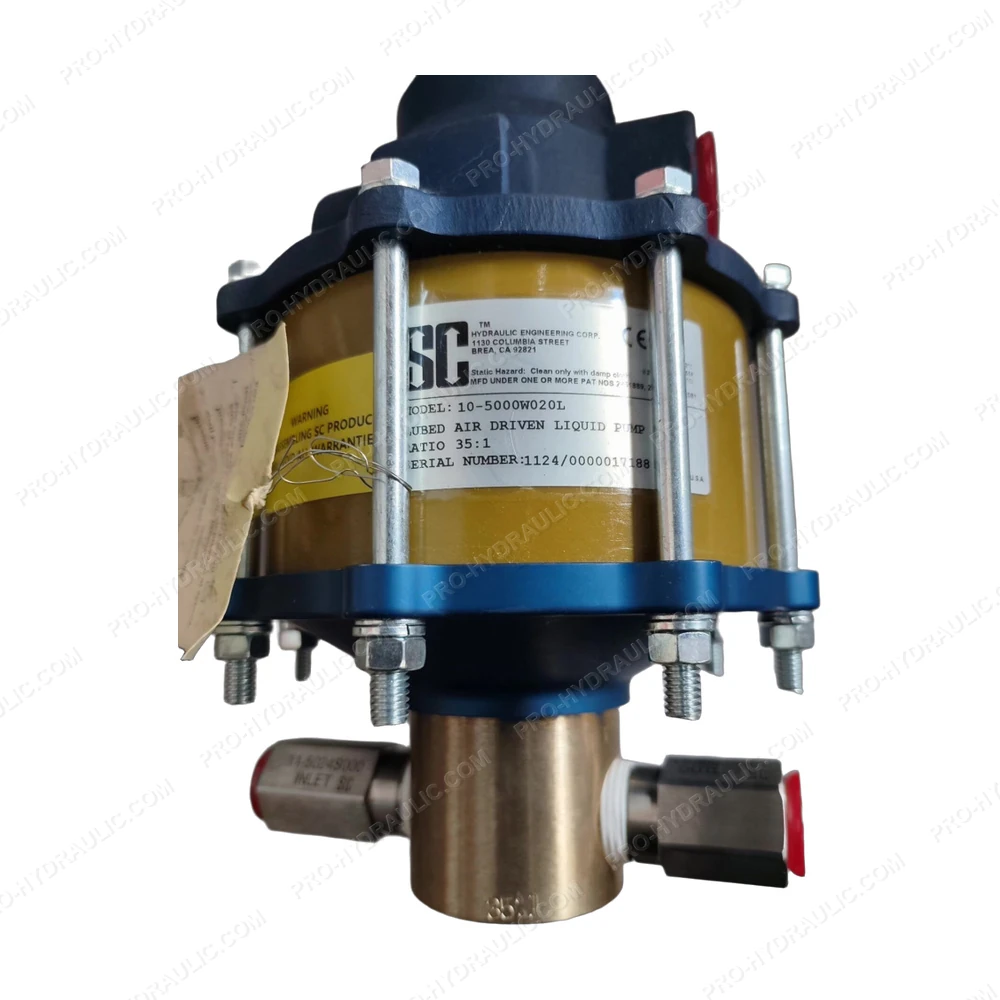

SC HYDRAULIC 10-5000W020L Air-Driven Liquid Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
