Product Overview
The SCA 0502.0011 is a solenoid-actuated directional spool valve engineered for precise control of hydraulic fluid flow direction in industrial power circuits. As a standard directional control valve, it utilizes a hardened, precision-ground spool within a close-tolerance bore to route pressurized oil between ports, enabling extension, retraction, and holding functions of hydraulic actuators. The solenoid pilot mechanism provides fast, reliable electrical actuation for automated sequencing, interlocking, and safety circuits, making this valve a fundamental building block in manifold and inline hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (Standard Directional Control Valve) |
| Model Designation | SCA 0502.0011 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO 4401 / CETOP Subplate Interface |
| Actuation Type | Solenoid Pilot Operated (AC/DC coil options) |
| Spool Configuration | Precision-ground sliding spool, closed/open center options |
| Flow Capacity | Optimized for standard industrial flow rates (up to 80 L/min nominal) |
Engineering Features & Advantages
- Precision Spool Metering: Hardened, lapped spool-to-bore fit ensures minimal internal leakage, accurate flow direction control, and repeatable response for critical sequencing operations.
- Fast Solenoid Response: High-efficiency solenoid pilot design delivers rapid shift times, reducing cycle latency in automated hydraulic circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation and contamination-tolerant spool clearances.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including ISO 4401 subplate mounting and standard electrical connector interfaces.
Typical Industrial Applications
The SCA 0502.0011 solenoid directional spool valve is widely deployed in plastic injection molding machines for mold open/close and ejector sequencing, metallurgical presses for ram advance and return control, construction and marine hydraulic systems for steering and implement circuits, and CNC machine tools for tool clamping, pallet changing, and axis brake release functions. Its reliable solenoid actuation and precise spool control make it suitable for any industrial application requiring dependable directional flow management.
PRODUCT IMAGES

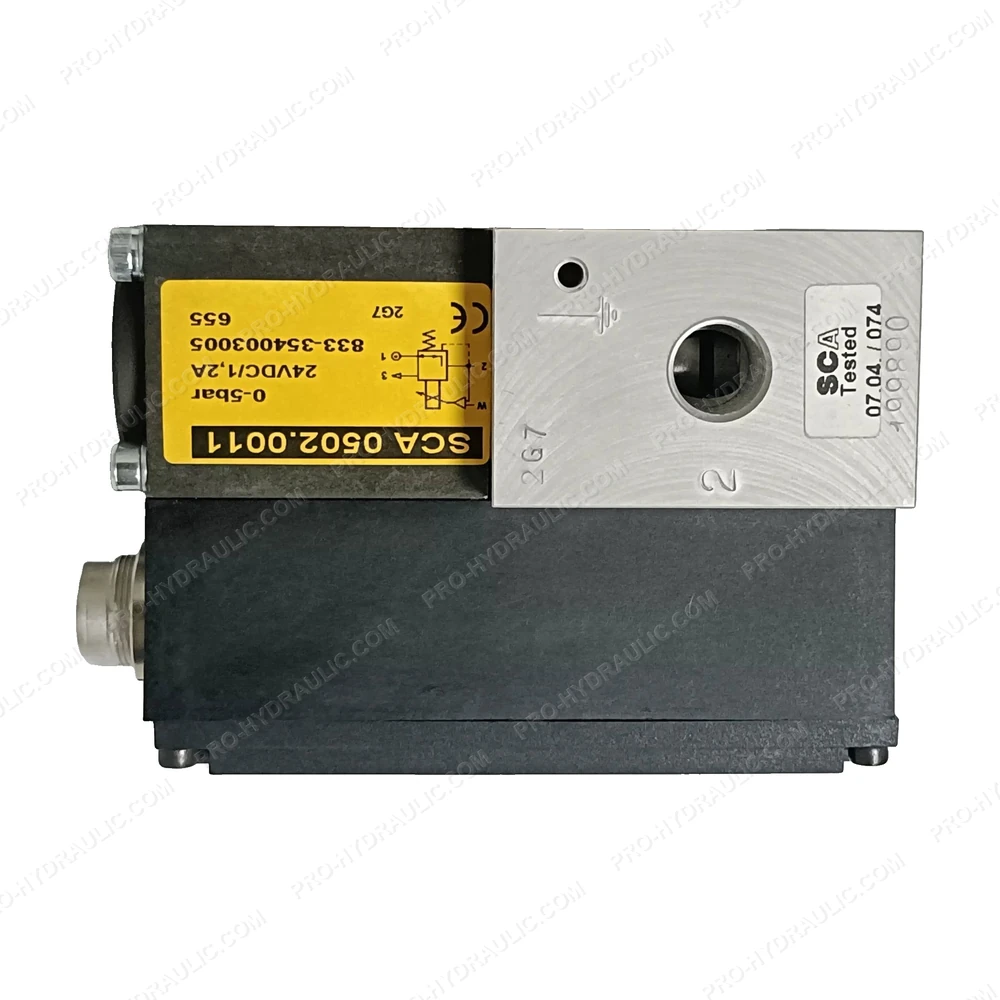

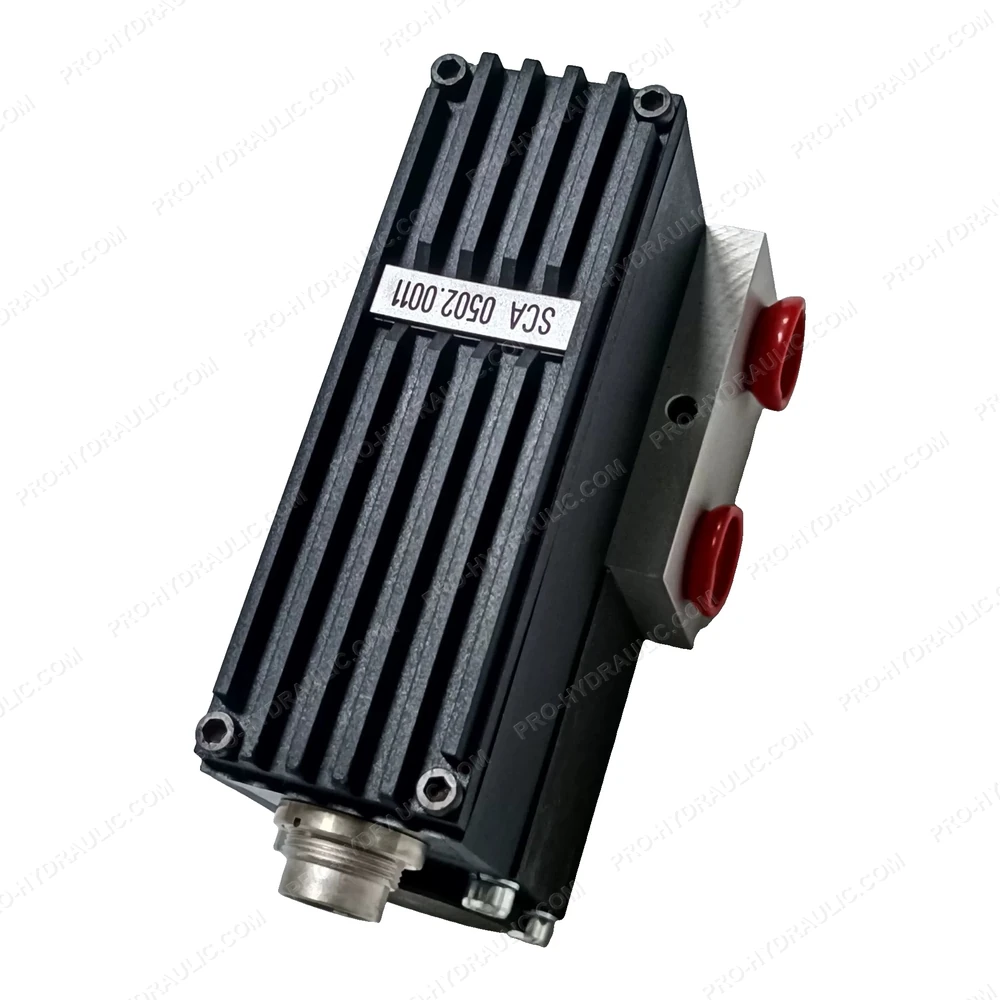

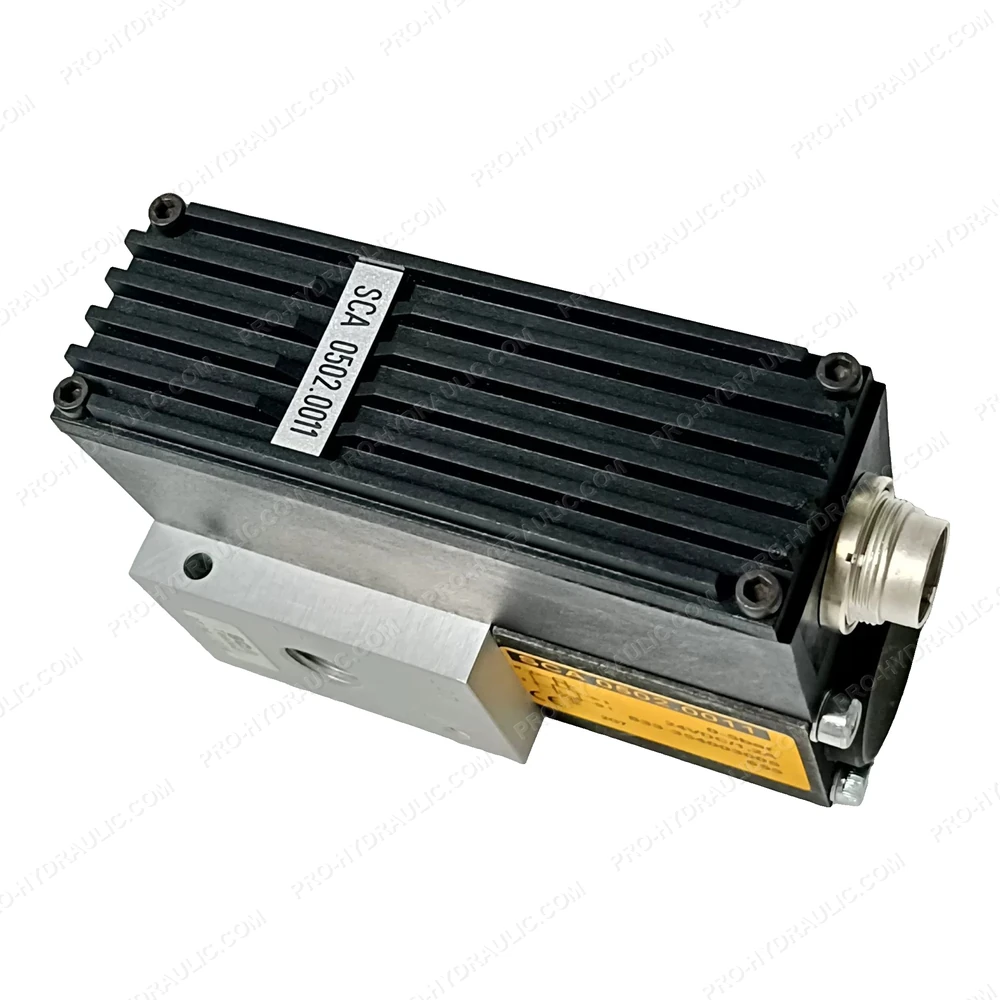

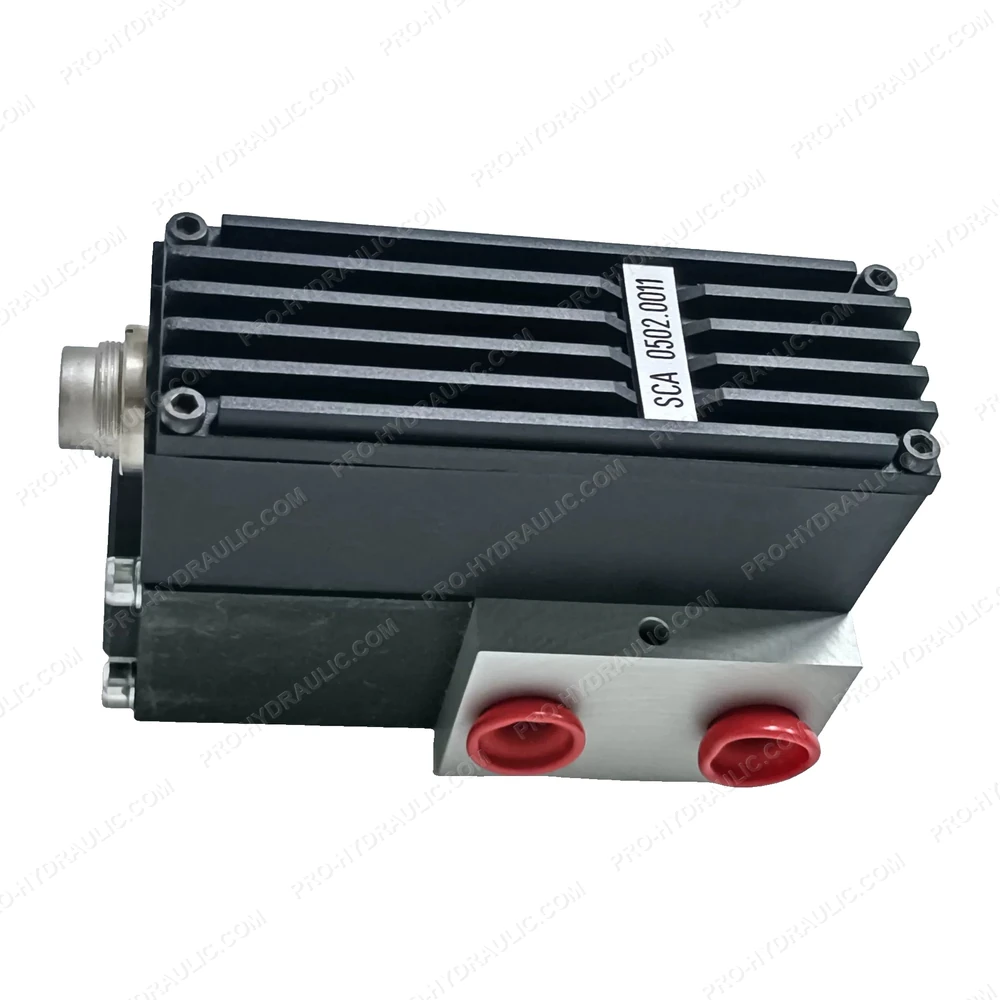

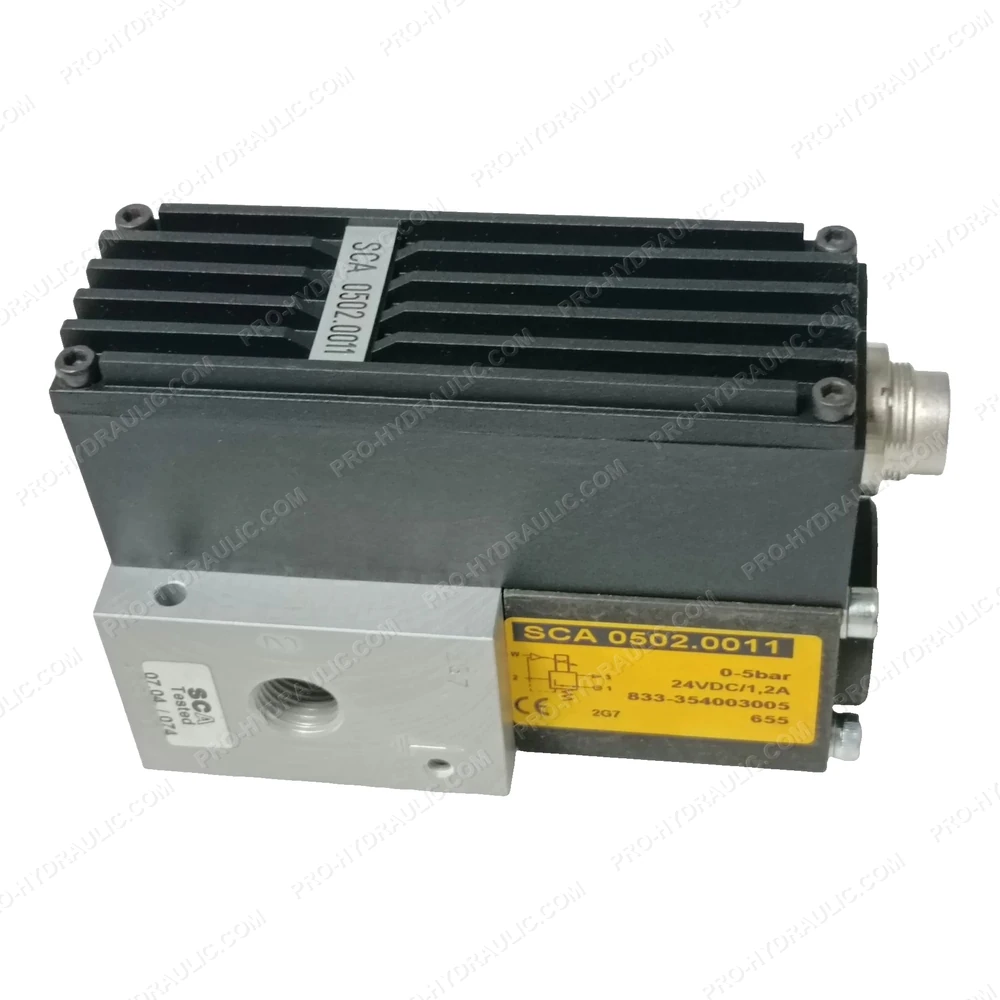

SCA 0502.0011 Solenoid Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SCA 0502.0011 Solenoid Directional Spool Valve. This German-made 24V DC hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
