Product Overview
The SCHMALZ EMVP-25-24V-DC-3/2-NO/NC is a precision-engineered solenoid-operated vacuum valve designed for reliable control of vacuum and low-pressure pneumatic circuits in automated industrial handling systems. Manufactured by SCHMALZ, a globally recognized leader in vacuum automation technology, this 3/2-way directional valve features a 24V DC solenoid actuation with selectable Normally Open (NO) and Normally Closed (NC) configurations, providing flexible integration into vacuum gripping, pick-and-place, and material handling operations. The valve delivers fast, repeatable switching performance with minimal pressure loss, ensuring stable vacuum supply and rapid response times essential for high-cycle industrial automation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Vacuum Valve (3/2-Way Directional Control Valve) |
| Model Designation | EMVP-25-24V-DC-3/2-NO/NC |
| Valve Function | 3/2-Way (3 ports, 2 positions) — NO/NC selectable |
| Actuation Type | Direct-acting solenoid, 24V DC |
| Operating Pressure | Vacuum to low-pressure pneumatic range (industrial grade) |
| Nominal Orifice Size | 25 (referenced by model designation) |
| Mounting & Connection | Standard SCHMALZ interface / threaded port connections |
| Response Time | Fast switching, optimized for high-cycle automation |
Engineering Features & Advantages
- Precision Vacuum Control: Direct-acting 3/2-way spool design ensures accurate and repeatable switching between vacuum generation, hold, and vent positions, critical for delicate pick-and-place operations.
- Flexible NO/NC Configuration: Selectable Normally Open or Normally Closed operation allows adaptation to diverse system safety requirements and control logic without additional components.
- Low Power 24V DC Solenoid: Energy-efficient solenoid coil compatible with standard industrial control voltages, enabling direct PLC integration and reduced wiring complexity.
- Industrial Reliability: Built for continuous operation under demanding industrial conditions, with robust sealing and durable valve body construction ensuring long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SCHMALZ OEM standards, ensuring drop-in replacement without system modification.
Typical Industrial Applications
This solenoid vacuum valve is ideally suited for automated vacuum gripping and handling systems, pick-and-place robotics, packaging machinery, plastic injection molding part removal, CNC machine tool loading/unloading, and general pneumatic process control where precise vacuum switching and rapid response times are essential for production efficiency.
PRODUCT IMAGES

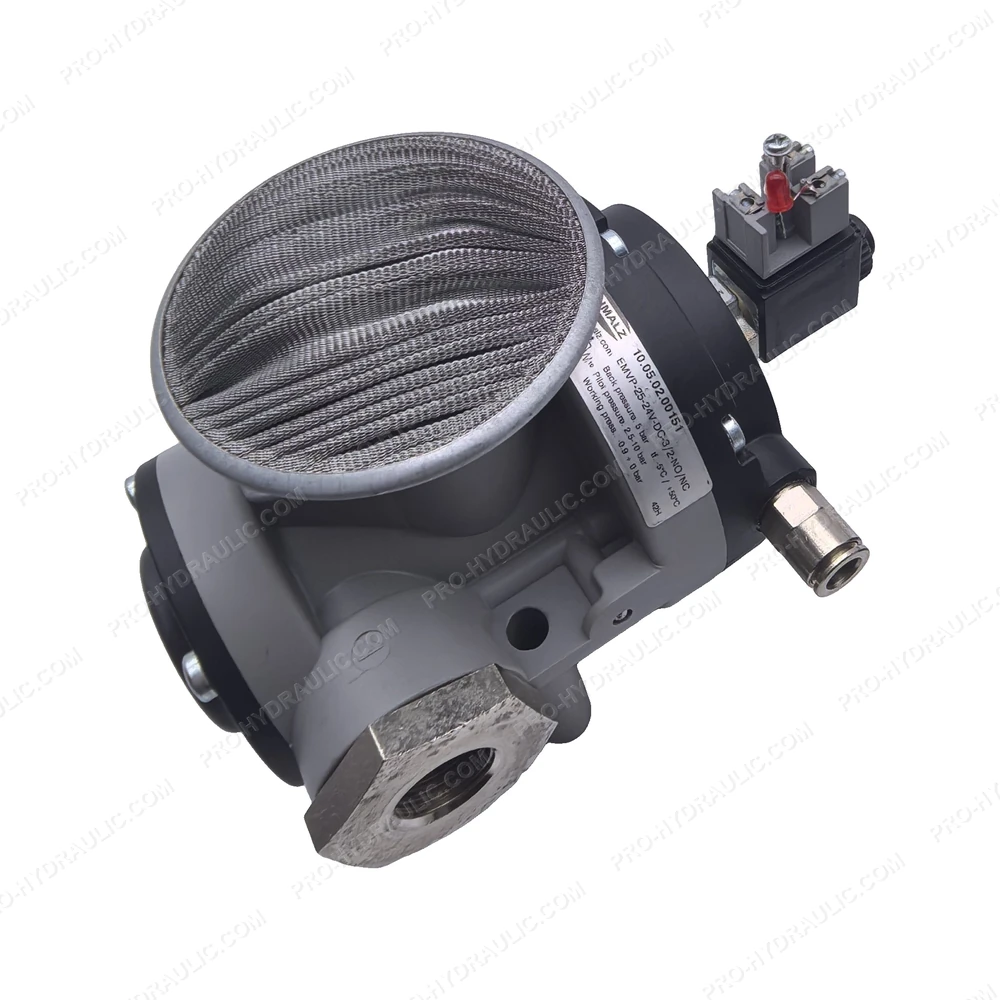

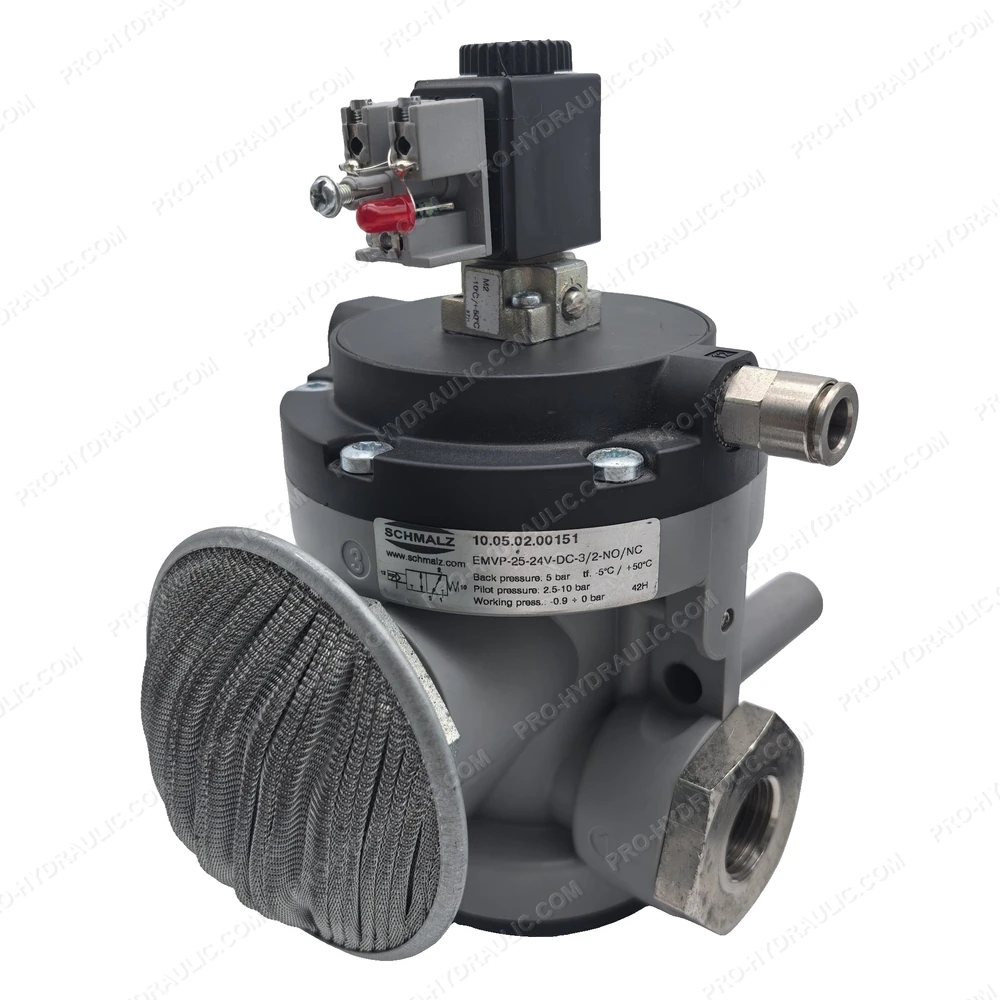

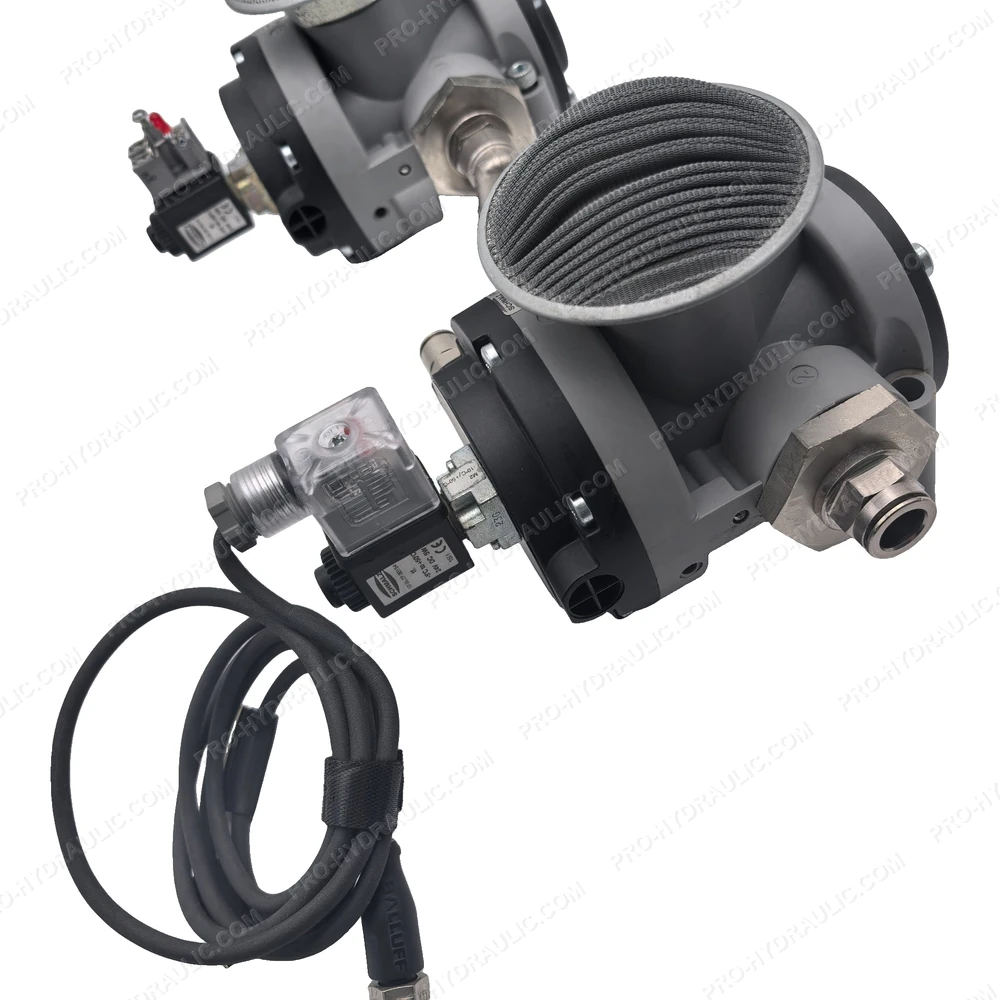

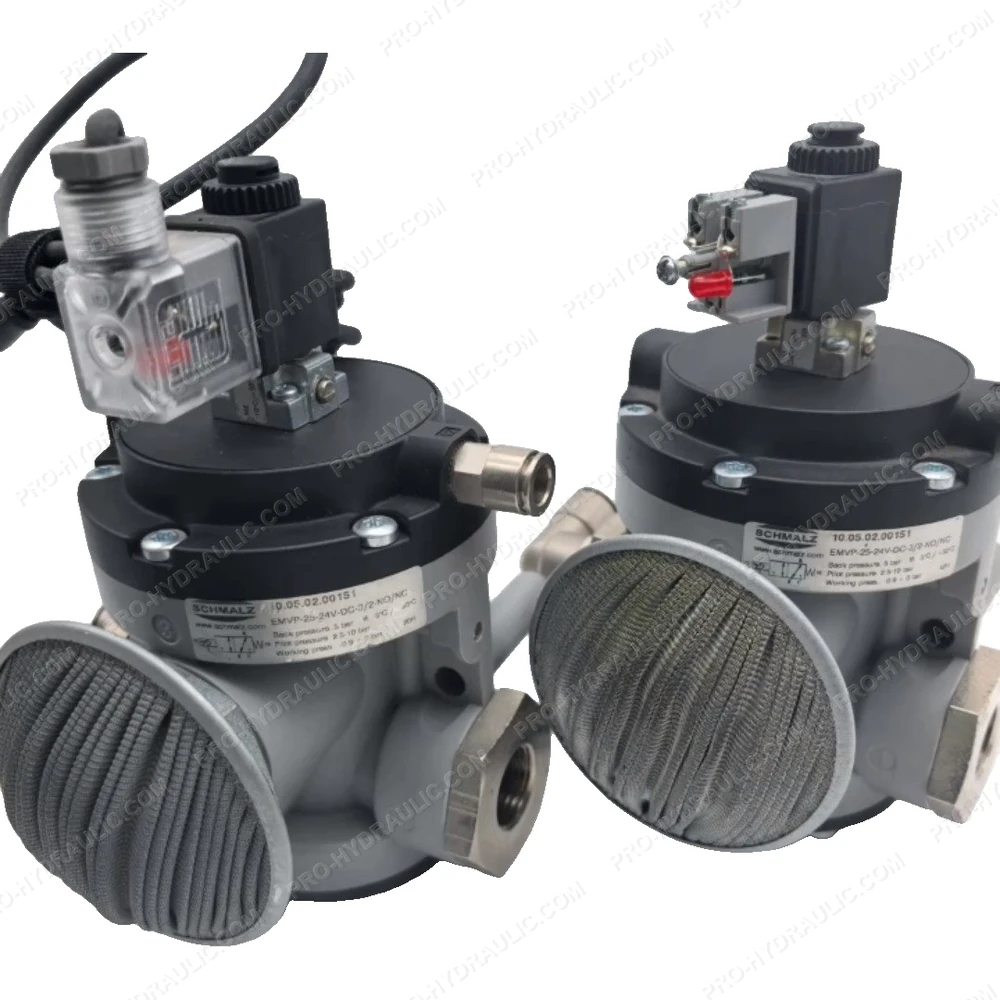

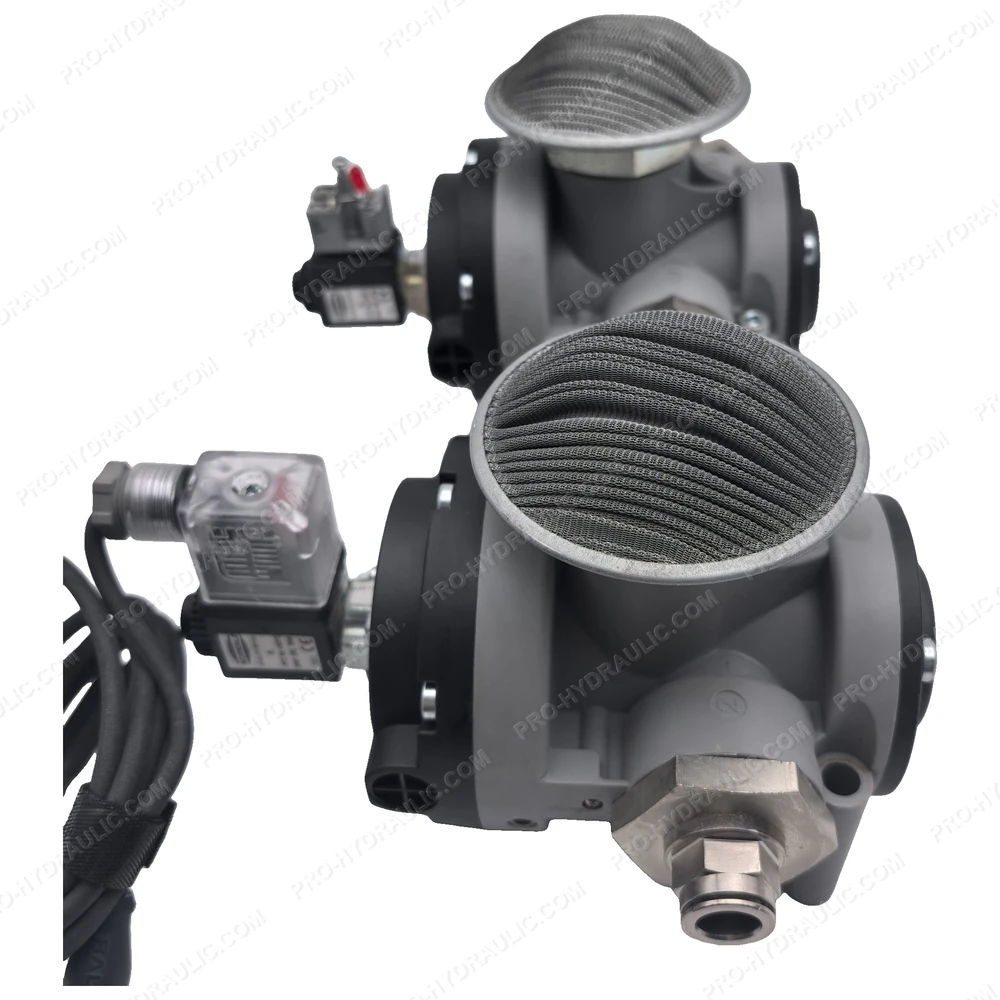

SCHMALZ EMVP-25-24V-DC-3/2-NO/NC Solenoid Vacuum Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SCHMALZ EMVP-25-24V-DC-3/2-NO/NC Solenoid Directional Control Valve. This German-made 24V DC hydraulic component features a 3/2-way design with NO/NC options, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
