Product Overview
The SCHMALZ SMPi 25 IMP RD M12-8-PT SO is a compact vacuum ejector from the Schmalz SMPi series, engineered for high-efficiency vacuum generation in automated handling and process systems. Operating on the venturi principle, this pneumatic vacuum generator utilizes compressed air to create a vacuum directly at the point of use, eliminating the need for external vacuum pumps and long vacuum lines. The integrated multi-stage ejector design delivers high suction capacity with minimal air consumption, making it a highly efficient solution for pick-and-place, gripping, and clamping applications in industrial automation. The M12-8-PT SO configuration features an M12 electrical interface with an 8-pin connector and integrated solenoid valve control, enabling direct PLC communication for precise vacuum on/off regulation. Its compact, lightweight construction allows for direct mounting near the suction point, reducing cycle times and improving overall system responsiveness.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Compact Vacuum Ejector (Pneumatic Vacuum Generator) |
| Model Designation | SMPi 25 IMP RD M12-8-PT SO |
| Manufacturer | SCHMALZ |
| Operating Principle | Multi-stage Venturi / Ejector Principle |
| Operating Pressure | Standard Industrial Grade (2 – 6 bar optimal range) |
| Electrical Interface | M12, 8-Pin Connector (PT) |
| Valve Control | Integrated Solenoid Valve (SO) for Vacuum On/Off |
| Mounting & Connection | Compact Direct-Mount / Standard Pneumatic Interface |
Engineering Features & Advantages
- Precision Performance: Multi-stage venturi design delivers high suction capacity with optimized compressed air consumption, ensuring rapid evacuation and short cycle times in high-speed handling processes.
- Integrated Solenoid Control: The built-in solenoid valve (SO variant) enables direct electrical actuation of vacuum generation and release, allowing seamless PLC integration via the M12 8-pin interface for precise process control.
- Compact & Lightweight: Minimal footprint and low weight permit direct mounting at the suction point, reducing vacuum line losses and improving system response dynamics.
- Industrial Reliability: Built for continuous operation under demanding industrial conditions, with robust construction resistant to vibration and typical factory-floor environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SCHMALZ SMPi series specifications, ensuring drop-in replacement without system modification.
Typical Industrial Applications
This compact vacuum ejector is widely deployed in automated pick-and-place systems for electronic component assembly, packaging machinery for carton and film handling, robotic end-effectors for gripping and transferring workpieces in automotive assembly lines, and general factory automation where rapid, reliable vacuum generation is
PRODUCT IMAGES

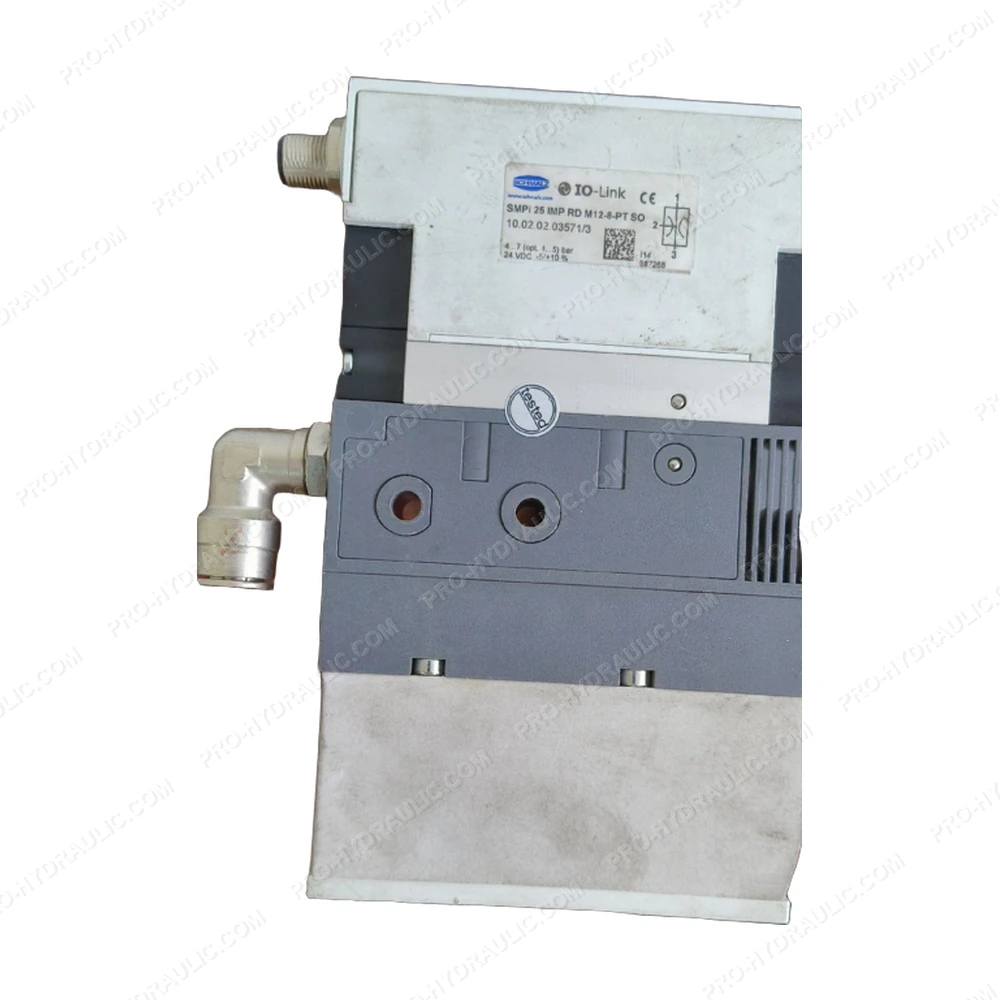

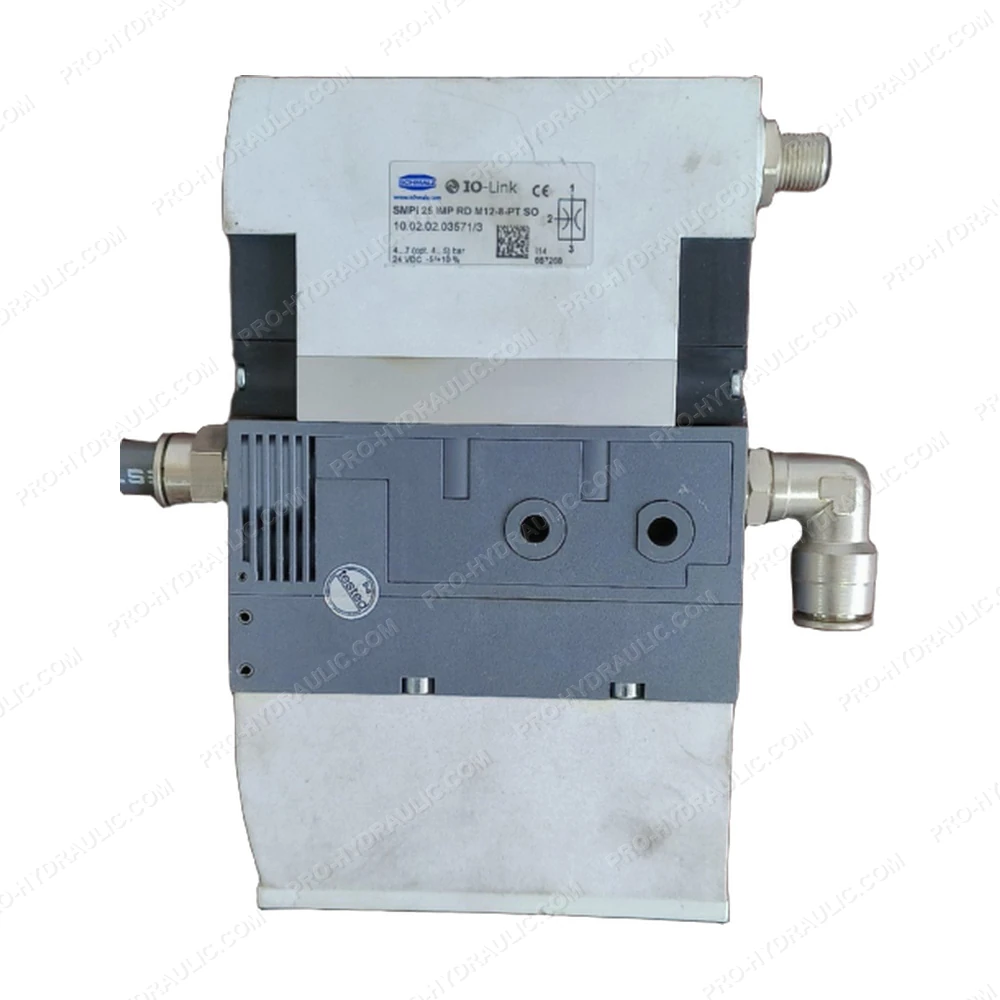

SCHMALZ SMPi 25 IMP RD M12-8-PT SO Compact Vacuum Ejector
