Product Overview
The SCHMALZ SMPI 25 NO RD M12-5 (Part No. 10.02.02.03363) is a compact vacuum ejector from the SCHMALZ SMPI series, engineered for decentralized vacuum generation directly at the point of use in automated handling and process systems. Operating on the venturi principle, this single-stage pneumatic ejector converts a compressed air supply into a high-efficiency vacuum source without the need for moving mechanical parts, delivering fast evacuation times and reliable suction performance. With an integrated M12-5 electrical interface and a normally open (NO) valve configuration, the SMPI 25 is designed for direct integration into modern pneumatic control architectures, making it a compact and energy-efficient solution for pick-and-place, packaging, and material handling applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Compact Vacuum Ejector (Pneumatic Process Valve) |
| Model Designation | SMPI 25 NO RD M12-5 / 10.02.02.03363 |
| Manufacturer | SCHMALZ |
| Operating Principle | Single-stage venturi vacuum generation |
| Valve Function | Normally Open (NO) |
| Electrical Connection | M12, 5-pin |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
Engineering Features & Advantages
- Precision Performance: Single-stage venturi design delivers rapid vacuum build-up and consistent suction force for high-cycle automated handling operations.
- Compact Decentralized Design: Lightweight, space-saving housing allows direct mounting at the suction point, minimizing tubing runs and reducing response latency.
- Normally Open (NO) Configuration: Ensures vacuum is available by default, providing fail-safe behavior suited to continuous suction and safety-critical process lines.
- Integrated M12-5 Interface: Standardized 5-pin electrical connection simplifies wiring, diagnostics, and integration with modern PLC and pneumatic control systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with no moving wear parts in the vacuum generation stage.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SCHMALZ OEM standards for drop-in serviceability.
Typical Industrial Applications
The SCHMALZ SMPI 25 NO RD M12-5 compact vacuum ejector is widely deployed in automated pick-and-place systems, packaging and labeling machinery, plastic injection molding part-removal equipment, and general material handling lines. Its decentralized vacuum generation and M12-5 control interface make it particularly suited to robotic end-effectors, sheet and film handling, and high-speed assembly stations where fast,

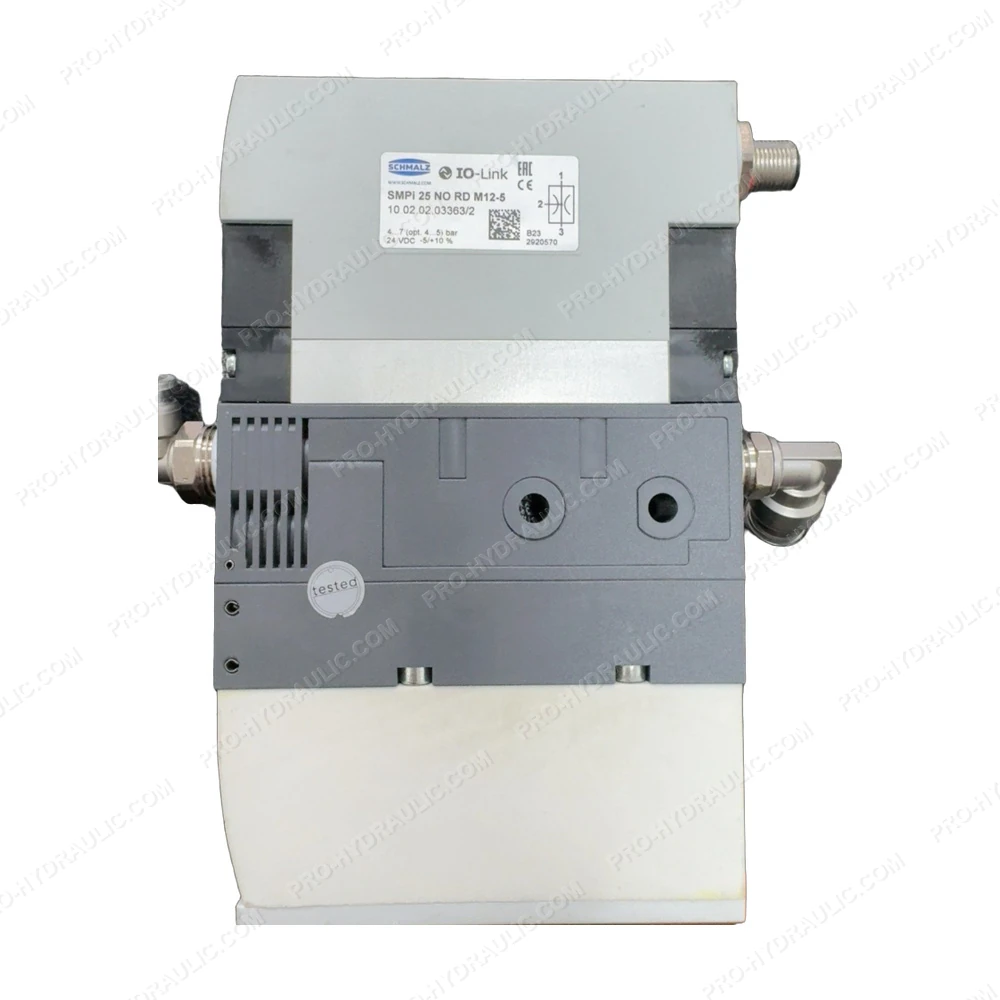

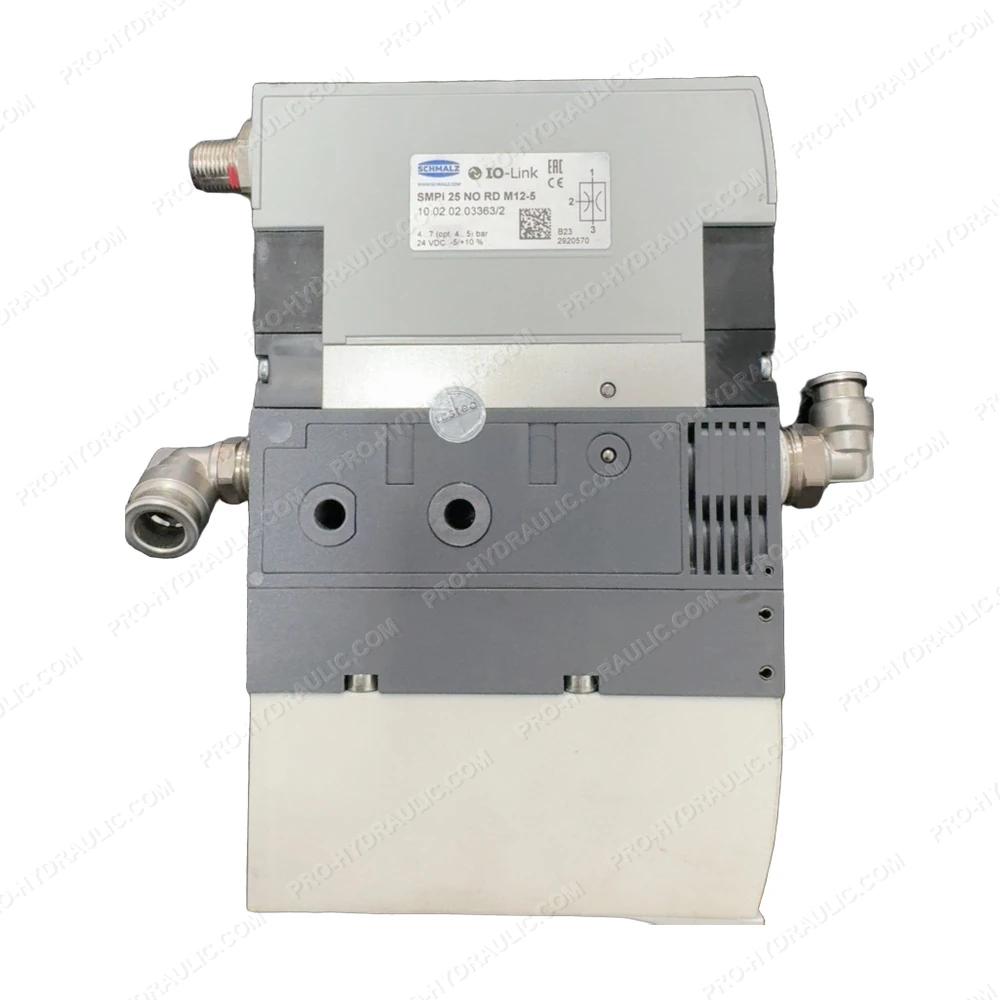

PRODUCT IMAGES
