Product Overview
The SCHNEIDER HVM 067-080-1111-0H (Part Number: 1095217) is a high-performance hydraulic directional spool valve engineered for precise control of fluid flow direction, distribution, and load holding in demanding industrial hydraulic circuits. Manufactured by Schneider (formerly known as Schneider Hydraulik), this valve operates on a proven spool-and-sleeve working principle, where a precision-machined spool shifts within a hardened bore to route pressurized oil to the selected actuator port. The HVM series is a modular, manifold-mounted directional control valve designed for high flow rates and reliable switching performance in continuous-duty applications. With its robust cast-iron body and hardened, ground spool, the HVM 067-080-1111-0H serves as a critical control element in centralized hydraulic power units, ensuring accurate directional control, minimal internal leakage, and long service life in heavy industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Directional Spool Valve (Standard Directional Control Valve) |
| Model Designation | HVM 067-080-1111-0H / 1095217 |
| Manufacturer | Schneider Hydraulik |
| Valve Function | 4-Way, 3-Position Directional Control (Closed Center) |
| Actuation Method | Solenoid / Manual Override (per model configuration) |
| Operating Pressure | Up to 315 bar (standard industrial grade) |
| Nominal Flow Rate | Up to 80 L/min (size 06 / NG6 interface) |
| Mounting & Connection | Subplate / Manifold Mounting, ISO 4401 / CETOP 3 Interface |
| Spool Type | Precision-ground, hardened steel spool with closed-center configuration |
| Sealing | NBR / FKM O-ring seals with anti-extrusion backup rings |
| Body Material | High-strength cast iron / ductile iron housing |
Engineering Features & Advantages
- Precision Performance: The hydraulic directional spool valve (standard directional control valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original SCHNEIDER specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With its robust cast-iron body and hardened, ground spool, the HVM 067-080-1111-0H serves as a critical control element in centralized hydraulic power units, ensuring accurate directional control, minimal internal leakage, and long service life in heavy industrial environments.
PRODUCT IMAGES

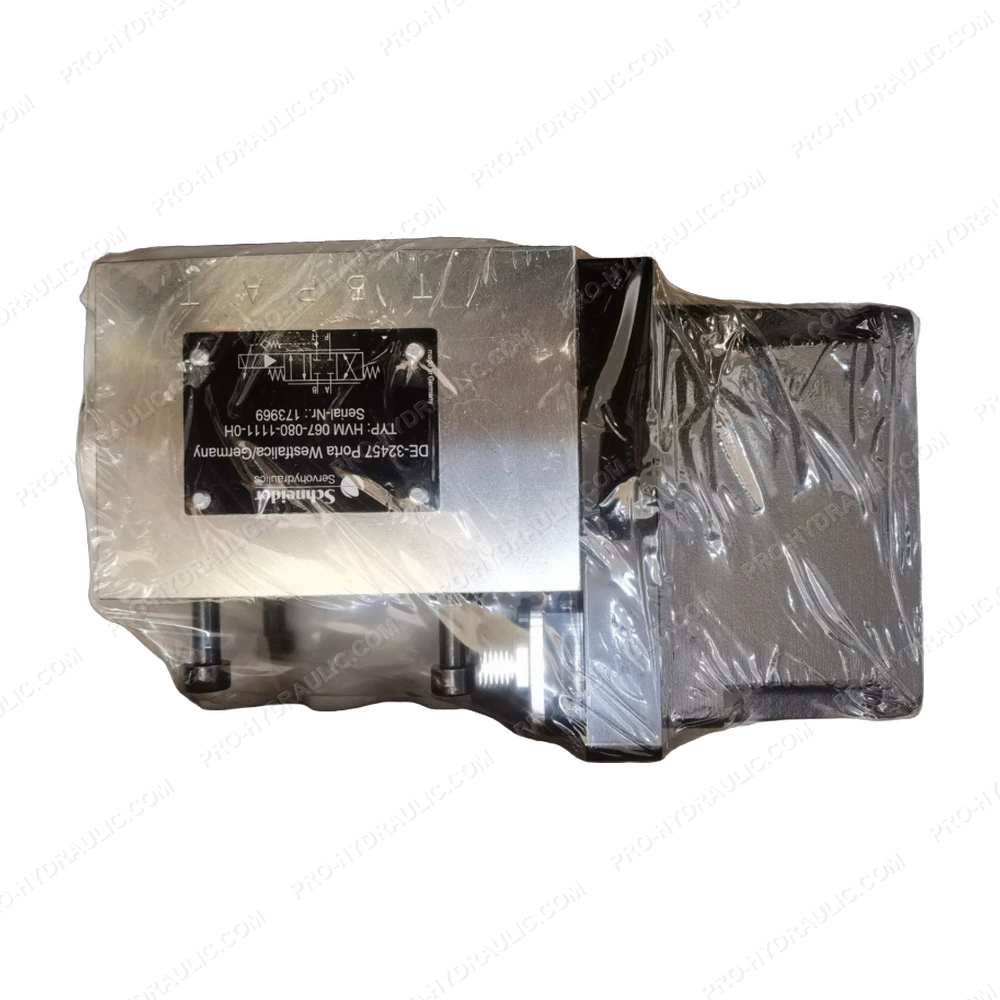

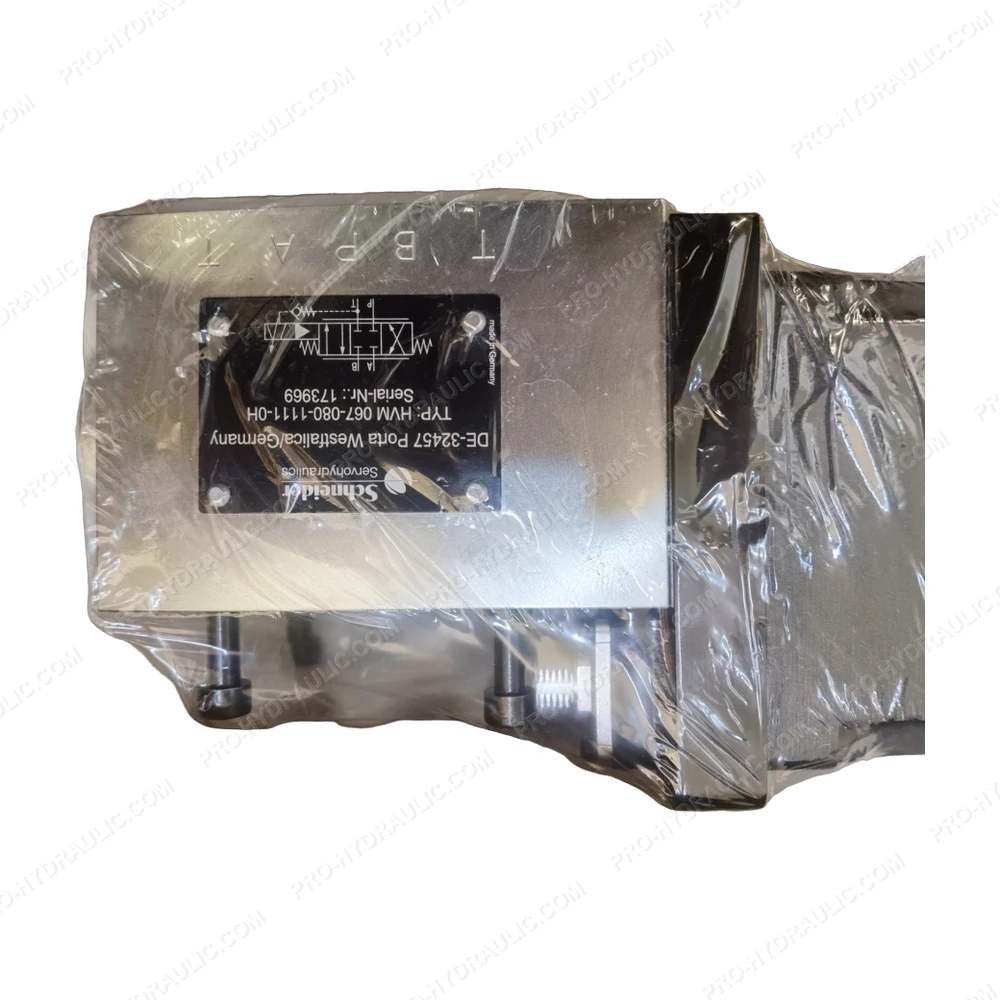

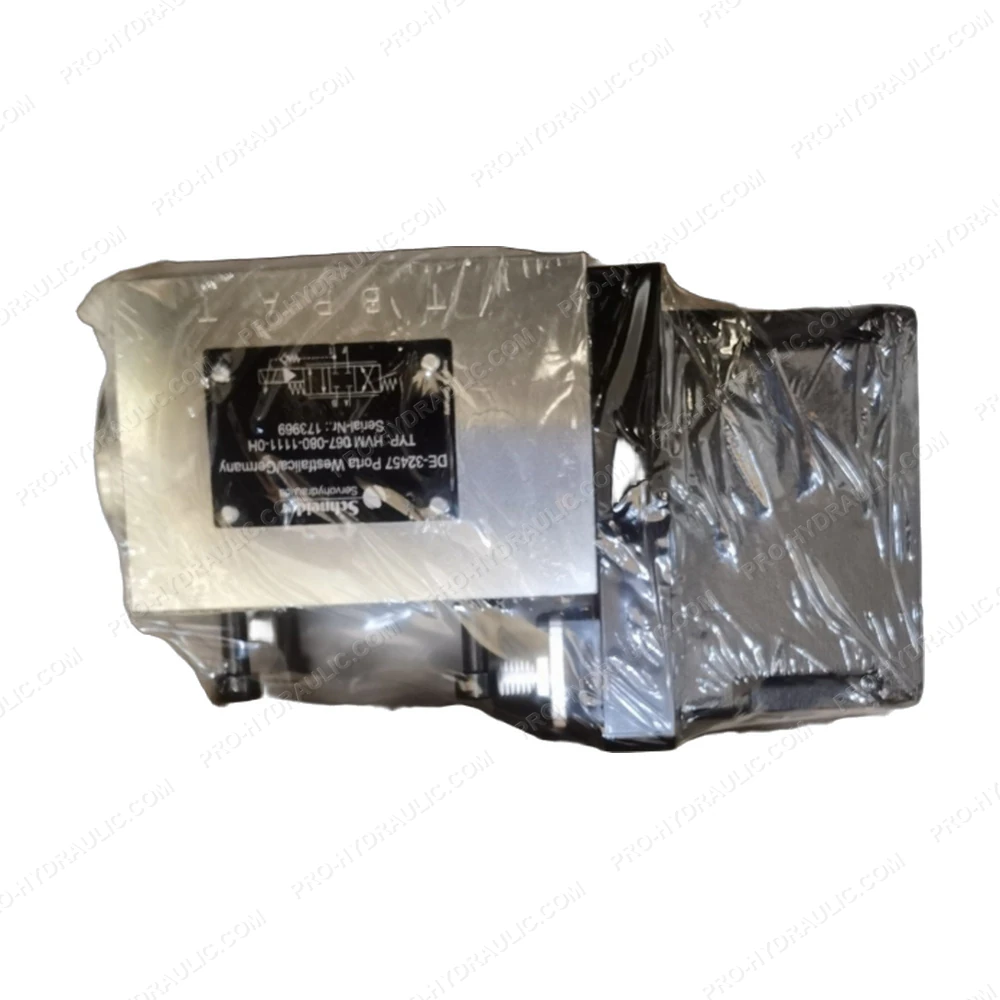

SCHNEIDER HVM 067-080-1111-0H / 1095217 Hydraulic Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SCHNEIDER HVM 067-080-1111-0H / 1095217 Solenoid Directional Spool Valve. This German-made 24V DC hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
