Product Overview
The Schubert & Salzer 8049-4 / 4099713 (8049/4P6-1S000-11-00) is a high-precision electro-pneumatic positioner engineered for the accurate control and positioning of pneumatic control valves in demanding process environments. Operating on a force-balance feedback principle, the unit converts a standardized electrical input signal into a proportional pneumatic output pressure, driving the actuator stem to the exact position commanded by the control loop. As a core component within process and pneumatic valve assemblies, it delivers reliable, repeatable valve positioning for throttling and on/off control duties across chemical, petrochemical, and industrial automation systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Positioner (Process & Pneumatic Valve Accessory) |
| Model Designation | 8049-4 / 4099713 (8049/4P6-1S000-11-00) |
| Manufacturer | Schubert & Salzer |
| Operating Pressure | Standard Industrial Grade (regulated instrument air supply, up to rated bar) |
| Input Signal | Standard electrical control signal (current/voltage, per model configuration) |
| Actuation Principle | Force-balance electro-pneumatic feedback positioning |
| Mounting & Connection | Standard ISO / Manufacturer Interface (linear and rotary actuator mounting) |
Engineering Features & Advantages
- Precision Performance: Force-balance feedback mechanism delivers accurate, repeatable valve stem positioning with minimal hysteresis for tight process control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust pneumatic pilot stage and stable zero/span characteristics.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Schubert & Salzer OEM standards, ensuring drop-in interchangeability.
- Flexible Actuator Compatibility: Configurable for both linear and rotary pneumatic actuators, supporting single and double-acting configurations.
Typical Industrial Applications
Ideally suited for precise throttling and positioning of pneumatic control valves in chemical and petrochemical processing plants, pharmaceutical and food-grade process lines, water and wastewater treatment flow control loops, and general industrial automation systems where accurate electro-pneumatic valve positioning is critical to process stability and product quality.
PRODUCT IMAGES

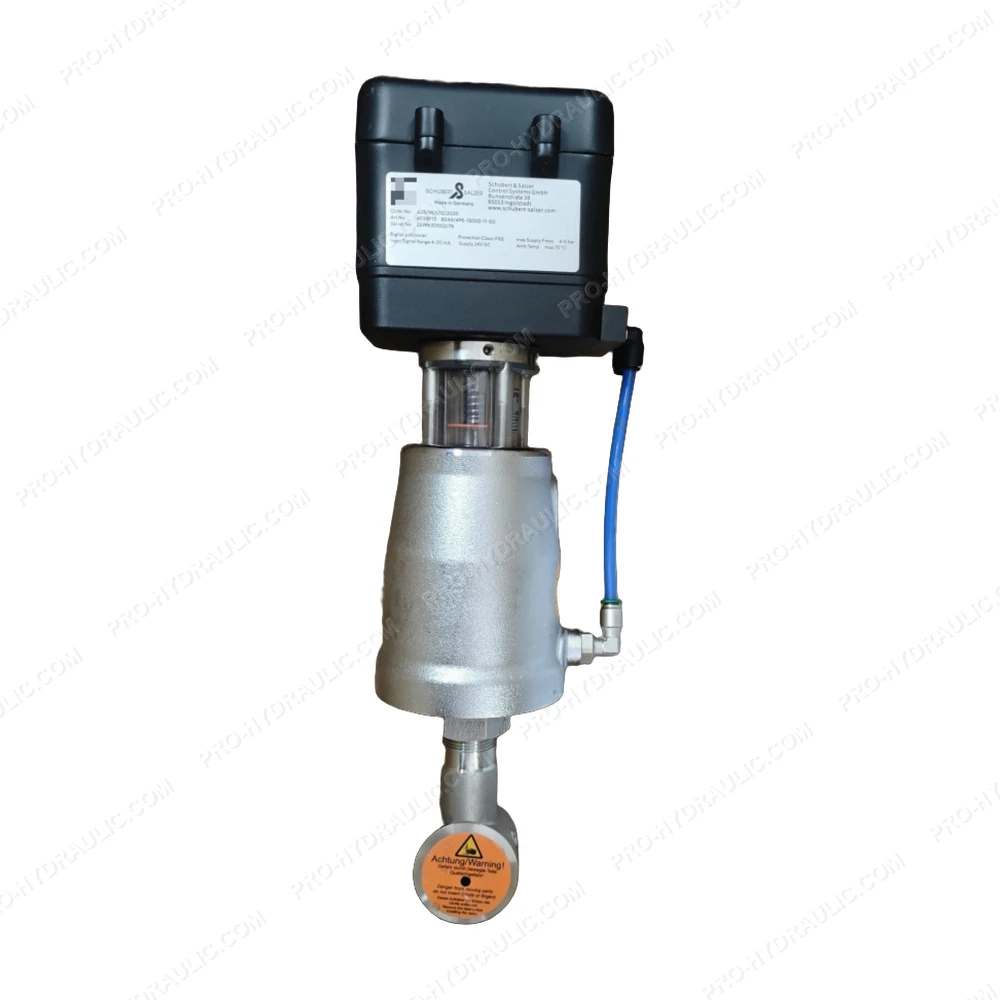

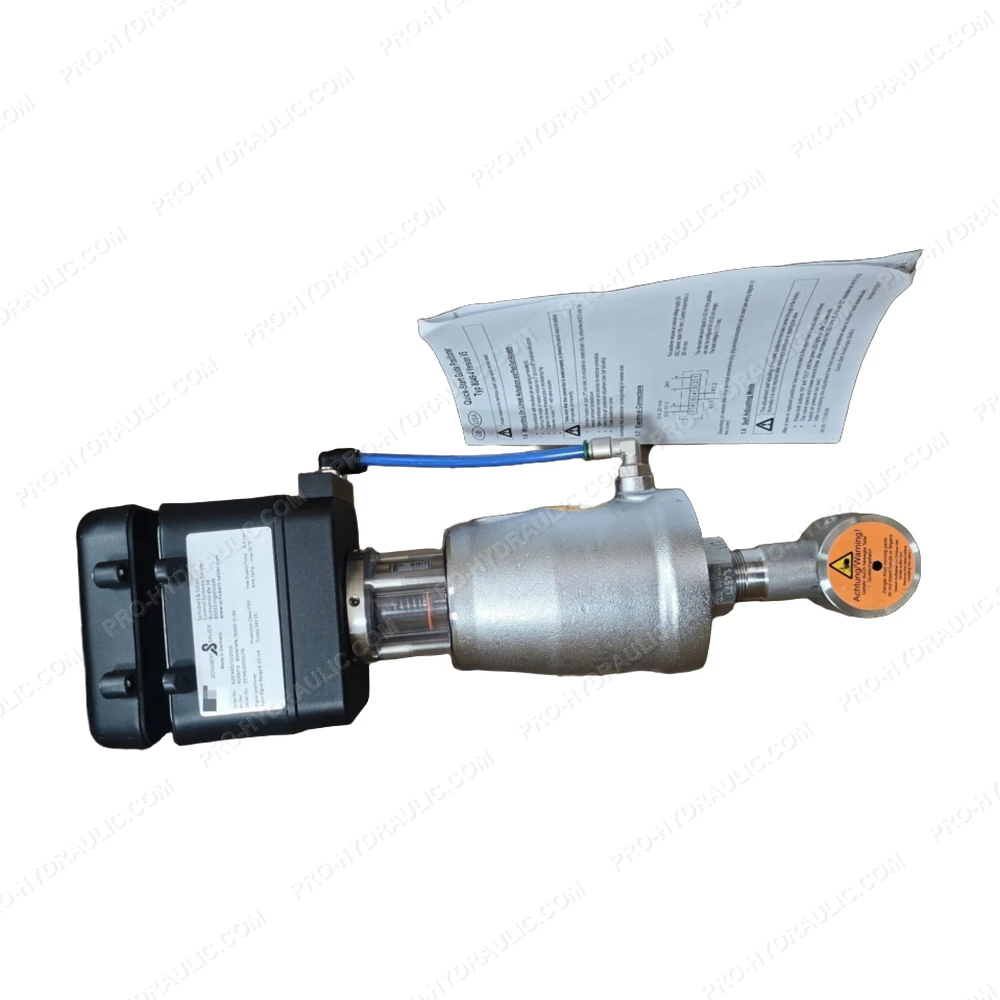

Schubert & Salzer 8049-4 / 4099713 8049/4P6-1S000-11-00 Electro-Pneumatic Positioner
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SCHUBERT & SALZER 8049-4 / 4099713 8049/4P6-1S000-11-00 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4/3-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
