Product Overview
The Schubert & Salzer 8049-Ex is a high-precision electro-pneumatic positioner engineered for demanding process control environments. This intrinsically safe (Ex-rated) instrument is designed to accurately position pneumatic control valves, actuators, and final control elements in response to a standard electrical input signal. By continuously comparing the setpoint signal against the actual valve stem position via a mechanical feedback linkage, the 8049-Ex modulates its pneumatic output to eliminate deviation, ensuring precise throttling control. Its robust, explosion-protected housing makes it the ideal choice for hazardous area applications in chemical, petrochemical, and pharmaceutical processing where reliable valve positioning is critical to plant safety and product quality.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Positioner (Process & Pneumatic Valve Accessory) |
| Model Designation | 8049-Ex |
| Operating Pressure | Standard Industrial Grade (Up to 6 bar / 90 psi supply air) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (NAMUR / IEC 60534-6) |
| Input Signal | 4–20 mA (Standard Industrial Control Signal) |
| Protection Class | Ex-rated (Intrinsically Safe / Explosion-Protected Housing) |
| Action Type | Single or Double Acting (Configurable) |
Engineering Features & Advantages
- Precision Performance: High-resolution spool valve and sensitive feedback mechanism deliver accurate, repeatable valve positioning with minimal deadband, ensuring tight process control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a rugged explosion-protected enclosure designed for hazardous area environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including standard NAMUR mounting interface for quick installation on common linear and rotary actuators.
- Intrinsic Safety: Ex-rated design allows safe installation in ATEX/IECEx classified zones without compromising control loop integrity.
Typical Industrial Applications
Chemical and petrochemical processing plants, pharmaceutical production lines, oil and gas separation and refining facilities, and hazardous-area process control loops requiring precise pneumatic valve actuation and throttling control.
PRODUCT IMAGES

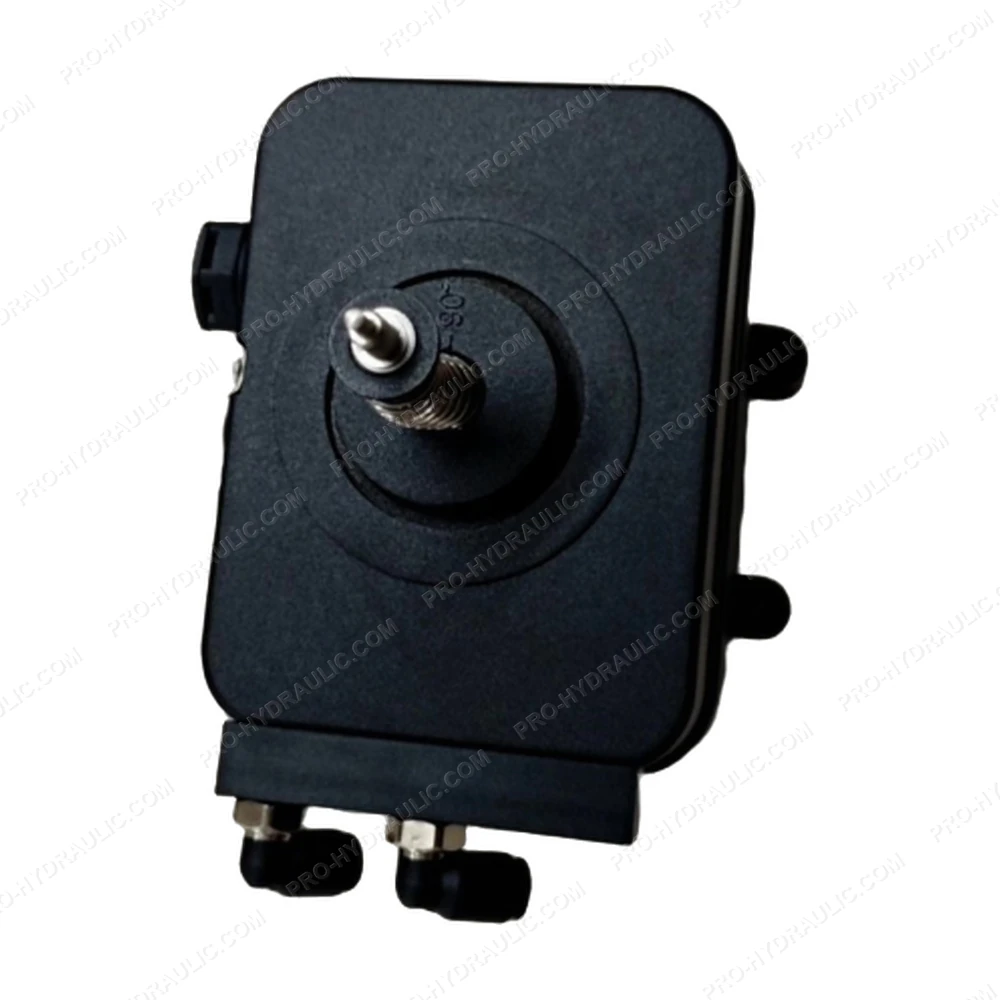

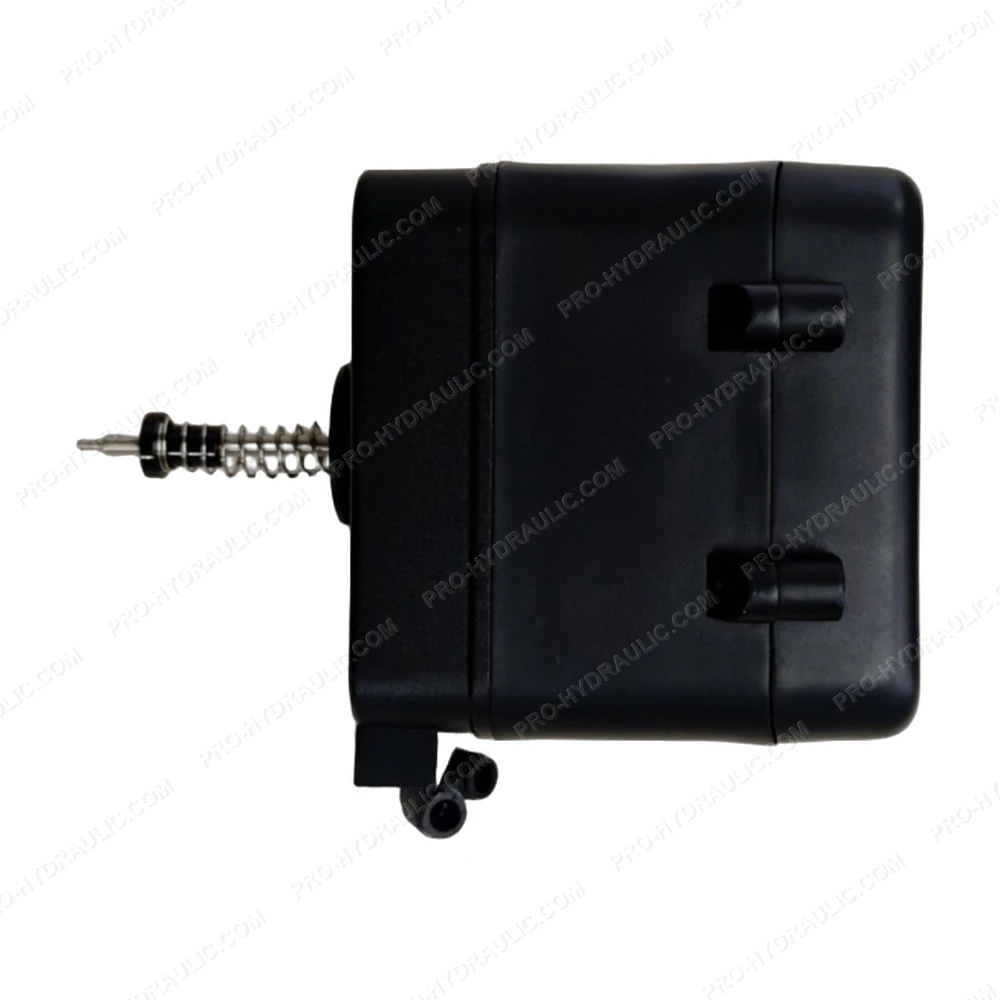

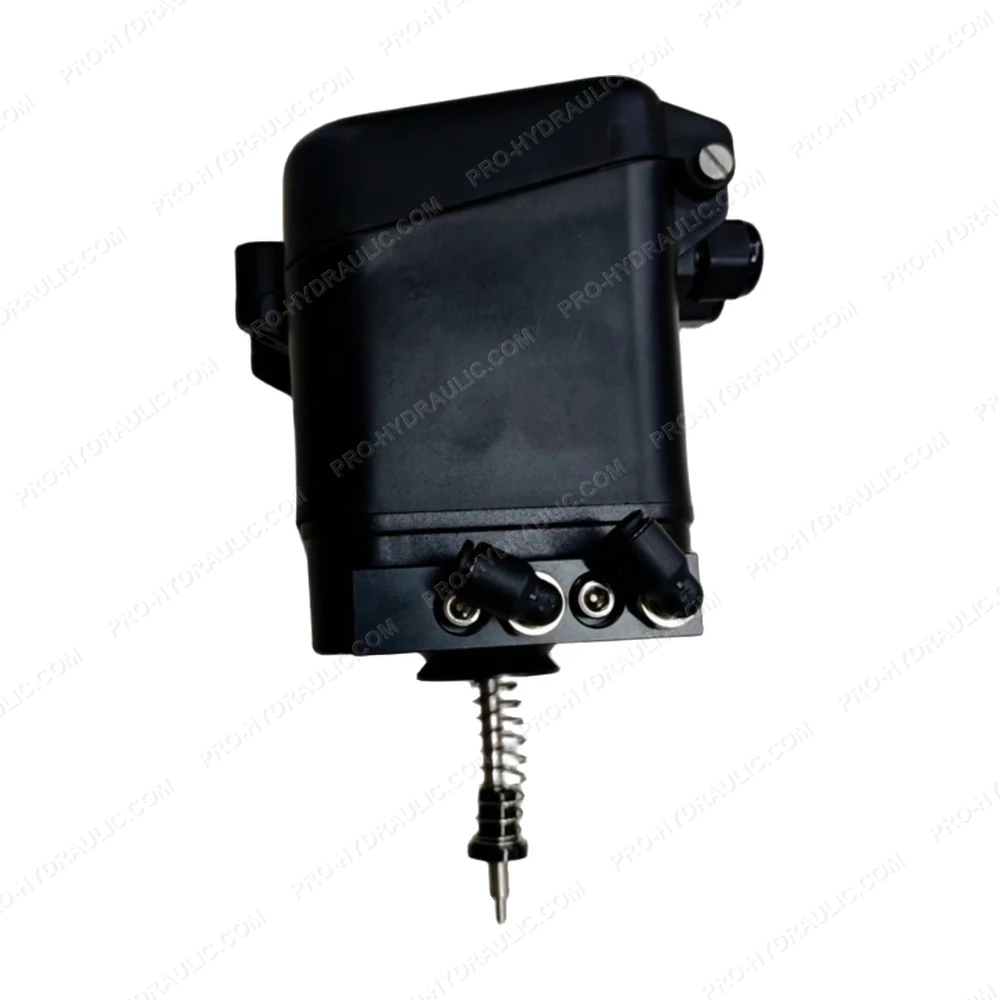

Schubert & Salzer 8049-Ex Electro-Pneumatic Positioner
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SCHUBERT & SALZER 8049-Ex Explosion-Proof Solenoid Valve. This Germany-made 24V DC hydraulic component features a 2/2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
