Product Overview
The Siemens 6DR5010-0NN00-0AA0 is a SIPART PS2 series electropneumatic positioner engineered for precise control of pneumatically actuated control valves in industrial process automation. This intelligent, microprocessor-based positioner converts a standard electrical setpoint signal (4–20 mA) into a proportional pneumatic output pressure, driving single- or double-acting linear and rotary actuators to the exact valve stem position demanded by the process control loop. As a core component within Siemens’ SIPART PS2 platform, the 6DR5010-0NN00-0AA0 delivers high positioning accuracy, minimal air consumption, and comprehensive diagnostic capability, making it a benchmark solution for demanding flow, pressure, and temperature control applications across the process industries.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electropneumatic Positioner (SIPART PS2) |
| Model Designation | 6DR5010-0NN00-0AA0 |
| Manufacturer | Siemens |
| Input Signal | 4–20 mA (2-wire) setpoint |
| Pneumatic Supply Pressure | 1.4–6 bar (20–90 psi), dry instrument air |
| Actuator Compatibility | Single- and double-acting linear / rotary actuators |
| Mounting & Connection | NAMUR / IEC 60534-6 interface, G 1/4 pneumatic ports |
| Enclosure Protection | IP66 / NEMA 4X (standard industrial grade) |
| Ambient Temperature Range | −30°C to +80°C (typical process environment) |
Engineering Features & Advantages
- Precision Performance: Microprocessor-controlled closed-loop positioning delivers high repeatability and minimal dead band, ensuring accurate valve stem positioning even under fluctuating process conditions.
- Low Air Consumption: Optimized piezo valve technology in the SIPART PS2 platform significantly reduces instrument air usage compared to conventional positioners, lowering plant utility costs.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust housing and resistance to vibration, temperature extremes, and contaminated supply air.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Siemens SIPART PS2 OEM standards, enabling straightforward retrofit or replacement without actuator modification.
- Integrated Diagnostics: On-board diagnostic functions support predictive maintenance, valve signature analysis, and early detection of actuator or valve degradation.
Typical Industrial Applications</h
PRODUCT IMAGES

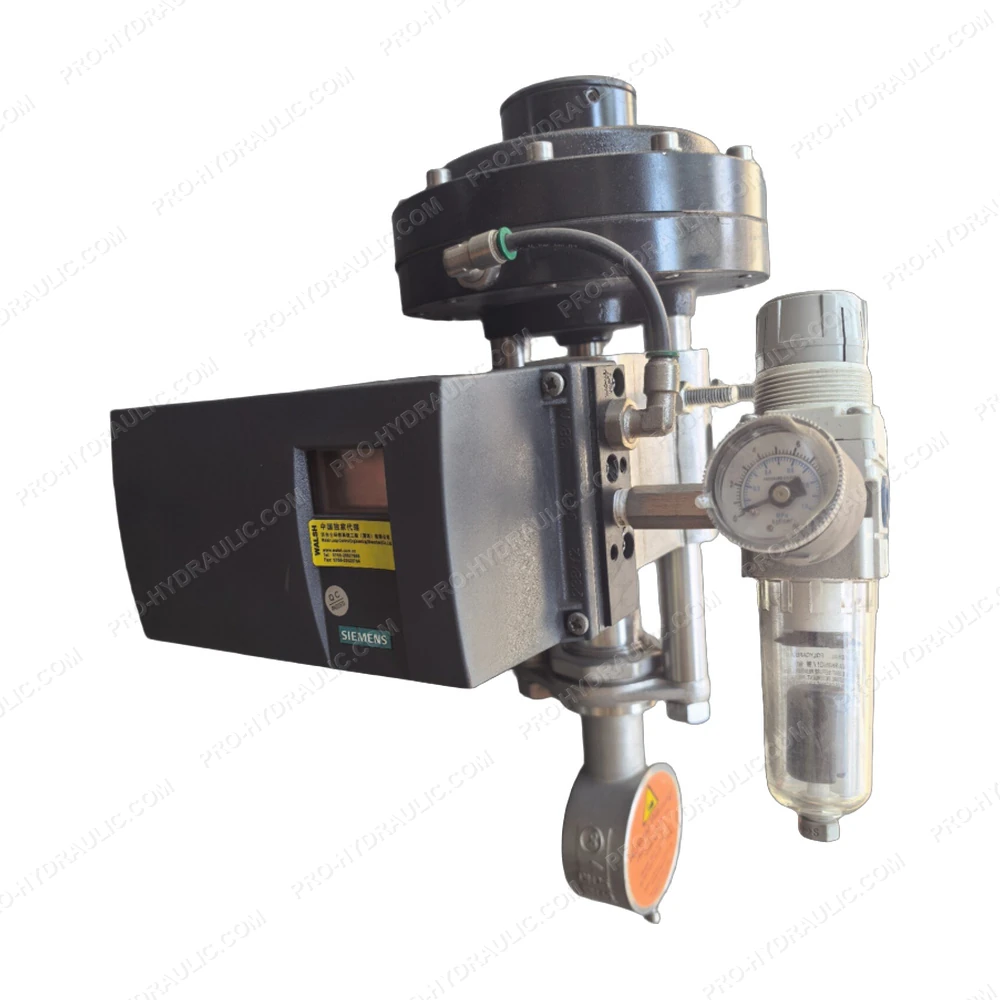

SIEMENS 6DR5010-0NN00-0AA0 Electropneumatic Positioner
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SIEMENS 6DR5010-0NN00-0AA0 Electropneumatic Positioner. This Germany-made 24V DC automation component features a precise 2-wire design, delivering reliable, accurate valve control for heavy-duty industrial systems.
