Product Overview
The Siemens GIB166.1E is a robust, industrial-grade rotary air damper actuator designed for precise control of air dampers in HVAC and building automation systems. As part of Siemens’ extensive GIB series, this actuator features a reliable synchronous motor with electronic control logic, providing a 90-degree rotary stroke for modulating or two-position (open/close) damper applications. It is engineered to deliver consistent torque output, ensuring reliable operation of ventilation and air conditioning dampers in commercial and industrial environments. The GIB166.1E is a direct-coupled device, eliminating the need for complex linkages and simplifying installation on standard damper shafts.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Rotary Air Damper Actuator (Motor & Drive) |
| Model Designation | GIB166.1E |
| Operating Voltage | AC 24 V (Standard Industrial Control Voltage) |
| Torque Output | 10 Nm (Nominal, suitable for 1.5 m² damper area) |
| Control Signal | 3-position (Open/Close/Neutral) or Modulating (0-10 V DC) |
| Mounting & Connection | Direct-coupled with universal shaft adapter (Standard ISO 5211 interface compatible) |
| Running Time | 150 seconds (90° rotation, motor-driven) |
| Protection Class | IP54 (Standard industrial enclosure) |
Engineering Features & Advantages
- Precision Damper Control: The GIB166.1E utilizes a synchronous motor with electronic load-dependent cut-off, ensuring precise positioning and reliable operation without the need for limit switches or mechanical stops.
- Industrial Reliability: Built for continuous operation in demanding HVAC environments, featuring robust gear train construction and thermal overload protection for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Siemens GIB series actuators, including the universal shaft adapter for quick and secure mounting on standard damper shafts.
- Flexible Integration: Supports both 3-position and modulating control signals, allowing seamless integration into a wide range of building automation systems and controllers.
Typical Industrial Applications
The Siemens GIB166.1E rotary air damper actuator is ideal for a variety of heavy industrial and commercial scenarios, including: HVAC air handling units for precise volume control, industrial ventilation systems in manufacturing plants, cleanroom environmental control for pharmaceutical and electronics production, and commercial building automation for energy-efficient climate management. Its robust design ensures reliable performance in continuous-duty applications, making it a trusted component for system integrators and maintenance engineers.
PRODUCT IMAGES

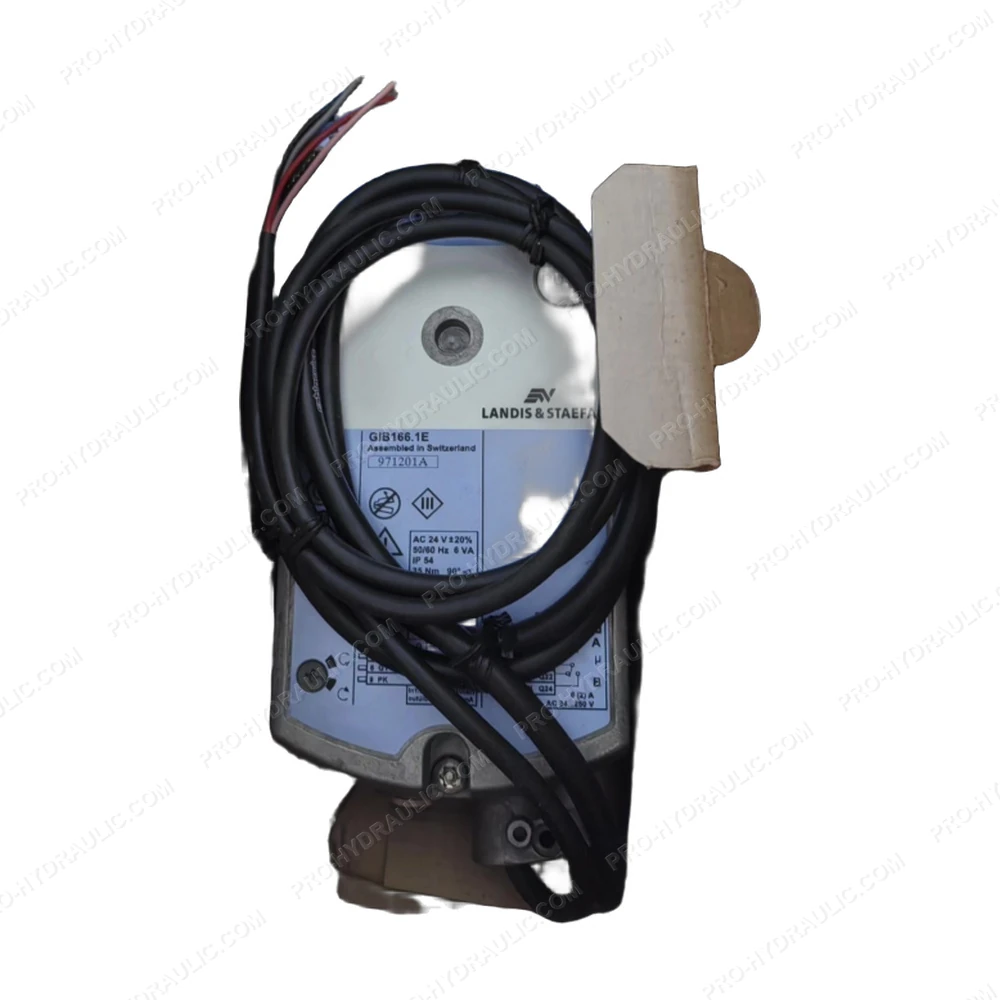

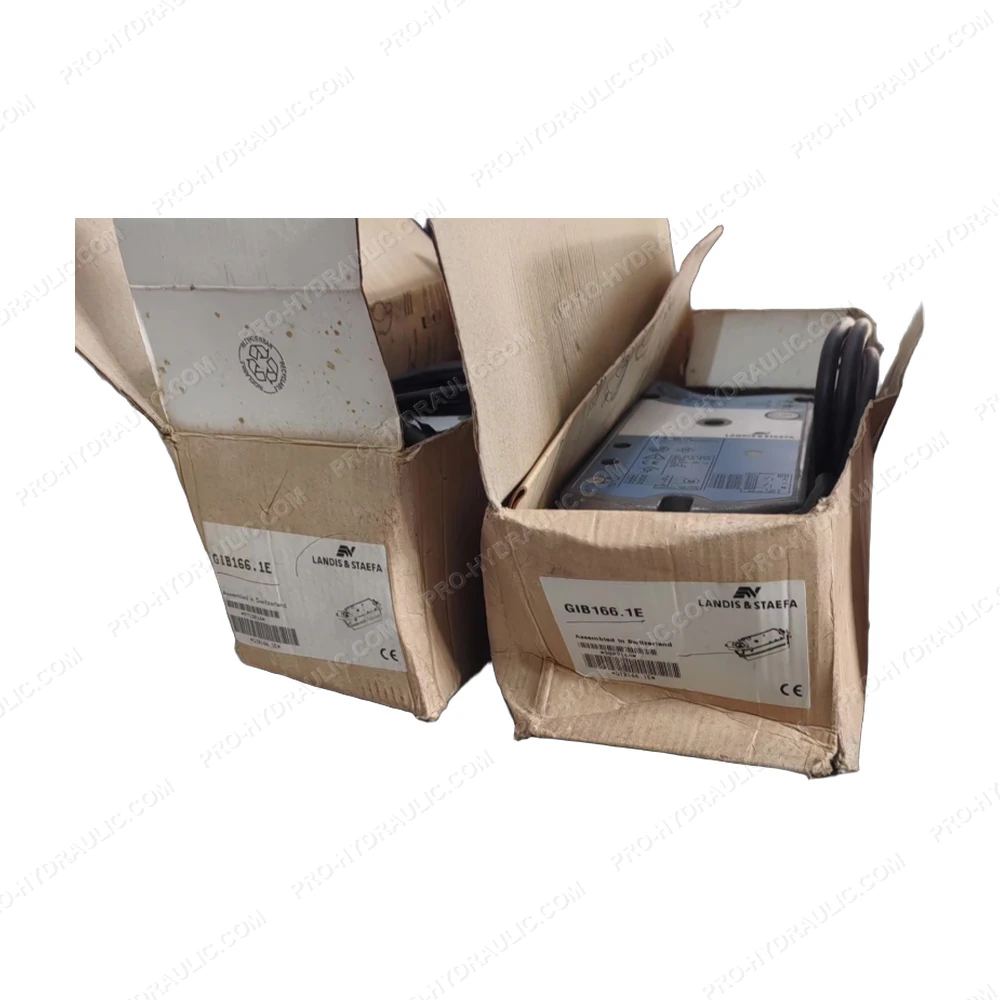

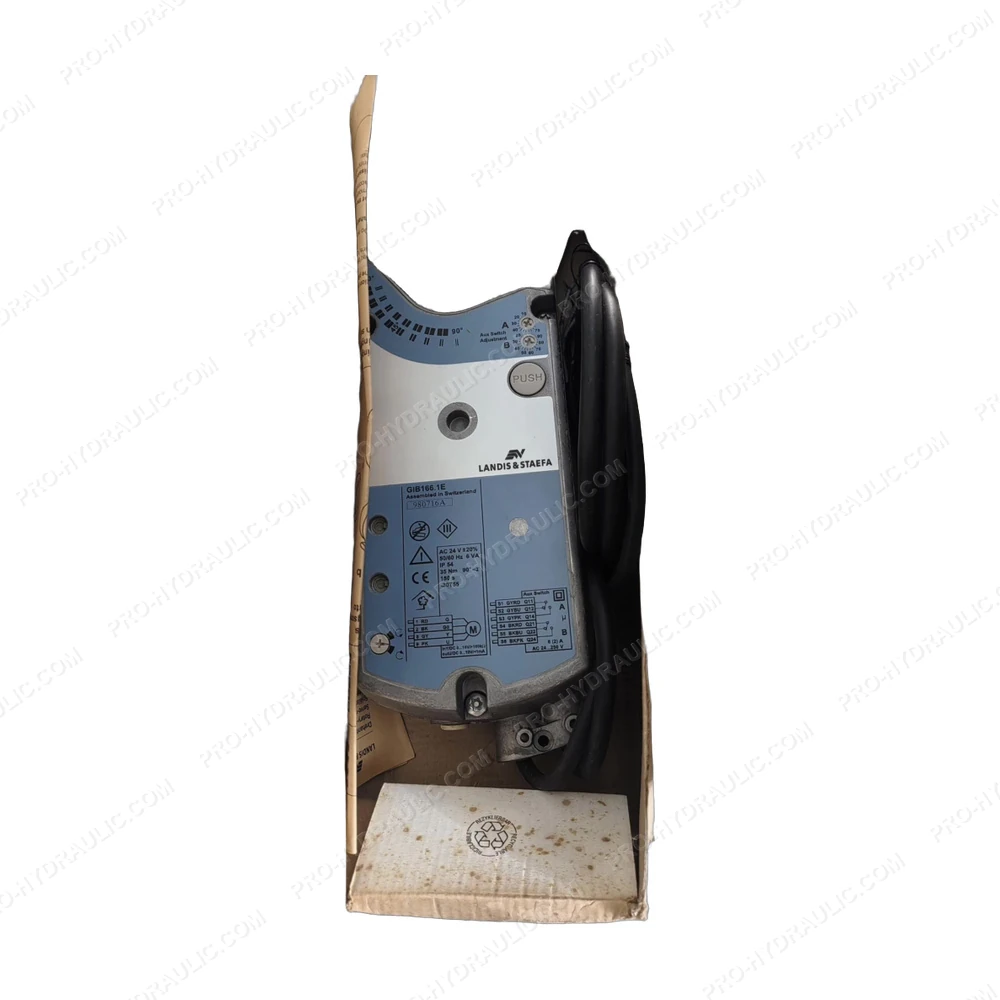

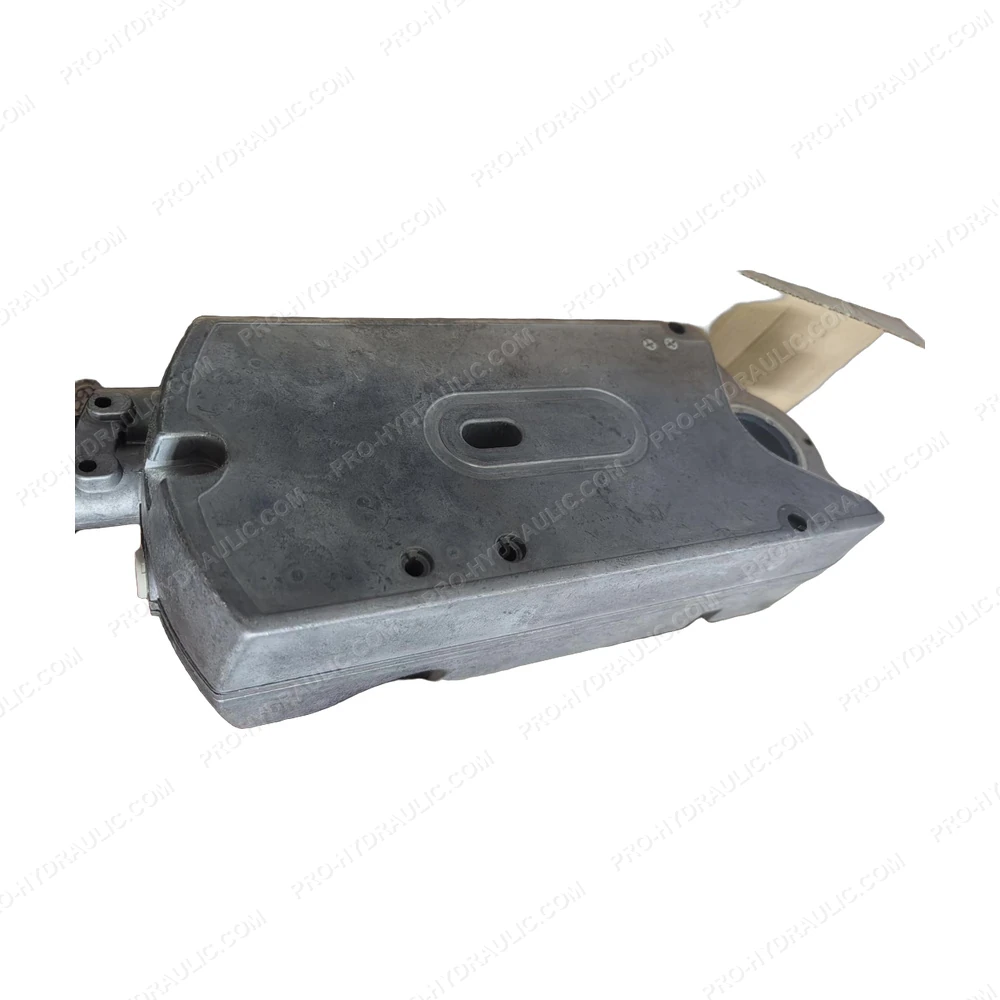

SIEMENS GIB166.1E Rotary Air Damper Actuator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SIEMENS GIB166.1E Electronic Gas Ignition Control. This Germany-made 230V AC automation component features a microprocessor-based design, delivering reliable, safe ignition sequencing for industrial gas burners and heavy-duty heating systems.
