Product Overview
The Siemens VAI61.40-16 / GMA131.9E is a complete industrial ball valve assembly with a factory-matched quarter-turn electric actuator, engineered for precise on/off and modulating control of process media in demanding plant environments. The valve body is a flanged ball valve with a nominal bore of DN40 (1½”) and a PN16 pressure rating, providing full-bore, low-torque shutoff with minimal pressure drop across the flow path. The GMA131.9E actuator is a compact, high-torque electric actuator designed for direct-mounted quarter-turn operation, delivering reliable 90° rotation with mechanical position indication and end-position feedback. This assembly is widely deployed as a drop-in control element in building services, district heating, water treatment, and general industrial process lines where dependable isolation and repeatable positioning are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic / Process Ball Valve with Electric Actuator |
| Model Designation | VAI61.40-16 / GMA131.9E |
| Valve Type | Flanged Ball Valve, Quarter-Turn, Full Bore |
| Nominal Size | DN40 (1½”) |
| Pressure Rating | PN16 (16 bar nominal) |
| Actuator Model | GMA131.9E Electric Quarter-Turn Actuator |
| Actuation | Electric motor-driven, 90° rotation with position feedback |
| Mounting & Connection | Flanged to ISO / DIN standard; direct actuator mounting interface |
| Media Compatibility | Water, glycol mixtures, and compatible neutral process fluids |
Engineering Features & Advantages
- Precision Performance: Full-bore ball design delivers high flow capacity with minimal pressure loss, while the GMA131.9E actuator provides accurate, repeatable quarter-turn positioning for tight shutoff and stable modulating control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust sealing, corrosion-resistant body construction, and an actuator designed for long service life in plant environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing straightforward retrofit or replacement without modification to existing pipework or control wiring.
- Integrated Feedback: Mechanical position indication and end-position signalling enable reliable status monitoring and seamless integration into automated control systems.
Typical Industrial Applications
This Siemens VAI61.40-16 / GMA131.9E ball valve assembly is typically used in district heating and cooling networks, water
PRODUCT IMAGES

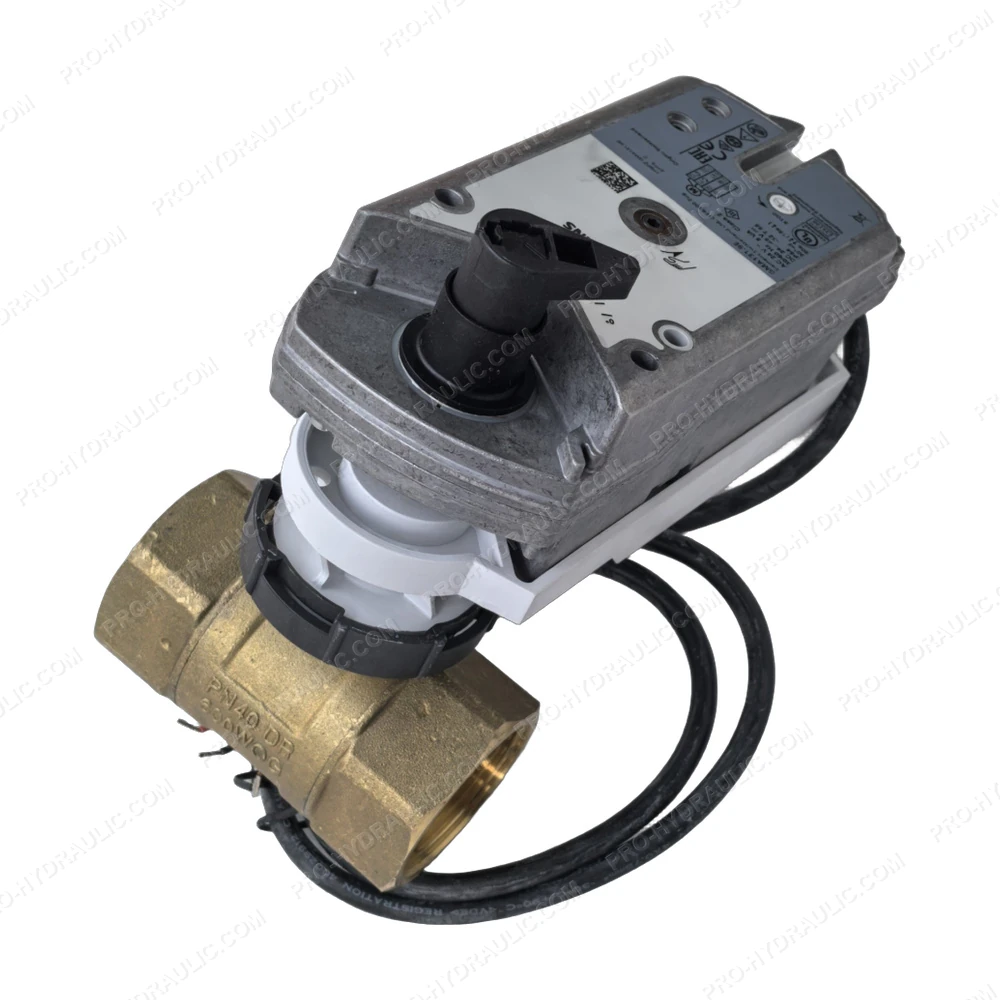

SIEMENS VAI61.40-16 / GMA131.9E Ball Valve with Actuator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SIEMENS VAI61.40-16 / GMA131.9E Electric Actuated Ball Valve. This Germany-made 230V AC hydraulic component features a motorized ball valve with electric actuator, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
