Product Overview
The Siemens VVG44.32-16 is a 2-port threaded control valve engineered for precise modulation of hot and chilled water, brine, and other non-corrosive media in building automation and industrial process systems. As part of the Siemens VVG44 series, this valve features a robust bronze body with a threaded connection and is designed for use with Siemens electromagnetic actuators (SAX, SKD, SKB, or SKC series) to provide accurate proportional control. The valve operates on a linear or equal-percentage flow characteristic, making it ideal for continuous modulating duty in HVAC and process control loops. Its 2-port configuration allows for precise throttling of flow in response to a 0–10 V or 4–20 mA control signal, ensuring stable temperature and pressure regulation in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 2-Port Threaded Control Valve (Process & Pneumatic Valve) |
| Model Designation | VVG44.32-16 |
| Nominal Size (DN) | DN32 (1 1/4″) |
| Flow Coefficient (kvs) | 16 m³/h |
| Operating Pressure | Up to 16 bar (PN16) static; differential pressure dependent on actuator |
| Media Temperature Range | -10 °C to +150 °C (with appropriate actuator) |
| Body Material | Bronze (Rg5 / CC491K) |
| Connection Type | Threaded (ISO 228-1 / BSPP) |
| Flow Characteristic | Equal-percentage (standard) or linear (optional) |
| Actuator Compatibility | Siemens SAX, SKD, SKB, SKC series electromagnetic actuators |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded ports, actuator coupling per Siemens standard) |
Engineering Features & Advantages
- Precision Performance: The VVG44.32-16 delivers accurate proportional flow control with a high-resolution stroke, ensuring stable temperature and pressure regulation in closed-loop HVAC and process systems. Its equal-percentage characteristic provides excellent controllability across a wide load range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SIEMENS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Its 2-port configuration allows for precise throttling of flow in response to a 0–10 V or 4–20 mA control signal, ensuring stable temperature and pressure regulation in demanding industrial environments.
PRODUCT IMAGES

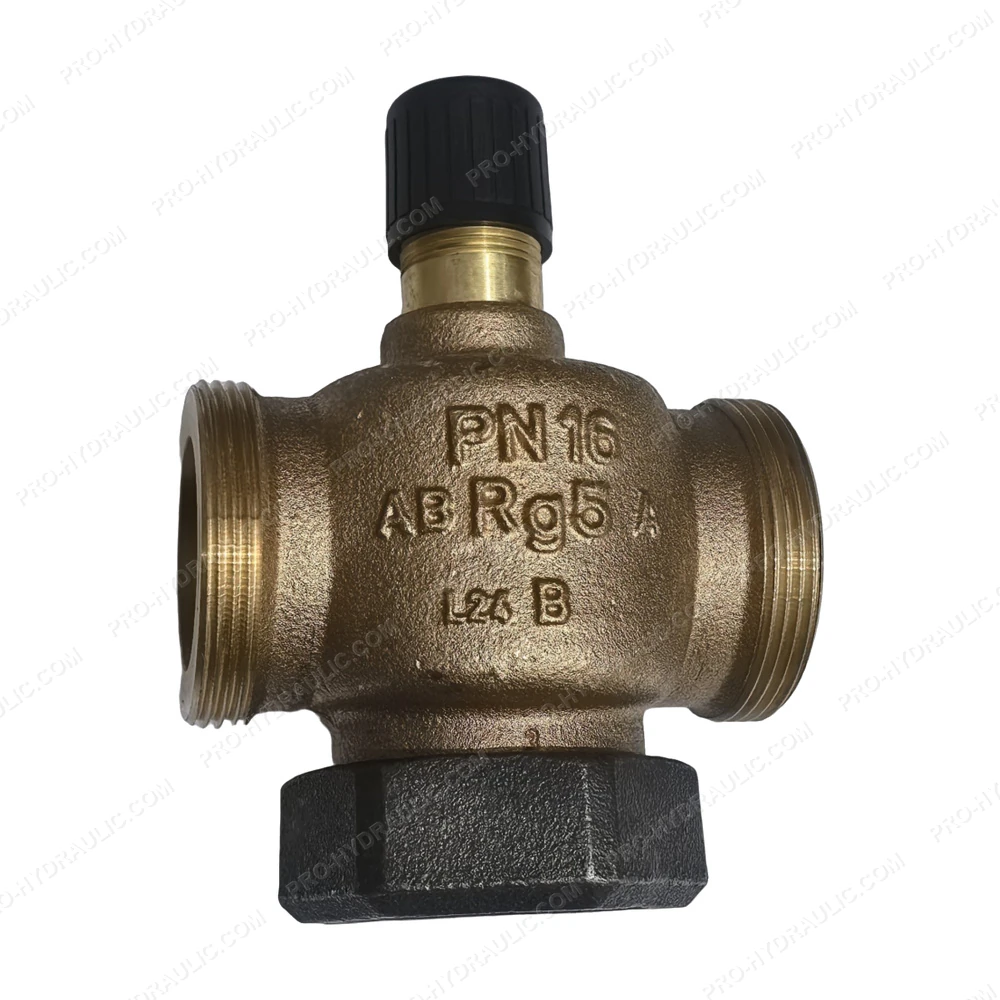

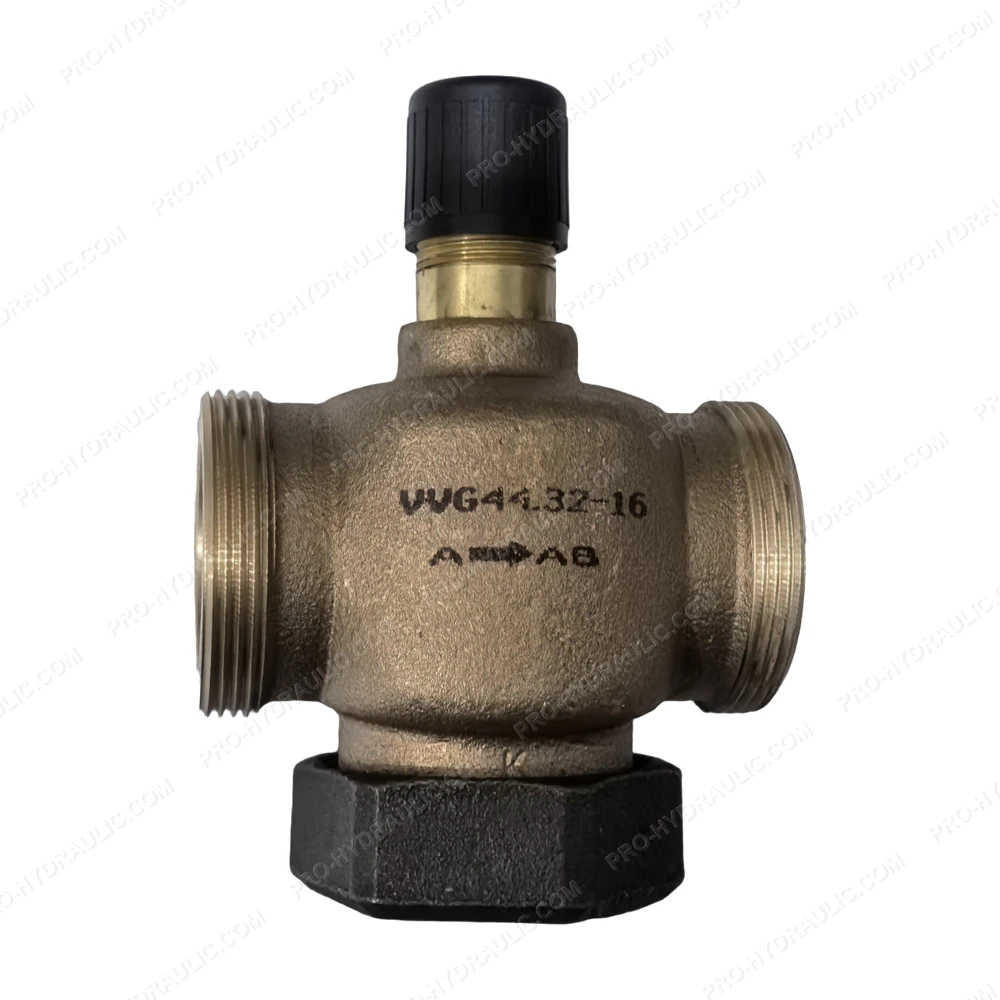

SIEMENS VVG44.32-16 2-Port Threaded Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SIEMENS VVG44.32-16 2-Way Normally Closed Seat Valve. This Germany-made 24V AC/DC hydraulic component features a magnetic actuation, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
