Product Overview
The Siemens VXF43.80-100 is a high-performance 3-port flanged control valve engineered for precise regulation of flow in industrial process and HVAC hydraulics. As part of Siemens’ proven VXF43 series, this valve operates as a mixing or diverting control element, allowing accurate modulation of fluid streams in response to actuator commands. With a nominal size of DN80 and a flow coefficient (kvs) of 100 m³/h, it is designed for demanding closed-loop control tasks where stable, repeatable performance is essential. The valve body is constructed from robust materials suitable for water and neutral media, making it a reliable component in district heating, cooling circuits, and general process control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 3-Port Flanged Control Valve (Mixing / Diverting) |
| Model Designation | VXF43.80-100 |
| Nominal Size | DN80 (3-inch) |
| Flow Coefficient (kvs) | 100 m³/h |
| Operating Pressure | Standard Industrial Grade (up to PN16 / PN25 depending on configuration) |
| Mounting & Connection | Flanged per ISO 7005 / EN 1092-2 |
| Actuation | Compatible with Siemens electro-hydraulic or electric actuators (e.g., SKD, SKB, SKC series) |
| Body Material | Cast Iron / Ductile Iron (standard industrial coating) |
| Media Compatibility | Water, neutral fluids, glycol mixtures (typical HVAC/process media) |
Engineering Features & Advantages
- Precision Flow Control: The 3-port mixing/diverting design enables accurate temperature and flow regulation, ensuring stable process conditions and energy-efficient operation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust flanged body and proven Siemens actuator compatibility for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing straightforward integration into existing Siemens control loops and manifolds.
- Optimized Hydraulic Performance: High kvs value of 100 m³/h minimizes pressure drop and supports high flow rates with low noise and minimal cavitation risk.
- Flexible Actuation: Designed to interface seamlessly with Siemens SKD, SKB, and SKC series actuators for precise positioning and fail-safe options.
Typical Industrial Applications
This control valve is widely used in district heating and cooling systems, building automation and HVAC plants, industrial process water
PRODUCT IMAGES

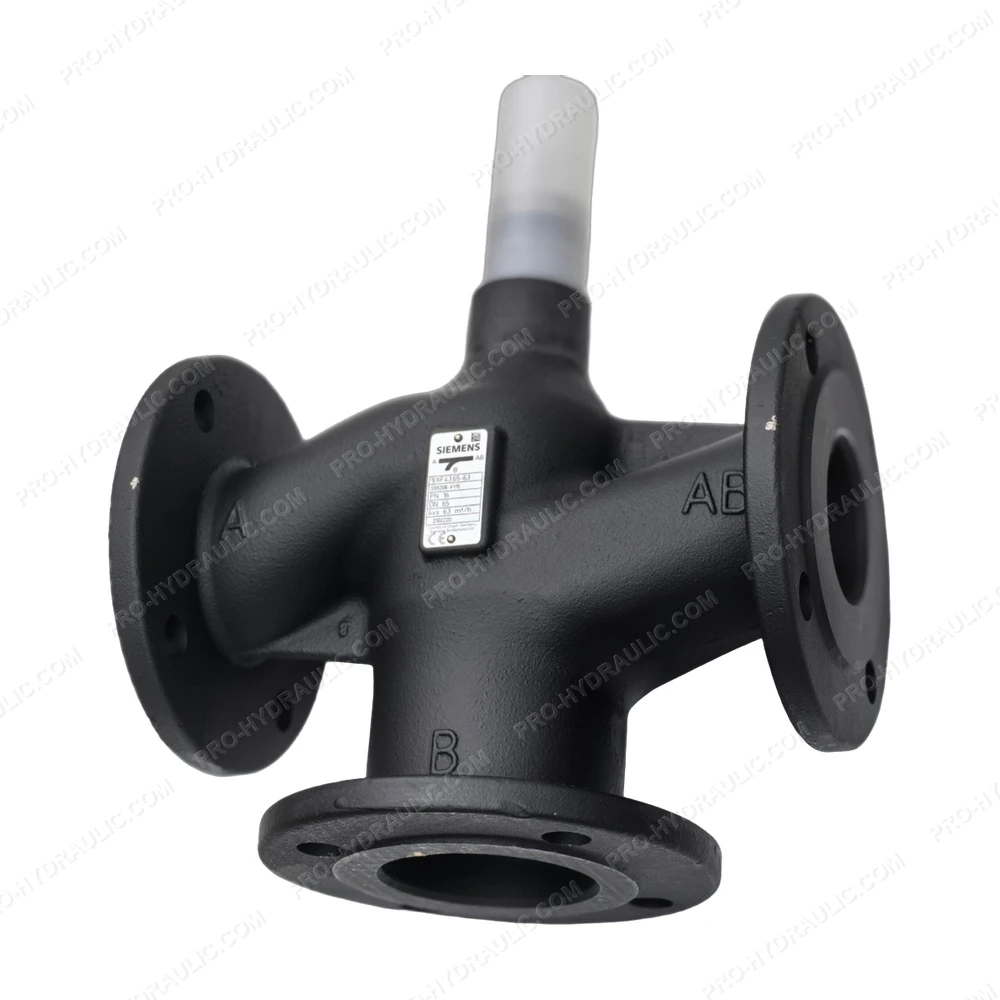

SIEMENS VXF43.80-100 3-Port Flanged Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SIEMENS VXF43.80-100 2-Way Pressure Independent Control Valve. This Germany-made 24V AC/DC hydraulic component features a pressure-independent balancing design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
