Product Overview
The SIRCA AP01S08BH2BIS is a precision-engineered pneumatic rotary actuator from the SIRCA AP series, designed to deliver reliable quarter-turn (90°) valve actuation in demanding industrial process environments. Operating on a rack-and-pinion working principle, this double-acting actuator converts compressed air pressure into controlled rotary torque, providing smooth and accurate positioning of ball, butterfly, and plug valves. The AP01S08BH2BIS is a compact, high-cycle unit suited for automated process control loops where consistent torque output, fast response, and long service life are critical. Its robust anodized aluminum housing and precision-machined internal components make it an ideal choice for integration into pneumatic valve assemblies across chemical, petrochemical, water treatment, and general industrial fluid handling systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Rotary Actuator (Quarter-Turn Valve Actuator) |
| Model Designation | AP01S08BH2BIS |
| Manufacturer | SIRCA |
| Actuation Principle | Rack-and-Pinion, Double-Acting Pneumatic |
| Rotation Angle | 90° (Quarter-Turn), adjustable via mechanical stops |
| Operating Pressure | Standard Industrial Grade (typically 2 – 8 bar / up to 120 psi) |
| Mounting & Connection | Standard ISO 5211 Valve Mounting Interface / Namur Air Port Interface |
| Housing Material | Anodized Aluminum Alloy, Corrosion-Resistant |
| Sealing | NBR / Buna-N O-Rings and Lip Seals |
Engineering Features & Advantages
- Precision Quarter-Turn Actuation: Rack-and-pinion mechanism delivers accurate 90° rotation with minimal backlash, ensuring precise valve positioning and repeatable process control.
- Dual-Acting Torque Output: Double-acting pneumatic design provides consistent torque in both open and close directions, eliminating the need for spring return and enabling full bidirectional control.
- Compact & Lightweight Construction: Anodized aluminum housing reduces overall weight while maintaining structural rigidity for high-cycle industrial duty.
- Standardized Interface Compatibility: ISO 5211 mounting pattern and Namur air port configuration allow direct bolt-on integration with standard valves and solenoid pilot valves without adapters.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with low-friction bearings and wear-resistant seals extending service intervals.
- Direct Fit Replacement: Precision-manufactured to original SIRCA specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The AP01S08BH2BIS is a compact, high-cycle unit suited for automated process control loops where consistent torque output, fast response, and long service life are critical.
PRODUCT IMAGES

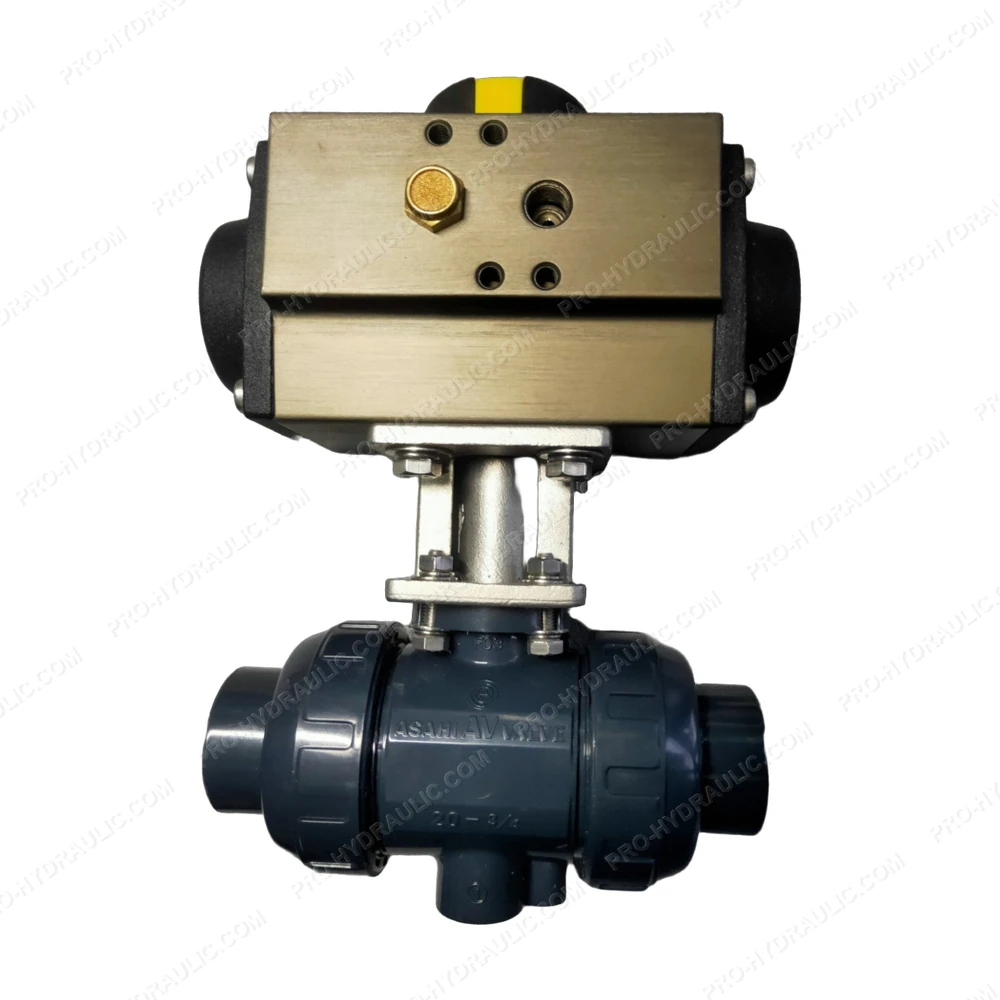

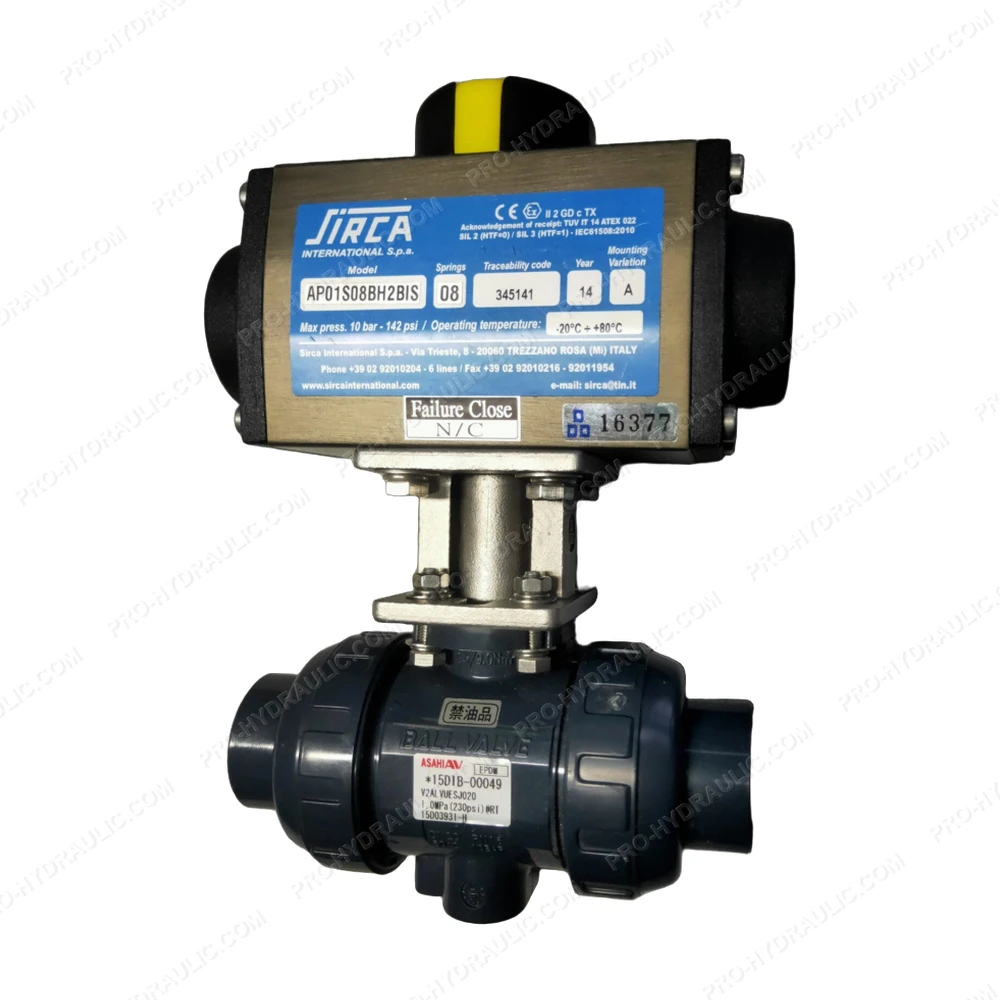

SIRCA AP01S08BH2BIS Pneumatic Rotary Actuator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SIRCA AP01S08BH2BIS Solenoid Directional Valve. This Italy-made 24V DC hydraulic component features a 2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
