Product Overview
The SMC 25A-ITV2050-312CS is a high-precision electro-pneumatic proportional regulator from the SMC ITV series, engineered to deliver stepless, infinitely variable pressure control in response to an analog electrical input signal. Unlike conventional pressure regulators that rely on manual adjustment, this unit utilizes an internal closed-loop feedback system with a pressure sensor and proportional solenoid to continuously compare the commanded setpoint against actual downstream pressure, adjusting the internal valve spool to maintain accurate output regulation. The 25A prefix denotes an SMC special specification variant, while the ITV2050 body indicates a 1/4-inch ported regulator with an integrated pressure display and analog command interface. This device serves as a critical control element in pneumatic process loops, enabling remote setpoint programming, electronic pressure profiling, and seamless integration with PLC or DCS-based automation architectures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Regulator (Process & Pneumatic Valve) |
| Model Designation | 25A-ITV2050-312CS |
| Series / Body Size | ITV2050 (1/4 port size class) |
| Control Principle | Closed-loop proportional solenoid with internal pressure feedback sensor |
| Command Signal | Analog input (DC voltage or current, per SMC ITV standard) |
| Operating Pressure | Standard Industrial Grade (up to rated bar, setpoint proportional to input signal) |
| Output Pressure Range | Proportional to analog command, factory-configured per 25A specification |
| Mounting & Connection | Standard ISO / SMC threaded port interface with bracket mounting |
| Pressure Monitoring | Integrated digital pressure display with analog monitor output |
Engineering Features & Advantages
- Precision Proportional Control: The closed-loop electro-pneumatic architecture delivers highly repeatable output pressure that tracks the analog command signal with minimal hysteresis, enabling accurate electronic pressure regulation in dynamic process loops.
- Remote Setpoint Programmability: Accepts analog voltage or current commands from PLC, DCS, or dedicated controllers, allowing full remote operation and integration into automated pressure profiling sequences without manual intervention.
- Integrated Pressure Feedback: An internal pressure sensor continuously monitors downstream output, providing real-time closed-loop correction that compensates for supply pressure fluctuations and downstream flow variations.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust spool and solenoid construction designed to withstand the rigors of 24/7 pneumatic process control.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
This electro-pneumatic proportional regulator (process & pneumatic valve) is widely used in industrial hydraulic power units, machine tools, presses, and general automation systems where reliable, precise performance is required.
PRODUCT IMAGES

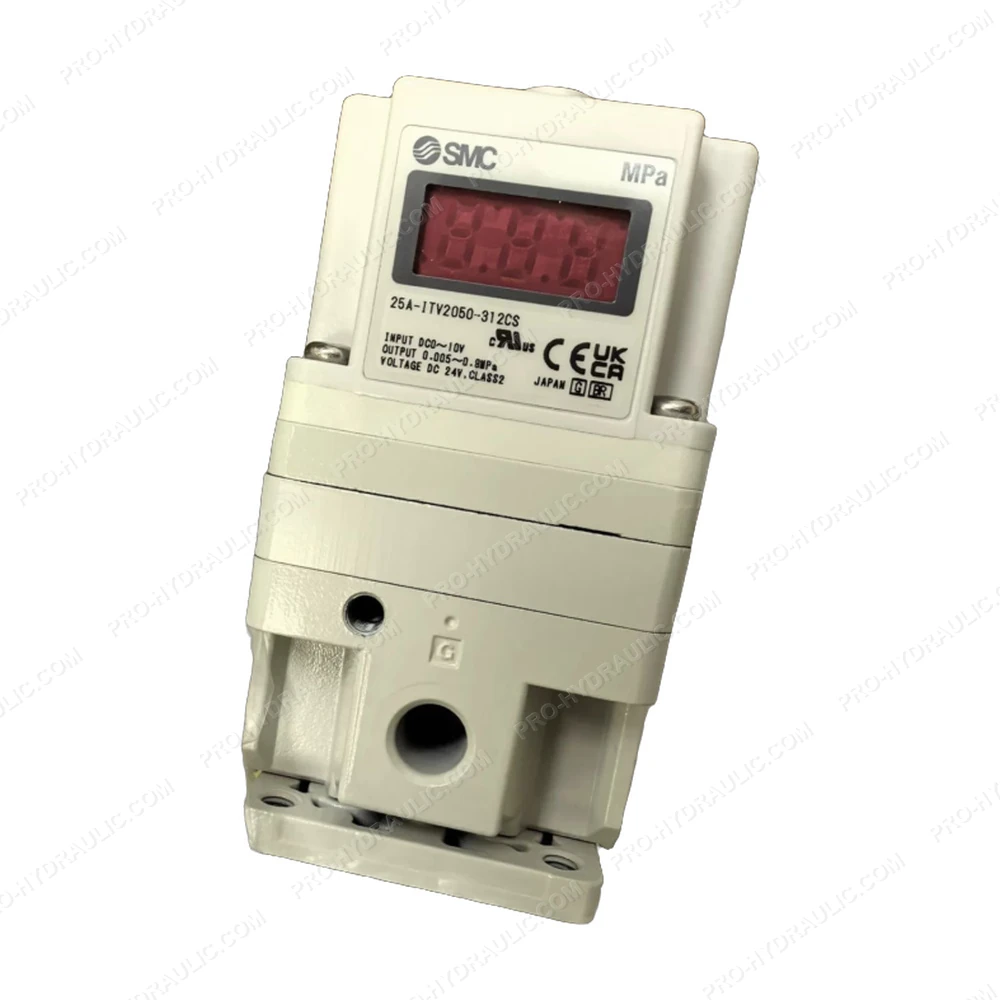

SMC 25A-ITV2050-312CS Electro-Pneumatic Proportional Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC 25A-ITV2050-312CS Electro-Pneumatic Proportional Valve. This Japan-made 24V DC hydraulic component features a precise pressure control design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
