The SMC 30-IFW550-06-00 is a heavy-duty industrial pneumatic control valve engineered for precise flow regulation in compressed air systems. This 5-port, 2-position solenoid valve features a robust spool design and is part of SMC’s IFW series, known for high reliability and long service life in demanding automation environments.
SMC 30-IFW550-06-00 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | 5/2-way solenoid valve, spool design |
| Port Size | 1/4 (06) |
| Operating Pressure Range | 0.1 to 0.7 MPa (1 to 7 bar) |
| Flow Rate (Cv) | 0.9 (typical) |
| Actuation | Electrical solenoid, 24 VDC |
| Power Consumption | 1.8 W (standard) |
| Response Time | ≤ 20 ms |
| Mounting | Manifold or sub-base (ISO 5599-1) |
| Body Material | Aluminum alloy |
| Seal Material | NBR (nitrile rubber) |
| Operating Temperature | -5°C to +50°C |
| Protection Class | IP65 (with connector) |
Key Engineering Features
- High flow capacity with compact 1/4 port size for efficient air control.
- Manual override for easy troubleshooting and system testing.
- Low power consumption solenoid for energy-efficient operation.
- Durable aluminum body with corrosion-resistant finish.
- Quick response time ensures precise actuation in fast cycling applications.
- Compatible with SMC manifold systems for simplified installation.
Industrial Applications
- Automated assembly lines and robotic workstations.
- Packaging machinery and material handling systems.
- Food and beverage processing equipment (with appropriate air preparation).
- General industrial automation and pneumatic control panels.
- Machine tools and specialty manufacturing equipment.
For technical inquiries, dimensional drawings, or replacement support for SMC 30-IFW550-06-00, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

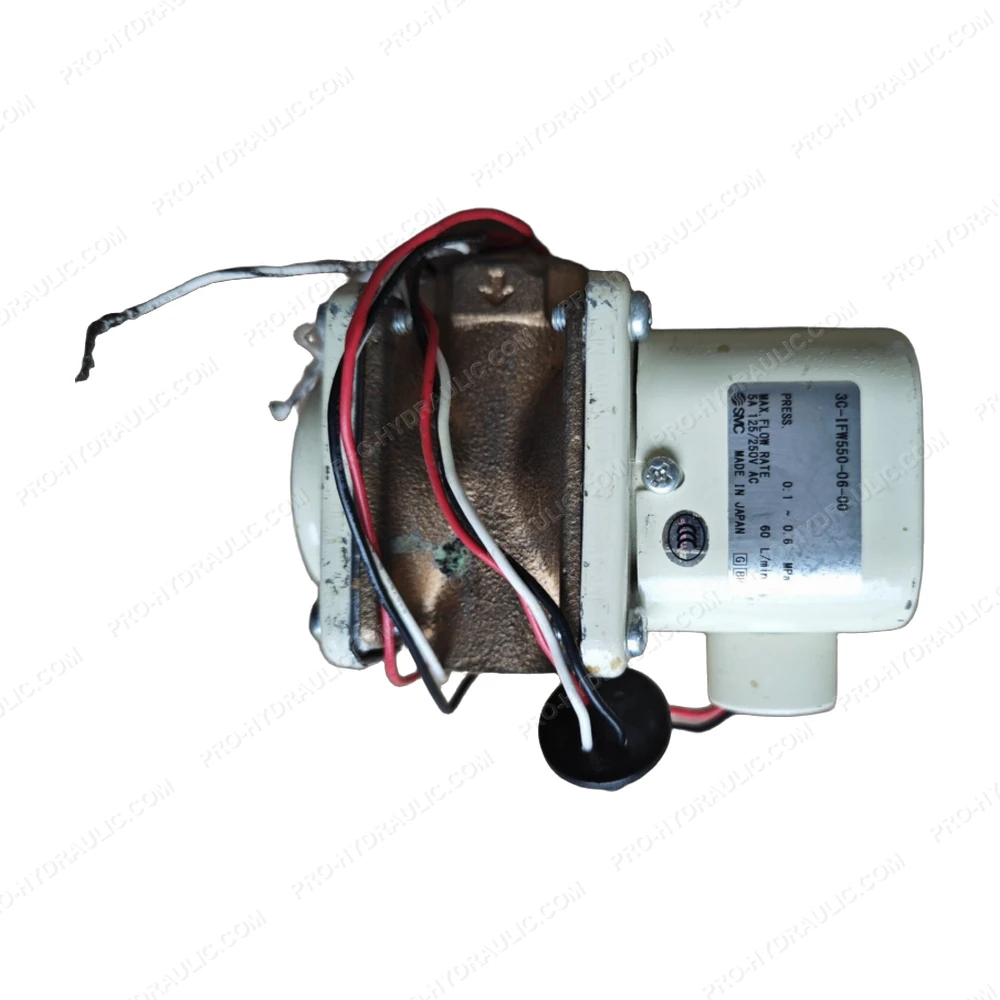

SMC 30-IFW550-06-00 Pneumatic Control Valve
