Product Overview
The SMC AR20-02-A is a precision pneumatic pressure regulator from the SMC AR series, engineered to deliver stable, repeatable downstream pressure control in compressed air systems. As a process and pneumatic valve component, it operates on a diaphragm-actuated, spring-balanced regulating principle: the adjusting knob compresses a control spring, which acts against a diaphragm to modulate the internal valve poppet, maintaining the set outlet pressure regardless of fluctuations in inlet pressure or flow demand. The AR20-02-A features a 1/4″ port size and is designed for panel or bracket mounting, making it a compact and reliable solution for point-of-use pressure regulation in industrial automation, pneumatic control panels, and process equipment. Its relieving-type design allows excess downstream pressure to vent, protecting sensitive downstream components from over-pressurization.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Pressure Regulator (Process & Pneumatic Valve) |
| Model Designation | AR20-02-A |
| Series | SMC AR Series |
| Port Size | 1/4″ (02) |
| Thread Type | Rc (PT) Taper Thread |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Adjustment Type | Knob Adjustment (A: with knob) |
| Regulator Design | Relieving Type, Diaphragm-Actuated |
| Media | Compressed Air / Inert Gas |
Engineering Features & Advantages
- Precision Performance: Diaphragm-actuated, spring-balanced regulating mechanism delivers stable outlet pressure with minimal deviation, even under varying flow demand and inlet pressure fluctuations.
- Relieving-Type Design: Automatically vents excess downstream pressure, safeguarding sensitive pneumatic actuators, sensors, and instrumentation from over-pressurization.
- Compact Modular Construction: Lightweight body with 1/4″ porting enables space-saving installation in dense pneumatic control panels and point-of-use regulation stations.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with durable diaphragm and poppet assembly for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The AR20-02-A features a 1/4″ port size and is designed for panel or bracket mounting, making it a compact and reliable solution for point-of-use pressure regulation in industrial automation, pneumatic control panels, and process equipment.
PRODUCT IMAGES

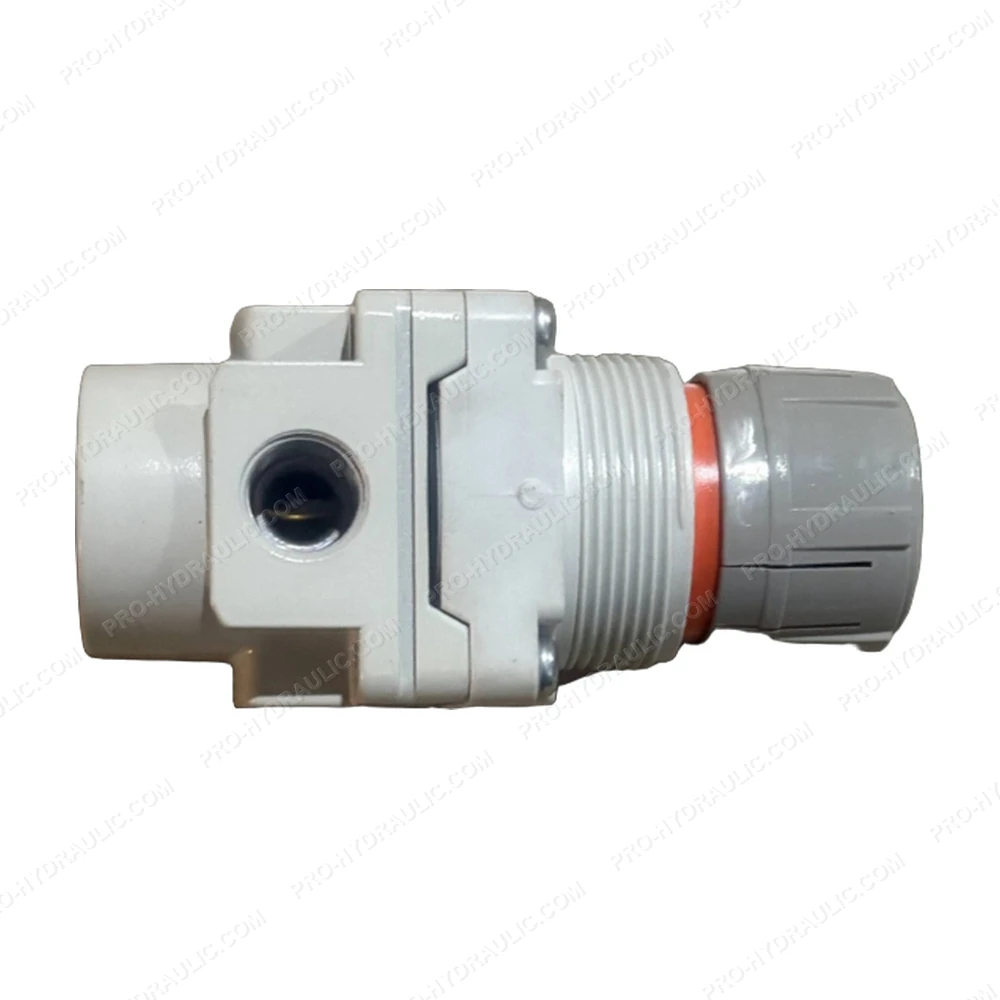

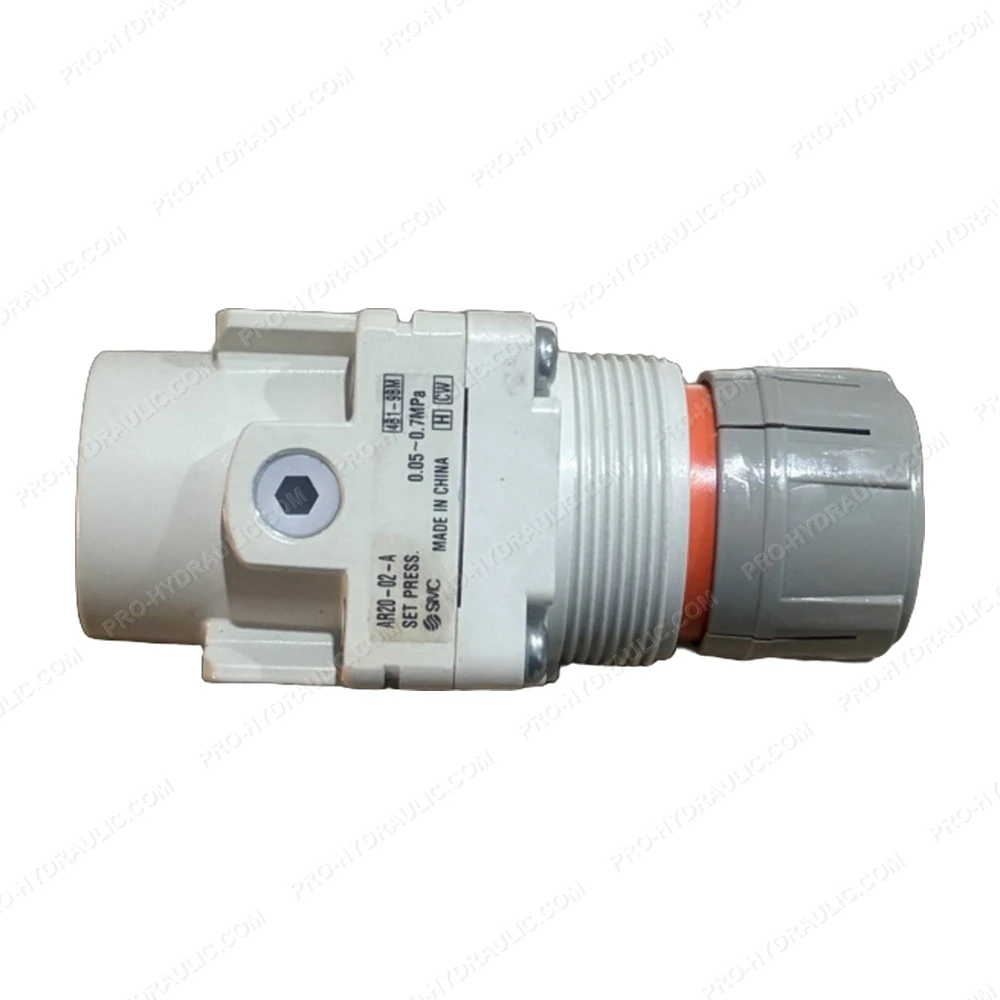

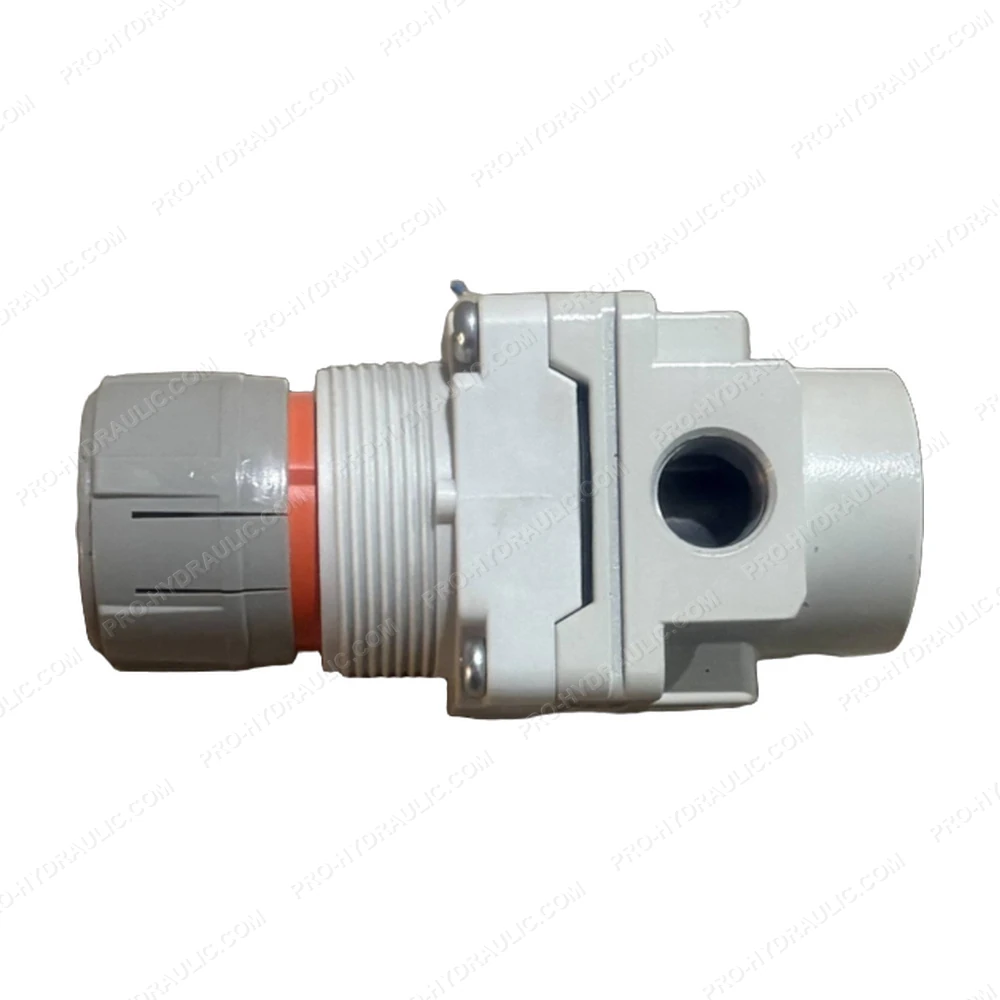

SMC AR20-02-A Pneumatic Pressure Regulator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC AR20-02-A Pneumatic Pressure Regulator. This Japan-made 1/4 inch pneumatic component features a relieving pressure regulator design, delivering leak-free, reliable pressure control for heavy-duty industrial systems.
