Product Overview
The SMC AW40-N04-2-B is a modular pneumatic filter regulator from the SMC AW series, combining air filtration and precision pressure regulation in a single compact unit. As a process and pneumatic valve assembly, it conditions compressed air by removing water droplets, oil mist, and particulate contaminants while maintaining a stable secondary pressure for downstream pneumatic circuits. The unit operates on a diaphragm-actuated pressure reducing principle with an integrated manual relief mechanism, making it a core conditioning component in industrial air preparation systems (FRL combinations).
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Process & Pneumatic Valve — Filter Regulator (FRL Conditioning Unit) |
| Model Designation | AW40-N04-2-B |
| Series / Body Size | AW40 (body size 40, modular FRL series) |
| Port Connection | N04 — 1/2 inch thread (NPT) |
| Operating Pressure | Standard Industrial Grade (up to rated bar; set pressure adjustable via knob) |
| Filtration Rating | Standard 5 µm element (water and particulate removal) |
| Adjustment Type | Manual pressure knob with lock (2 = knob adjustment) |
| Mounting & Connection | Standard ISO / SMC modular interface with bracket option |
Engineering Features & Advantages
- Precision Performance: Diaphragm-type pressure reducing mechanism delivers stable secondary pressure with minimal droop, ensuring consistent actuator and valve response across varying flow demands.
- Integrated Air Conditioning: Combines filtration and regulation in one body, reducing piping complexity and pressure loss compared to separate filter and regulator installations.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust bowl and reliable relief function for safe pressure setting.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC AW40 modular FRL standards, allowing drop-in replacement and modular expansion.
Typical Industrial Applications
Commonly deployed in pneumatic control panels for plastic injection molding machines, CNC machine tools, packaging and assembly automation, and general factory air preparation lines where clean, pressure-stabilized compressed air is required for cylinders, solenoid valves, and air motors.
PRODUCT IMAGES

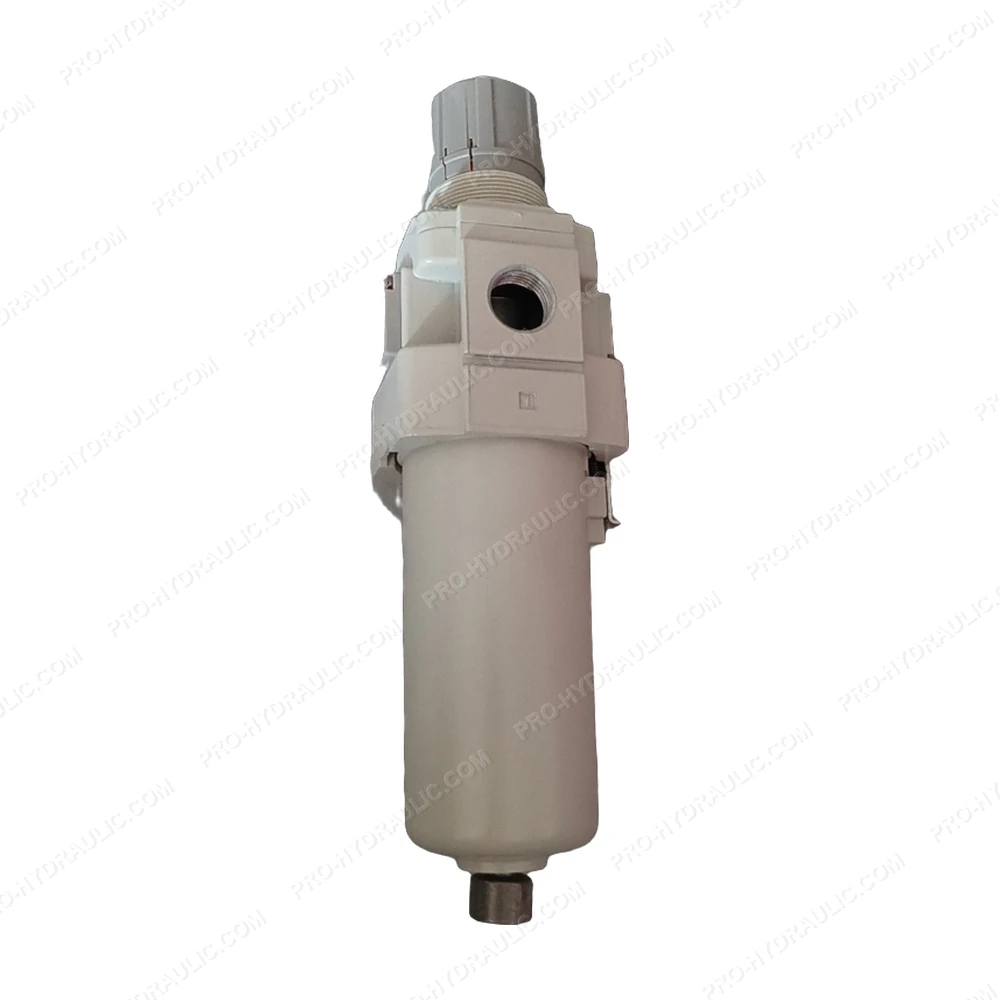

SMC AW40-N04-2-B Pneumatic Filter Regulator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC AW40-N04-2-B Filter Regulator. This Japan-made pneumatic component features a modular design with backflow function, delivering leak-free, reliable air preparation for heavy-duty industrial systems.
