Product Overview
The SMC AW60-N06B-2-B is a modular pneumatic filter regulator unit from the SMC AW series, combining a high-efficiency air filter and a precision pressure regulator in a single compact body. As a process and pneumatic valve accessory, it conditions compressed air by removing water droplets, solid particulates, and oil mist while maintaining a stable downstream set pressure. The AW60-N06B-2-B is engineered for reliable operation in industrial pneumatic circuits, protecting downstream valves, cylinders, and actuators from contamination and pressure fluctuation. Its modular design allows direct integration with other SMC FRL components, enabling simplified system assembly and maintenance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Filter Regulator (Process & Pneumatic Valve) |
| Model Designation | AW60-N06B-2-B |
| Series / Body Size | AW60 (Size 60 modular body) |
| Port Size | N06 = 3/4 inch (NPT) |
| Operating Pressure | Standard Industrial Grade (up to 1.0 MPa / 10 bar) |
| Regulation Range | 0.05 – 0.85 MPa (0.5 – 8.5 bar) typical set range |
| Filtration Rating | 5 µm standard element (water and particulate removal) |
| Bowl Type | Manual drain, polycarbonate or metal bowl with bowl guard |
| Mounting & Connection | Modular / bracket mount, ISO-compatible SMC interface |
| Pressure Gauge | Integrated gauge port (gauge optional per configuration) |
Engineering Features & Advantages
- Precision Performance: The AW60-N06B-2-B combines filtration and pressure regulation in one unit, delivering stable downstream pressure and clean air to protect sensitive pneumatic valves, cylinders, and instrumentation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust body, reliable diaphragm regulation, and efficient water separation.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC AW series modular FRL standards, allowing drop-in replacement and easy integration with existing air preparation systems.
- Modular System Design: Interchangeable with other SMC AW components, reducing installation time and simplifying maintenance and spare parts management.
<h
PRODUCT IMAGES

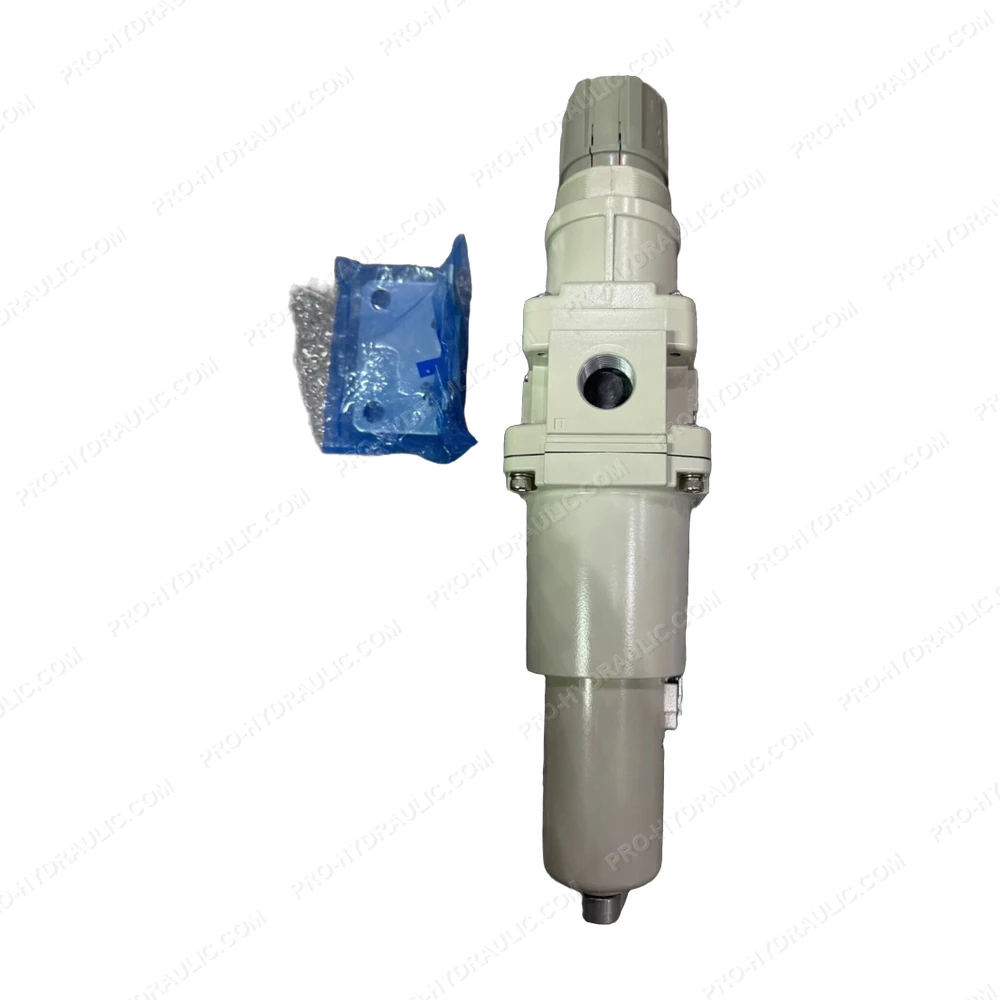

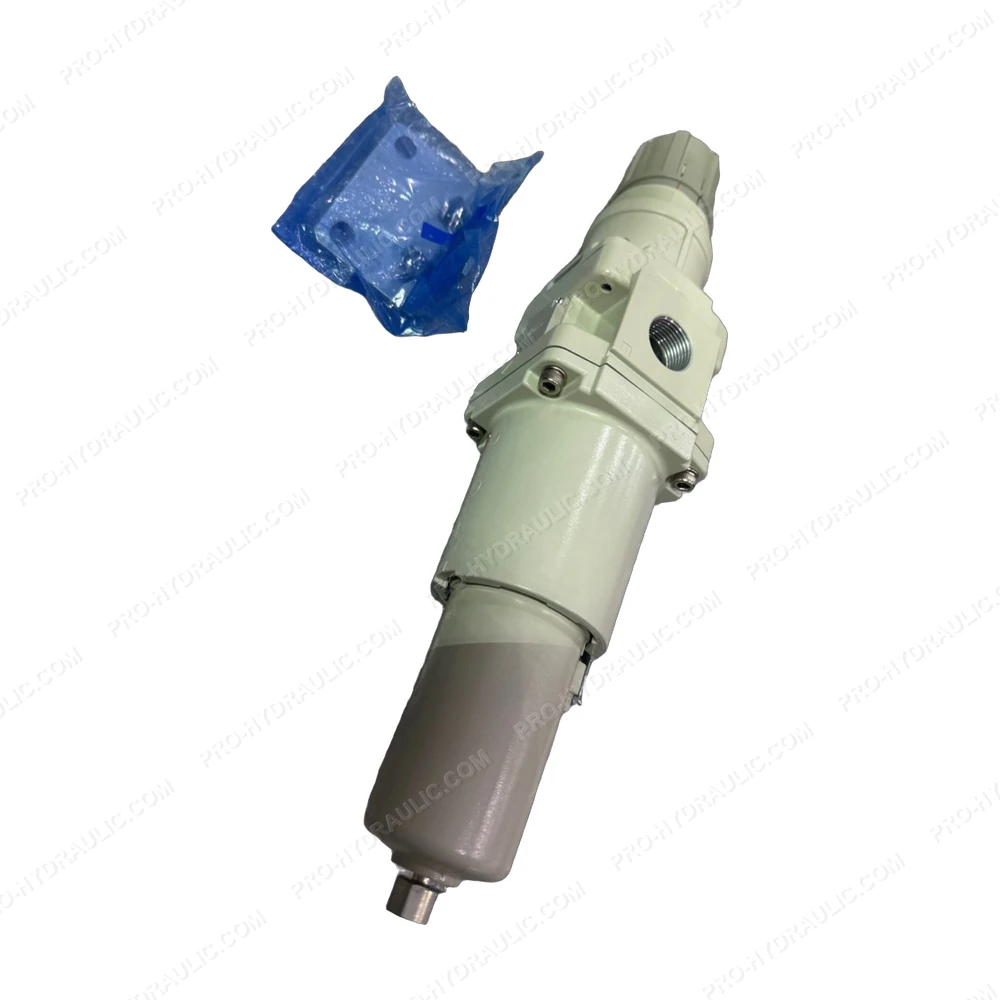

SMC AW60-N06B-2-B Pneumatic Filter Regulator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC AW60-N06B-2-B Filter Regulator. This Japan-made pneumatic component features a modular design with backflow function, delivering leak-free, reliable air preparation for heavy-duty industrial systems.
