Product Overview
The SMC EVS1-01-FG-S-3ZM0-Q is a precision-engineered pneumatic solenoid valve from the SMC EVS1 series, designed for accurate directional control of compressed air and inert gas circuits in automated industrial systems. Utilizing a direct-acting solenoid poppet mechanism, this valve delivers fast, repeatable switching response independent of line pressure, making it ideal for low-pressure and vacuum-adjacent pneumatic control tasks. With its compact body, 1/8 port size, and 3-position closed-center spool configuration, the EVS1-01-FG-S-3ZM0-Q provides reliable flow isolation and precise actuator positioning in demanding process environments. As part of SMC’s globally recognized pneumatics portfolio, it serves as a direct-fit control component for manifold-mounted and standalone valve installations across factory automation, packaging, and process industries.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | EVS1-01-FG-S-3ZM0-Q |
| Series / Brand | SMC EVS1 Series |
| Port Size | 01 (1/8 inch) |
| Valve Function | 3-Position, Closed Center (3ZM0 configuration) |
| Actuation Type | Solenoid Pilot / Direct Acting |
| Operating Pressure | Standard Pneumatic Industrial Grade (0.1 – 0.7 MPa typical) |
| Mounting & Connection | Manifold / Sub-base Mount, ISO Standard Interface |
| Seal Material | FKM / NBR (FG designation) |
Engineering Features & Advantages
- Precision Performance: The 3-position closed-center spool design halts actuator movement and locks flow in the neutral state, enabling accurate mid-stroke positioning and safe load holding in pneumatic circuits.
- Fast Solenoid Response: Direct-acting solenoid construction ensures rapid, consistent switching times independent of supply pressure, improving cycle rates in high-speed automation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust sealing and a compact body resistant to vibration and contamination.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC EVS1 series OEM standards, allowing drop-in replacement without manifold modification.
Typical Industrial Applications
The SMC EVS1-01-FG-S-3ZM0-Q is widely deployed in factory automation and process control systems, including packaging and labeling machinery, plastic injection molding machine auxiliary circuits, CNC machine
PRODUCT IMAGES

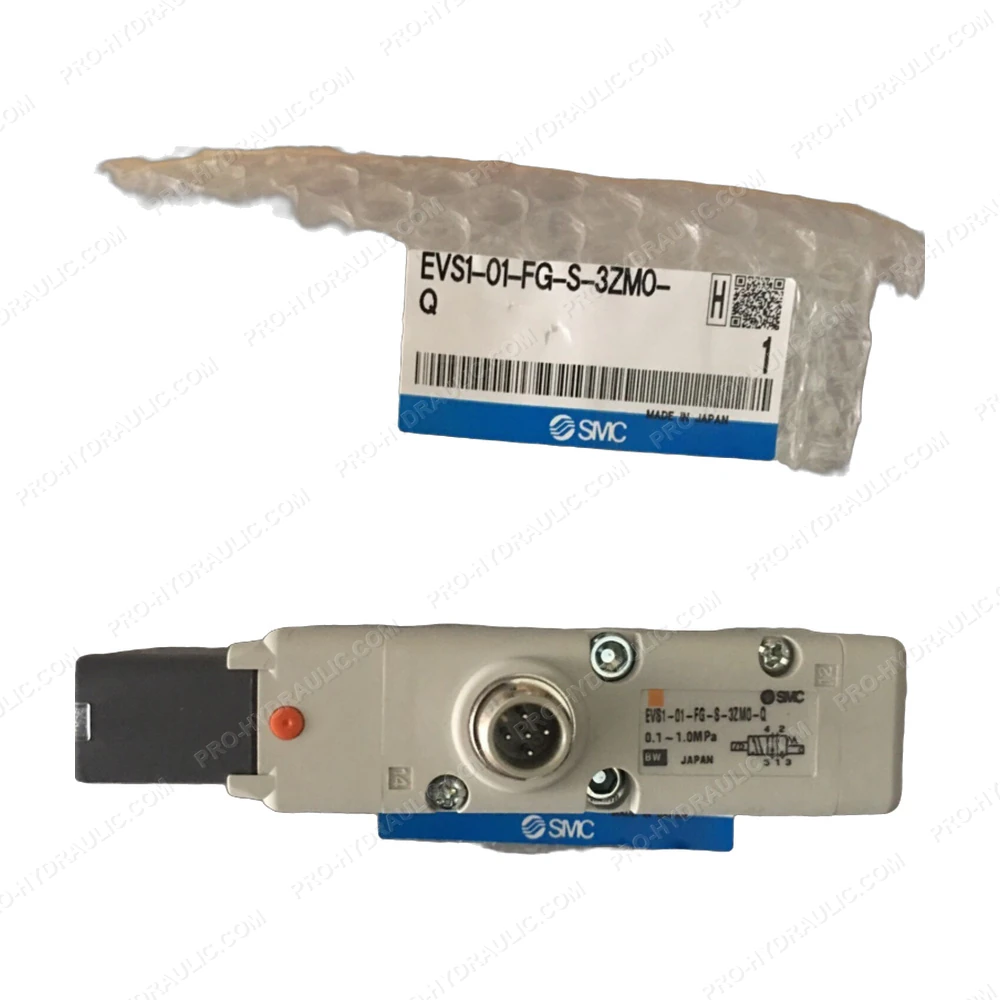

SMC EVS1-01-FG-S-3ZM0-Q Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC EVS1-01-FG-S-3ZM0-Q Solenoid Valve. This Japan-made 24 VDC hydraulic component features a 3-position closed center design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
