Product Overview
The SMC EVS7-6-FG-D-3ZMO is a high-performance pneumatic solenoid valve from the EVS7 series, engineered for precise directional control of compressed air in industrial automation and process systems. This 5-port, 2-position solenoid-actuated directional control valve utilizes a spool-and-sleeve design that ensures rapid response, minimal pressure drop, and consistent flow characteristics across the operating range. With its compact body, robust solenoid pilot mechanism, and reliable sealing architecture, the EVS7-6-FG-D-3ZMO serves as a critical control component in pneumatic circuits requiring dependable actuation, fast cycle times, and long service life. It is designed for direct integration into manifold assemblies or standalone inline mounting, making it a versatile solution for OEM equipment and plant-wide pneumatic control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | EVS7-6-FG-D-3ZMO |
| Series | SMC EVS7 Series |
| Valve Function | 5-Port, 2-Position, Solenoid Pilot Actuated |
| Operating Pressure | Standard Industrial Grade (0.1 to 0.7 MPa typical for pneumatic service) |
| Solenoid Voltage | 24 VDC (standard industrial control voltage) |
| Mounting & Connection | Manifold / Sub-base Mounting, ISO Standard Interface |
| Body Material | Die-cast Aluminum Alloy / Resin Composite |
| Seal Material | NBR (Nitrile Rubber) / FKM (Fluoroelastomer) depending on configuration |
| Response Time | Fast actuation, typically < 20 ms (depends on pressure and flow conditions) |
| Operating Temperature | -10°C to +60°C (standard ambient range) |
Engineering Features & Advantages
- Precision Performance: The pneumatic solenoid valve (directional control valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
It is designed for direct integration into manifold assemblies or standalone inline mounting, making it a versatile solution for OEM equipment and plant-wide pneumatic control systems.
PRODUCT IMAGES

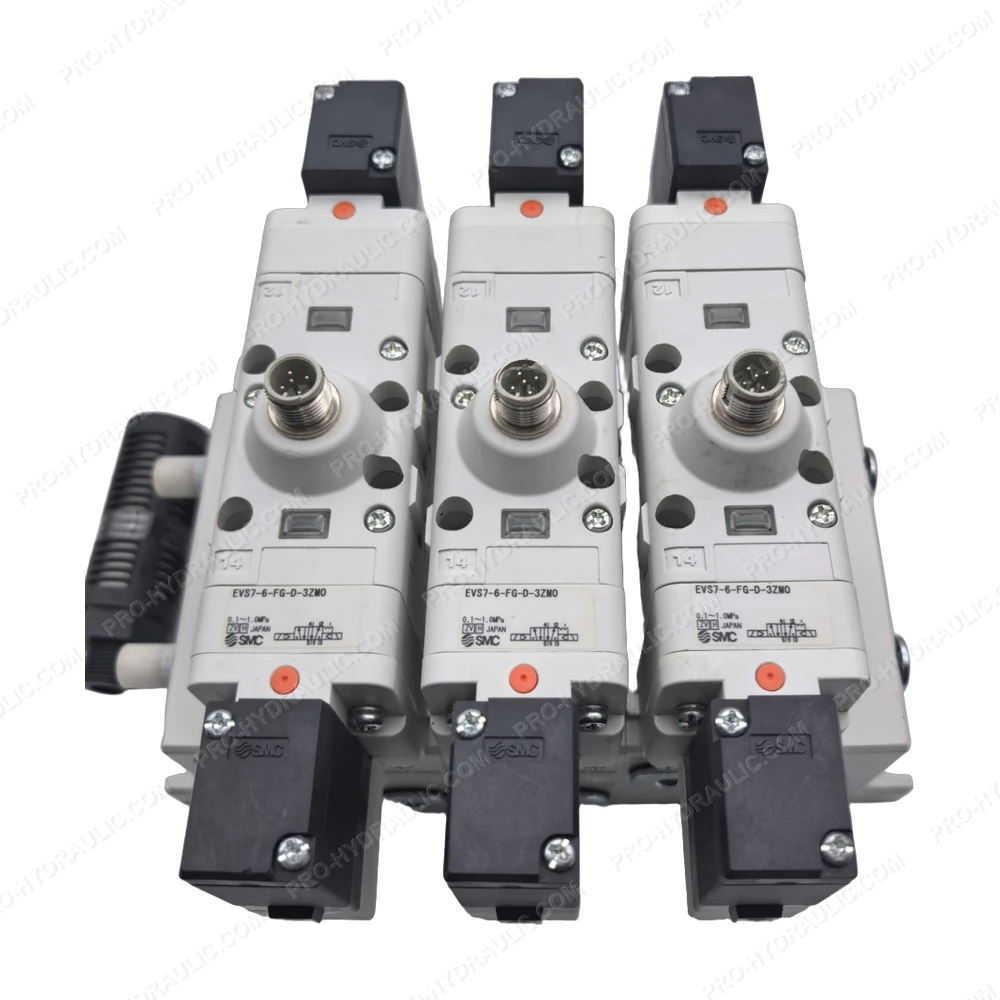

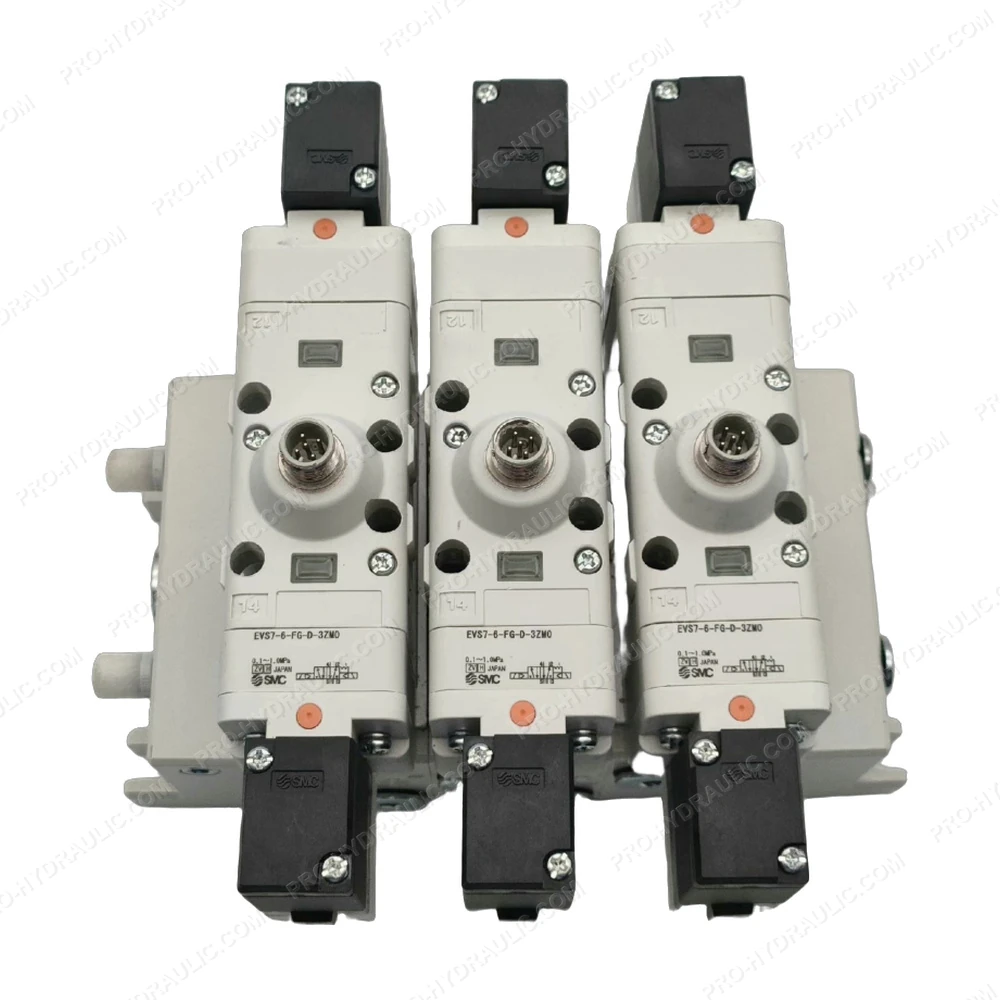

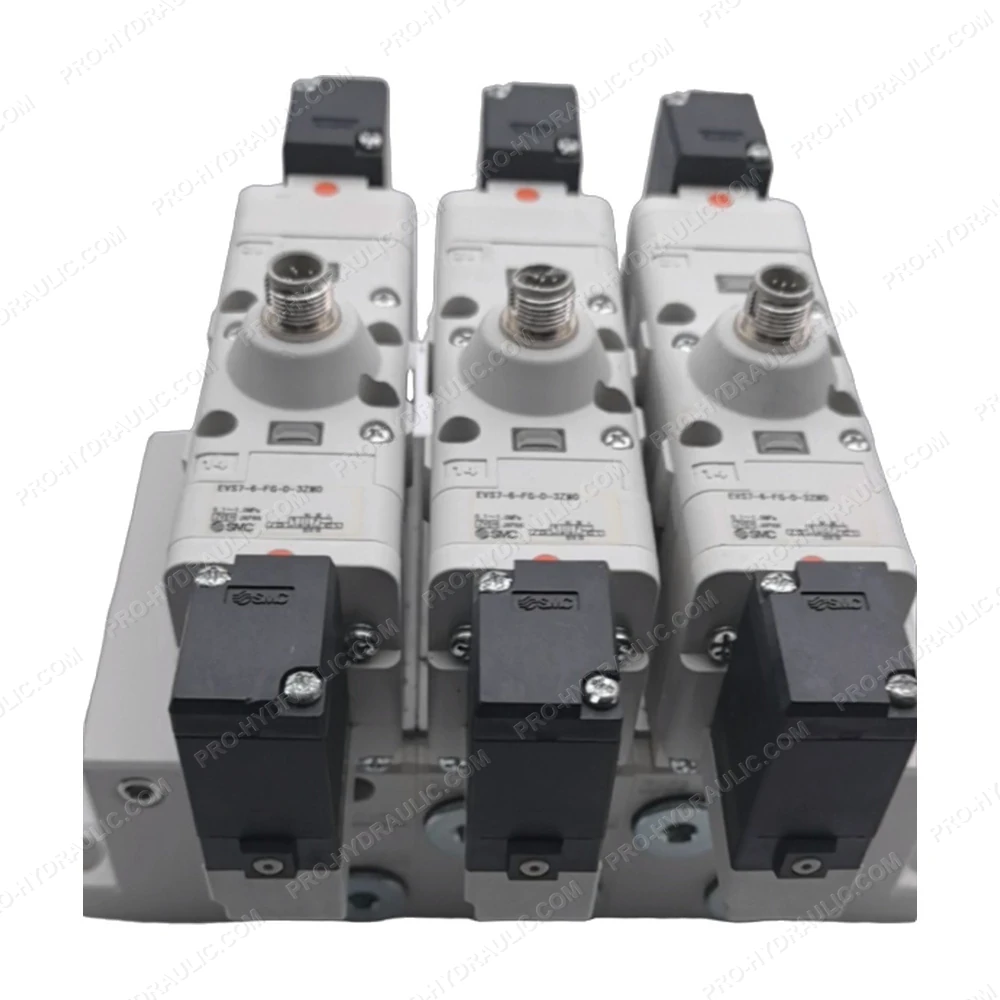

SMC EVS7-6-FG-D-3ZMO Pneumatic Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC EVS7-6-FG-D-3ZMO Solenoid Valve. This Japan-made 24V DC hydraulic component features a 5-port design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
