Product Overview
The SMC ITV1030-401CS5 is a high-precision electro-pneumatic proportional valve (electro-pneumatic regulator) from the SMC ITV series, engineered to provide continuous, stepless control of air pressure in proportion to an analog electrical input signal. Unlike conventional solenoid on/off valves, this unit integrates a pressure sensor, control circuit, and proportional poppet mechanism within a single compact body, enabling closed-loop pressure regulation independent of supply pressure fluctuations and downstream flow variations. The valve accepts a standard DC voltage or current command signal (0–10 V or 4–20 mA, depending on configuration) and delivers a linearly proportional output pressure, making it an essential control component in industrial automation, pneumatic positioning, tension control, and force-controlled actuation systems. The ITV1030-401CS5 is configured with a 1/4-inch port size and is designed for panel or inline mounting in OEM and MRO pneumatic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Process & Pneumatic Valve) |
| Model Designation | ITV1030-401CS5 |
| Series | SMC ITV1000 Series Electro-Pneumatic Regulator |
| Port Size | 1/4 (Rc/NPT/G thread per suffix) |
| Input Signal | Analog DC command (0–10 V / 4–20 mA, model-dependent) |
| Output Pressure Range | 0.005–0.9 MPa (ITV1030 standard range) |
| Operating Pressure | Standard Industrial Grade (supply up to rated MPa) |
| Power Supply | 24 VDC nominal |
| Mounting & Connection | Standard ISO / Manufacturer Interface (inline or bracket mount) |
Engineering Features & Advantages
- Precision Proportional Control: Closed-loop electro-pneumatic regulation delivers output pressure linearly proportional to the analog input signal, with high repeatability and minimal hysteresis for accurate force, tension, and position control.
- Supply Pressure Compensation: Integrated pressure sensor and feedback circuit automatically correct for fluctuations in primary air supply, maintaining stable secondary pressure regardless of upstream variation.
- Stepless & Fast Response: Proportional poppet actuation provides continuous pressure modulation with rapid response times, eliminating the pressure spikes and cycling associated with on/off solenoid valves.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction suitable for demanding automation environments.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The valve accepts a standard DC voltage or current command signal (0–10 V or 4–20 mA, depending on configuration) and delivers a linearly proportional output pressure, making it an essential control component in industrial automation, pneumatic positioning, tension control, and force-controlled actuation systems.
PRODUCT IMAGES

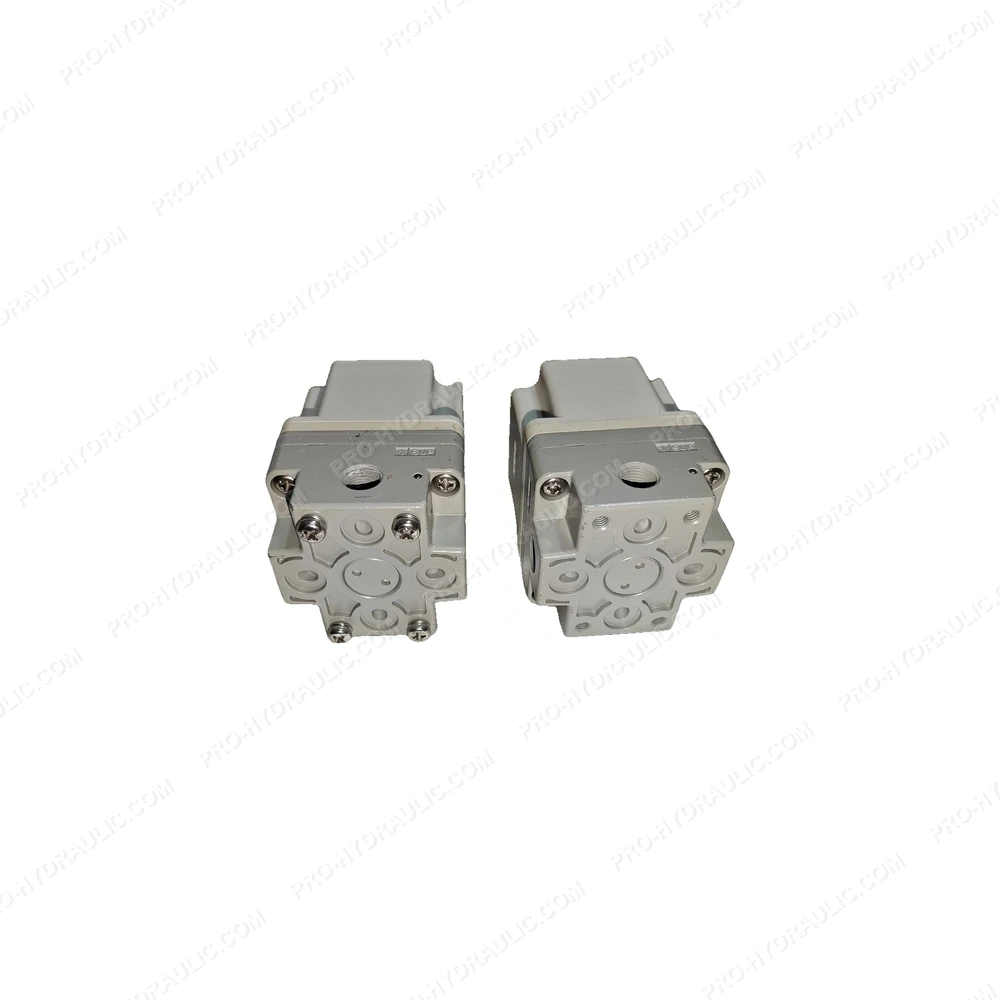

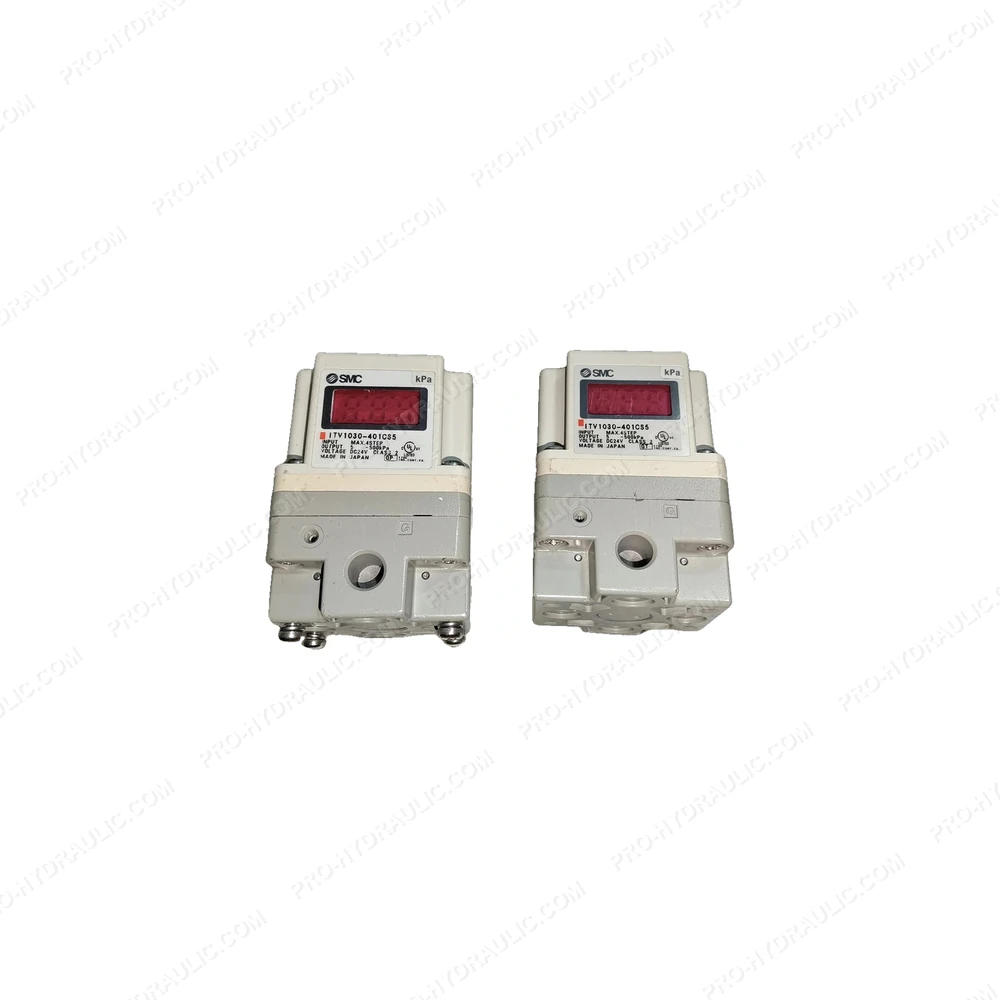

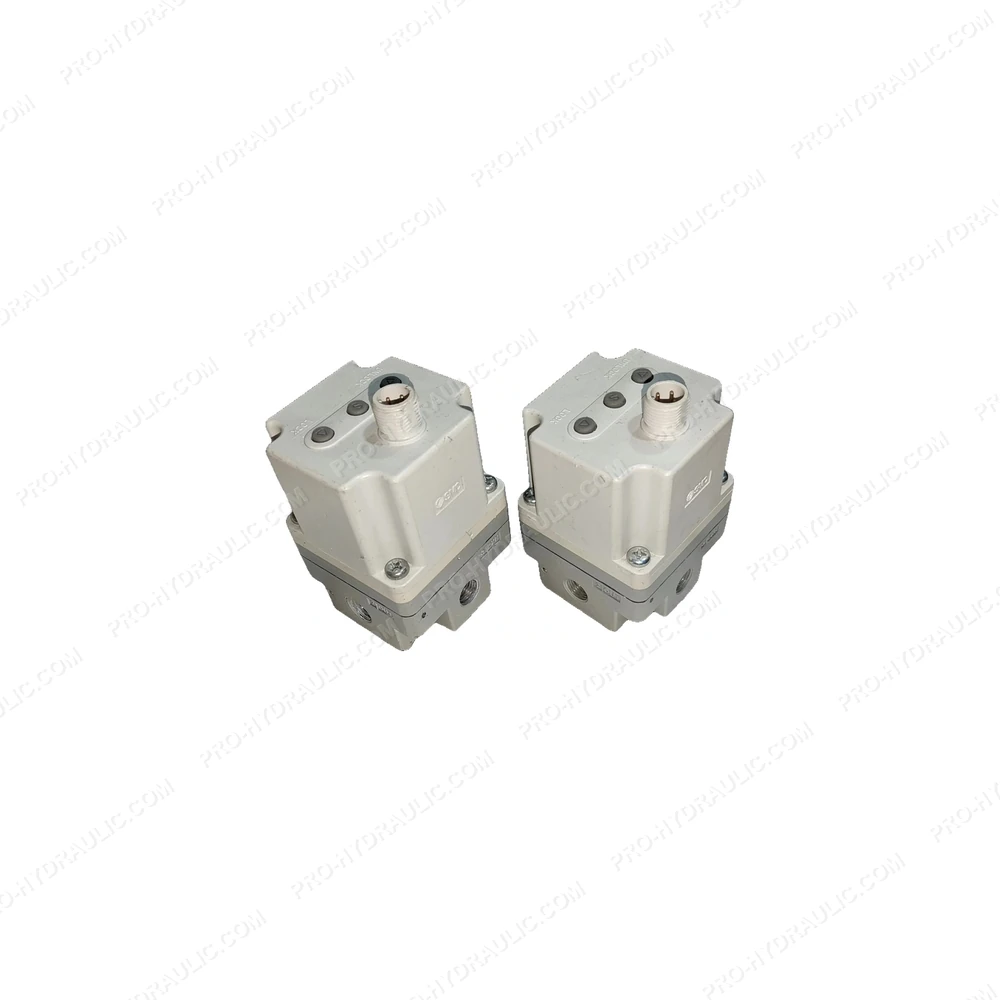

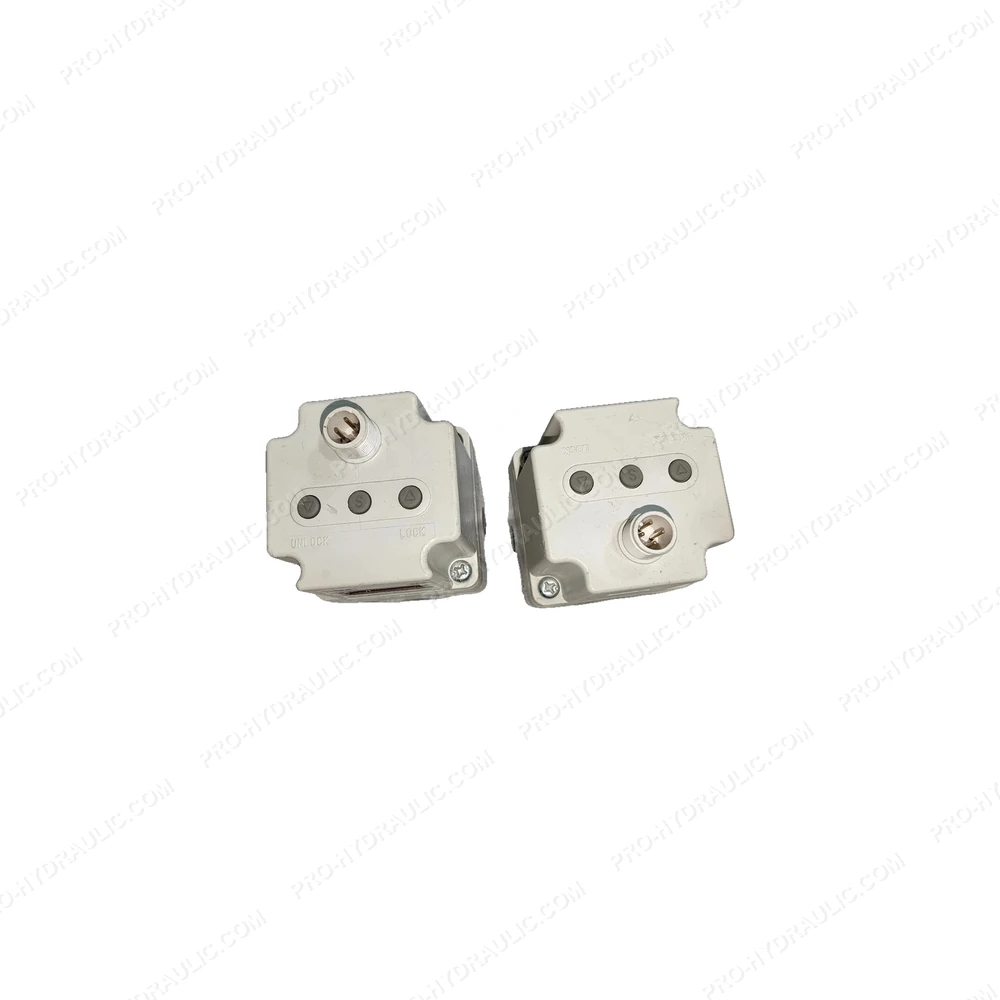

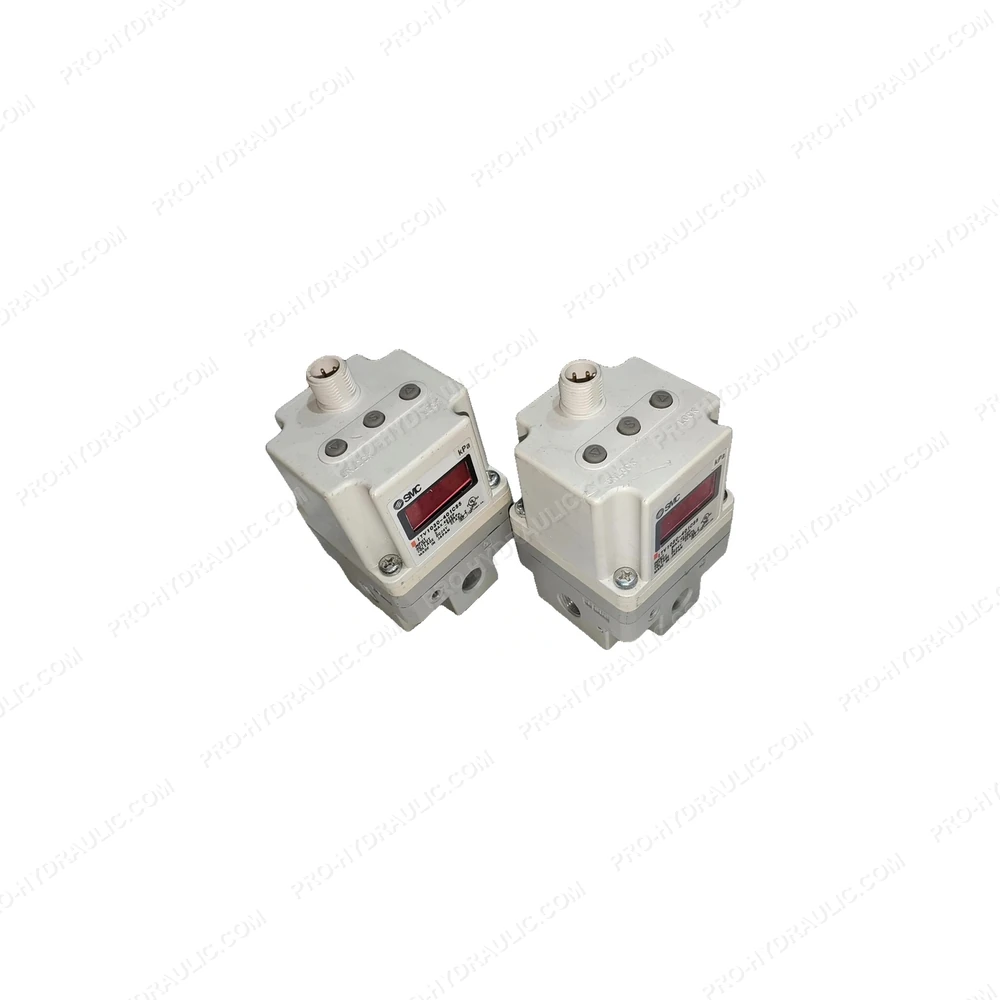

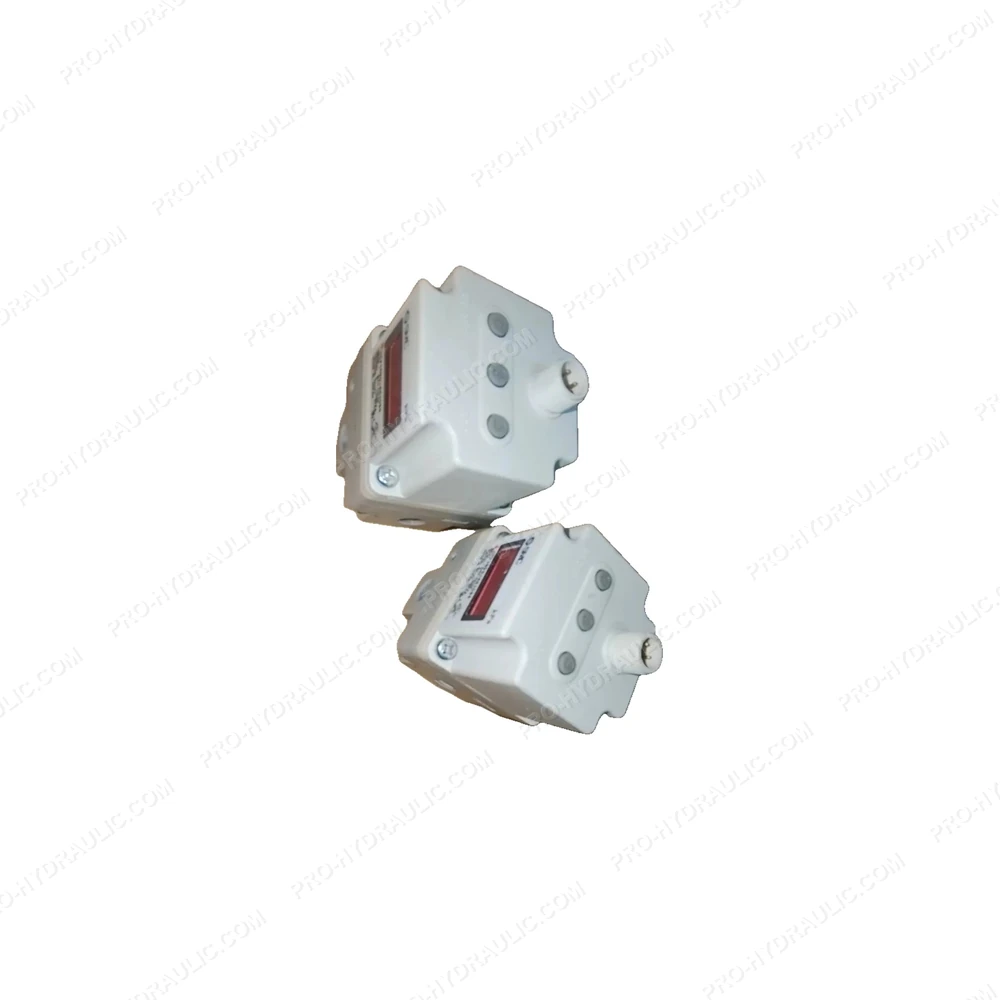

SMC ITV1030-401CS5 Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV1030-401CS5 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features precise pressure control, delivering reliable, leak-free regulation for demanding industrial automation systems.
