Product Overview
The SMC ITV1030-402CL is a precision electro-pneumatic proportional valve (electro-pneumatic regulator) manufactured by SMC Corporation, a global leader in pneumatic and industrial automation technology. This component functions as a stepless pressure control device that converts an analog electrical input signal (0–10 V DC or 4–20 mA) into a linearly proportional pneumatic output pressure. Unlike conventional solenoid valves that provide only on/off switching, the ITV1030-402CL utilizes an internal closed-loop feedback mechanism with a pressure sensor and control circuit to continuously monitor and adjust the output pressure in real time, ensuring exceptional accuracy and repeatability. As part of the SMC ITV series, this valve is engineered for demanding industrial environments where precise, programmable air pressure regulation is critical to process quality and system reliability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Process & Pneumatic Valve) |
| Model Designation | ITV1030-402CL |
| Series | SMC ITV1000 Series |
| Operating Pressure Range | 0.005 – 0.9 MPa (0.05 – 9 bar) set pressure range |
| Input Signal | Analog electrical signal (DC voltage / current, factory-configured) |
| Output Signal | Proportional pneumatic pressure output with analog monitor output |
| Port Size | 1/4 (Rc/NPT/G thread per suffix configuration) |
| Mounting & Connection | Standard SMC bracket / panel mount, threaded pneumatic ports |
| Power Supply | 24 V DC standard industrial supply |
| Fluid | Compressed air (filtered, non-lubricated, dry) |
Engineering Features & Advantages
- Precision Proportional Control: Closed-loop feedback with integrated pressure sensor delivers highly accurate, stepless pressure regulation proportional to the analog input signal, eliminating the hysteresis and drift associated with mechanical regulators.
- Fast Response & High Repeatability: Rapid electrical-to-pneumatic signal conversion enables dynamic pressure adjustment for real-time process control, with excellent repeatability across the full operating range.
- Compact & Lightweight Design: The ITV1000 series body is engineered for space-constrained control panels and manifold assemblies without sacrificing flow capacity or control accuracy.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
As part of the SMC ITV series, this valve is engineered for demanding industrial environments where precise, programmable air pressure regulation is critical to process quality and system reliability.
PRODUCT IMAGES

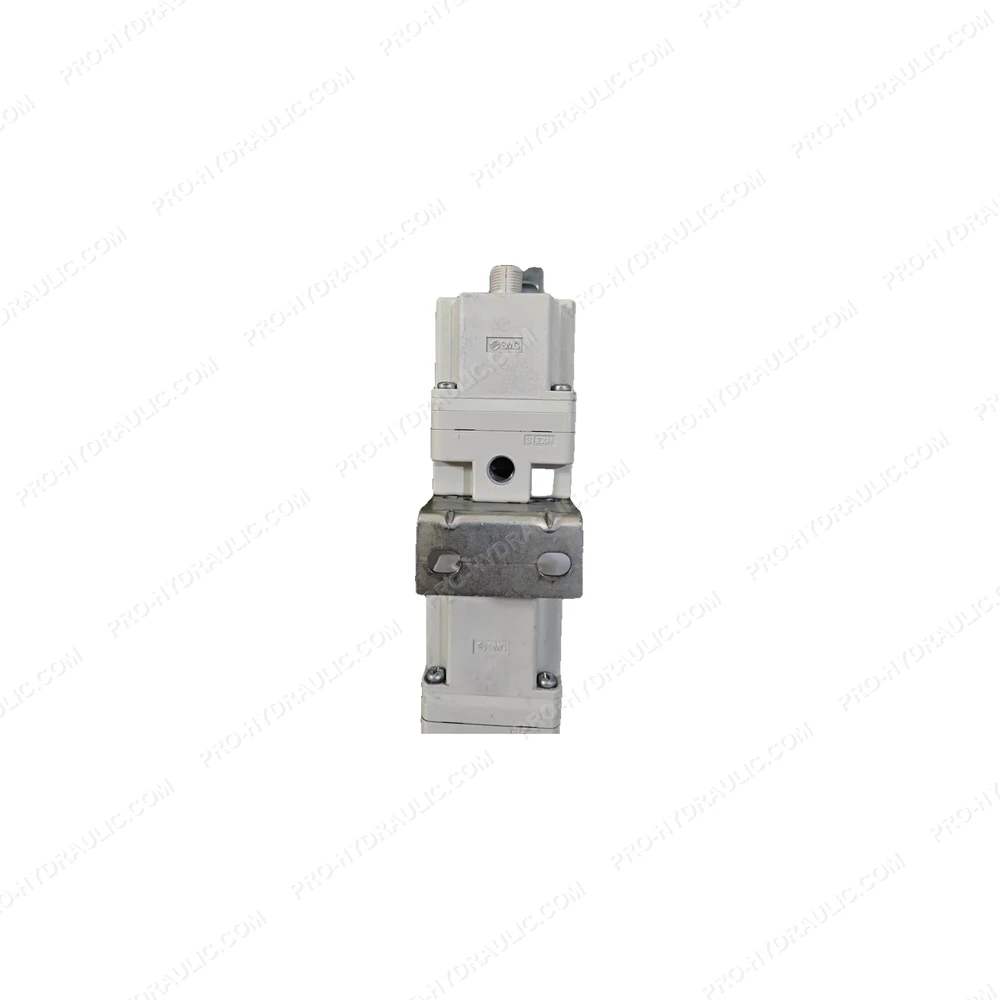

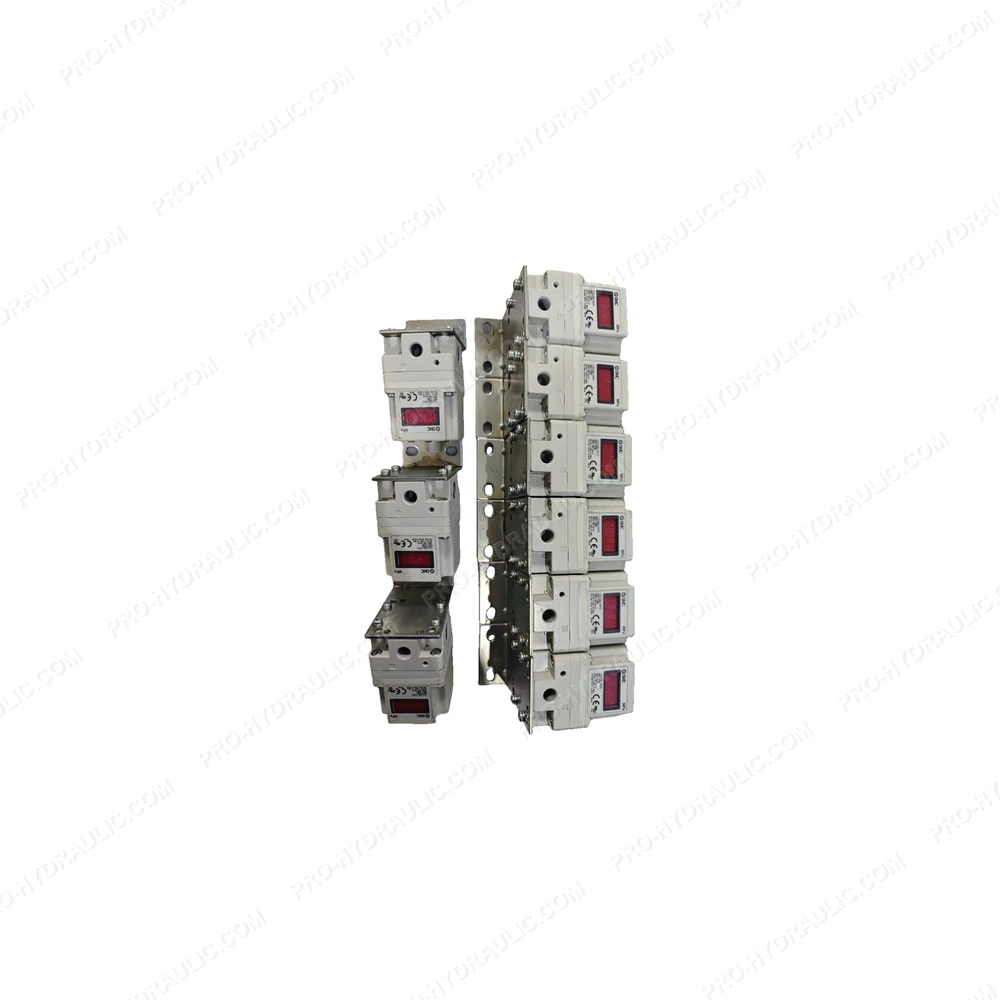

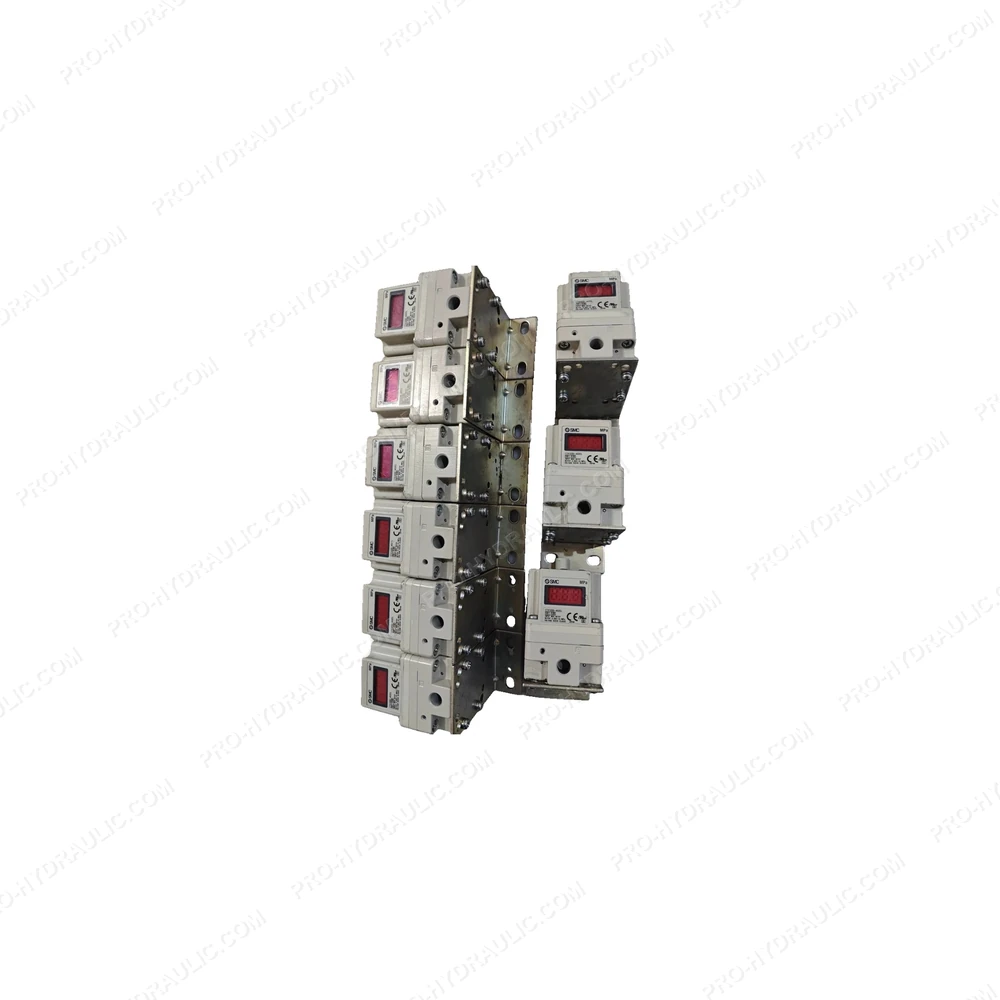

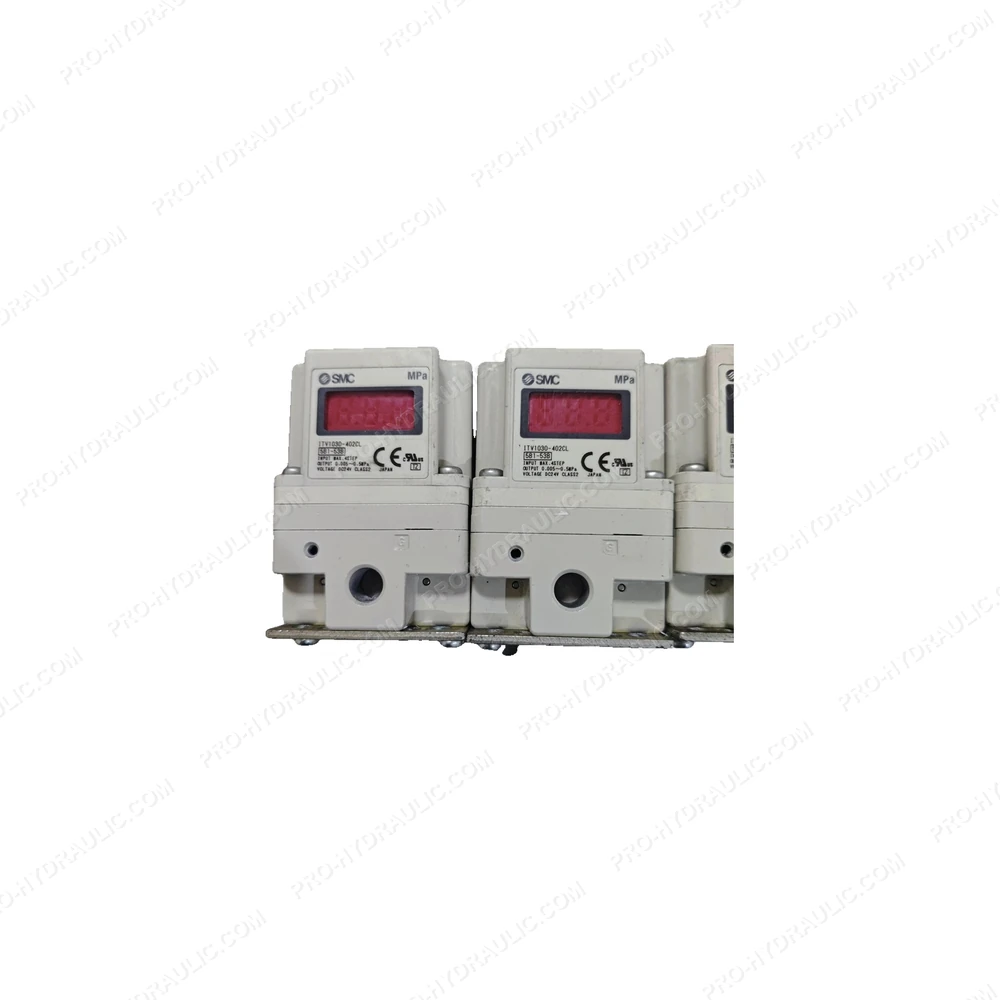

SMC ITV1030-402CL Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV1030-402CL Electro-Pneumatic Proportional Valve. This Japan-made precision valve features a closed-loop control design, delivering accurate pressure regulation and reliable performance for industrial automation systems.
