Product Overview
The SMC ITV1050-312L is a precision electro-pneumatic proportional valve (electro-pneumatic regulator) manufactured by SMC Corporation, a global leader in pneumatic and industrial automation control technology. This component functions as an electronically controlled pressure regulator that continuously modulates output air pressure in direct proportion to an analog electrical input signal (typically 0–10 V DC or 4–20 mA). Unlike conventional on/off solenoid valves, the ITV1050-312L employs a closed-loop feedback control circuit with an internal pressure sensor, enabling stepless, highly repeatable pressure regulation independent of supply pressure fluctuations or flow demand variations. It serves as a critical control element in industrial pneumatic systems requiring precise, dynamic pressure modulation, such as tension control, force-controlled actuation, and proportional pneumatic positioning.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Process & Pneumatic Valve) |
| Model Designation | ITV1050-312L |
| Series | SMC ITV1000 Series Electro-Pneumatic Regulator |
| Control Principle | Closed-loop electronic feedback with internal pressure sensor |
| Input Signal | Analog electrical signal (voltage or current, model-dependent) |
| Operating Pressure | Standard Industrial Grade (regulated output up to rated bar) |
| Port Connection | Threaded pneumatic ports (Rc/NPT, size per model code) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Media | Compressed air (filtered, non-lubricated or lubricated) |
Engineering Features & Advantages
- Precision Proportional Control: Closed-loop feedback circuitry delivers stepless pressure regulation with high linearity and repeatability, ensuring output pressure tracks the command signal accurately across the full control range.
- Supply Pressure Compensation: Internal pressure sensing automatically corrects for fluctuations in supply pressure and downstream flow, maintaining stable regulated output without manual re-adjustment.
- Fast Dynamic Response: Optimized solenoid actuation and control electronics provide rapid response to signal changes, suitable for dynamic force and tension control applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust construction and long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards for drop-in replacement.
Typical Industrial Applications
The SMC ITV1050-312L is widely deployed in pneumatic tension control systems for web handling and winding machinery, force-controlled
PRODUCT IMAGES

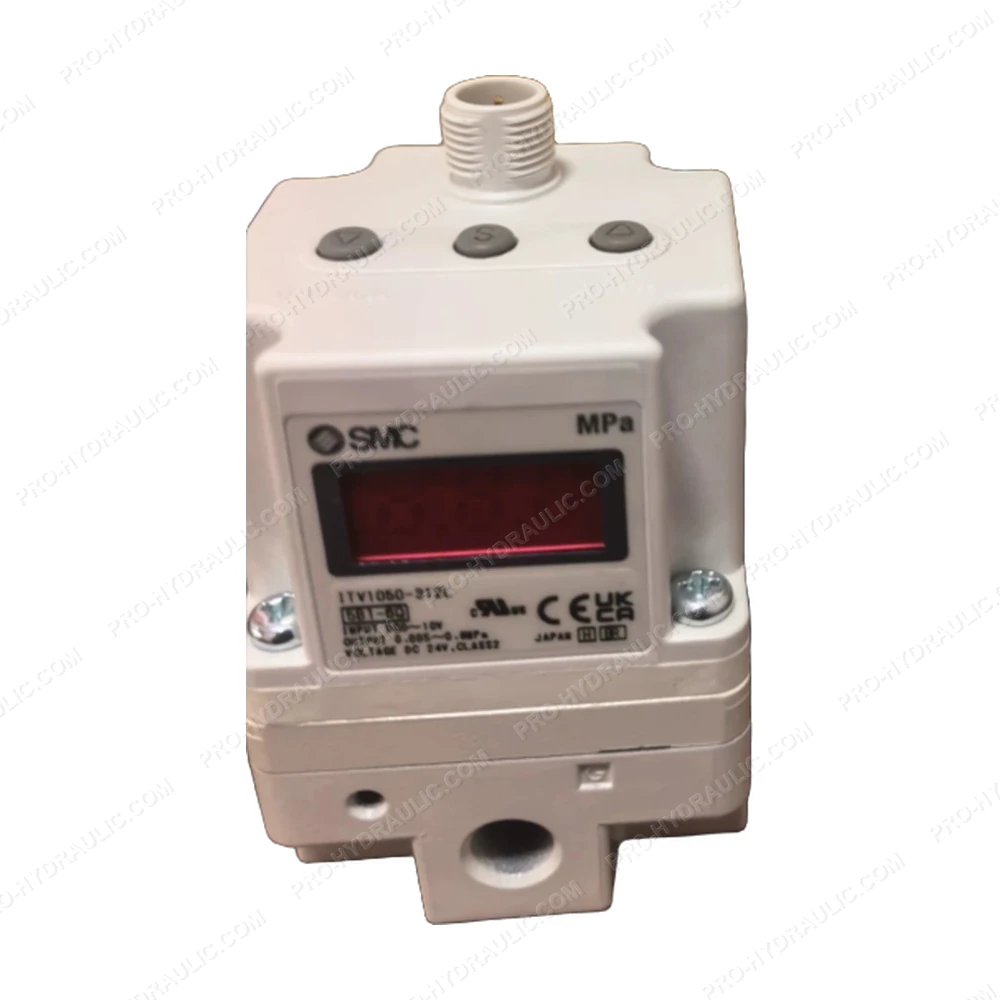

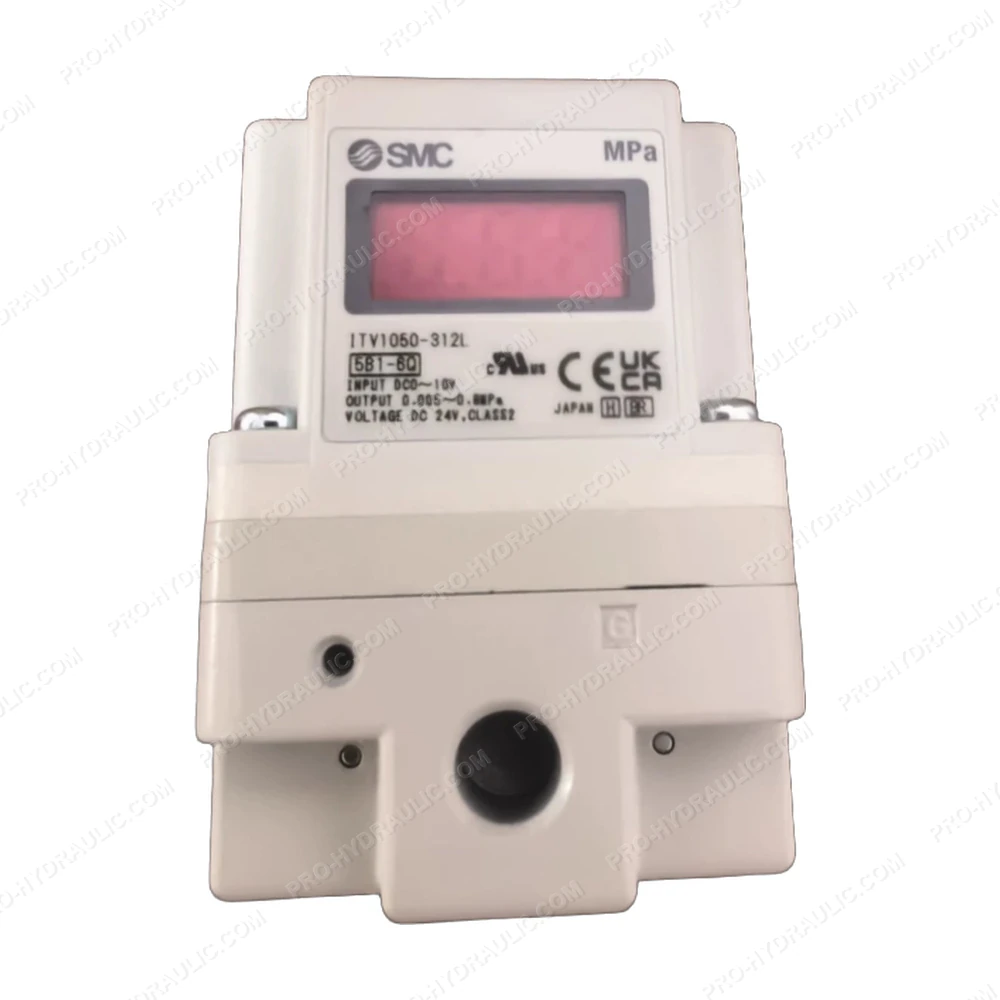

SMC ITV1050-312L Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV1050-312L Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features a precise pressure control design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
