Product Overview
The SMC ITV2030-012BS2 is a precision electro-pneumatic proportional valve (electro-pneumatic regulator) manufactured by SMC Corporation, a global leader in pneumatic and industrial automation technology. This component functions as an electronically controlled pressure regulator that continuously modulates output air pressure in direct proportion to an analog electrical input signal (0–10 V DC or 4–20 mA). By integrating a high-resolution proportional solenoid, an internal pressure sensor, and closed-loop feedback control circuitry, the ITV2030-012BS2 delivers stepless, highly repeatable pressure regulation independent of supply pressure fluctuations or downstream flow variations. It serves as a critical control element in pneumatic process loops, enabling precise electronic setpoint control where mechanical regulators cannot achieve the required dynamic response or remote adjustability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Electronic Pressure Regulator) |
| Model Designation | ITV2030-012BS2 |
| Series | SMC ITV2000 Series |
| Operating Pressure Range | 0.005 – 0.9 MPa (0.05 – 9 bar) setpoint range |
| Supply Pressure | Set pressure + 0.1 MPa minimum (max. 1.0 MPa) |
| Input Signal | Analog DC voltage (0–10 V) or current (4–20 mA), factory configured |
| Port Size | 1/4 (Rc/NPT/G thread per suffix configuration) |
| Mounting & Connection | Inline body mount with threaded pneumatic ports; electrical connection via lead wire / DIN connector |
| Control Principle | Closed-loop proportional solenoid with internal pressure feedback sensor |
| Fluid Medium | Compressed air (filtered, non-lubricated or lubricated) |
Engineering Features & Advantages
- Precision Proportional Control: The internal closed-loop feedback circuit continuously compares the output pressure against the electrical setpoint, achieving high linearity and hysteresis performance for demanding pneumatic regulation tasks.
- Stepless Electronic Setpoint Adjustment: Output pressure is infinitely variable via analog signal, eliminating the mechanical deadband and manual adjustment limitations of conventional spring-loaded regulators.
- Insensitivity to Supply Pressure Fluctuations: The feedback-controlled design maintains stable output pressure even when upstream supply pressure varies, ensuring process consistency.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The SMC ITV2030-012BS2 is a precision electro-pneumatic proportional valve (electro-pneumatic regulator) manufactured by SMC Corporation, a global leader in pneumatic and industrial automation technology.
PRODUCT IMAGES

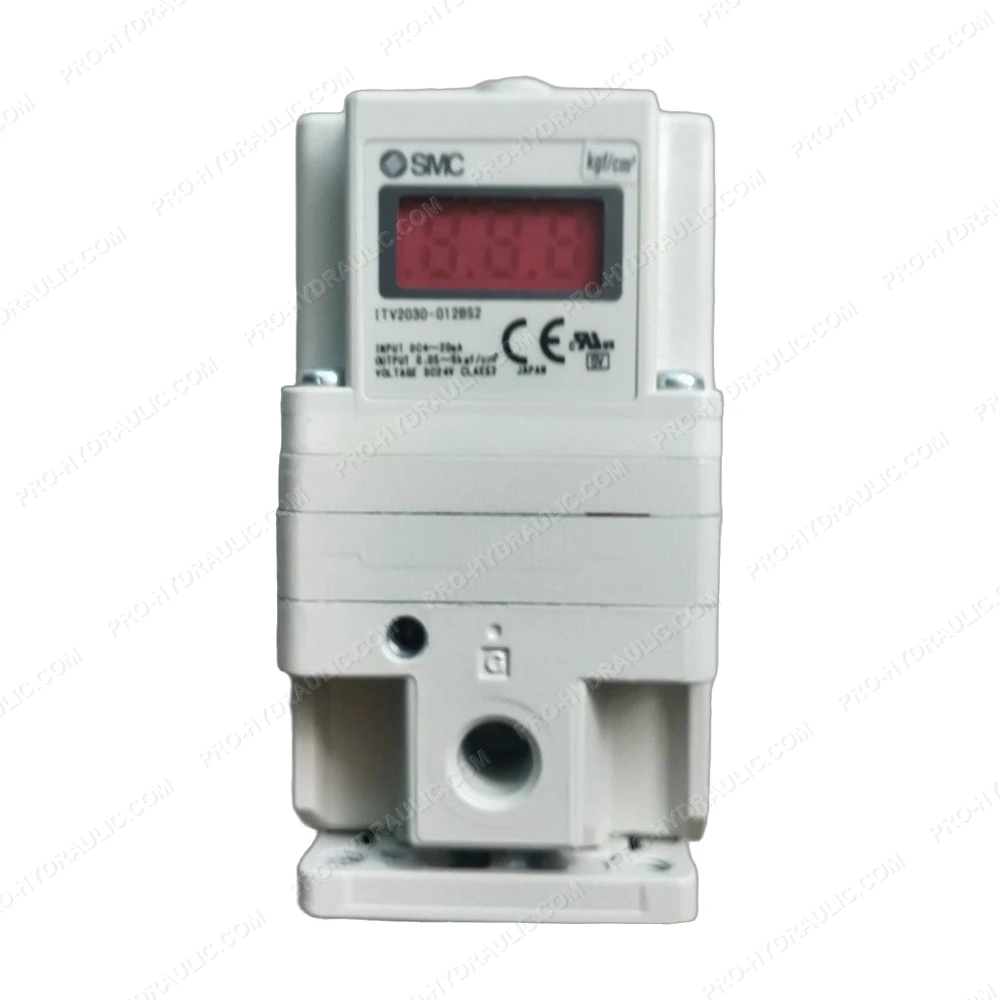

SMC ITV2030-012BS2 Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2030-012BS2 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features a precise pressure control function, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
