Product Overview
The SMC ITV2030-212BL2 is a high-precision electro-pneumatic proportional valve (electro-pneumatic regulator) from the SMC ITV2000 series, engineered to provide continuously variable, stepless control of pneumatic pressure in proportion to an analog electrical input signal. Unlike conventional solenoid valves that offer only open/close functionality, the ITV2030-212BL2 utilizes a closed-loop feedback architecture in which an internal pressure sensor continuously monitors the secondary (outlet) pressure and compares it against the command signal. The integrated control circuit then modulates the internal supply and exhaust poppet valves to maintain the set pressure with exceptional accuracy and repeatability. This device functions as a pressure control valve within pneumatic process circuits, delivering stable, linear pressure regulation for applications requiring precise force, torque, or flow modulation. Its compact body, panel-mount capability, and electrical signal interface make it a preferred choice for automated industrial systems where electronic pressure regulation replaces manual regulators.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Process & Pneumatic Valve) |
| Model Designation | ITV2030-212BL2 |
| Series | SMC ITV2000 Series |
| Control Principle | Closed-loop electro-pneumatic proportional pressure control with internal pressure feedback sensor |
| Set Pressure Range | 0.005 – 0.9 MPa (standard ITV2030 range) |
| Input Signal | Analog command signal (voltage or current type per configuration) |
| Output Signal | Analog monitor output proportional to regulated pressure |
| Port Size | 1/4 (Rc/NPT/G thread per suffix configuration) |
| Mounting & Connection | Panel or bracket mount; threaded pneumatic ports with electrical connector interface |
| Operating Medium | Compressed air (filtered, non-lubricated or lubricated) |
| Supply Pressure | Set pressure + 0.1 MPa minimum (typical SMC requirement) |
Engineering Features & Advantages
- Precision Performance: Closed-loop electro-pneumatic proportional pressure control with internal pressure feedback sensor maintains a constant, precisely metered output independent of load pressure fluctuations, ensuring accurate, repeatable performance in demanding industrial circuits.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
Its compact body, panel-mount capability, and electrical signal interface make it a preferred choice for automated industrial systems where electronic pressure regulation replaces manual regulators.
PRODUCT IMAGES

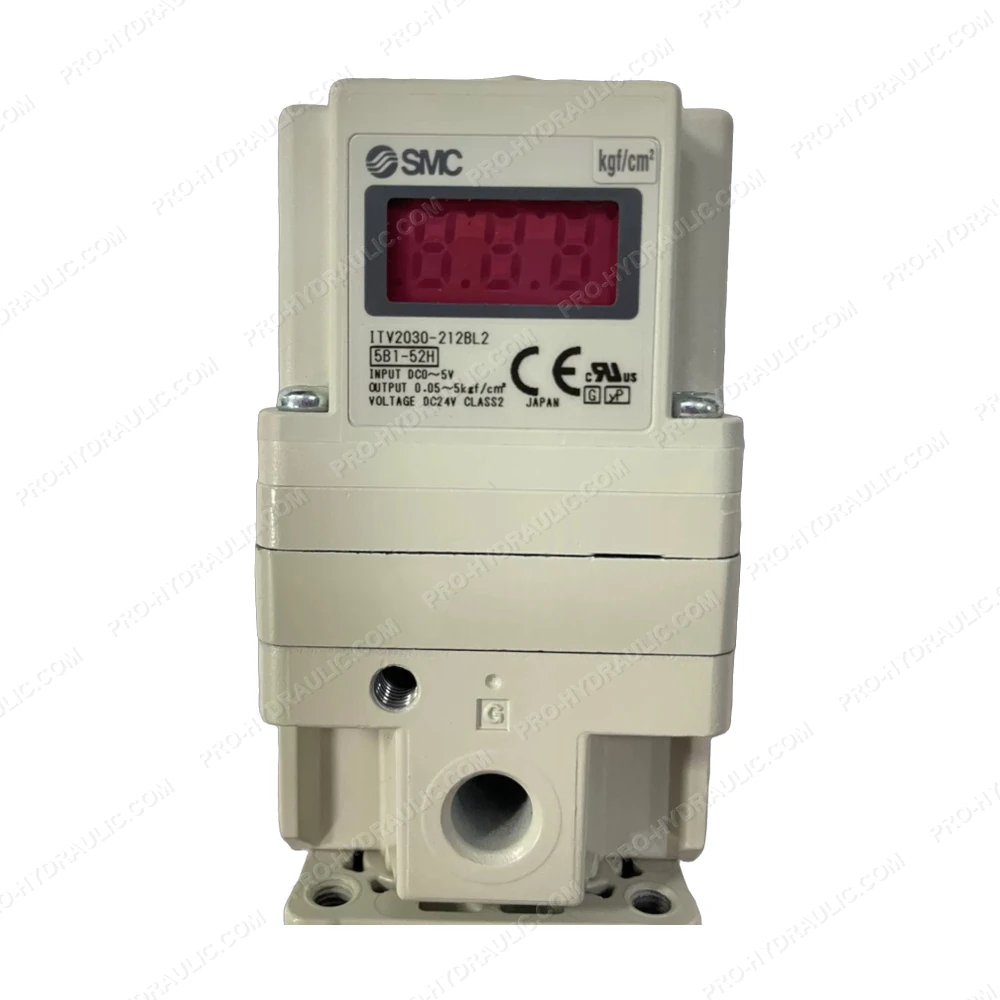

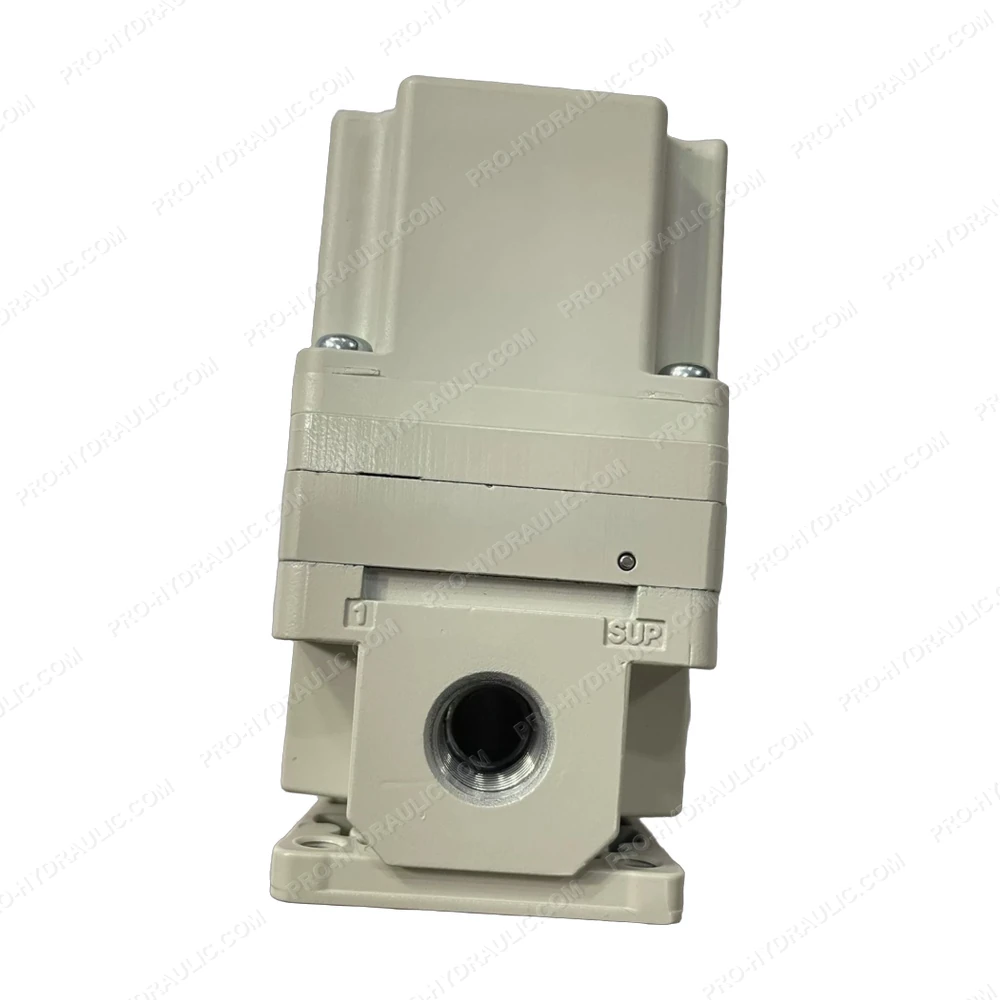

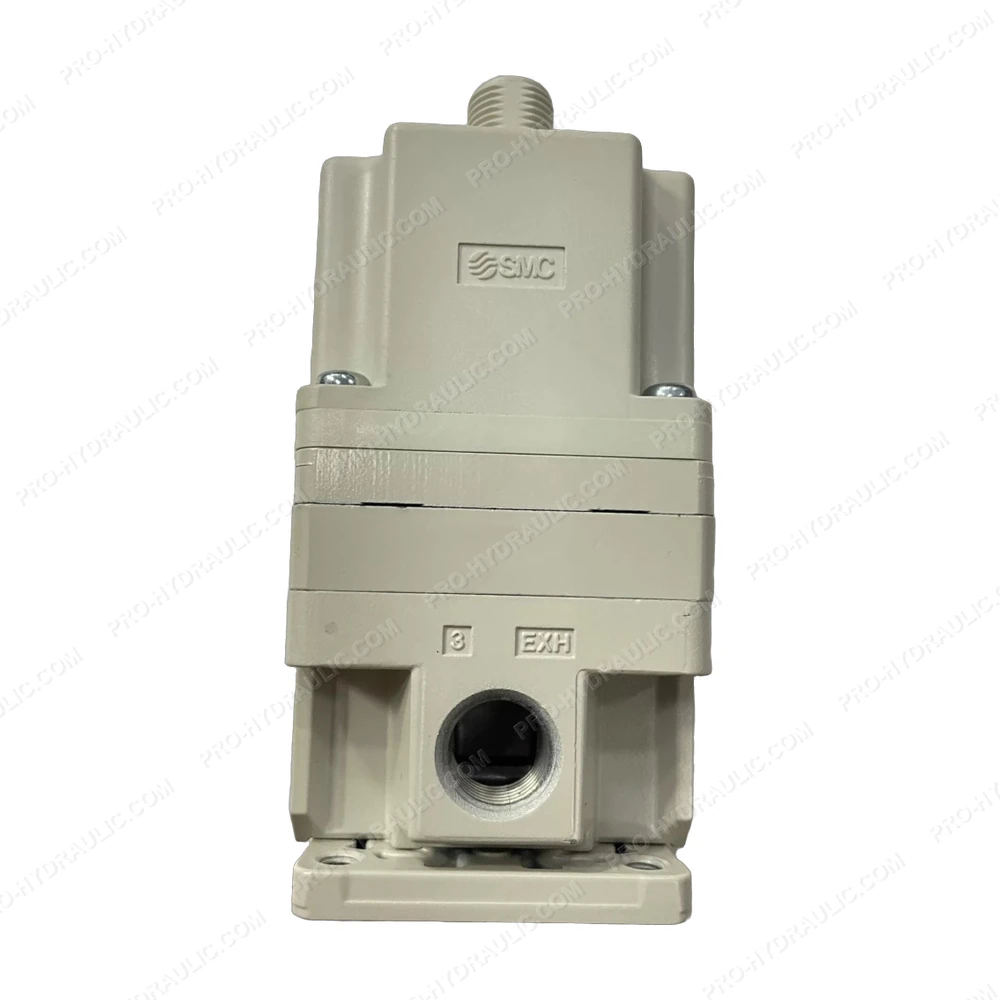

SMC ITV2030-212BL2 Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2030-212BL2 Electro-Pneumatic Regulator Valve. This Japan-made 24V DC hydraulic component features a precise pressure control function, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
