Product Overview
The SMC ITV2030-212BL4-X154 is a high-precision electro-pneumatic proportional valve (electro-pneumatic regulator) from the SMC ITV2000 series, engineered to provide continuously variable, stepless pressure control proportional to an analog electrical input signal. Unlike conventional solenoid directional valves that offer only discrete on/off states, this proportional pressure control valve modulates its internal poppet and exhaust mechanism to deliver a stable output pressure that tracks the command signal in real time. The unit integrates a built-in pressure sensor and closed-loop feedback circuit, ensuring accurate pressure regulation independent of supply pressure fluctuations and downstream flow variations. With its compact body, panel or bracket mounting options, and analog command interface (0–10 V DC or 4–20 mA), the ITV2030 is widely deployed in industrial automation systems requiring precise pneumatic force, tension, or pressure regulation. The “-X154” suffix denotes an SMC special specification variant, while “212BL4” defines the port size, thread type, and electrical connection configuration.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Process & Pneumatic Valve) |
| Model Designation | ITV2030-212BL4-X154 |
| Series | SMC ITV2000 Series Electro-Pneumatic Regulator |
| Control Principle | Proportional poppet with closed-loop pressure feedback |
| Command Signal | Analog input (0–10 V DC / 4–20 mA, model dependent) |
| Output Pressure Range | 0.005 – 0.9 MPa (ITV2030 standard range) |
| Operating Pressure | Standard Industrial Grade (supply up to rated MPa) |
| Port Size & Thread | 1/4 (per “212” designation), Rc/G thread configuration |
| Electrical Connection | Lead wire / DIN connector (per “BL4” designation) |
| Mounting & Connection | Standard ISO / SMC bracket & panel mount interface |
| Special Specification | -X154 (SMC factory special variant) |
Engineering Features & Advantages
- Precision Performance: Proportional poppet with closed-loop pressure feedback maintains a constant, precisely metered output independent of load pressure fluctuations, ensuring accurate, repeatable performance in demanding industrial circuits.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With its compact body, panel or bracket mounting options, and analog command interface (0–10 V DC or 4–20 mA), the ITV2030 is widely deployed in industrial automation systems requiring precise pneumatic force, tension, or pressure regulation.
PRODUCT IMAGES

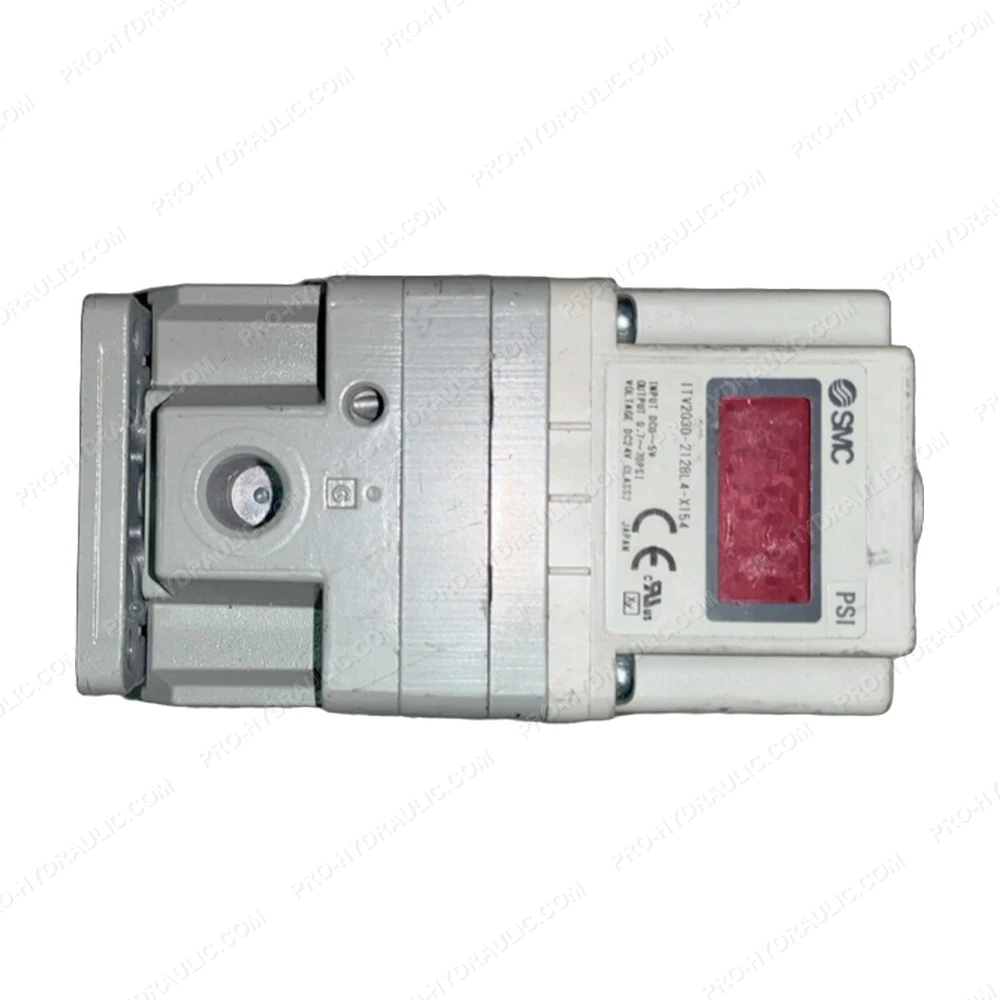

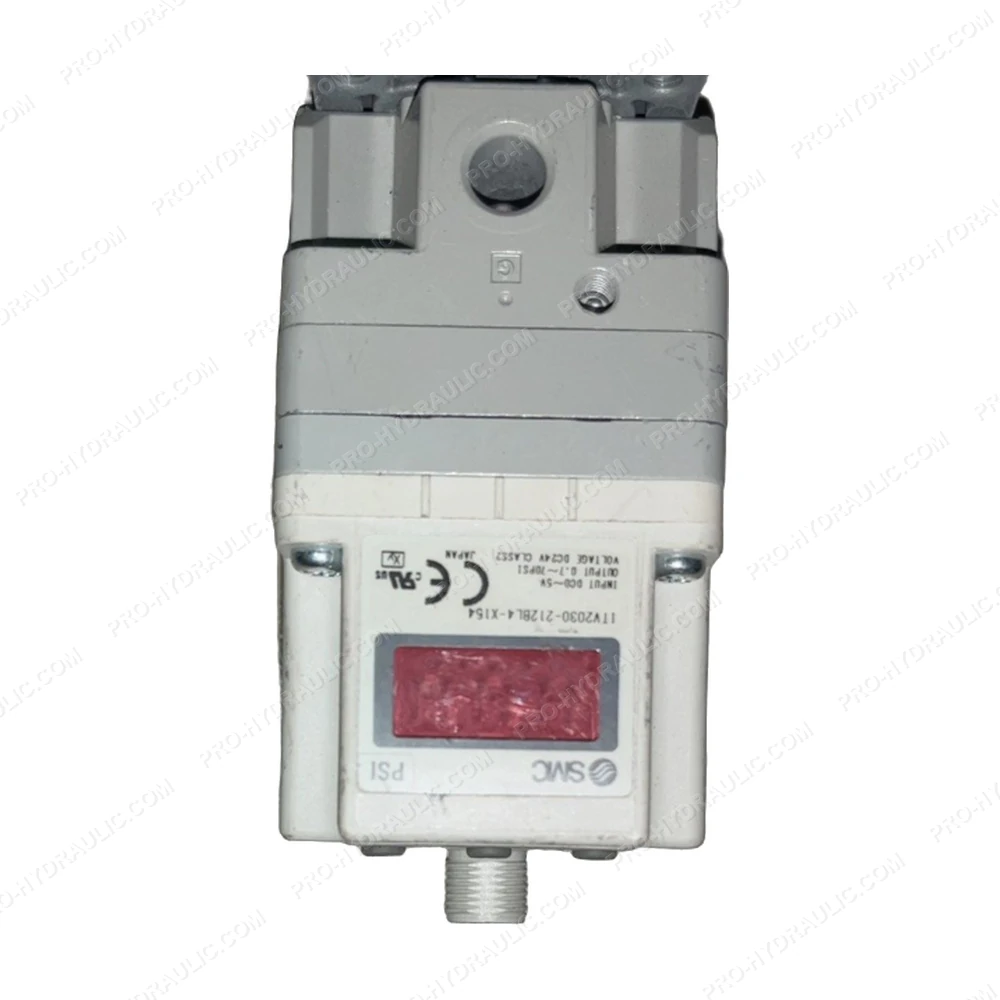

SMC ITV2030-212BL4-X154 Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2030-212BL4-X154 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC pneumatic component features a closed-loop pressure control design, delivering precise, reliable fluid control for heavy-duty industrial systems.
