Product Overview
The SMC ITV2030-243N-D1000101 is a precision electro-pneumatic proportional valve from the SMC ITV2000 series, engineered to deliver infinitely variable, stepless pressure control in response to an analog electrical input signal. Unlike conventional on/off solenoid valves, this unit employs a closed-loop electro-pneumatic proportional control principle in which an internal pressure sensor continuously compares output pressure against the commanded setpoint, driving the integral solenoid actuator to modulate the internal poppet/spool assembly for accurate pressure regulation. The valve accepts a standard analog command signal (0–10 VDC or 4–20 mA, depending on configuration) and provides a proportional pneumatic output, making it an essential control element in industrial systems requiring precise, repeatable pressure modulation rather than simple switching. With its compact body, panel or bracket mounting capability, and SMC’s proven sealing and actuation technology, the ITV2030 is widely deployed as a direct-fit replacement and OEM-specified component in automated pneumatic control loops.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Process & Pneumatic Valve) |
| Model Designation | ITV2030-243N-D1000101 |
| Series | SMC ITV2000 Series Electro-Pneumatic Proportional Valve |
| Control Principle | Closed-loop electro-pneumatic proportional pressure control with internal feedback sensor |
| Command Signal | Analog input (0–10 VDC / 4–20 mA, per configuration) |
| Operating Pressure | Standard Industrial Grade (regulated output up to rated bar, supply-dependent) |
| Port Size | Standard SMC threaded port interface (Rc/NPT per suffix) |
| Mounting & Connection | Standard ISO / Manufacturer Interface, bracket or panel mount |
| Media | Compressed air (filtered, non-lubricated or lubricated) |
Engineering Features & Advantages
- Precision Proportional Control: Closed-loop feedback architecture delivers accurate, repeatable output pressure proportional to the analog command signal, eliminating the pressure spikes and hysteresis typical of on/off solenoid valves.
- Stepless Pressure Regulation: Infinitely variable setpoint adjustment enables fine metering of pneumatic pressure for tensioning, force control, and soft-start applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with SMC’s proven solenoid actuation and sealing technology ensuring long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With its compact body, panel or bracket mounting capability, and SMC’s proven sealing and actuation technology, the ITV2030 is widely deployed as a direct-fit replacement and OEM-specified component in automated pneumatic control loops.
PRODUCT IMAGES

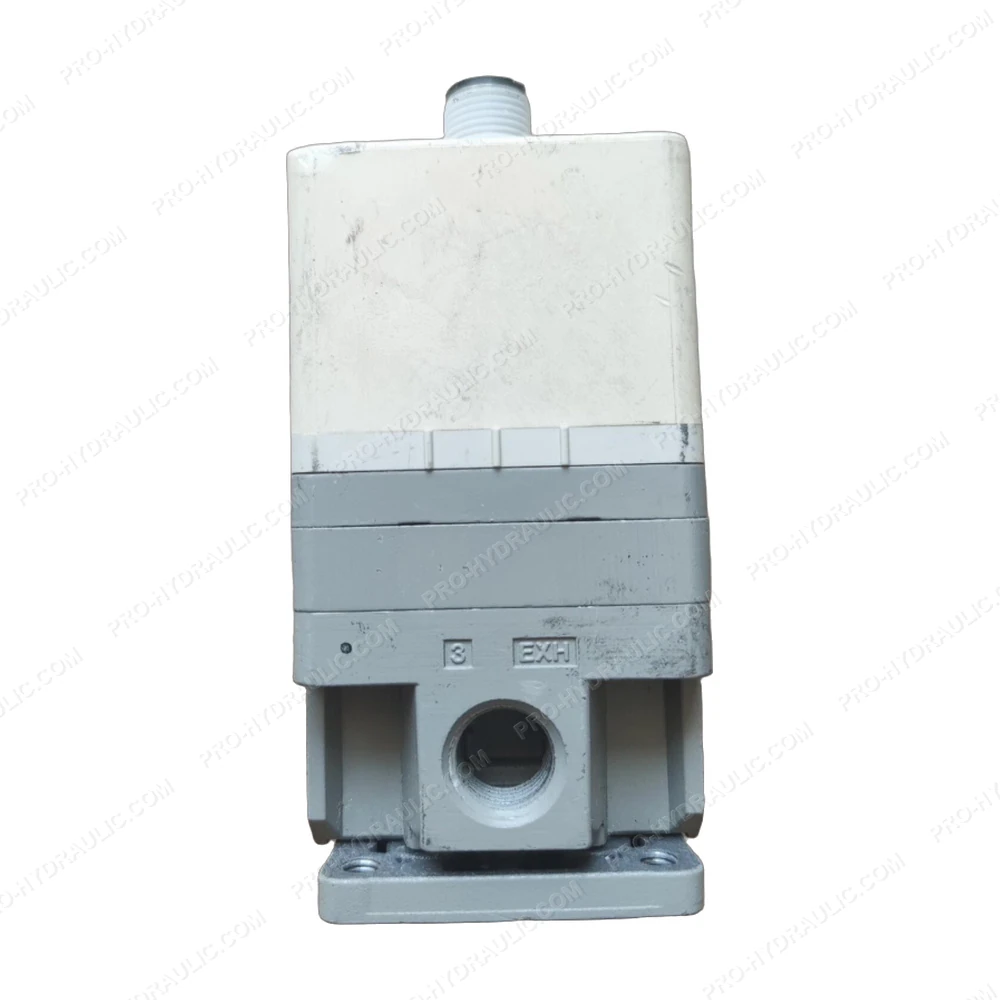

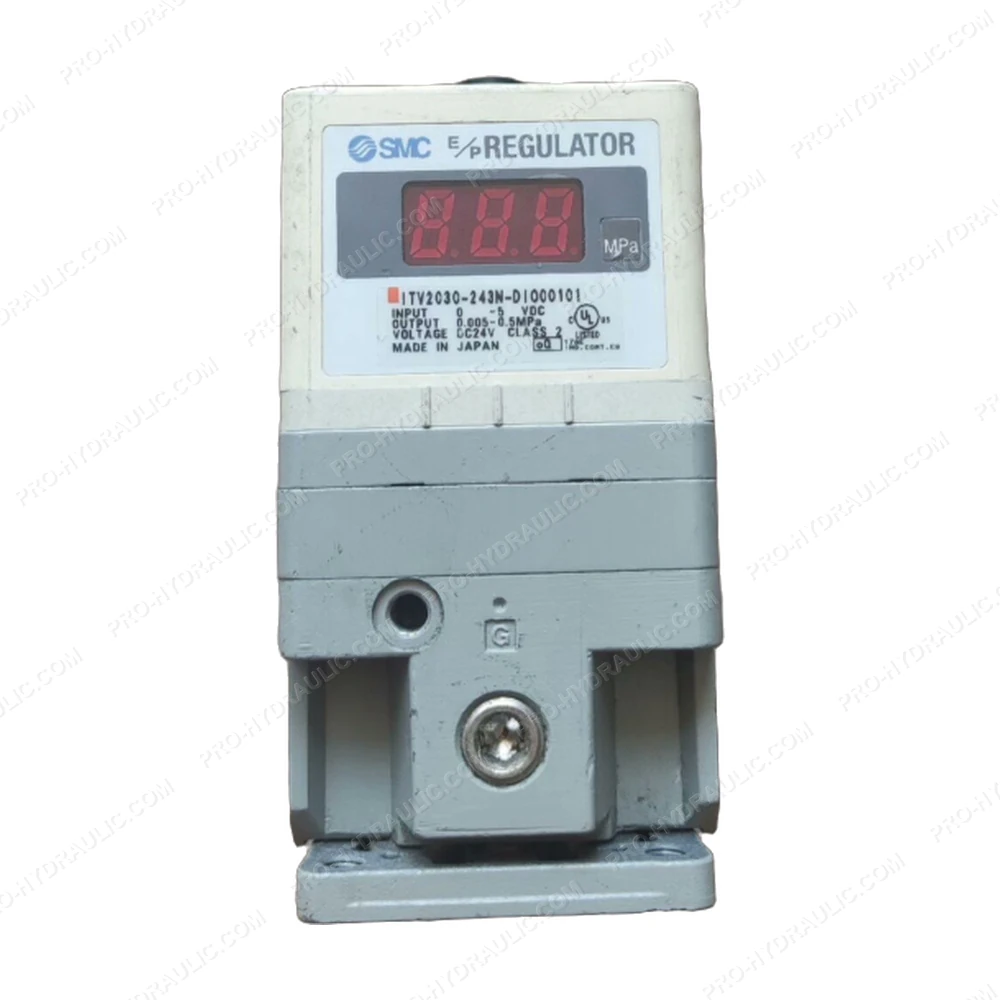

SMC ITV2030-243N-D1000101 Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2030-243N-D1000101 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features a pressure control function, delivering precise, reliable fluid control for heavy-duty industrial systems.
