Product Overview
The SMC ITV2030-312BL is a precision electro-pneumatic regulator engineered by SMC Corporation, a global leader in pneumatic and industrial automation technology. This device functions as an electronically controlled pressure regulator that converts an analog electrical input signal (DC voltage or current) into a proportional pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, the ITV2030-312BL utilizes a high-speed solenoid valve and internal pressure sensor feedback loop to achieve continuous, closed-loop pressure control with exceptional repeatability and linearity. As part of SMC’s renowned ITV series, this unit is specifically designed for applications demanding precise, remote, or programmable pressure regulation within industrial pneumatic systems. Its compact inline body design and robust construction make it an ideal choice for integration into automated manufacturing processes, test benches, and dynamic pressure control loops where manual intervention is impractical or insufficient.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2030-312BL |
| Operating Pressure | Set Pressure Range: 0.005 – 0.9 MPa (0.05 – 9.0 bar); Supply Pressure: Max 1.0 MPa (10 bar) |
| Input Signal | Analog DC Voltage (0–5 V or 0–10 V) / Current (4–20 mA) — model-dependent configuration |
| Port Size | 1/4 inch Rc (PT) threaded ports (supply, output, and exhaust) |
| Mounting & Connection | Inline body mounting; electrical connection via lead wire with connector |
| Power Supply | 24 VDC ±10% |
| Linearity / Hysteresis | ±1% F.S. or less (combined) |
| Repeatability | ±0.5% F.S. or less |
| Fluid | Compressed Air (filtered, non-lubricated or lubricated) |
| Ambient / Fluid Temperature | 0 – 50°C (no freezing) |
Engineering Features & Advantages
- Precision Performance: The electro-pneumatic regulator (process & pneumatic valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
As part of SMC’s renowned ITV series, this unit is specifically designed for applications demanding precise, remote, or programmable pressure regulation within industrial pneumatic systems.
PRODUCT IMAGES

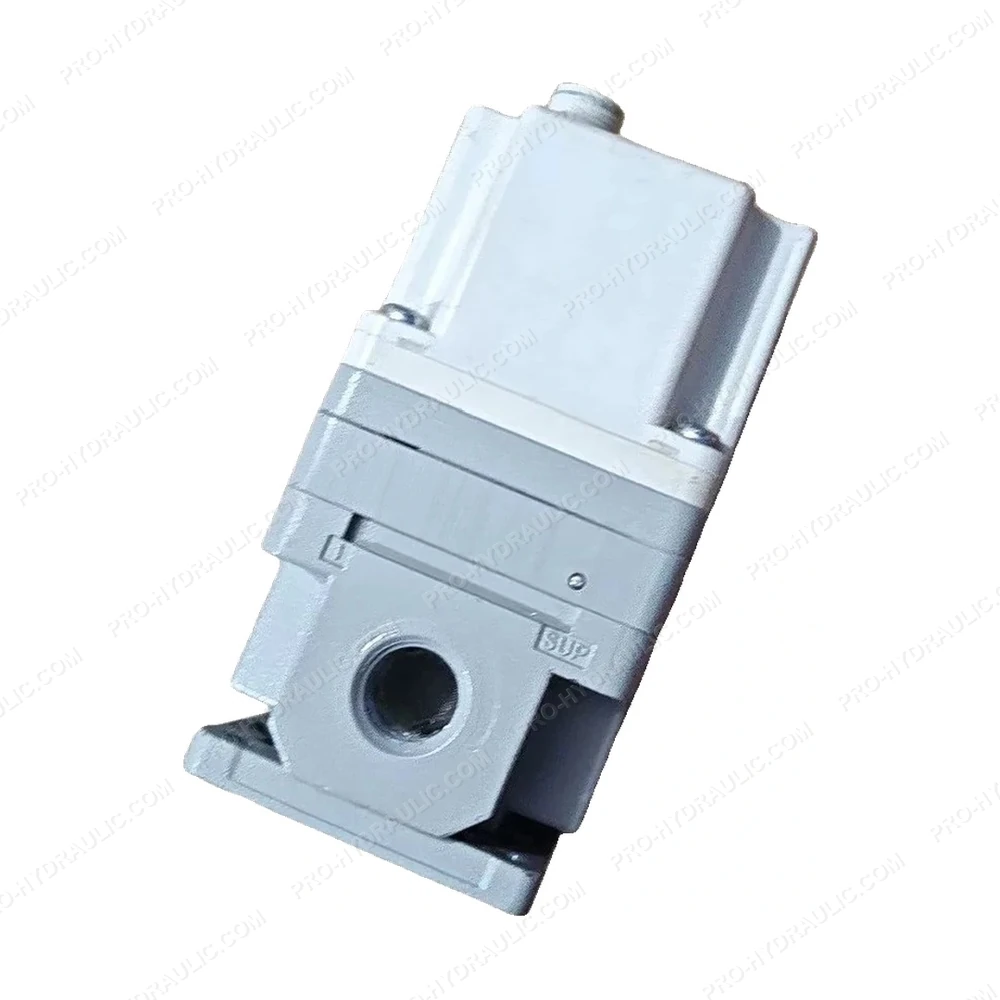

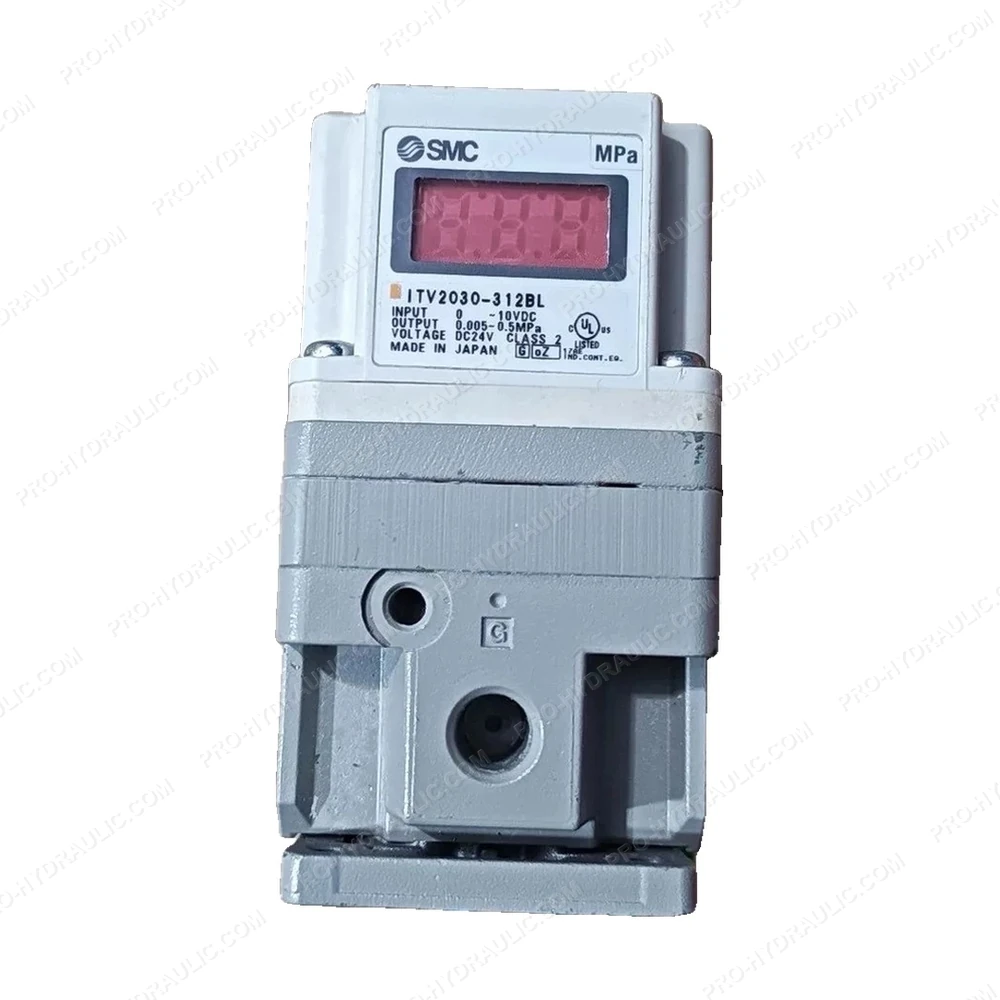

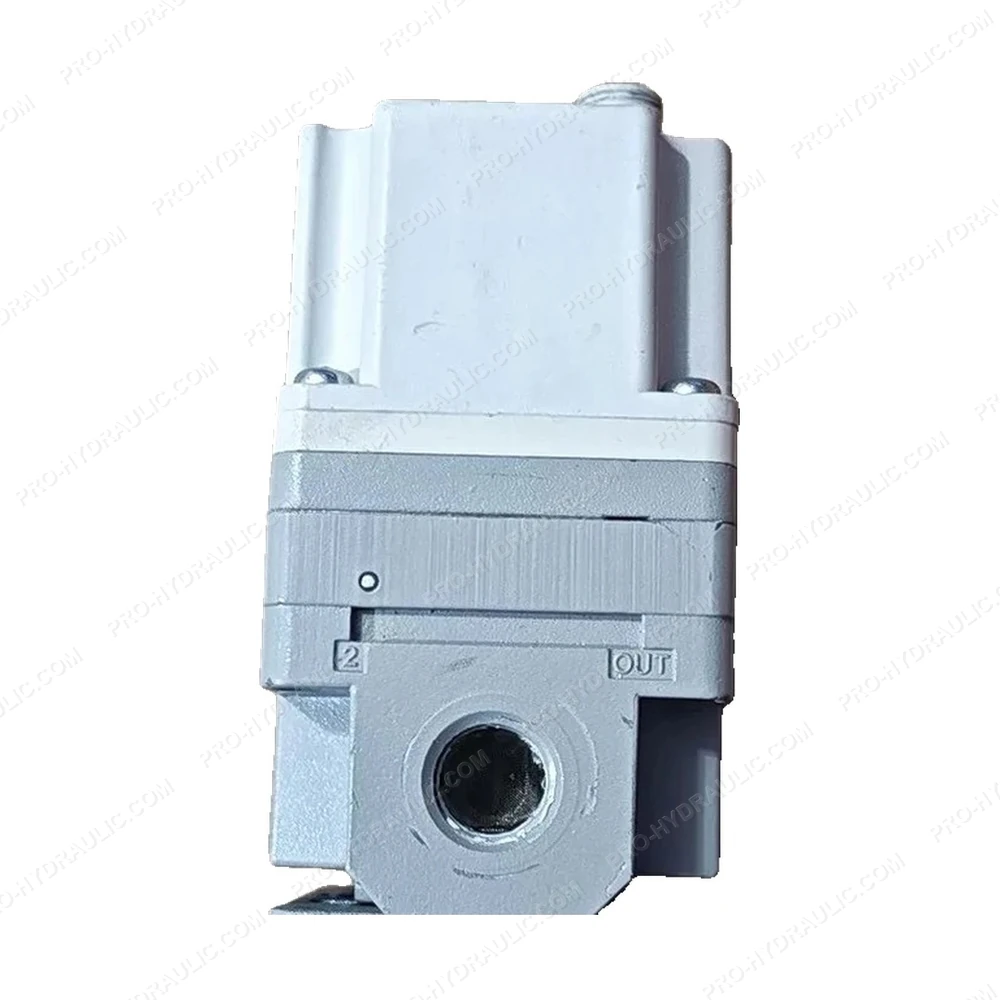

SMC ITV2030-312BL Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2030-312BL Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features a precise pressure control design, delivering reliable, leak-free regulation for industrial automation systems.
