Product Overview
The SMC ITV2030-313L3-X345 is a precision electro-pneumatic regulator engineered by SMC Corporation, a global leader in pneumatic and industrial automation technology. This device functions as an electronically controlled pressure regulator that converts an analog electrical input signal into a proportional pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, the ITV2030 series utilizes a high-speed solenoid valve and internal pressure sensor feedback loop to achieve continuous, closed-loop pressure control with exceptional repeatability and linearity. The ITV2030-313L3-X345 is a member of the ITV2000 series, which is widely specified in industrial automation systems where precise, programmable air pressure regulation is critical. Its compact body, panel-mount capability, and compatibility with standard electrical control signals make it an ideal component for integration into PLC-driven process control architectures, robotic end-effector systems, and any application demanding dynamic pressure setpoint adjustment without manual intervention.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2030-313L3-X345 |
| Series | SMC ITV2000 Series |
| Operating Pressure Range | 0.005 – 0.9 MPa (0.05 – 9.0 bar) set pressure range |
| Supply Pressure | Set pressure + 0.1 MPa minimum; maximum 1.0 MPa |
| Input Signal | Analog electrical signal (voltage or current, model-dependent) |
| Output Signal | Analog monitor output proportional to set pressure |
| Port Size | 1/4 (Rc/NPT/G thread per model suffix) |
| Mounting & Connection | Panel or bracket mount; electrical connector per SMC standard |
| Fluid | Compressed air (filtered, non-lubricated or lubricated) |
| Ambient / Fluid Temperature | 0 – 50 °C (no freezing) |
Engineering Features & Advantages
- Precision Performance: The electro-pneumatic regulator (process & pneumatic valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings of 0.005 – 0.9 MPa (0.05 – 9.0 bar) set pressure range, supporting stable operation across the full working range.
Typical Industrial Applications
Its compact body, panel-mount capability, and compatibility with standard electrical control signals make it an ideal component for integration into PLC-driven process control architectures, robotic end-effector systems, and any application demanding dynamic pressure setpoint adjustment without manual intervention.
PRODUCT IMAGES

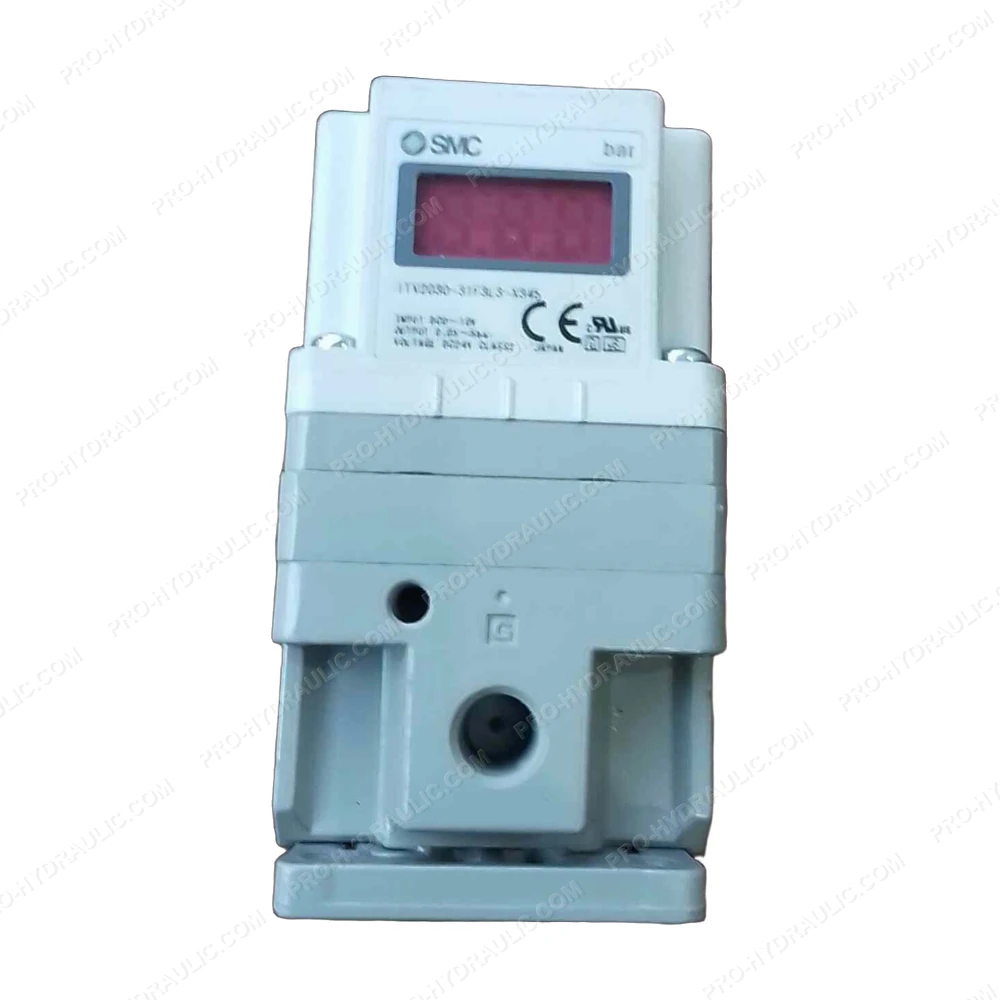

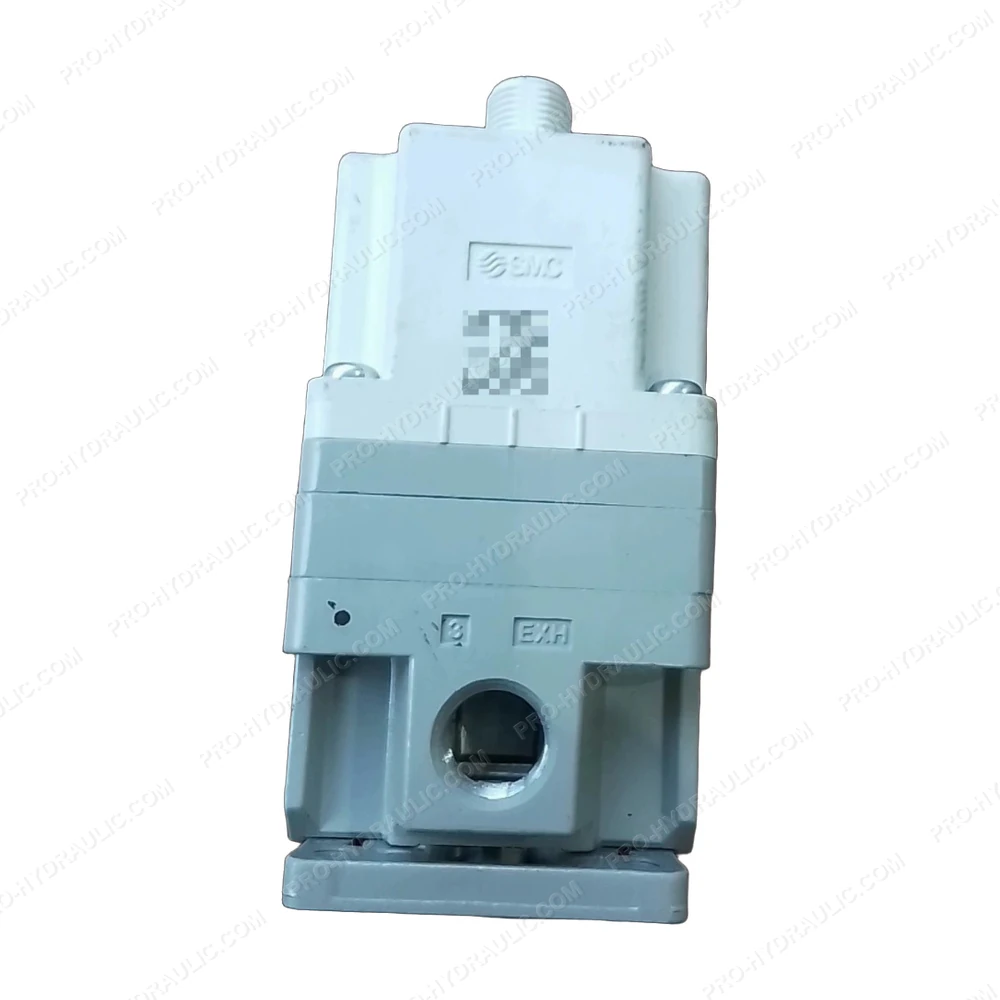

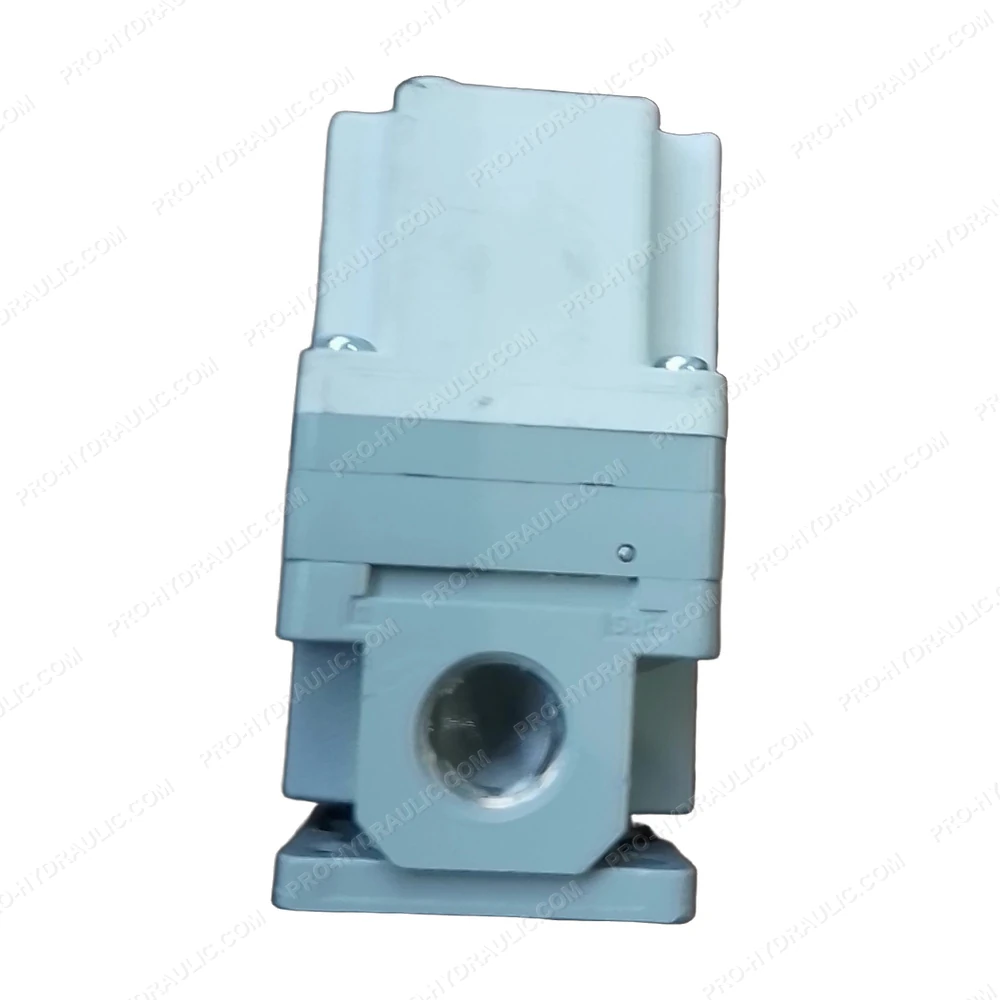

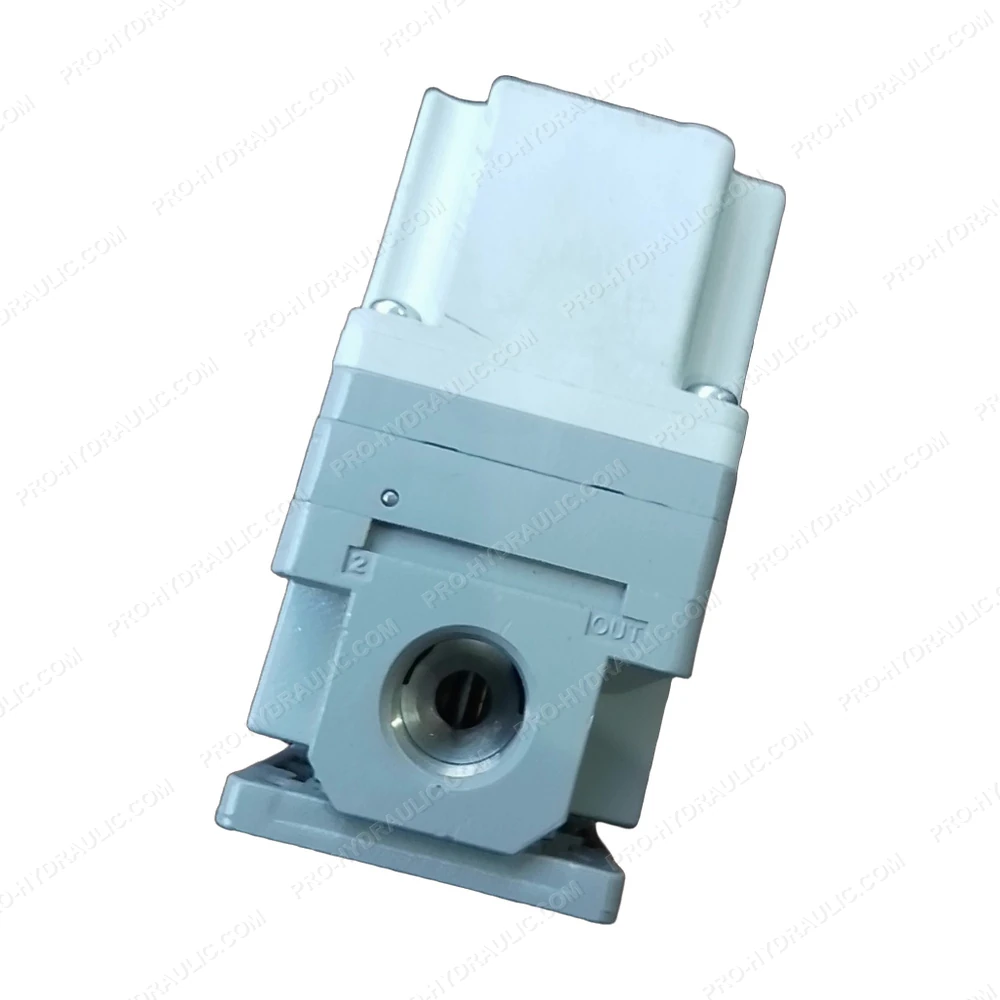

SMC ITV2030-313L3-X345 Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2030-313L3-X345 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC hydraulic component features a precise pressure control design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
