Product Overview
The SMC ITV2030-33F2L3-Q is a high-precision electro-pneumatic regulator from the SMC ITV2000 series, designed to provide stepless, proportional control of pneumatic pressure through an electrical input signal. Unlike conventional mechanical regulators that require manual adjustment, this unit continuously modulates output pressure in direct proportion to a 0–10 VDC or 4–20 mA command signal, enabling closed-loop electronic pressure regulation within automated pneumatic circuits. The ITV2030-33F2L3-Q combines an integrated pressure sensor, control circuit, and poppet-type valve mechanism in a compact body, delivering fast response, excellent repeatability, and minimal hysteresis. It is engineered for industrial systems requiring dynamic, programmable pressure control — such as tension control, force-controlled clamping, and variable-pressure actuation — where precise electronic setpoint management is essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2030-33F2L3-Q |
| Series | SMC ITV2000 Series |
| Control Principle | Electronic proportional pressure control with internal pressure feedback |
| Setpoint Input Signal | Analog command (DC voltage / current, per configuration suffix) |
| Output Pressure Range | 0.005 – 0.9 MPa (ITV2030 class, standard setpoint range) |
| Operating Pressure | Standard Industrial Grade (supply pressure per ITV2000 series rating) |
| Port Size | 1/4 (per model code configuration) |
| Mounting & Connection | Standard SMC bracket / threaded port interface |
| Electrical Connection | Lead wire / connector with analog signal and power terminals |
Engineering Features & Advantages
- Precision Electronic Pressure Regulation: Internal pressure sensor and closed-loop control circuit maintain output pressure with high repeatability and low hysteresis, ensuring stable setpoint tracking across the full operating range.
- Fast Dynamic Response: Poppet-type valve mechanism responds quickly to command signal changes, making the unit suitable for applications requiring rapid pressure transitions and real-time process control.
- Stepless Proportional Control: Output pressure varies continuously and proportionally with the analog input signal, eliminating the discrete steps and manual adjustment associated with mechanical regulators.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
It is engineered for industrial systems requiring dynamic, programmable pressure control — such as tension control, force-controlled clamping, and variable-pressure actuation — where precise electronic setpoint management is essential.
PRODUCT IMAGES

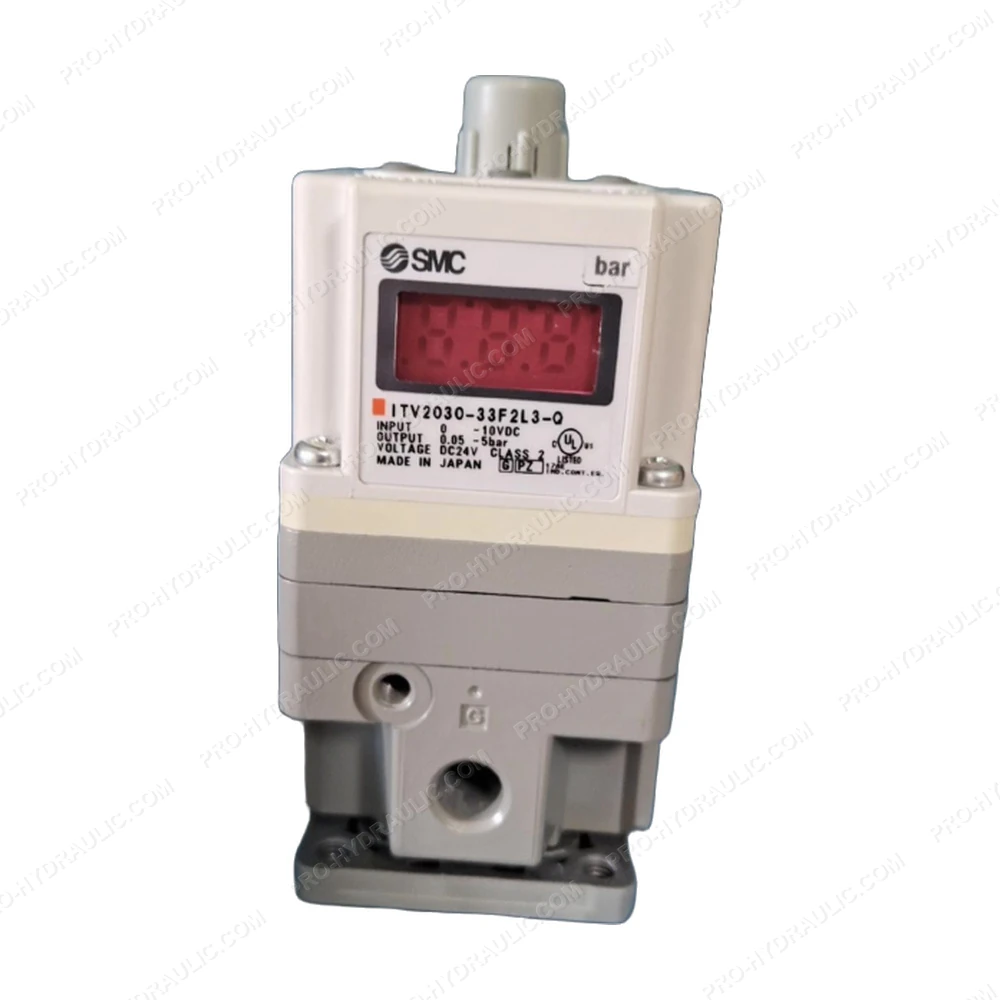

SMC ITV2030-33F2L3-Q Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2030-33F2L3-Q Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features a precise pressure control function, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
