Product Overview
The SMC ITV2030-402S-X105 is a precision electro-pneumatic regulator engineered by SMC Corporation, a global leader in pneumatic and industrial automation technology. This advanced device functions as an electronically controlled pressure regulator, converting an analog electrical input signal (voltage or current) into a proportional pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, the ITV2030 series utilizes a high-speed solenoid valve and internal pressure sensor feedback loop to deliver infinitely variable, repeatable pressure control. The unit is specifically designed for closed-loop pressure regulation in process control, tension control, and precision actuation systems where accurate, remote, and programmable pressure setting is essential. The “-X105” suffix denotes a factory-specified custom configuration, while the “402S” designation indicates the port size and signal input characteristics. This regulator is a critical component in automated pneumatic circuits requiring dynamic pressure modulation without manual intervention.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2030-402S-X105 |
| Operating Pressure | Standard Industrial Grade (Up to 0.9 MPa / 9 bar rated output) |
| Mounting & Connection | Standard ISO / SMC Interface (1/4 port size, bracket mountable) |
| Input Signal | Analog Voltage (0–5 V DC) or Current (4–20 mA) — model dependent |
| Output Pressure Range | 0.005 – 0.9 MPa (0.05 – 9 bar) |
| Power Supply | 24 V DC ±10% |
| Linearity / Hysteresis | ≤ ±1% F.S. (combined) |
| Repeatability | ≤ ±0.5% F.S. |
Engineering Features & Advantages
- Precision Performance: Closed-loop electronic feedback with an internal pressure sensor ensures highly accurate and repeatable output pressure proportional to the electrical input signal, eliminating manual adjustment errors.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid valve construction and protection against pressure fluctuations and electrical noise.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC ITV2000 series mounting and port standards, allowing drop-in integration into existing pneumatic panels.
- Remote & Programmable Control: Enables remote pressure setting via PLC or controller analog output, ideal for automated processes requiring dynamic pressure changes.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The unit is specifically designed for closed-loop pressure regulation in process control, tension control, and precision actuation systems where accurate, remote, and programmable pressure setting is essential.
PRODUCT IMAGES

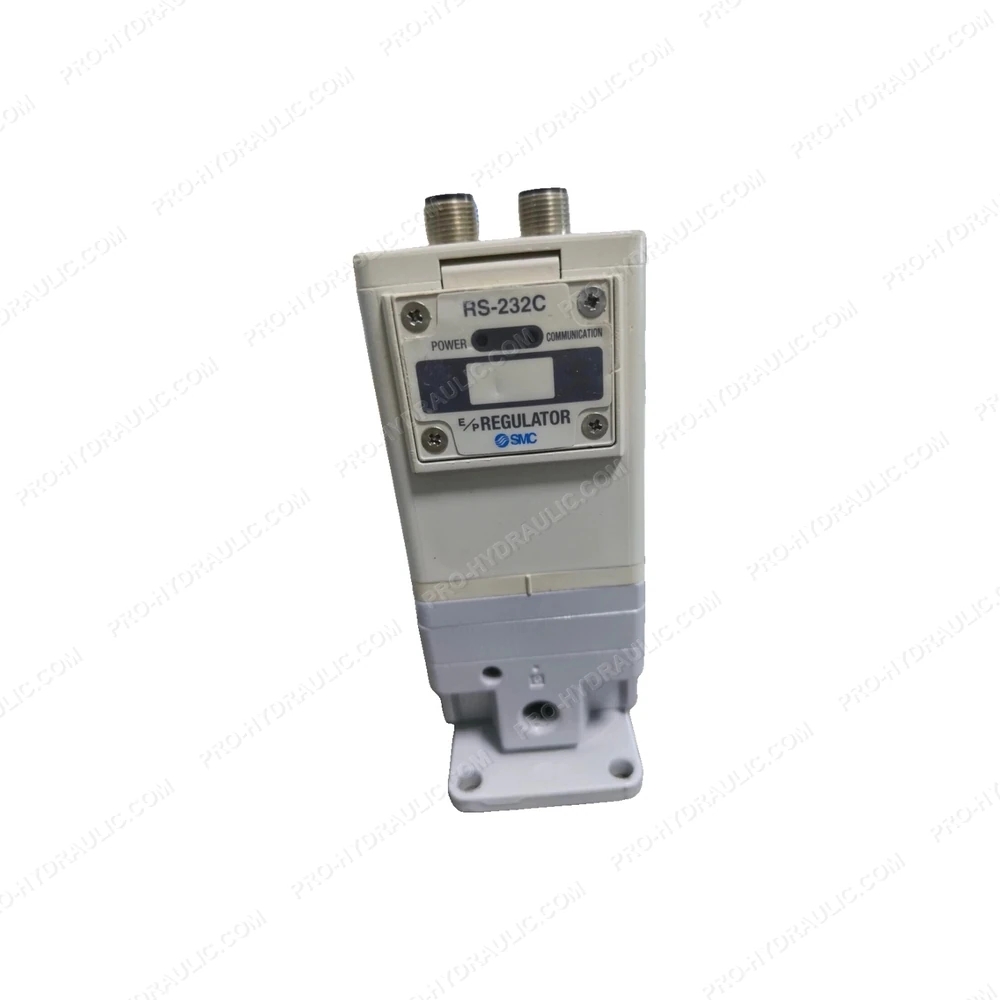

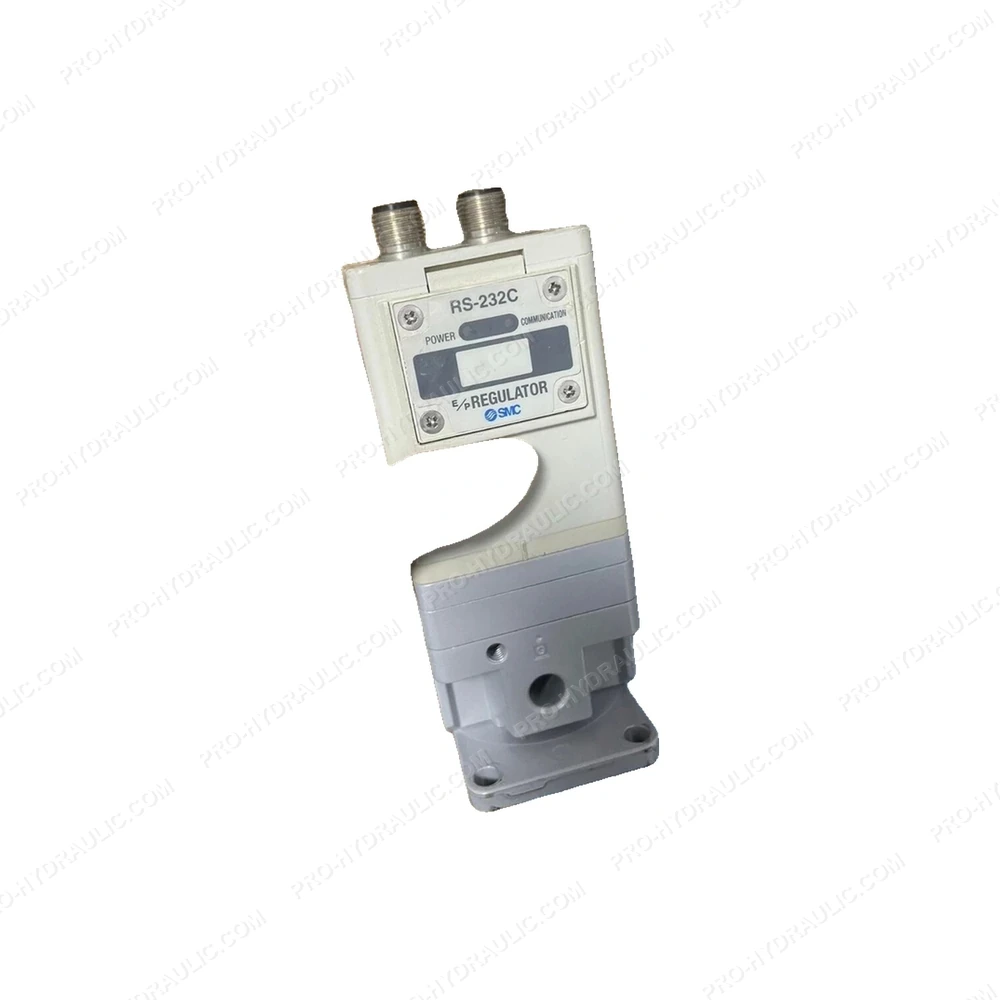

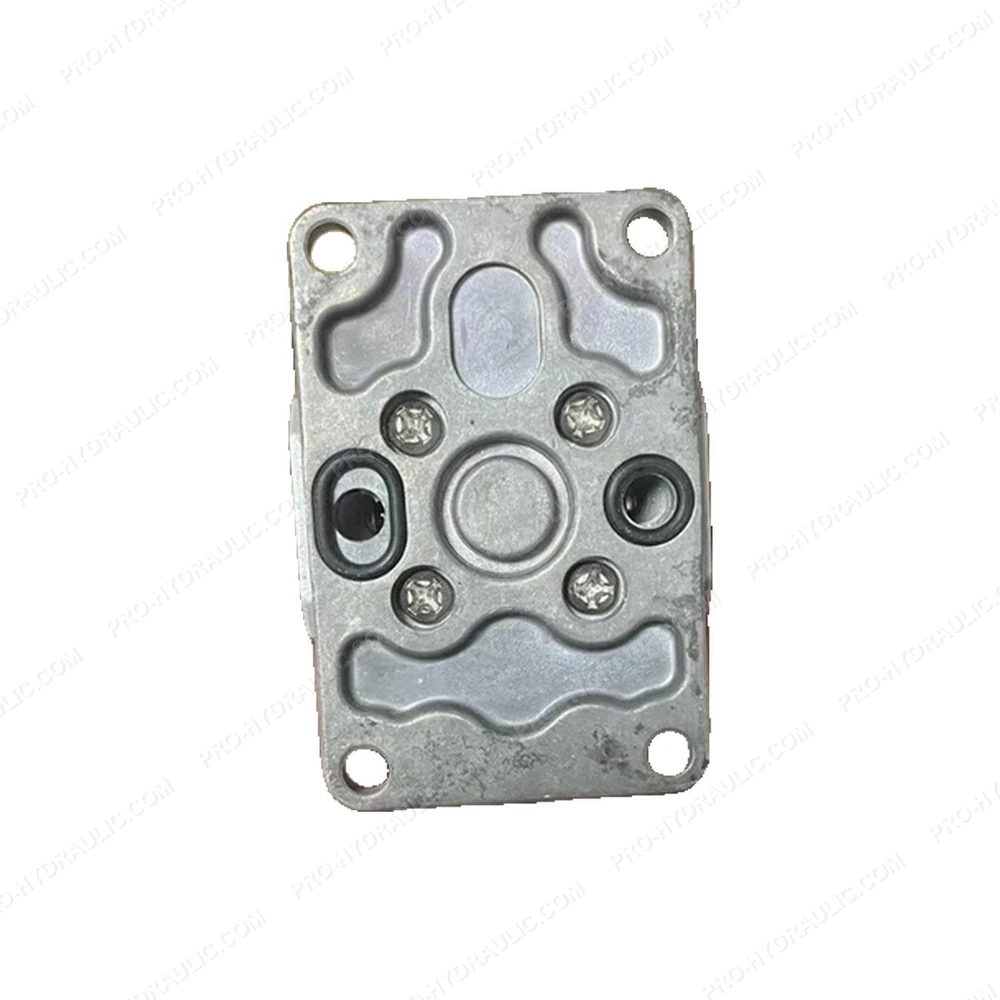

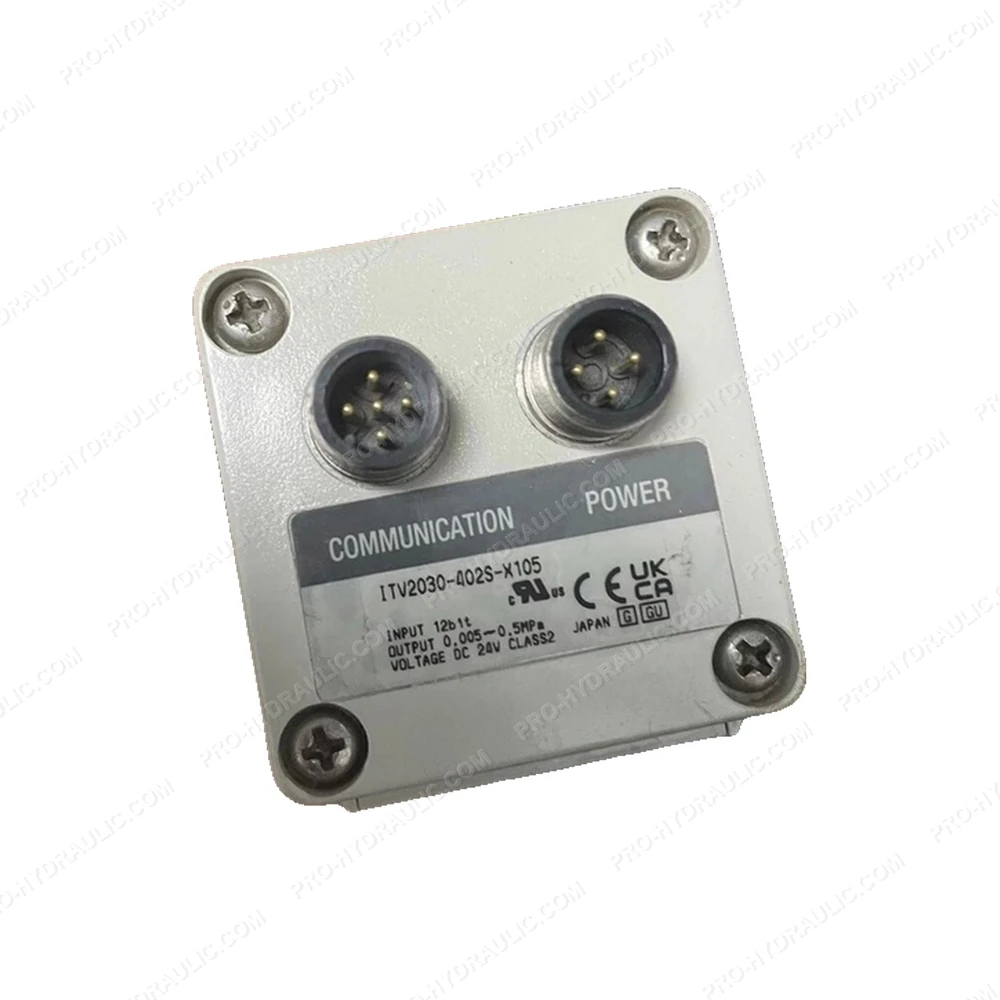

SMC ITV2030-402S-X105 Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2030-402S-X105 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC valve features a precise pressure control function, delivering reliable and stable regulation for industrial automation systems.
