Product Overview
The SMC ITV2030-DE3BS is a high-precision electro-pneumatic regulator (electronic pressure regulator) from the SMC ITV2000 series, engineered to convert an analog electrical input signal into a continuously variable, stepless pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, this unit employs an internal closed-loop control circuit that compares the command signal against feedback from a built-in pressure sensor, driving an integral solenoid valve assembly to maintain the set pressure with high repeatability. The ITV2030-DE3BS is configured with a DE3 electrical option (analog command input with monitor output) and a B-port connection style, making it a direct drop-in solution for precision pressure control in industrial automation, semiconductor processing, and analytical instrumentation systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2030-DE3BS |
| Series | SMC ITV2000 Series |
| Set Pressure Range | 0.005 – 0.9 MPa (0.05 – 9 bar) standard ITV2030 range |
| Supply Pressure | Set pressure + 0.1 MPa minimum (approx. 1.0 MPa max recommended) |
| Input Signal | Analog DC voltage or current command (DE3 electrical option) |
| Monitor Output | Analog pressure feedback signal proportional to output |
| Port Connection | B-port style (Rc/NPT threaded body porting per SMC standard) |
| Operating Principle | Closed-loop electronic feedback with integral solenoid valve and pressure sensor |
| Mounting | Body-mount / bracket-mount per SMC ITV2000 dimensional standard |
| Media | Compressed air (filtered, non-lubricated or lubricated) |
Engineering Features & Advantages
- Precision Performance: Closed-loop electronic control delivers stepless pressure regulation with high repeatability and minimal hysteresis, eliminating the drift and manual re-adjustment associated with mechanical regulators.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The ITV2030-DE3BS is configured with a DE3 electrical option (analog command input with monitor output) and a B-port connection style, making it a direct drop-in solution for precision pressure control in industrial automation, semiconductor processing, and analytical instrumentation systems.
PRODUCT IMAGES

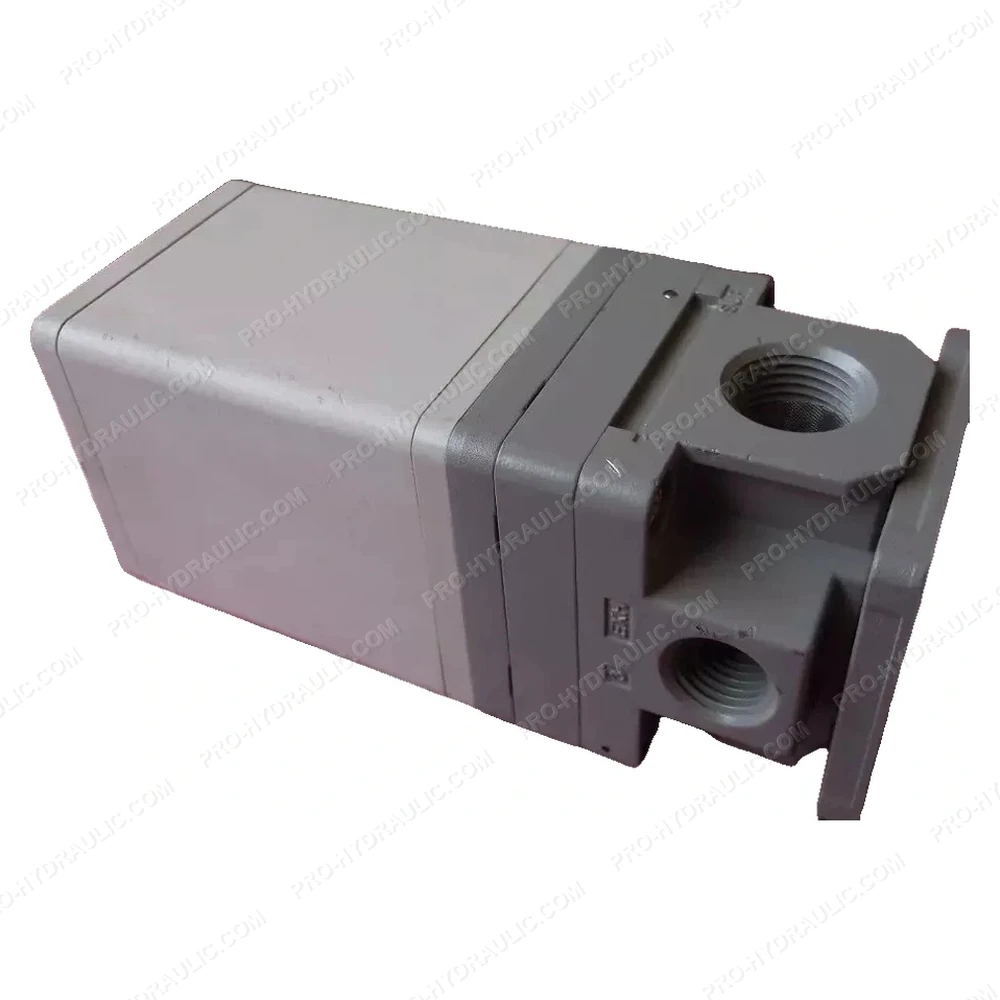

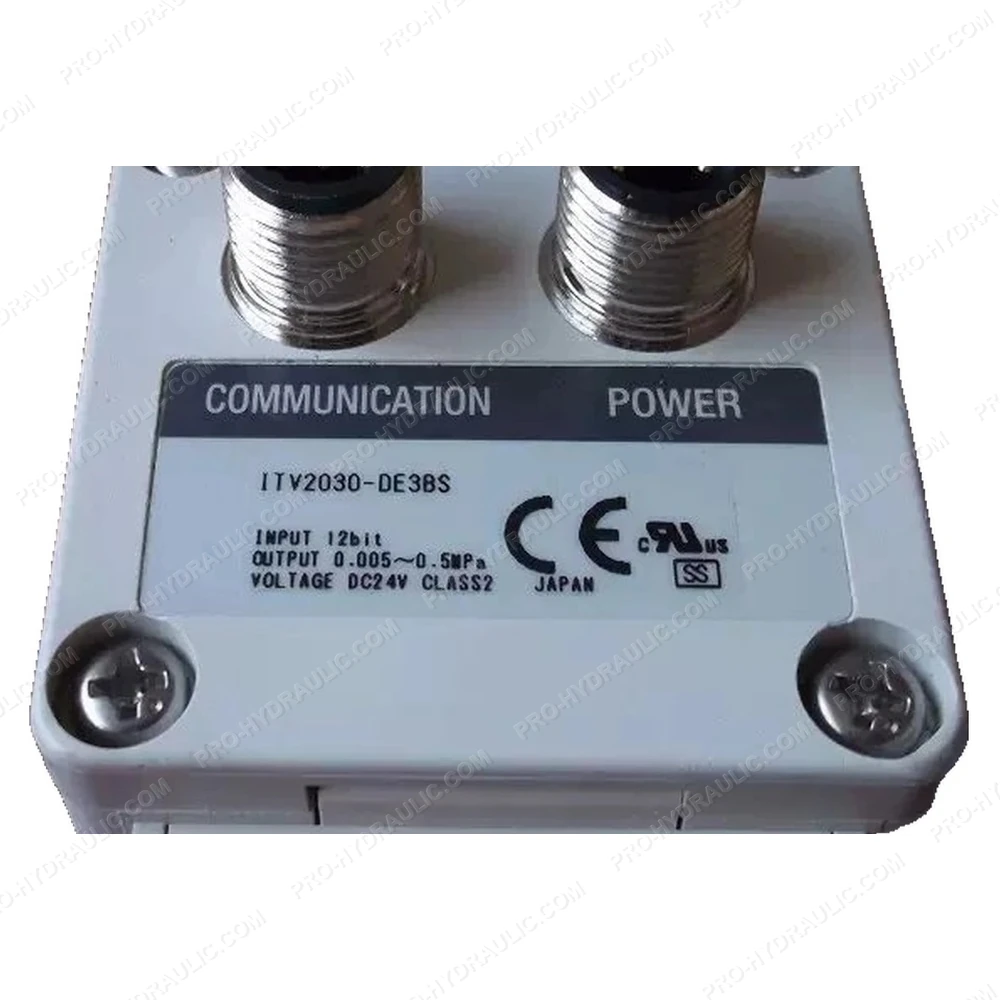

SMC ITV2030-DE3BS Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2030-DE3BS Electro-Pneumatic Proportional Valve. This Japan-made precision valve features a closed-loop pressure control, delivering accurate, stable regulation for industrial automation systems.
