Product Overview
The SMC ITV2050-012L is a high-precision electro-pneumatic regulator (electronic pressure regulator) manufactured by SMC Corporation, a global leader in pneumatic and industrial automation control technology. This device functions as a proportional pressure control valve that converts an electrical input signal (analog voltage or current) into a linearly proportional pneumatic output pressure. Unlike conventional mechanical regulators, the ITV2050-012L utilizes an integrated closed-loop feedback system with a pressure sensor and proportional solenoid, enabling continuous, stepless pressure regulation with exceptional repeatability and hysteresis characteristics. The ITV2050 series is engineered for applications requiring precise electronic control of air or inert gas pressure in industrial automation, testing systems, and process control environments. The “012L” suffix designates the specific port size, signal input configuration, and bracket mounting option for this model variant.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Proportional Pressure Control Valve) |
| Model Designation | ITV2050-012L |
| Series | SMC ITV2000 Series |
| Operating Pressure Range | 0.005 to 0.9 MPa (0.05 to 9.0 bar) set pressure range |
| Supply Pressure | Set pressure + 0.1 MPa minimum (max. 1.0 MPa) |
| Input Signal | Analog voltage (0–5 V DC / 0–10 V DC) or current (4–20 mA DC) |
| Port Size | 1/4 (Rc/NPT/G thread configuration per “012” designation) |
| Power Supply | 24 V DC ±10% |
| Mounting & Connection | Bracket mount (“L” designation), threaded port connection |
| Fluid Medium | Compressed air or inert gas (filtered, non-lubricated) |
Engineering Features & Advantages
- Precision Proportional Control: Closed-loop feedback architecture delivers highly accurate, stepless pressure regulation proportional to the electrical input signal, with excellent linearity, low hysteresis, and superior repeatability for critical process applications.
- Integrated Pressure Sensor Feedback: Built-in pressure sensor continuously monitors output pressure and corrects deviations in real time, ensuring stable output even under fluctuating supply pressure or varying flow demand.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The ITV2050 series is engineered for applications requiring precise electronic control of air or inert gas pressure in industrial automation, testing systems, and process control environments.
PRODUCT IMAGES

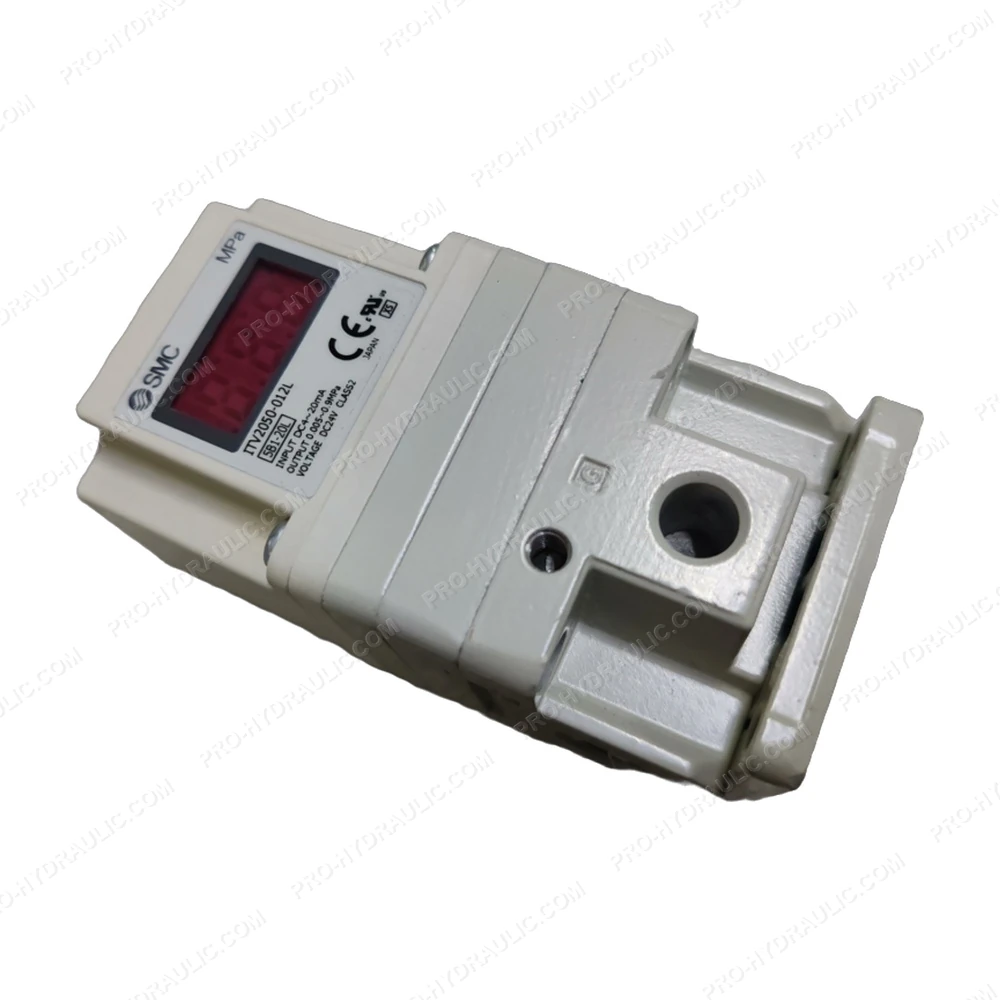

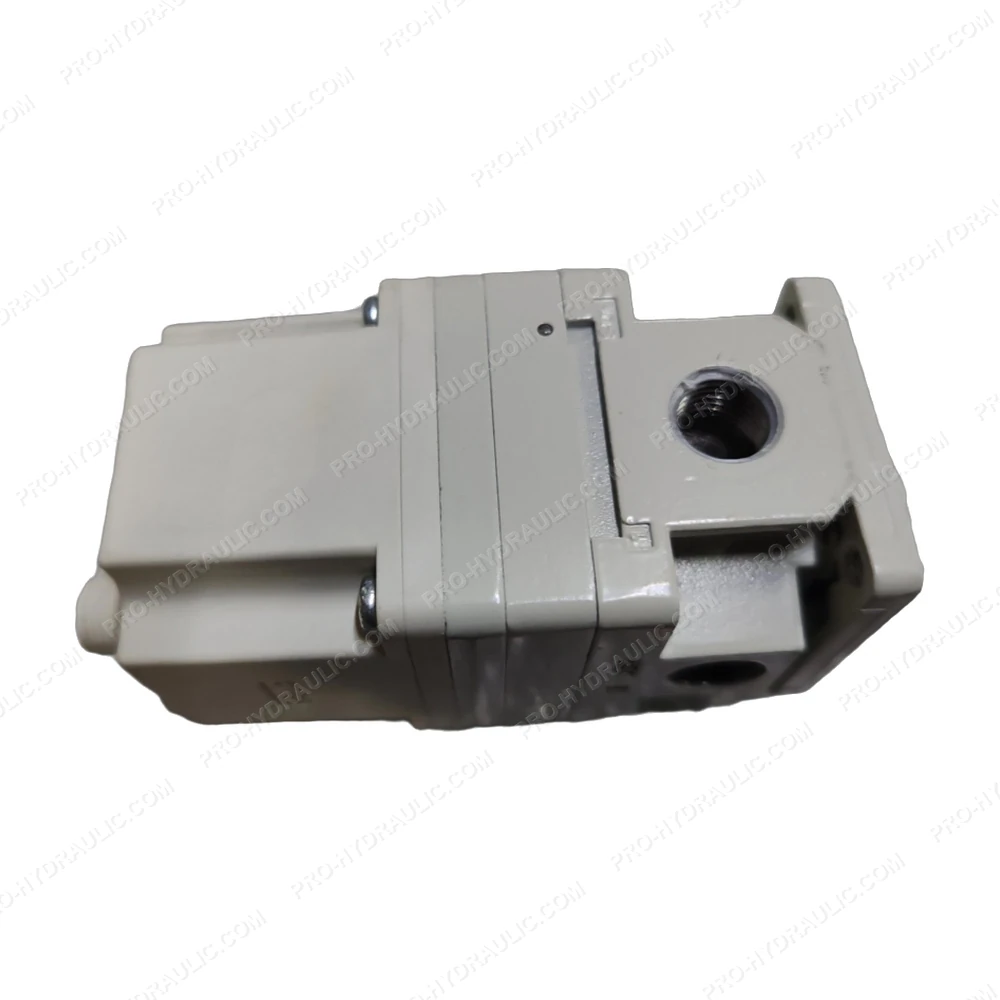

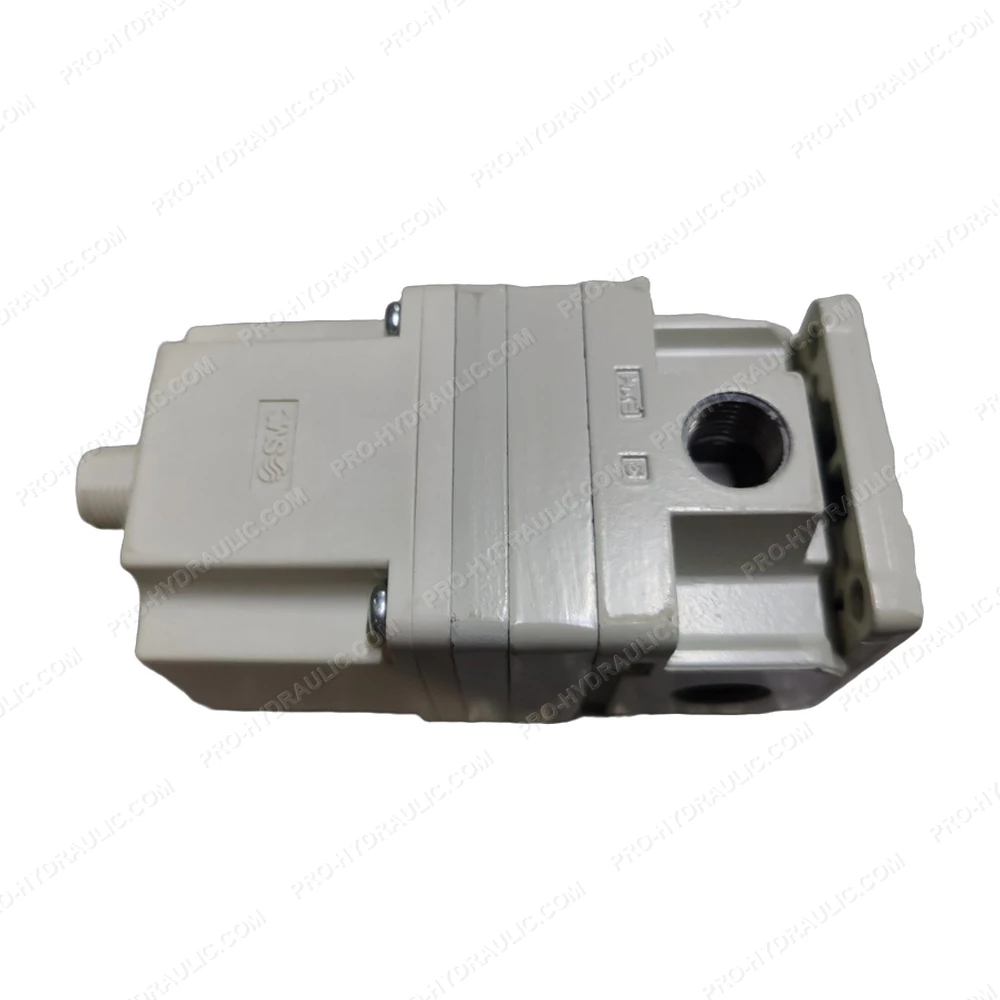

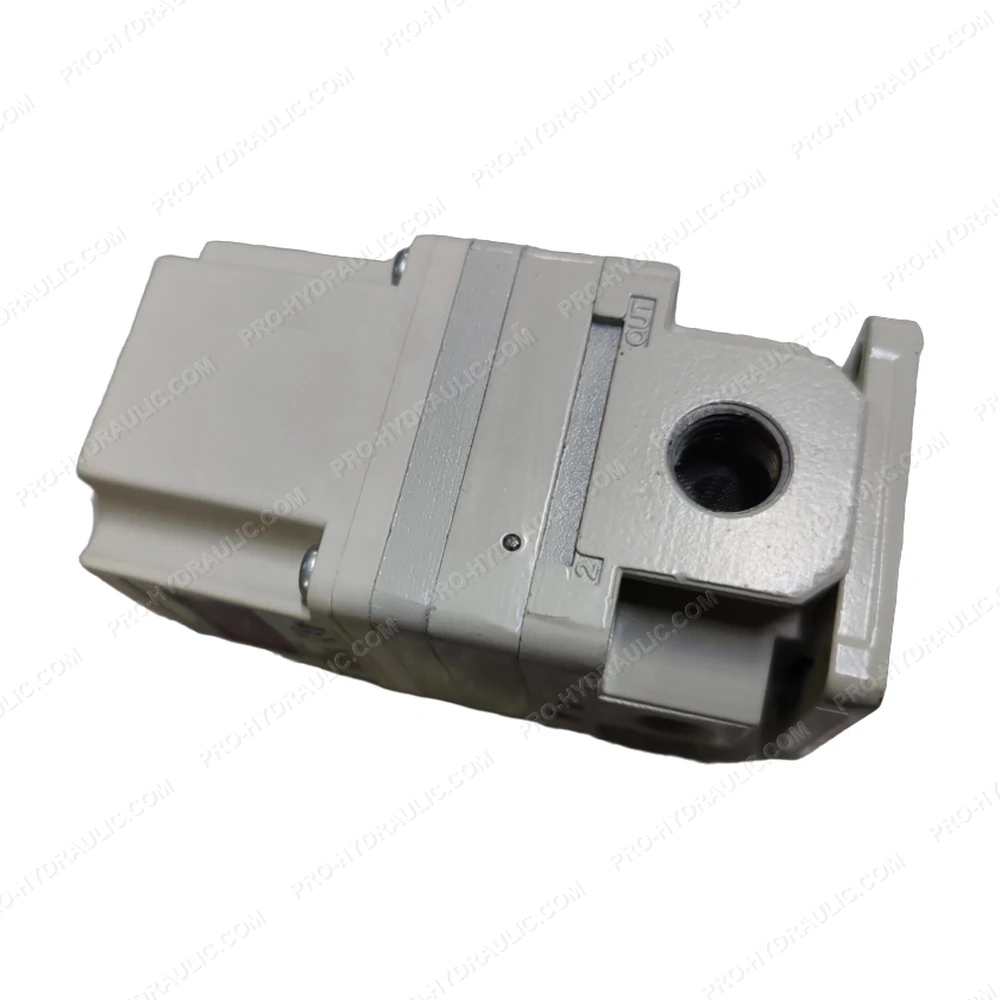

SMC ITV2050-012L Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2050-012L Electro-Pneumatic Proportional Valve. This Japan-made 24VDC valve features a precise pressure control design, delivering reliable, leak-free regulation for industrial automation systems.
