Product Overview
The SMC ITV2050-01F3N-Q is a high-precision electro-pneumatic regulator (electronic pressure regulator) from the SMC ITV2000 series, engineered to provide continuously variable, stepless pressure control proportional to an electrical input signal. Unlike conventional mechanical regulators that require manual adjustment, this unit utilizes a closed-loop control circuit with an integrated pressure sensor and proportional solenoid valve to deliver stable, repeatable output pressure independent of supply pressure fluctuations or flow variations. The ITV2050-01F3N-Q is configured with a 1/4″ port size, a 0–9 MPa (0–130 psi) output pressure range, and a 0–10 VDC analog command signal, making it a direct-fit solution for precision pneumatic control loops in automated industrial systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2050-01F3N-Q |
| Series | SMC ITV2000 Series |
| Port Size | 1/4″ (01) |
| Output Pressure Range | 0.005 – 0.9 MPa (0.05 – 9 bar) |
| Input Signal | 0–10 VDC (F3: voltage command) |
| Supply Pressure | Set pressure + 0.1 MPa minimum (max 1.0 MPa) |
| Operating Pressure | Standard Industrial Grade (up to 0.9 MPa output) |
| Mounting & Connection | Bracket mount / threaded port connection (ISO standard) |
| Control Method | Closed-loop proportional solenoid with internal pressure feedback |
| Hysteresis | ≤ 0.5% F.S. |
| Repeatability | ≤ ±0.5% F.S. |
Engineering Features & Advantages
- Precision Performance: The electro-pneumatic regulator (process & pneumatic valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original SMC specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings of 0.005 – 0.9 MPa (0.05 – 9 bar), supporting stable operation across the full working range.
Typical Industrial Applications
The ITV2050-01F3N-Q is configured with a 1/4″ port size, a 0–9 MPa (0–130 psi) output pressure range, and a 0–10 VDC analog command signal, making it a direct-fit solution for precision pneumatic control loops in automated industrial systems.
PRODUCT IMAGES

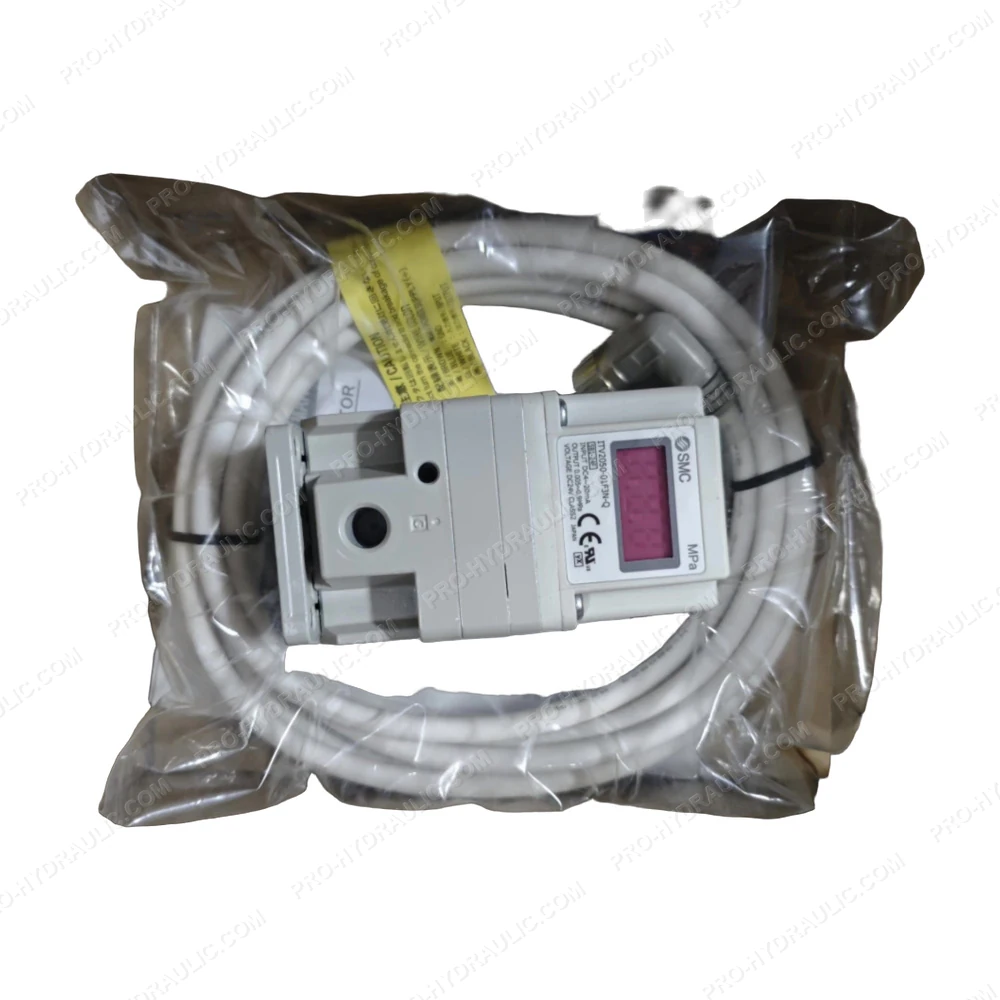

SMC ITV2050-01F3N-Q Electro-Pneumatic Regulator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2050-01F3N-Q Electro-Pneumatic Regulator. This Japan-made 24VDC pneumatic component features a proportional pressure control design, delivering precise, reliable air regulation for heavy-duty industrial systems.
