Product Overview
The SMC ITV2050-042L is a high-precision electro-pneumatic regulator (electronic pressure regulator) manufactured by SMC Corporation, a global leader in pneumatic and industrial automation control technology. This device functions as a proportional pressure control valve, converting an analog electrical input signal (0–10 V DC or 4–20 mA) into a linearly proportional pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, the ITV2050-042L provides continuous, remote, and programmable pressure regulation with exceptional repeatability and hysteresis characteristics. It is a core component in closed-loop pneumatic control systems, enabling precise force control, tension regulation, and pressure profiling in automated industrial processes. The “042L” suffix denotes the specific port size and electrical connection configuration, while the ITV2050 series is rated for an output pressure range of 0.005 to 0.9 MPa (approximately 0.05 to 9 bar).
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Proportional Pressure Control Valve) |
| Model Designation | ITV2050-042L |
| Manufacturer | SMC Corporation |
| Control Signal Input | Analog 0–10 V DC / 4–20 mA (selectable) |
| Output Pressure Range | 0.005 – 0.9 MPa (0.05 – 9 bar) |
| Supply Pressure | Set pressure + 0.1 MPa minimum (max. 1.0 MPa) |
| Port Size | 1/4 (Rc/NPT/G thread configuration per 042L suffix) |
| Linearity / Hysteresis | ±1% F.S. or better |
| Repeatability | ±0.5% F.S. |
| Mounting & Connection | Bracket or panel mount; threaded pneumatic ports; electrical connector per SMC standard |
| Operating Temperature Range | 0 – 50 °C (fluid: air, non-corrosive, filtered) |
Engineering Features & Advantages
- Precision Performance: The electro-pneumatic regulator (proportional pressure control valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
It is a core component in closed-loop pneumatic control systems, enabling precise force control, tension regulation, and pressure profiling in automated industrial processes.
PRODUCT IMAGES

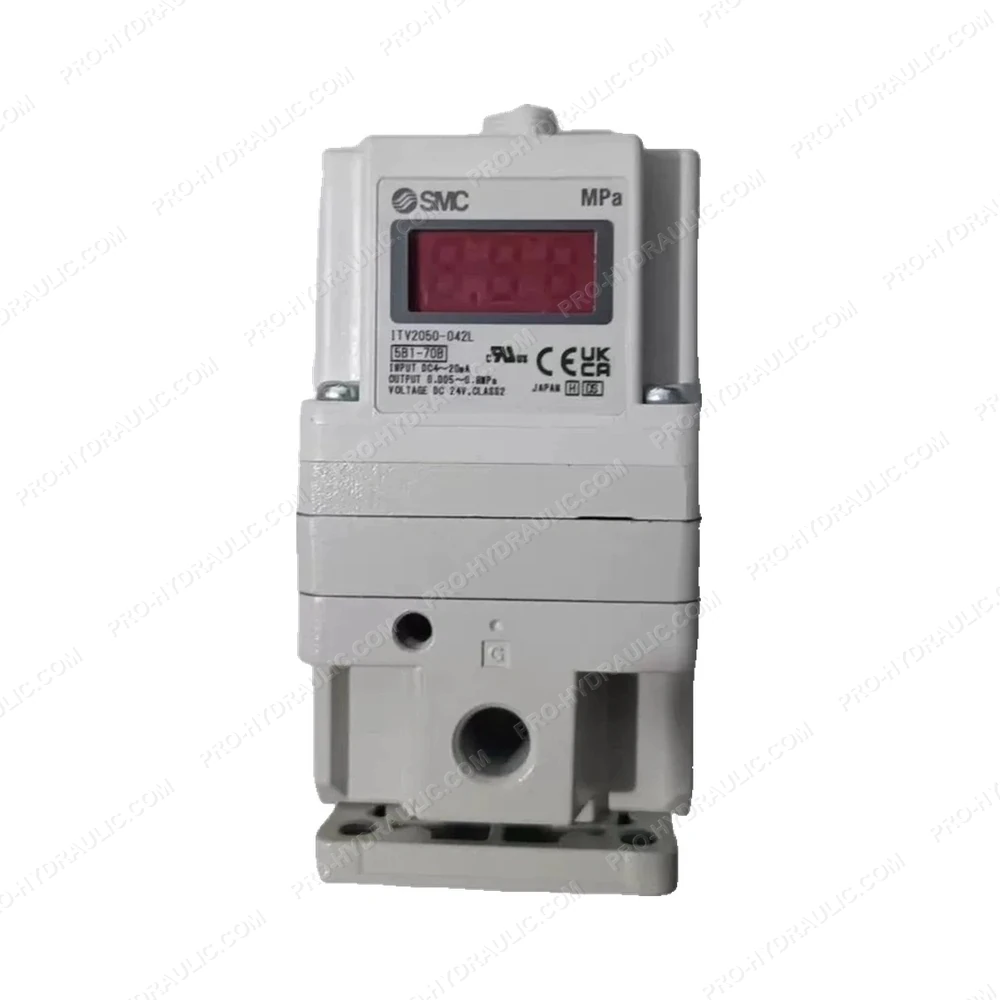

SMC ITV2050-042L Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2050-042L Electro-Pneumatic Proportional Valve. This Japan-made precision valve features a closed-loop pressure control design, delivering accurate, stable regulation for industrial automation systems.
