Product Overview
The SMC ITV2050-112N is a precision electro-pneumatic regulator engineered by SMC Corporation, a global leader in pneumatic and industrial automation control technology. This device functions as an electronically controlled pressure regulator that converts a variable electrical input signal (analog voltage or current) into a proportional pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, the ITV2050-112N enables continuous, remote, and programmable pressure control within a pneumatic circuit. It is widely deployed in industrial automation systems where precise, repeatable air pressure regulation is critical for force control, tensioning, positioning, and flow modulation. The unit features an integrated pressure sensor and closed-loop feedback circuit, ensuring stable output pressure regardless of supply pressure fluctuations or downstream flow variations.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2050-112N |
| Series | SMC ITV2000 Series |
| Operating Pressure Range | 0.005 – 0.9 MPa (0.05 – 9.0 bar) set pressure range |
| Supply Pressure | Set pressure + 0.1 MPa minimum (max. 1.0 MPa) |
| Input Signal | Analog voltage (0–5 V DC / 0–10 V DC) or current (4–20 mA) |
| Port Size | 1/4 (Rc/NPT/G thread options per suffix) |
| Power Supply | 24 V DC ±10% |
| Mounting & Connection | Bracket or panel mount; threaded pneumatic ports with electrical connector |
| Fluid | Compressed air (filtered, non-lubricated or lubricated) |
Engineering Features & Advantages
- Precision Performance: Closed-loop electronic feedback with integrated pressure sensor delivers highly accurate and repeatable output pressure proportional to the analog input signal, minimizing hysteresis and drift.
- Remote & Programmable Control: Accepts analog electrical signals for seamless integration into PLC, DCS, or PC-based control systems, enabling dynamic pressure profiling and automated setpoint changes without manual intervention.
- Industrial Reliability: Built for continuous operation under demanding industrial conditions with robust construction, stable thermal characteristics, and resistance to supply pressure fluctuations.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
It is widely deployed in industrial automation systems where precise, repeatable air pressure regulation is critical for force control, tensioning, positioning, and flow modulation.
PRODUCT IMAGES

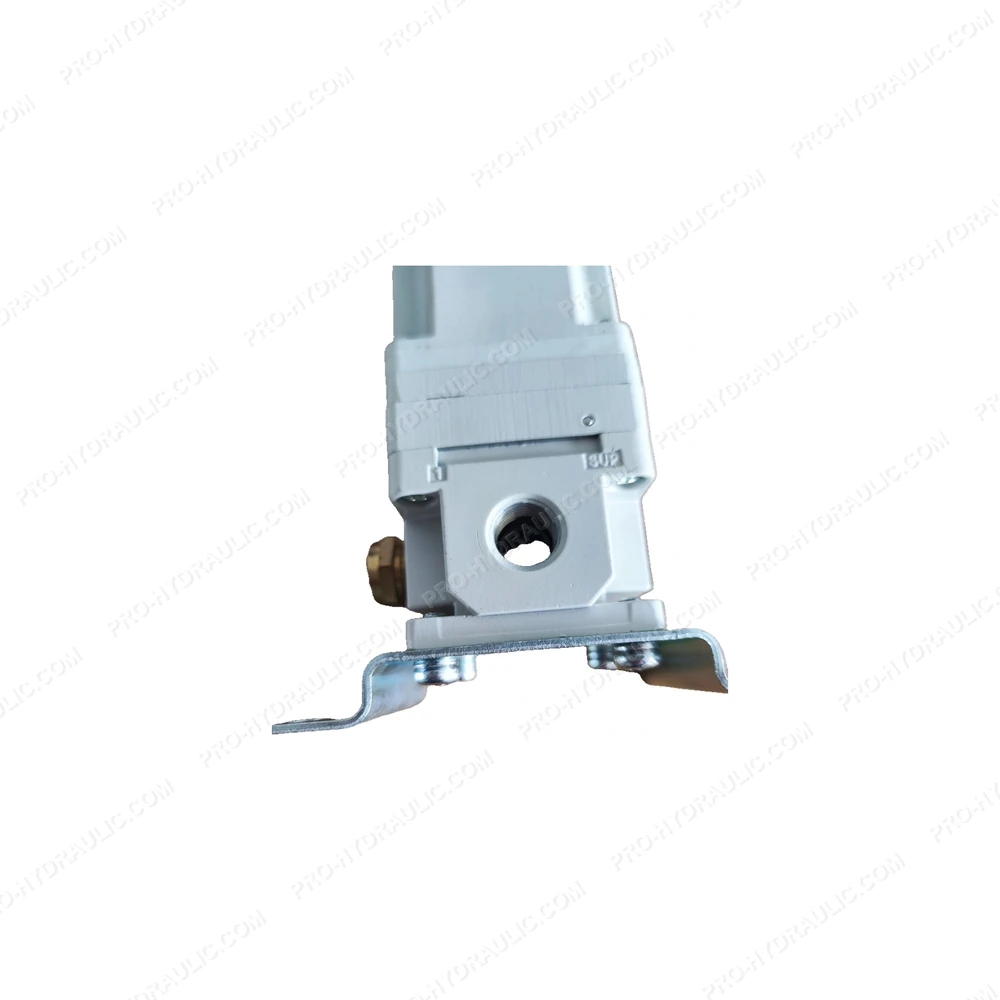

SMC ITV2050-112N Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2050-112N Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features a precise pressure control design, delivering reliable, leak-free regulation for industrial automation systems.
