Product Overview
The SMC ITV2050-213BL5-X35 is a high-precision electro-pneumatic regulator from the SMC ITV2000 series, engineered to provide continuous, stepless electronic control of pneumatic pressure proportional to an electrical input signal. Unlike conventional mechanical regulators that require manual adjustment, this unit utilizes a closed-loop feedback system combining a pressure sensor, control circuit, and proportional solenoid valve to deliver stable, repeatable output pressure regulation. The ITV2050-213BL5-X35 is a direct-operated, inline pressure control valve designed for integration into automated pneumatic systems where precise, remote, or programmable pressure modulation is critical. It serves as a key interface component in electro-pneumatic control loops, converting analog electrical signals (voltage or current) into proportional pneumatic output pressure for downstream actuators, cylinders, and process equipment.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Proportional Pressure Control Valve) |
| Model Designation | ITV2050-213BL5-X35 |
| Series | SMC ITV2000 Series |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Control Signal Input | Analog Voltage (0–5 VDC / 0–10 VDC) or Current (4–20 mA) — model-dependent |
| Output Pressure Range | Proportional to input signal (ITV2050 series: 0.005–0.9 MPa standard range) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (inline body mount, threaded port connections) |
| Feedback Control | Closed-loop internal pressure sensor with electronic feedback circuit |
| Actuation Method | Proportional solenoid with electronic control module |
Engineering Features & Advantages
- Precision Proportional Control: Closed-loop electro-pneumatic feedback delivers highly accurate and repeatable output pressure proportional to the analog input signal, eliminating manual adjustment errors and enabling remote setpoint control.
- Fast Dynamic Response: The integrated proportional solenoid and control circuit provide rapid response to signal changes, ensuring stable pressure regulation even under varying flow demands.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction resistant to vibration, temperature fluctuation, and contaminated compressed air environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing pneumatic circuits or mounting interfaces.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The ITV2050-213BL5-X35 is a direct-operated, inline pressure control valve designed for integration into automated pneumatic systems where precise, remote, or programmable pressure modulation is critical.
PRODUCT IMAGES

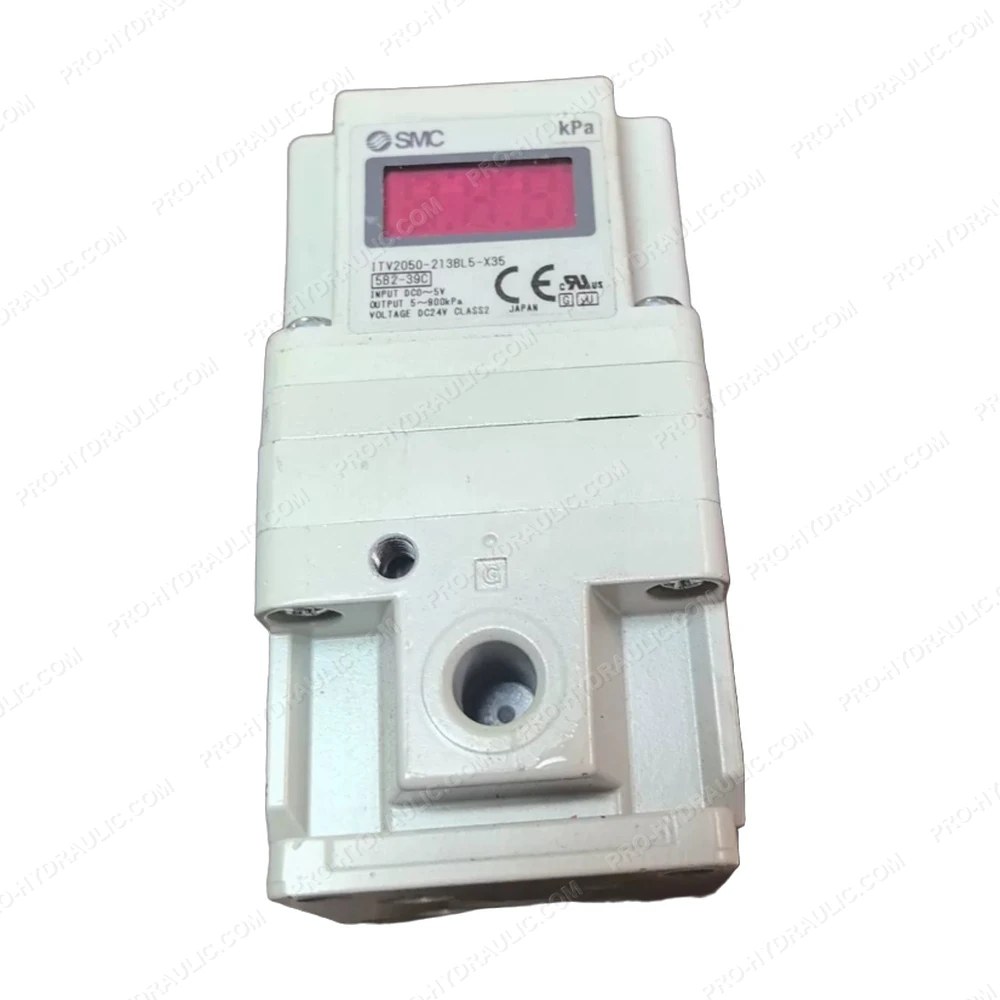

SMC ITV2050-213BL5-X35 Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2050-213BL5-X35 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC pneumatic component features a precise pressure control design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
