Product Overview
The SMC ITV2050-312BS is a high-precision electro-pneumatic regulator (electronic pressure regulator) manufactured by SMC Corporation, a global leader in pneumatic and industrial automation control technology. This device functions as a proportional pressure control valve that converts an electrical input signal (analog voltage or current) into a linearly proportional pneumatic output pressure. Unlike conventional mechanical regulators, the ITV2050-312BS utilizes an integrated solenoid valve and pressure sensor feedback circuit to achieve continuous, closed-loop pressure regulation independent of supply pressure fluctuations or downstream flow variations. It is engineered for applications requiring precise, repeatable, and remotely controllable air pressure management within industrial process and pneumatic control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2050-312BS |
| Series | SMC ITV2000 Series |
| Set Pressure Range | 0.005 – 0.9 MPa (approx. 0.05 – 9 bar) |
| Supply Pressure | Set pressure + 0.1 MPa minimum (max. 1.0 MPa) |
| Input Signal | Analog voltage (0–5 V DC / 0–10 V DC) or current (4–20 mA DC) |
| Output Signal | 1–5 V DC (monitor output proportional to set pressure) |
| Port Size | 1/4 (Rc/NPT/G thread per suffix) |
| Power Supply | 24 V DC ±10% |
| Mounting & Connection | Bracket mount / panel mount, threaded port connection |
| Operating Temperature | 0 – 50 °C (fluid: air, non-corrosive, filtered) |
Engineering Features & Advantages
- Closed-Loop Precision Control: Integrated pressure sensor and feedback circuit deliver highly accurate, repeatable output pressure proportional to the electrical input signal, eliminating drift caused by supply pressure or flow changes.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
It is engineered for applications requiring precise, repeatable, and remotely controllable air pressure management within industrial process and pneumatic control systems.
PRODUCT IMAGES

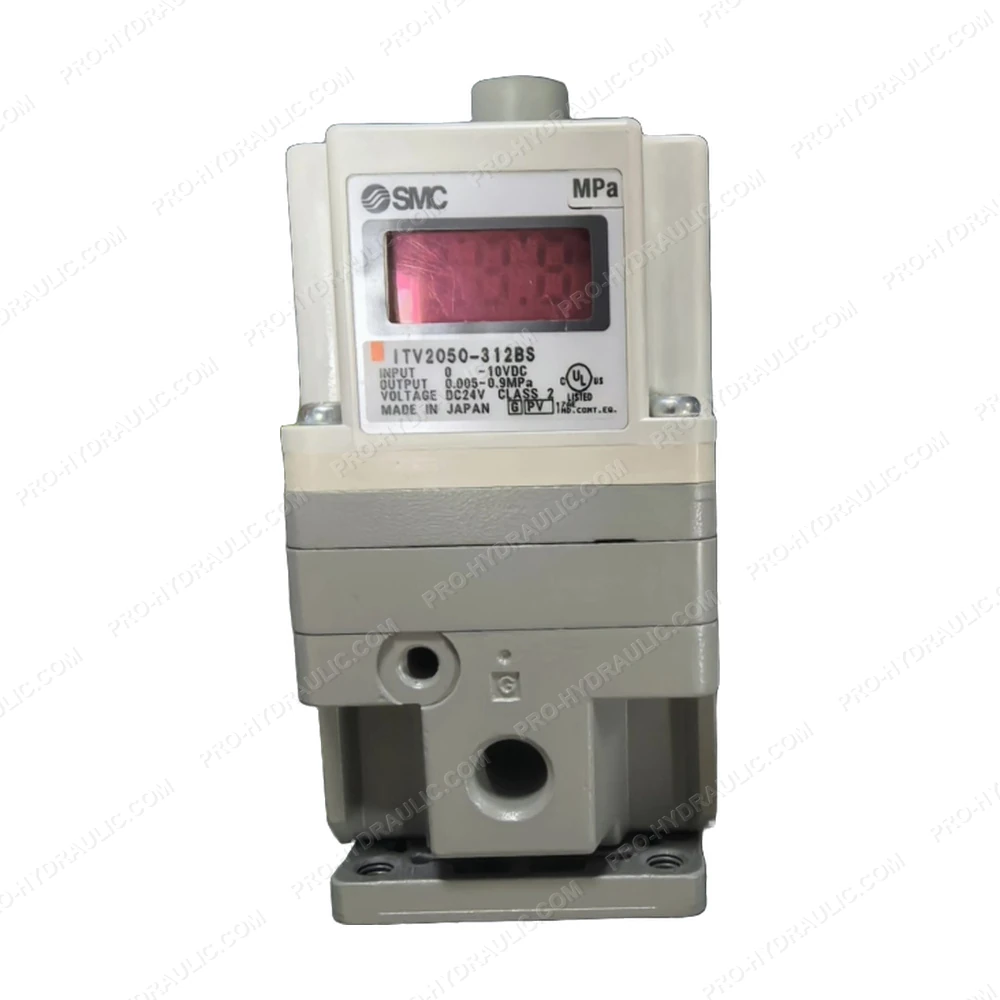

SMC ITV2050-312BS Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2050-312BS Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features precise pressure control, delivering reliable, leak-free operation for industrial automation systems.
