Product Overview
The SMC ITV2050-313N3 is a high-precision electro-pneumatic proportional valve (electro-pneumatic regulator) manufactured by SMC Corporation, a global leader in pneumatic and industrial automation technology. This component functions as a pressure control valve that continuously and proportionally regulates output air pressure in direct response to an analog electrical input signal (typically 0–10 V DC or 4–20 mA). Unlike simple on/off solenoid valves, the ITV2050-313N3 uses an internal closed-loop feedback mechanism with a pressure sensor and control circuit to maintain precise, stable output pressure regardless of fluctuations in supply pressure or downstream flow demand. It is a core control element in pneumatic process systems, providing stepless electronic pressure regulation for applications requiring fine force control, tension control, or proportional actuation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Process & Pneumatic Valve) |
| Model Designation | ITV2050-313N3 |
| Manufacturer | SMC Corporation |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, supply pressure dependent) |
| Control Signal | Analog Input (Voltage / Current, model-configuration dependent) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded port connections) |
Engineering Features & Advantages
- Precision Performance: Closed-loop pressure feedback delivers highly accurate, repeatable proportional output pressure with minimal hysteresis and excellent linearity across the control range.
- Stepless Electronic Regulation: Continuously variable pressure control via analog electrical signal eliminates the need for manual mechanical adjustment and enables full automation integration.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust internal sensing and control circuitry ensuring stable performance over extended duty cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without system modification.
Typical Industrial Applications
The SMC ITV2050-313N3 electro-pneumatic proportional valve is widely deployed in pneumatic tension control systems for web handling and winding machinery, force and pressure regulation in automated assembly and pick-and-place equipment, proportional actuation in packaging and labeling machines, and precision air pressure control in semiconductor and electronics manufacturing processes. It is also commonly used in pneumatic press and clamping circuits, robotics end-effector force control, and any industrial automation scenario requiring accurate, electronically commanded air pressure regulation.
PRODUCT IMAGES

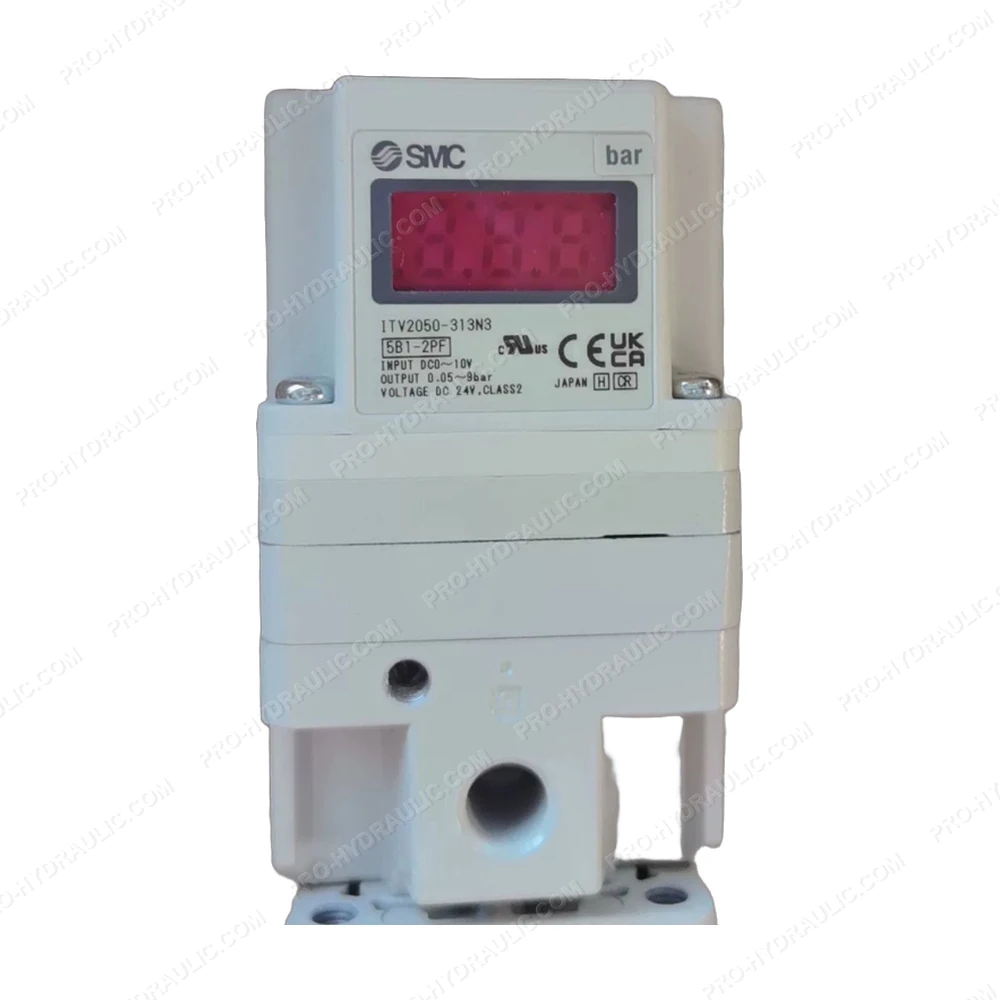

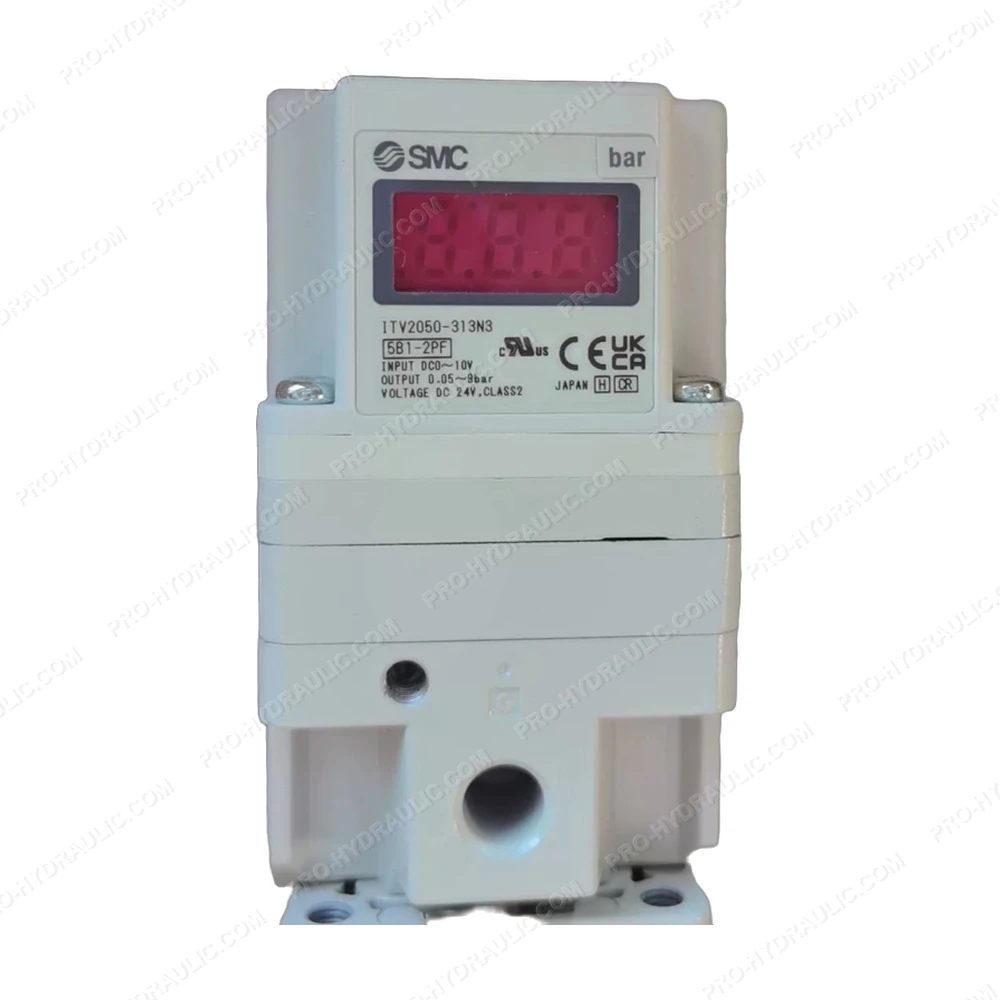

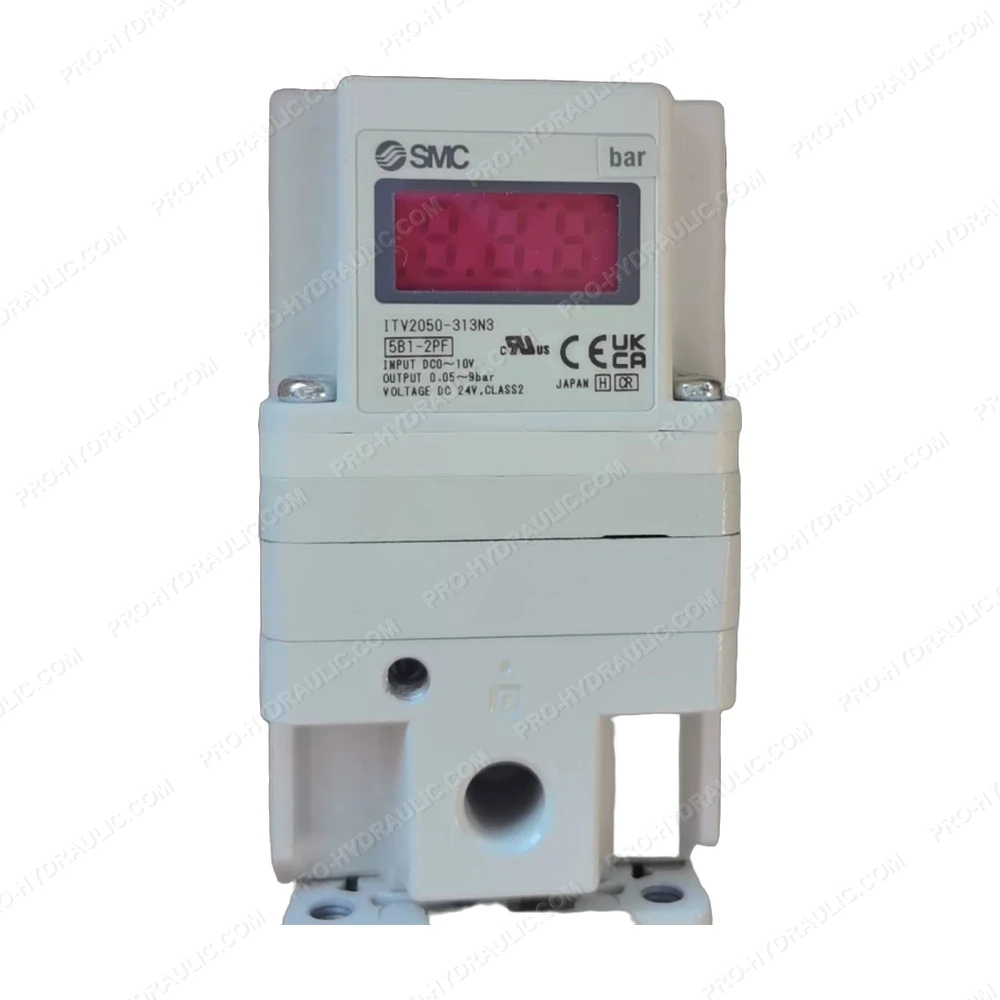

SMC ITV2050-313N3 Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2050-313N3 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features a pressure control function, delivering precise, leak-free regulation for heavy-duty industrial automation systems.
