Product Overview
The SMC ITV2090-04N2N5 is a high-precision electro-pneumatic regulator (electronic pressure regulator) from the SMC ITV2000 series, engineered to convert an analog electrical input signal into a continuously variable, proportional pneumatic output pressure. Unlike conventional mechanical pressure regulators that require manual adjustment, this device uses an internal closed-loop feedback control circuit with a pressure sensor to continuously compare the setpoint signal against actual downstream pressure, driving an integral solenoid valve assembly to maintain precise output regulation. The ITV2090-04N2N5 is configured with a 1/2″ port size (04), an analog command input, and a monitor output for remote pressure feedback, making it a core component in electro-pneumatic control loops for tension control, proportional force actuation, and precision pressure regulation in automated industrial systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2090-04N2N5 |
| Series | SMC ITV2000 Series |
| Port Size | 1/2″ (Code 04) |
| Control Method | Analog electrical signal input with closed-loop pressure feedback |
| Operating Pressure | Standard Industrial Grade (up to rated bar per ITV2000 series) |
| Mounting & Connection | Standard ISO / SMC threaded interface |
Engineering Features & Advantages
- Precision Proportional Control: Closed-loop electro-pneumatic regulation delivers highly repeatable output pressure proportional to the analog command signal, eliminating the drift and hysteresis associated with manual regulators.
- Integrated Pressure Feedback: An internal pressure sensor and monitor output enable real-time verification of regulated pressure, supporting remote monitoring and closed-loop system integration.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid actuation and stable performance across demanding duty cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC ITV2000 series OEM standards for drop-in service and retrofit.
Typical Industrial Applications
Typical applications include web tension control on printing and converting lines, proportional force and pressure regulation in pneumatic clamping and pressing systems, precision air pressure control for semiconductor and electronics manufacturing equipment, and closed-loop pneumatic actuation in automated assembly and packaging machinery.
PRODUCT IMAGES

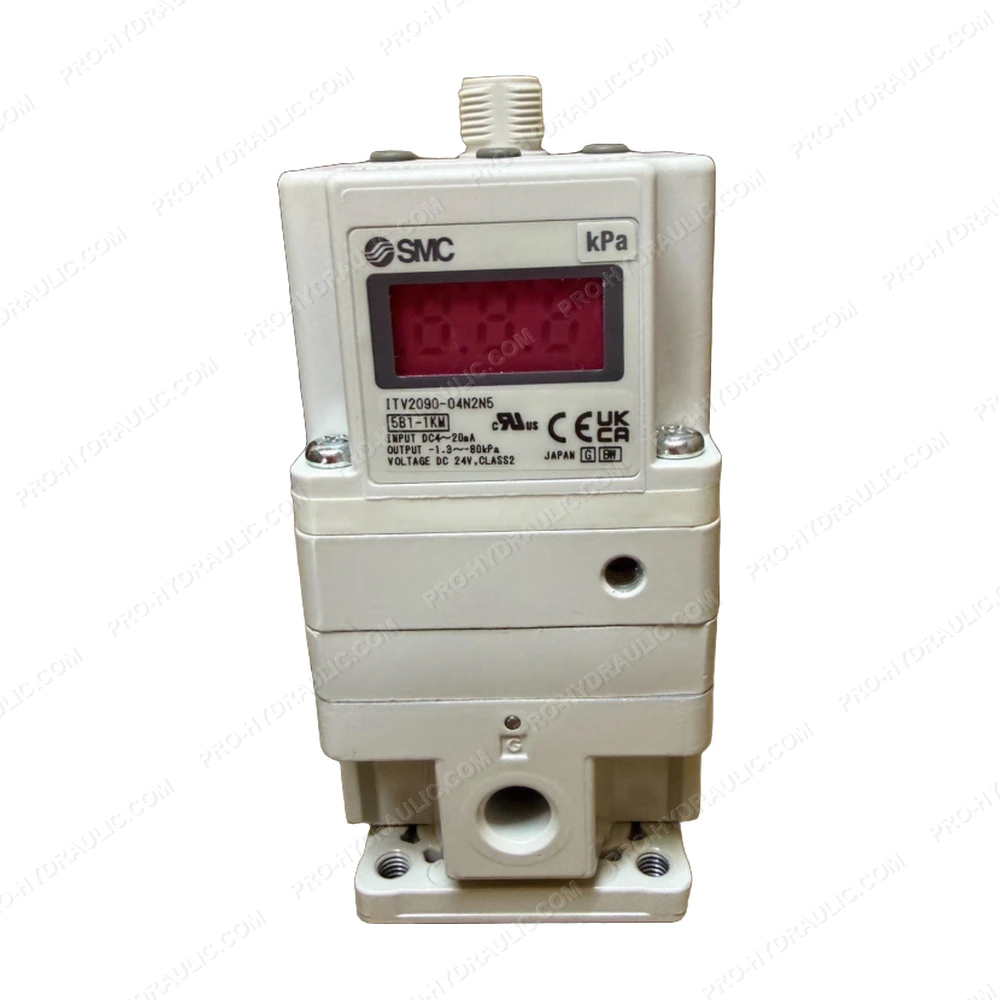

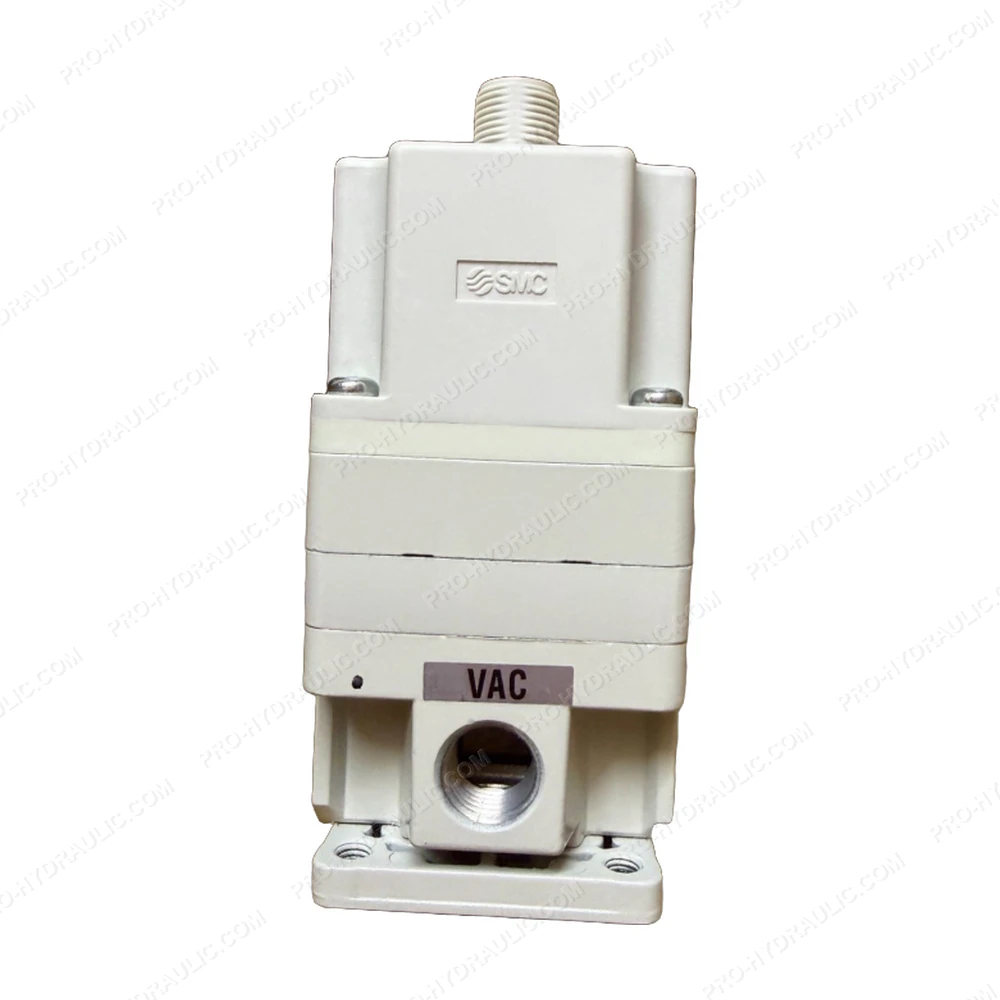

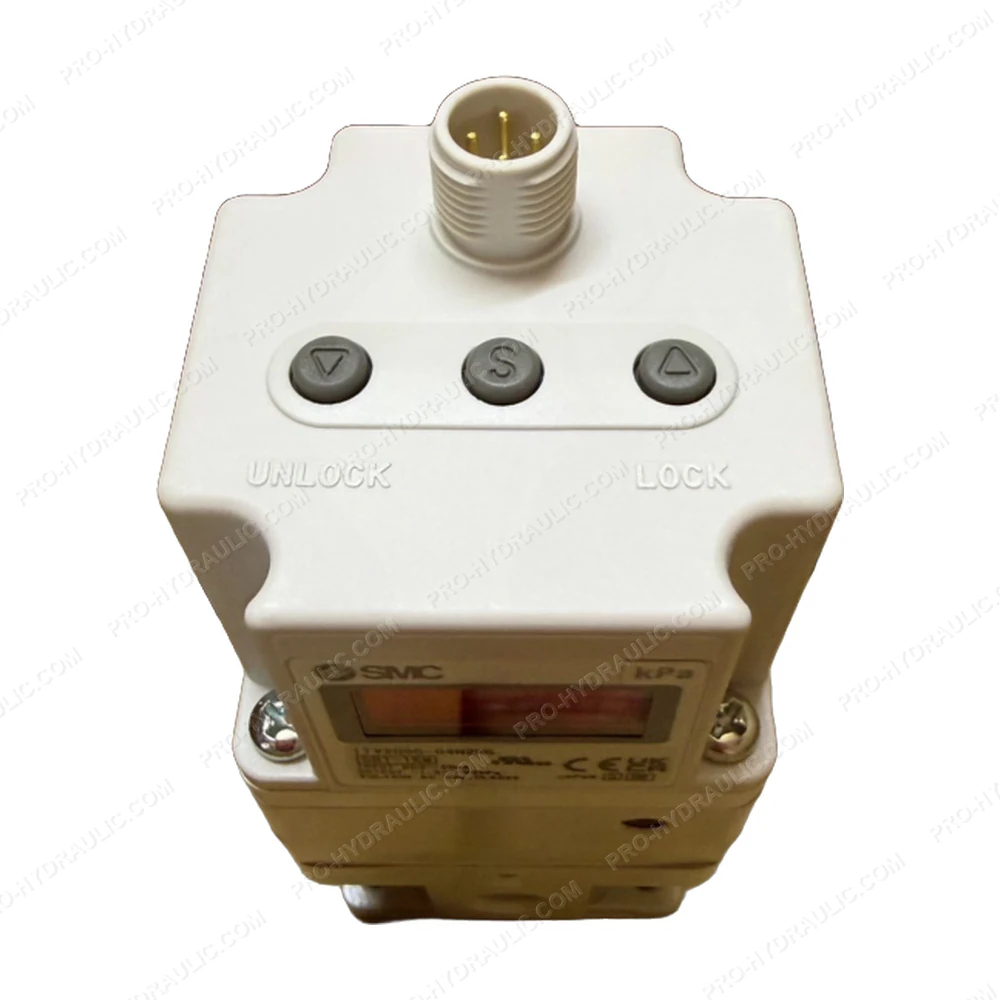

SMC ITV2090-04N2N5 Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2090-04N2N5 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC pneumatic component features a closed-loop pressure control design, delivering precise, stable regulation for industrial automation systems.
