Product Overview
The SMC ITV2090-212BL5 is a high-precision electro-pneumatic regulator (electronic pressure regulator) from the SMC ITV series, engineered to convert an analog electrical input signal into a continuously variable pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, this device uses an internal pressure sensor and closed-loop feedback control circuit to proportionally regulate output pressure in real time, delivering exceptional repeatability and hysteresis performance. As a process and pneumatic valve component, it serves as the critical interface between electronic control systems (PLC, CNC, or DCS) and pneumatic actuators, enabling precise, remote, and programmable pressure control in automated industrial processes.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2090-212BL5 |
| Series | SMC ITV2000 Series |
| Control Method | Closed-loop electronic feedback with internal pressure sensor |
| Input Signal | Analog electrical signal (voltage or current, model-dependent) |
| Output Pressure Range | Proportional to input signal, up to 0.9 MPa class (ITV2000 series) |
| Operating Pressure | Standard industrial pneumatic grade (supply pressure dependent) |
| Mounting & Connection | Standard SMC bracket / port interface with electrical connector |
| Feedback | Analog monitor output available for external verification |
Engineering Features & Advantages
- Precision Proportional Control: Closed-loop feedback circuit continuously compares the internal pressure sensor reading against the command signal, achieving high linearity, low hysteresis, and excellent repeatability for demanding pneumatic regulation tasks.
- Remote & Programmable Operation: Output pressure is set electronically via PLC or controller analog output, eliminating manual adjustment and enabling full integration into automated control loops.
- Fast Dynamic Response: Quick response to input signal changes supports dynamic pressure profiling and real-time process adjustments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with stable performance across the rated pressure range.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification.
Typical Industrial Applications
The SMC ITV2090-212BL5 is widely deployed in automated pneumatic systems requiring precise electronic pressure regulation, including plastic injection molding machines (clamping and ejection pressure control), CNC machine tools and machining centers (tool clamping and workpiece holding), packaging and web tension control systems,
PRODUCT IMAGES

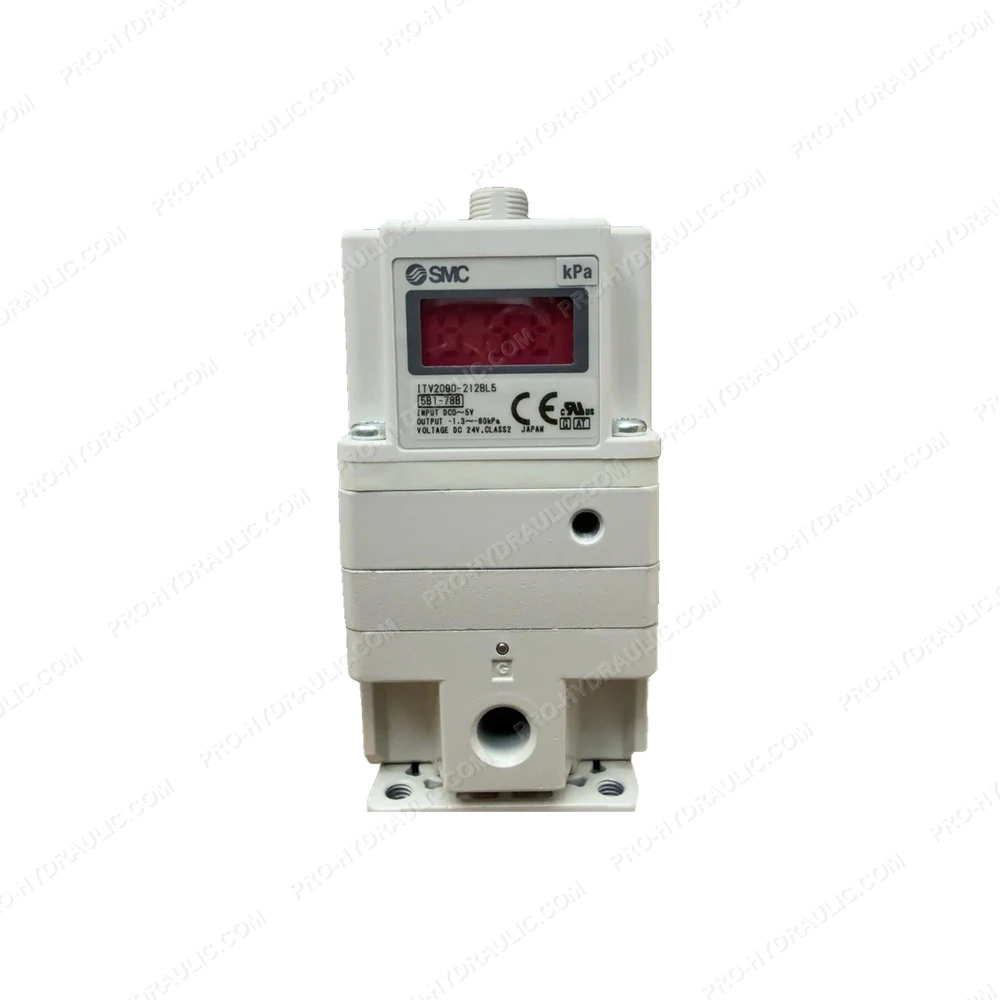

SMC ITV2090-212BL5 Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2090-212BL5 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC hydraulic component features a precise pressure control function, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
