Product Overview
The SMC ITV2090-212L5 is a high-precision electro-pneumatic regulator (electronic pressure regulator) engineered by SMC Corporation, a global leader in pneumatic and industrial automation control technology. This advanced device functions as a proportional pressure control valve, converting a variable electrical input signal (analog voltage or current) into a linearly proportional pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, the ITV2090-212L5 enables remote, programmable, and closed-loop pressure control with exceptional repeatability and response speed. It is a critical component in automated pneumatic systems where precise, dynamic pressure regulation is essential for maintaining consistent force, torque, or flow characteristics in downstream actuators and processes.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator / Proportional Pressure Control Valve |
| Model Designation | ITV2090-212L5 |
| Series | SMC ITV2000 Series |
| Operating Pressure Range | 0.005 to 0.9 MPa (0.05 to 9 bar) standard set pressure range |
| Input Signal | Analog voltage (0–5 VDC or 0–10 VDC) or current (4–20 mA) — model-dependent configuration |
| Output Pressure | Proportional to input signal; linearity within ±1% F.S. |
| Port Size | 1/4 Rc (PT) threaded ports — supply, output, and exhaust |
| Mounting & Connection | Bracket or panel mount; electrical connection via lead wire or M12 connector |
| Power Supply | 24 VDC ±10% |
| Repeatability | ±0.5% F.S. or better |
| Hysteresis | ±1% F.S. or less |
| Ambient Temperature Range | 0 to 50°C (no freezing) |
Engineering Features & Advantages
- Precision Performance: The electro-pneumatic regulator / proportional pressure control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings of 0.005 to 0.9 MPa (0.05 to 9 bar) standard set pressure range, supporting stable operation across the full working range.
Typical Industrial Applications
It is a critical component in automated pneumatic systems where precise, dynamic pressure regulation is essential for maintaining consistent force, torque, or flow characteristics in downstream actuators and processes.
PRODUCT IMAGES

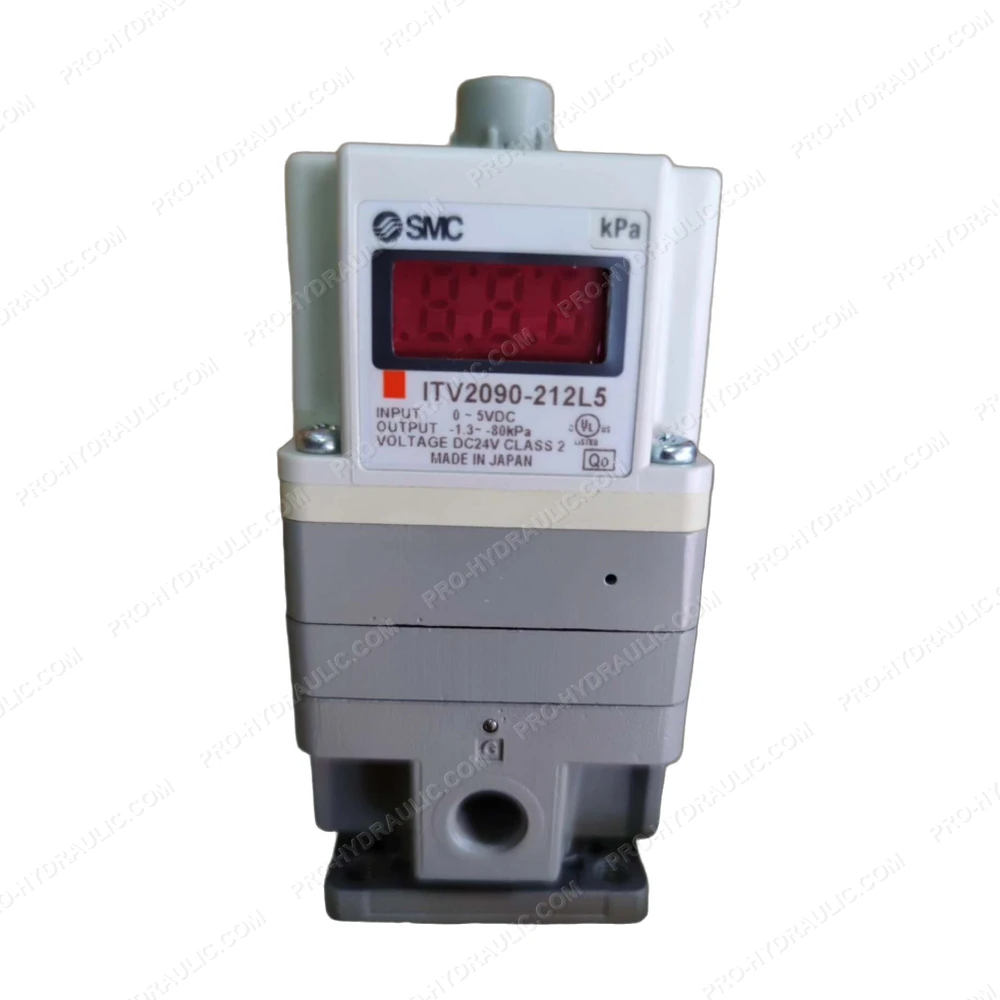

SMC ITV2090-212L5 Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2090-212L5 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC hydraulic component features a precise pressure control function, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
