Product Overview
The SMC ITV2090-312BL5 is a high-precision electro-pneumatic regulator (electronic pressure regulator) from the SMC ITV2000 series, engineered to convert an analog electrical input signal into a linearly proportional pneumatic output pressure. Unlike conventional mechanical pressure regulators that require manual adjustment, this device provides continuous, remote, and programmable pressure control through an integrated solenoid-driven control mechanism and internal pressure feedback sensor. The ITV2090-312BL5 is a process and pneumatic valve component designed for closed-loop electro-pneumatic pressure regulation in automated industrial systems, offering stable output independent of supply pressure fluctuations and flow variations. Its compact body, panel-mount configuration, and electrical signal interface make it a critical control element in precision pneumatic circuits where accurate, repeatable pressure modulation is essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV2090-312BL5 |
| Series | SMC ITV2000 Series |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Control Signal Input | Analog Electrical Signal (Voltage / Current Command) |
| Output Pressure Range | Proportional to Input Signal (Model-Specific Range) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Panel / Bracket Mount) |
| Port Connection | Threaded Pneumatic Ports (Supply / Output / Exhaust) |
| Feedback Control | Internal Pressure Sensor with Closed-Loop Regulation |
Engineering Features & Advantages
- Precision Electro-Pneumatic Control: The ITV2090-312BL5 delivers output pressure that is linearly proportional to the electrical input command, enabling accurate, repeatable, and remotely programmable pressure regulation without manual intervention.
- Closed-Loop Pressure Stability: An internal pressure sensor continuously monitors output and corrects for supply pressure fluctuations and downstream flow changes, maintaining stable regulated pressure across dynamic operating conditions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid actuation and durable internal valve construction suitable for demanding automated environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing pneumatic circuits or mounting interfaces.
- Compact & Integration-Friendly: Space-efficient body design with standard electrical and pneumatic interfaces simplifies integration into control panels, manifolds, and OEM machinery.
Typical Industrial Applications
The
PRODUCT IMAGES

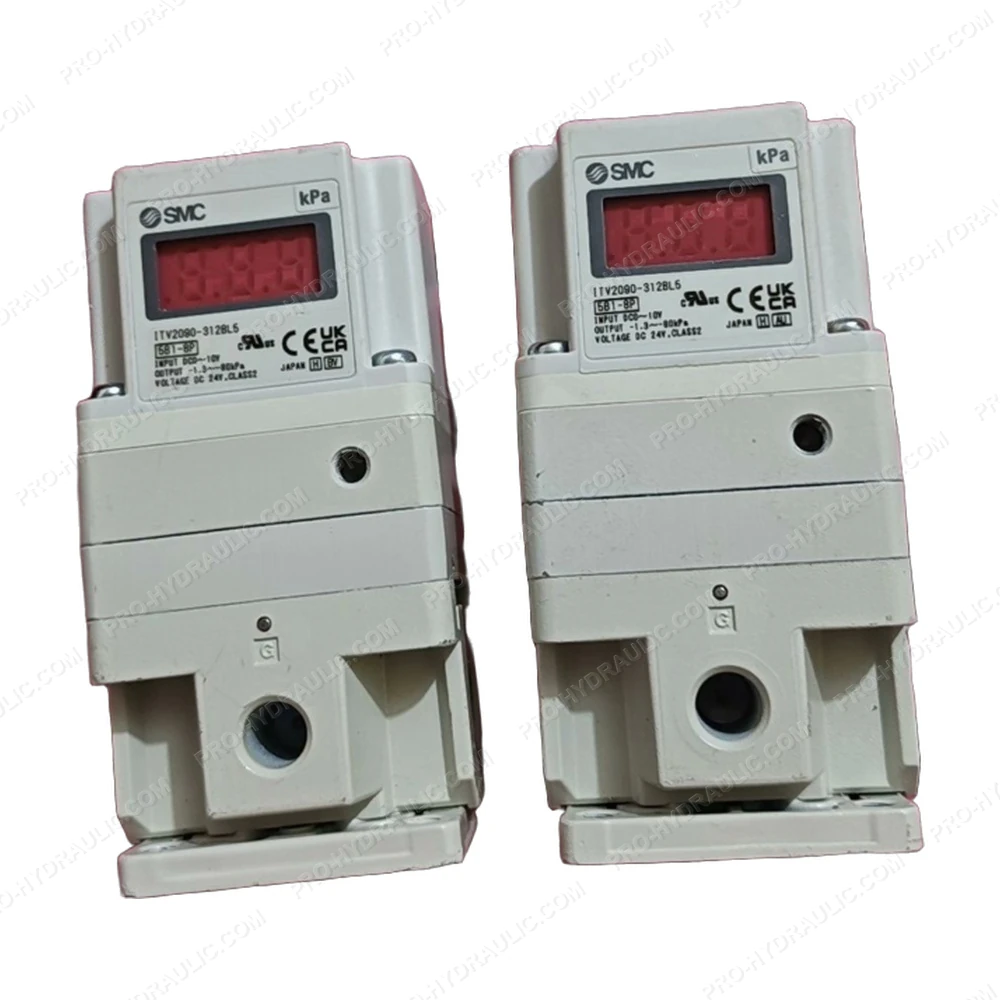

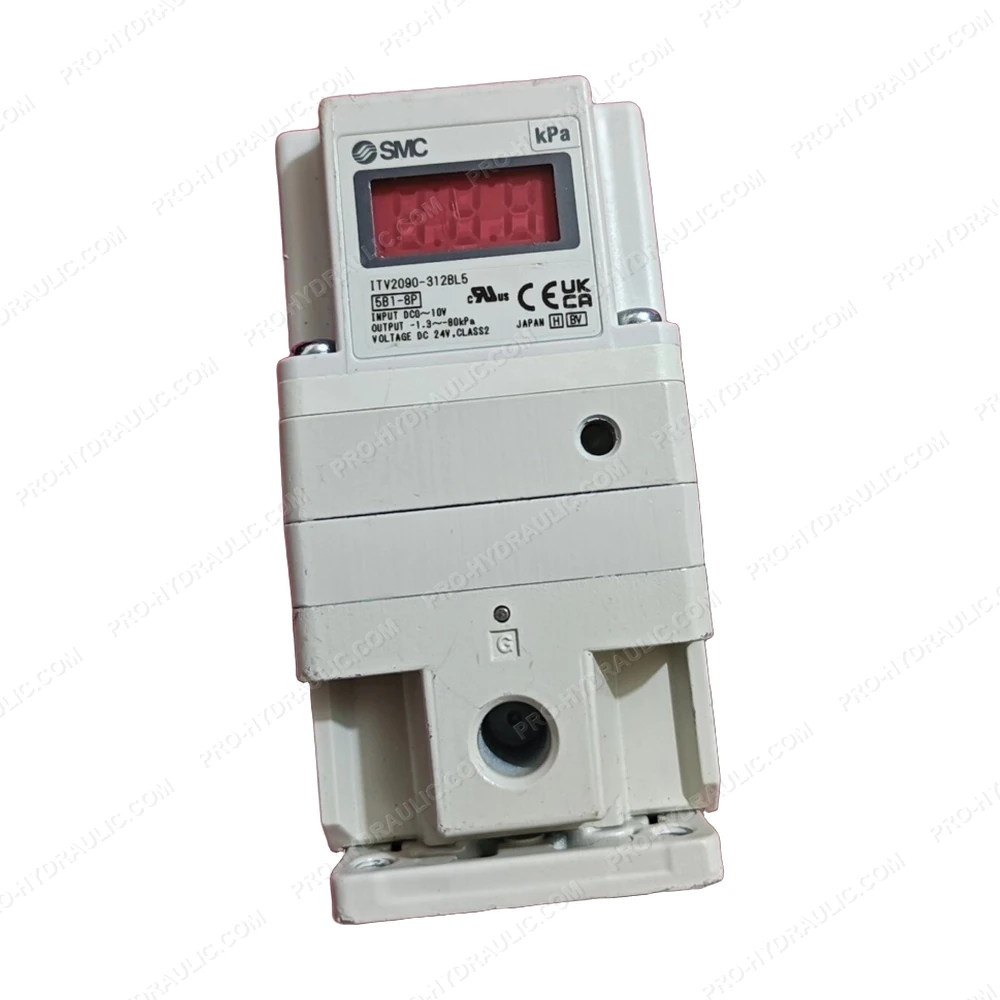

SMC ITV2090-312BL5 Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2090-312BL5 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC hydraulic component features a precise pressure control function, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
