Product Overview
The SMC ITV2090-312L5 is a high-precision electro-pneumatic regulator (electronic pressure regulator) manufactured by SMC Corporation, a global leader in pneumatic and industrial automation control technology. This device functions as a proportional pressure control valve that converts an electrical input signal (analog voltage or current) into a linearly proportional pneumatic output pressure. Unlike conventional mechanical regulators, the ITV2090-312L5 utilizes an integrated solenoid actuator and internal pressure feedback sensor to achieve continuous, closed-loop pressure regulation independent of flow fluctuations. As part of the SMC ITV series, it is engineered for applications requiring precise, repeatable, and remotely controllable air pressure management within industrial automation, process control, and pneumatic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Proportional Pressure Control Valve) |
| Model Designation | ITV2090-312L5 |
| Series | SMC ITV2000 Series |
| Operating Pressure Range | 0.005 – 0.9 MPa (0.05 – 9 bar) set pressure range |
| Supply Pressure | Set pressure + 0.1 MPa minimum (max. 1.0 MPa) |
| Input Signal | Analog electrical signal (voltage or current, per L5 configuration) |
| Port Size | 1/4 (Rc/NPT/G thread per suffix) |
| Mounting & Connection | Standard SMC bracket / inline mounting, threaded pneumatic ports |
| Feedback Control | Internal pressure sensor with closed-loop proportional control |
Engineering Features & Advantages
- Precision Proportional Control: Closed-loop electro-pneumatic architecture delivers highly accurate, linear pressure output proportional to the electrical input signal, enabling fine-grained remote pressure regulation.
- Excellent Repeatability & Hysteresis: Advanced internal sensor feedback minimizes hysteresis and drift, ensuring consistent pressure output across repeated cycles and varying flow demands.
- Remote & Programmable Operation: Accepts analog control signals for seamless integration with PLCs, controllers, and automated process systems, eliminating the need for manual adjustment.
- Industrial Reliability: Built for continuous operation under demanding industrial conditions with robust solenoid actuation and durable internal valve construction.
- Direct Fit Replacement: Exact dimensional and functional compatibility with SMC ITV2000 series OEM standards for straightforward drop-in replacement.
Typical Industrial Applications
The SMC ITV2090-312L5 electro-pneumatic regulator is widely deployed in applications requiring precise, remotely
PRODUCT IMAGES

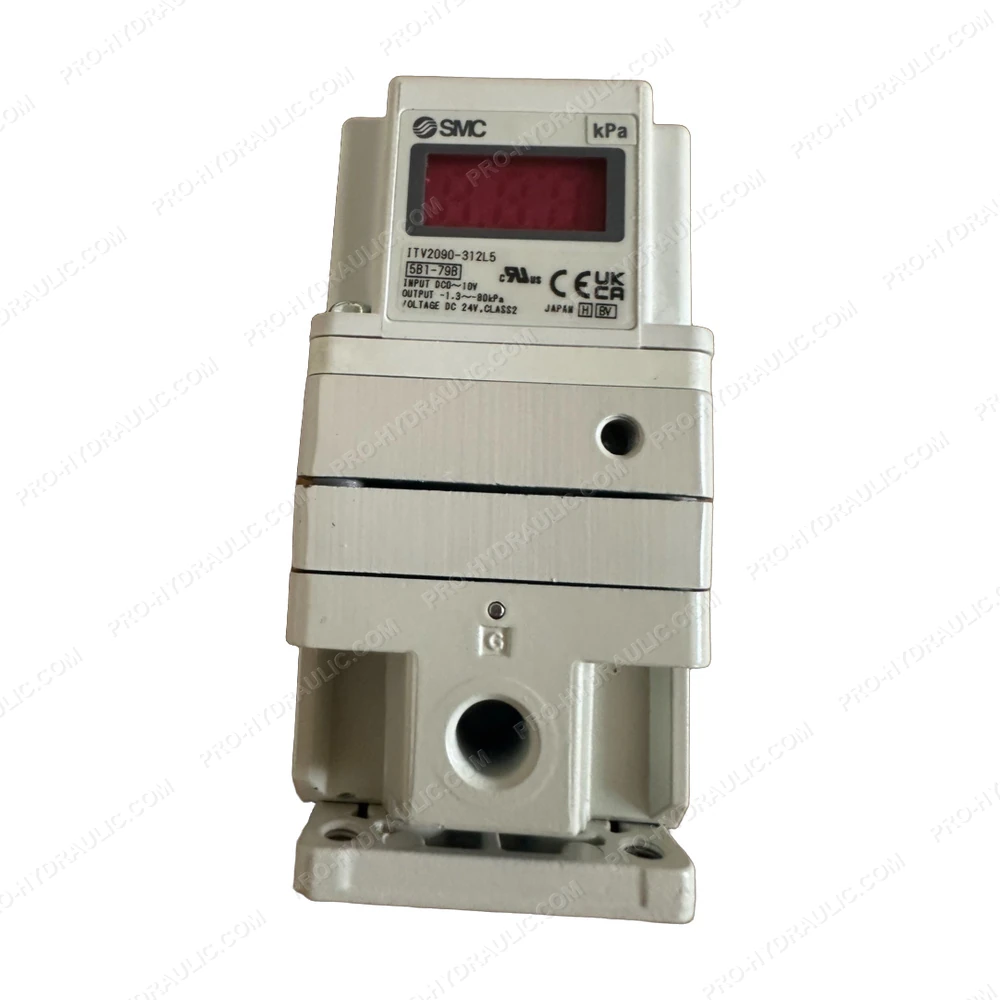

SMC ITV2090-312L5 Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV2090-312L5 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features a pressure control function, delivering precise, leak-free regulation for heavy-duty industrial automation systems.
