Product Overview
The SMC ITV3050-014N is a high-precision electro-pneumatic regulator (electronic pressure regulator) manufactured by SMC Corporation, a global leader in pneumatic and industrial automation control technology. This device functions as a proportional pressure control valve that converts an electrical input signal (analog voltage or current) into a linearly proportional pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, the ITV3050-014N enables remote, dynamic, and infinitely variable pressure control through electronic command signals, making it an essential component in closed-loop pneumatic control systems. The unit is designed for panel or bracket mounting and is widely deployed in applications demanding precise, repeatable, and fast-response pressure regulation within industrial automation, semiconductor manufacturing, and process control environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV3050-014N |
| Series | SMC ITV3000 Series |
| Operating Pressure Range | 0.005 – 0.9 MPa (0.05 – 9.0 bar) set pressure range |
| Supply Pressure | Set pressure + 0.1 MPa minimum (max. 1.0 MPa) |
| Input Signal | Analog voltage (0–5 V DC / 0–10 V DC) or current (4–20 mA DC) |
| Output Signal (Monitor) | 1–5 V DC / 4–20 mA DC analog monitor output |
| Port Size | 1/4 (Rc/NPT/G) threaded ports |
| Power Supply | 24 V DC ±10% |
| Mounting & Connection | Bracket / panel mount; standard SMC port interface |
| Operating Temperature Range | 0°C to +50°C (no condensation) |
| Fluid | Compressed air (filtered, non-lubricated) |
Engineering Features & Advantages
- Precision Performance: The electro-pneumatic regulator (process & pneumatic valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings of 0.005 – 0.9 MPa (0.05 – 9.0 bar) set pressure range, supporting stable operation across the full working range.
Typical Industrial Applications
The unit is designed for panel or bracket mounting and is widely deployed in applications demanding precise, repeatable, and fast-response pressure regulation within industrial automation, semiconductor manufacturing, and process control environments.
PRODUCT IMAGES

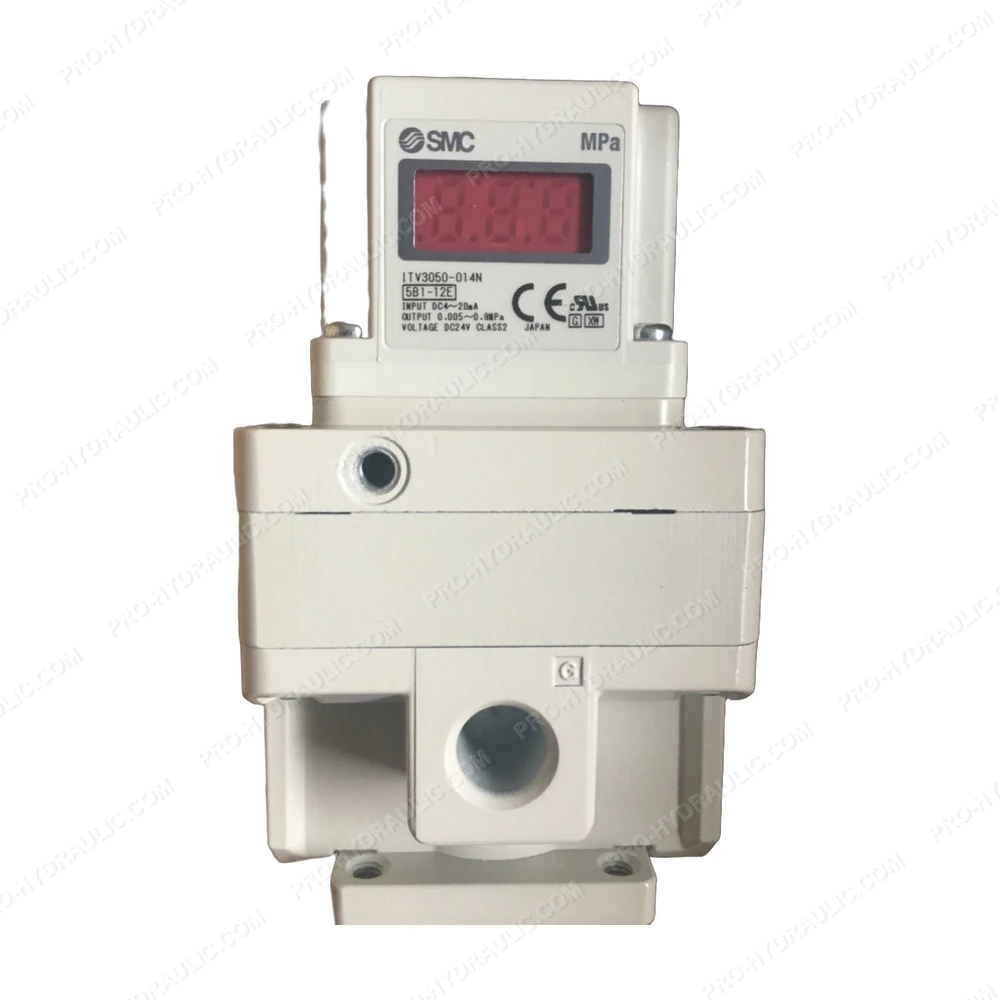

SMC ITV3050-014N Electro-Pneumatic Regulator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV3050-014N Electro-Pneumatic Regulator. This Japan-made 0-10V DC controlled pneumatic component features a proportional solenoid design, delivering leak-free, reliable pressure control for heavy-duty industrial systems.
