Product Overview
The SMC ITV3050-034BS is a high-precision electro-pneumatic regulator from the SMC ITV3000 series, designed to convert an electrical input signal into a proportional pneumatic output pressure. This device functions as a pressure control valve within process and pneumatic systems, utilizing an internal pressure sensor and closed-loop feedback circuit to maintain stable, repeatable output pressure independent of supply pressure fluctuations or flow variations. The ITV3050-034BS is engineered for demanding industrial environments where precise electronic pressure regulation is required, offering stepless control via analog signal input (voltage or current). Its compact inline body design and robust construction make it a direct-fit solution for OEM and MRO applications in automated manufacturing, packaging, and process control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV3050-034BS |
| Series | SMC ITV3000 Series |
| Operating Pressure Range | 0.005 – 0.9 MPa (0.05 – 9 bar) standard industrial grade |
| Input Signal | Analog voltage (0–5 V DC / 0–10 V DC) or current (4–20 mA) — configurable |
| Output Pressure | Proportional to input signal, stepless adjustment |
| Port Size | 1/4 Rc (PT) female threaded ports |
| Mounting & Connection | Inline body mount, standard SMC bracket interface |
| Power Supply | 24 V DC ±10% |
| Fluid | Compressed air (filtered, non-lubricated) |
Engineering Features & Advantages
- Precision Performance: Closed-loop pressure feedback ensures highly accurate and repeatable output pressure regulation, minimizing hysteresis and drift for critical process control.
- Electronic Proportional Control: Accepts analog voltage or current signals for seamless integration with PLC, CNC, and DCS control architectures, enabling remote and automated pressure setpoint adjustment.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust internal diaphragm and sensor components resistant to vibration and temperature variation.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
Its compact inline body design and robust construction make it a direct-fit solution for OEM and MRO applications in automated manufacturing, packaging, and process control systems.
PRODUCT IMAGES

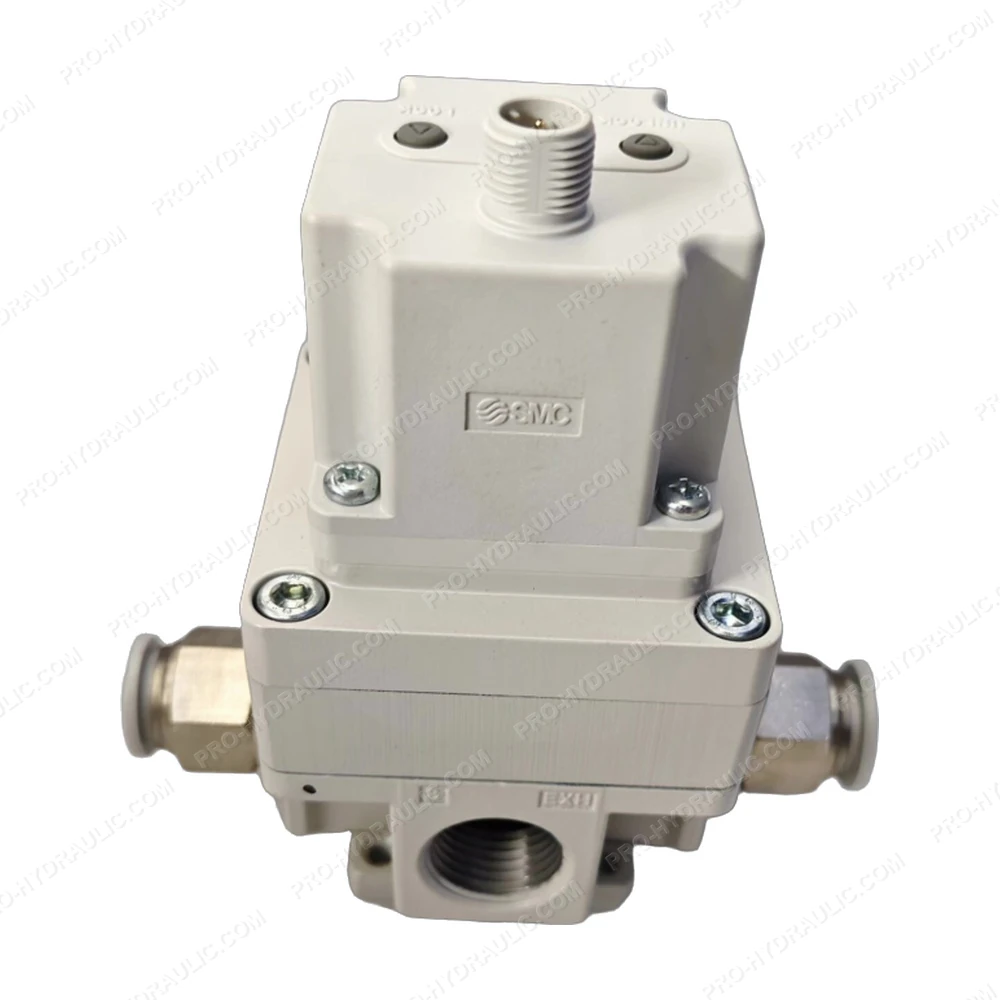

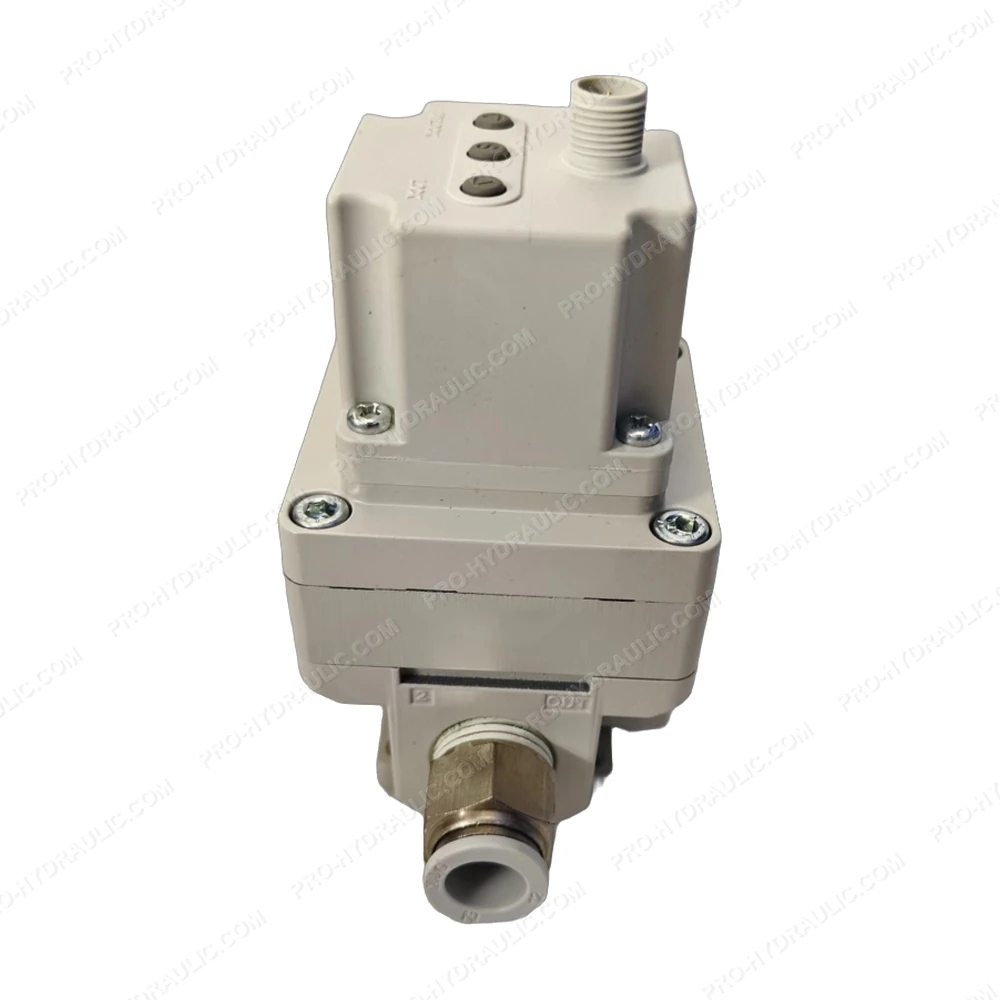

SMC ITV3050-034BS Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV3050-034BS Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features precise pressure control, delivering reliable, leak-free operation for industrial automation systems.
