Product Overview
The SMC ITV3050-313CL is a precision electro-pneumatic regulator engineered by SMC Corporation, a global leader in pneumatic and industrial automation control technology. This unit functions as an electronic pressure regulator that converts an analog electrical input signal (DC voltage or current) into a linearly proportional pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, the ITV3050-313CL provides continuous, remote, and programmable pressure control through closed-loop electronic feedback, ensuring exceptional repeatability and stability. It is a critical control component in automated pneumatic systems where precise, dynamic pressure modulation is required for force control, tensioning, and proportional actuation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV3050-313CL |
| Series | ITV3000 Series |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Input Signal | Analog DC Voltage / Current (Proportional Control) |
| Output Pressure Range | Proportional to Input Signal (0.005–0.9 MPa typical) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Port Size | 1/4 (Standard Pneumatic Port) |
| Control Method | Closed-Loop Electronic Feedback |
Engineering Features & Advantages
- Precision Performance: Closed-loop electronic feedback delivers highly accurate, repeatable output pressure that is linearly proportional to the analog input signal, eliminating manual adjustment errors.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust internal diaphragm and solenoid valve construction.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without system modification.
- Remote & Programmable Control: Enables integration into PLC and automated control systems for dynamic pressure profiling and setpoint changes.
- Low Hysteresis & High Repeatability: Maintains stable output pressure across varying flow demands and supply pressure fluctuations.
Typical Industrial Applications
The SMC ITV3050-313CL electro-pneumatic regulator is widely deployed in plastic injection molding machines for precise clamping force control, metallurgical presses for proportional pressure regulation, CNC machine tools for tool clamping and workpiece holding, and automated assembly and packaging lines where dynamic pneumatic tensioning and force control are essential. It is also used in semiconductor manufacturing equipment and robotic end-effectors requiring fine pressure modulation.
PRODUCT IMAGES

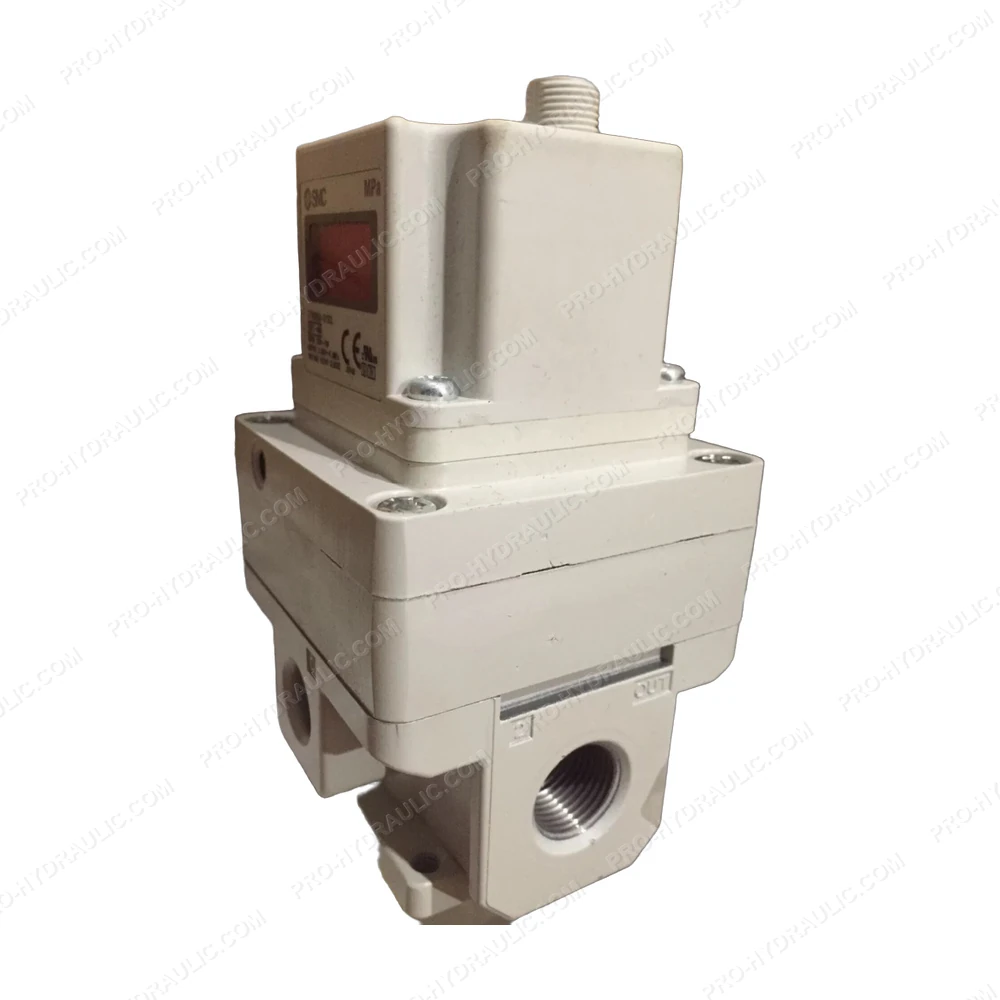

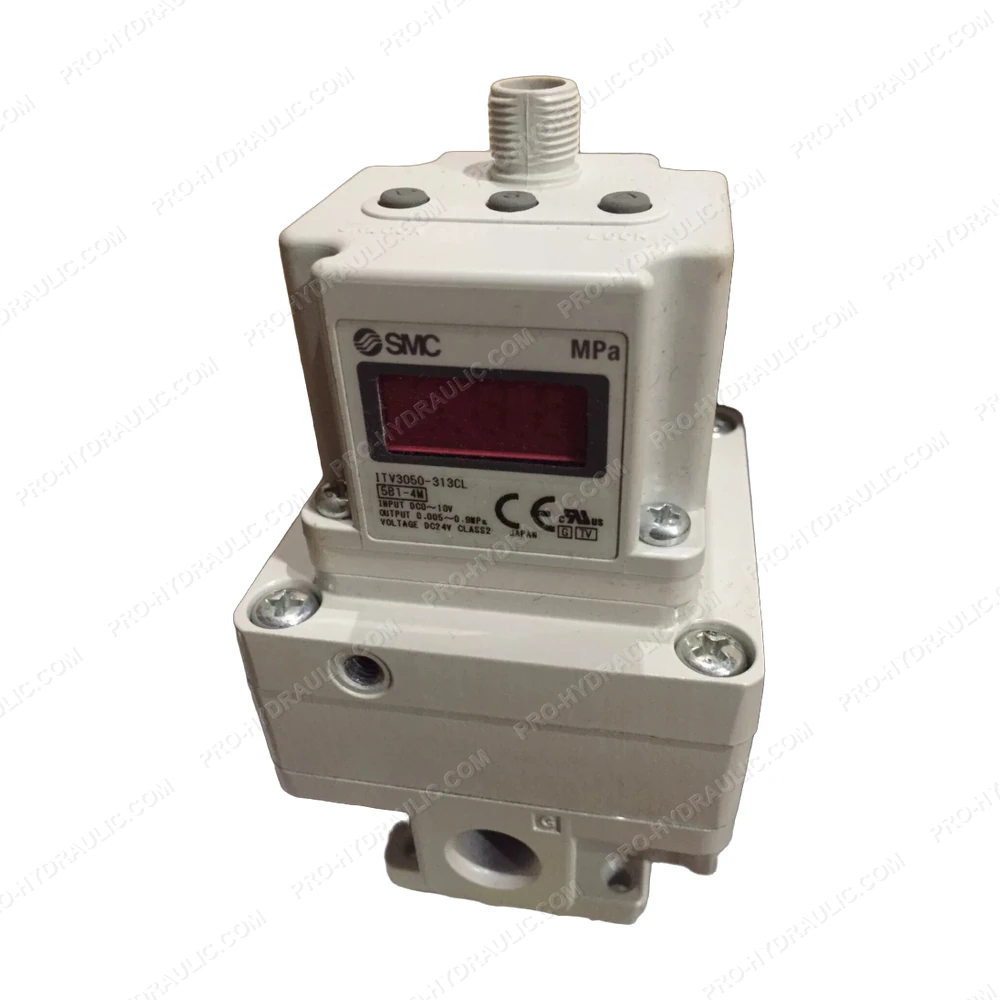

SMC ITV3050-313CL Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV3050-313CL Electro-Pneumatic Proportional Valve. This Japan-made precision valve features a closed-loop control design, delivering accurate, stable pressure regulation for demanding industrial automation systems.
