Product Overview
The SMC ITV3050-40F4CL-X80 is a high-precision electro-pneumatic regulator engineered by SMC Corporation, a global leader in pneumatic and industrial automation technology. This advanced process valve operates on a proportional solenoid principle, converting an analog electrical input signal (voltage or current) into a linearly proportional pneumatic output pressure. Unlike conventional mechanical regulators that require manual adjustment, the ITV3050-40F4CL-X80 delivers continuous, stepless pressure control that is electronically commanded, making it an essential component in closed-loop industrial systems requiring precise, repeatable pressure regulation. The unit features a robust spool and poppet valve architecture with an integrated pressure sensor for real-time feedback, ensuring exceptional output stability and rapid response to signal changes. The “-X80” suffix denotes a specialized configuration within SMC’s ITV3000 series, while the “40F4CL” designation indicates a specific port size, thread type, and electrical connection standard. This regulator is purpose-built for demanding process control environments where accurate electro-pneumatic signal conversion is critical to overall system performance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV3050-40F4CL-X80 |
| Series | SMC ITV3000 Series |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Port Size & Thread | 1/2 (40F4CL configuration) |
| Input Signal | Analog Voltage / Current (Proportional Control) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
Engineering Features & Advantages
- Precision Performance: Proportional solenoid actuation delivers stepless, infinitely variable pressure output that tracks the electrical input signal with high linearity and minimal hysteresis, enabling accurate closed-loop process control.
- Integrated Pressure Feedback: Built-in pressure sensor provides real-time output monitoring, ensuring stable regulation even under fluctuating flow demands and downstream load variations.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a rugged valve body and spool assembly designed to resist contamination and wear in demanding pneumatic circuits.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to existing manifold or piping configurations.
Typical Industrial Applications
The SMC ITV3050-40F4CL-X80 electro-pneumatic regulator is widely deployed in plastic injection molding machines for precise clamp and injection pressure profiling, metallurgical presses requiring programmable force control, CNC machine tools and automated assembly systems needing accurate tool actuation, and general process automation where electronic pressure regulation replaces manual adjustment for improved repeatability and remote controllability.
PRODUCT IMAGES

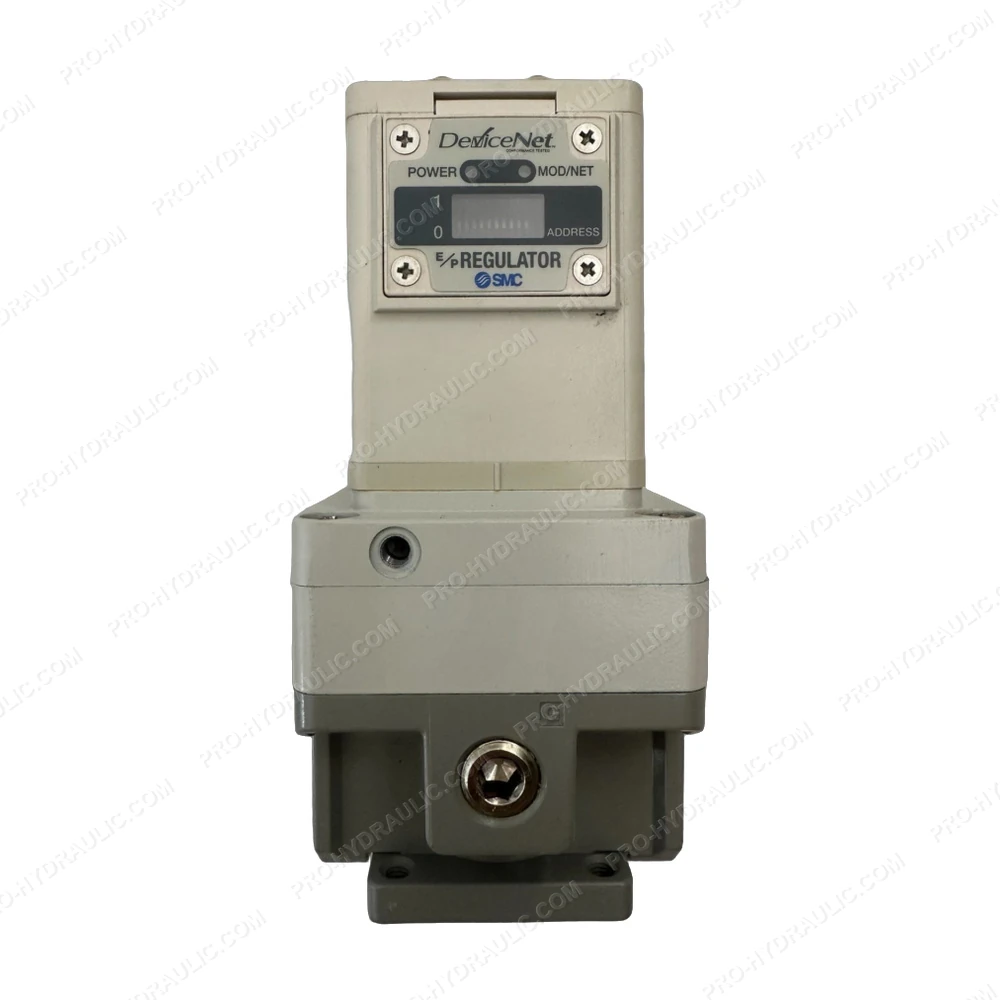

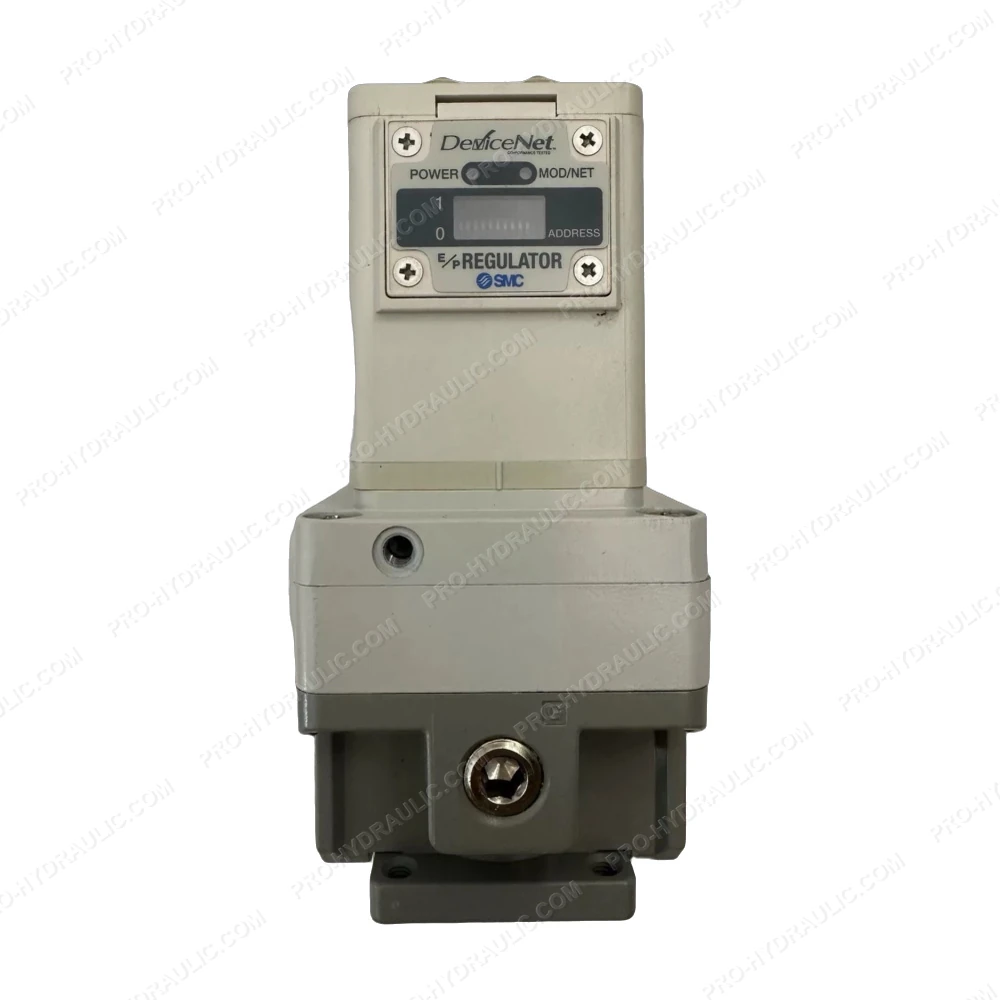

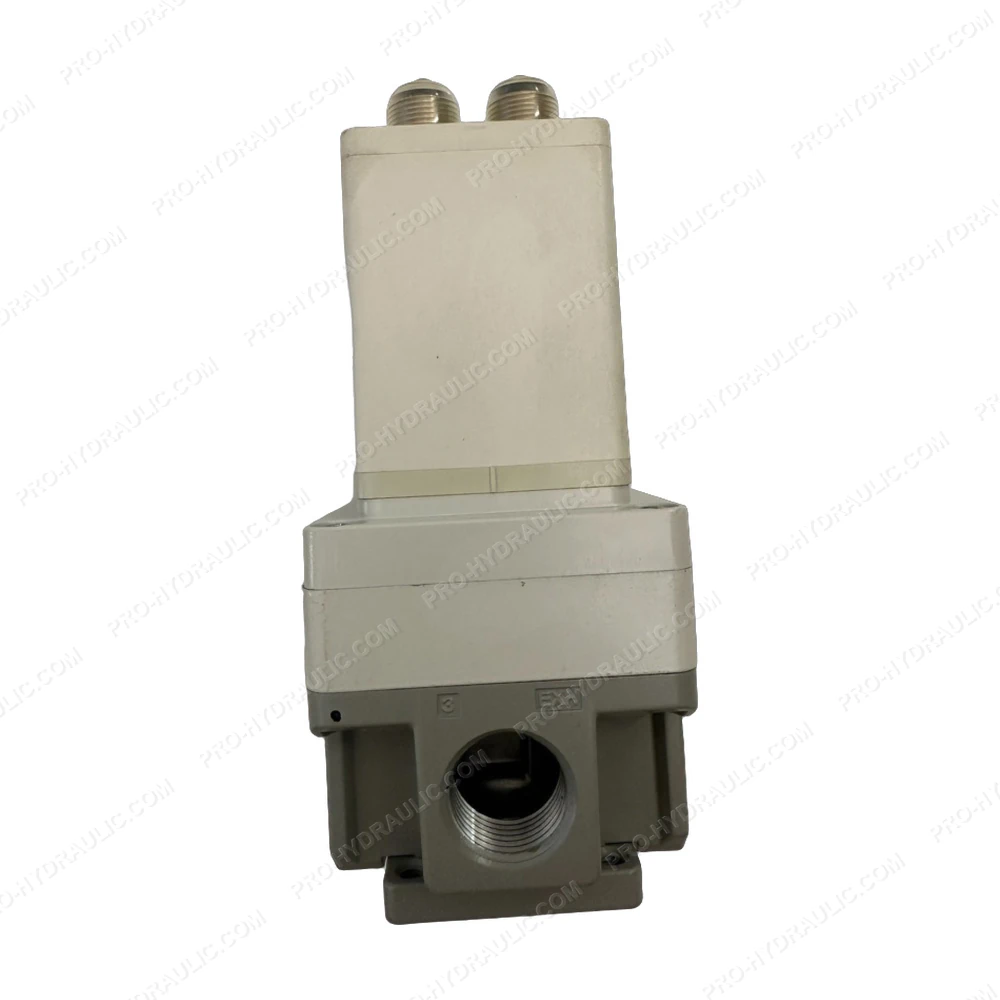

SMC ITV3050-40F4CL-X80 Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV3050-40F4CL-X80 Electro-Pneumatic Proportional Valve. This Japan-made precision valve features a closed-loop pressure control design, delivering accurate, stable regulation for demanding industrial automation systems.
