Product Overview
The SMC ITV3050-CC4CS-01R00031 is a high-precision electro-pneumatic regulator from the SMC ITV3000 series, engineered to provide continuous, stepless pressure control proportional to an electrical input signal. Unlike conventional mechanical regulators that require manual adjustment, this unit utilizes an integrated electronic control circuit and a high-sensitivity pressure sensor to deliver closed-loop regulation of secondary pressure with exceptional repeatability and minimal hysteresis. As a process and pneumatic valve component, it functions as the critical interface between electronic control systems (PLC, CNC, or analog controllers) and pneumatic actuation circuits, enabling dynamic pressure modulation for force-controlled operations. The ITV3050 designation indicates a 1/4-inch port size with a pressure range suitable for standard industrial compressed air systems, making it a direct-fit solution for precision automation and process control applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Regulator (Process & Pneumatic Valve) |
| Model Designation | ITV3050-CC4CS-01R00031 |
| Operating Pressure | Standard Industrial Grade (Up to 0.9 MPa / 9 bar rated) |
| Mounting & Connection | 1/4″ Rc (PT) Port Threads / Bracket or Panel Mount |
| Input Signal | Analog Voltage (0–5 VDC / 0–10 VDC) or Current (4–20 mA) |
| Output Pressure Range | 0.005 – 0.9 MPa (0.05 – 9 bar) adjustable |
| Power Supply | 24 VDC ±10% |
| Linearity / Hysteresis | ≤ ±1% F.S. / ≤ 0.5% F.S. |
| Fluid | Compressed Air (Filtered, non-lubricated) |
Engineering Features & Advantages
- Precision Performance: Closed-loop electronic feedback maintains output pressure with high accuracy and repeatability, eliminating the drift and manual adjustment inherent to mechanical regulators.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust internal solenoid and sensor components rated for millions of cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC ITV3000 series mounting, port, and signal interfaces for drop-in OEM replacement.
- Dynamic Response: Fast electrical-to-pneumatic signal conversion enables real-time pressure profiling for force-controlled and tension-controlled processes.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original SMC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The ITV3050 designation indicates a 1/4-inch port size with a pressure range suitable for standard industrial compressed air systems, making it a direct-fit solution for precision automation and process control applications.
PRODUCT IMAGES

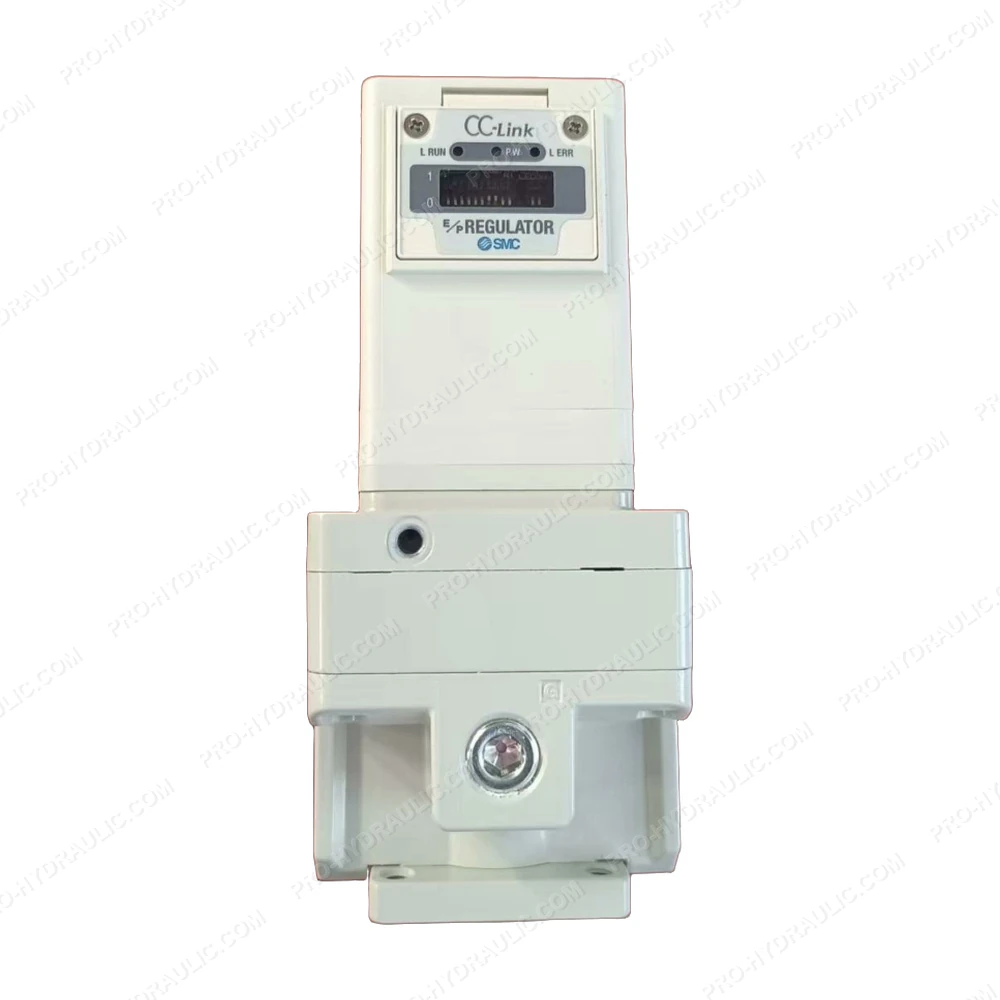

SMC ITV3050-CC4CS-01R00031 Electro-Pneumatic Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SMC ITV3050-CC4CS-01R00031 Electro-Pneumatic Proportional Valve. This Japan-made 24V DC component features a precise pressure control function, delivering reliable and accurate fluid control for heavy-duty industrial automation systems.
